저번 포스팅에서 구현한 게시판 목록에 페이지네이션 기능을 추가해봤다.

수정된 코드 아래에 첨부

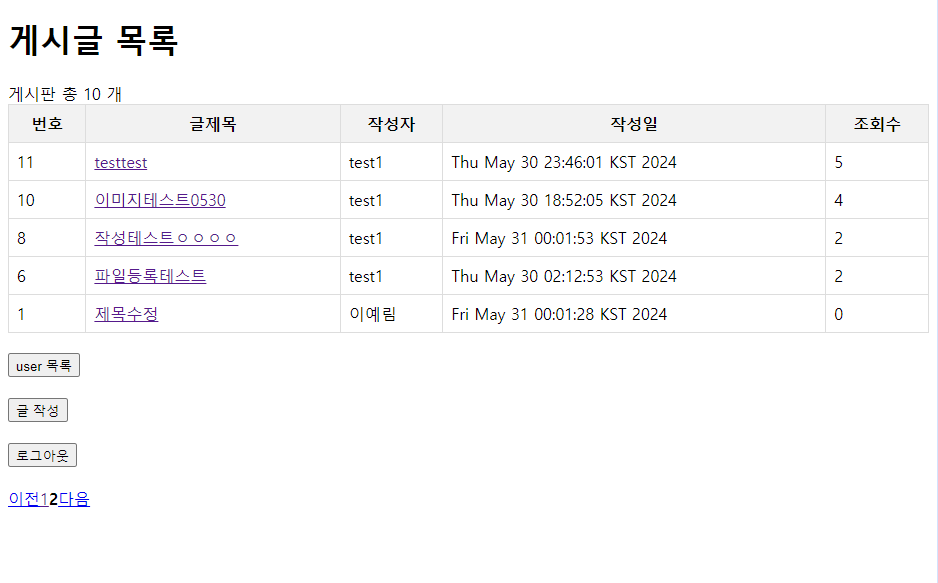

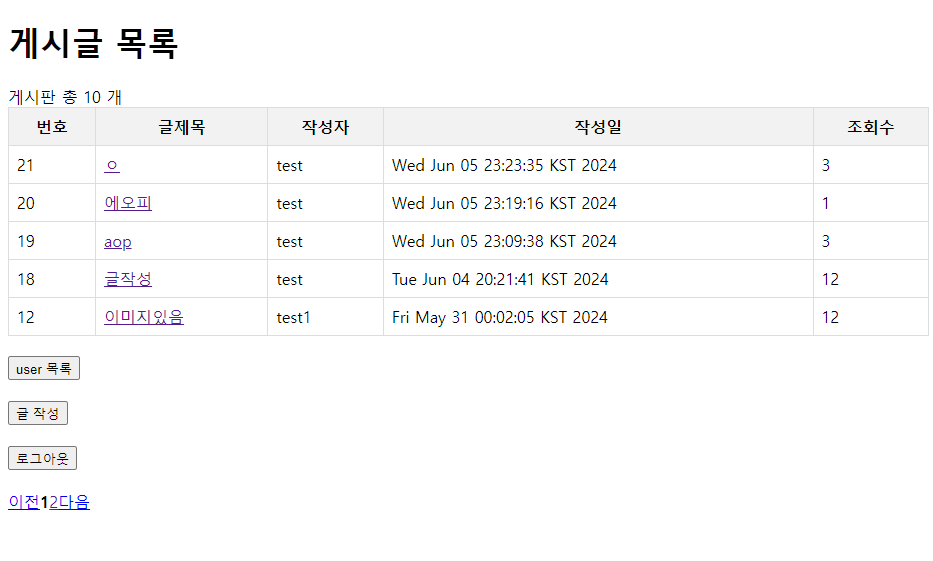

게시판 페이지네이션

개발 환경

  • 언어: java

  • Spring Boot ver : 2.3.1.RELEASE

  • Mybatis : 2.3.0

  • IDE: intelliJ

  • SDK: JDK 17

  • 의존성 관리툴: Maven

  • DB: MySQL 8.0.12

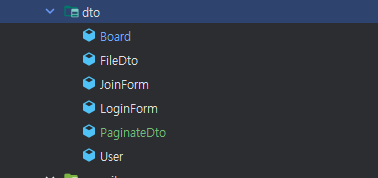

  • PaginateDto.java Class 추가

DTO

  • Board.java
    package org.study.board.dto;

import lombok.Data;

import java.util.Date;
import java.util.List;

@Data
public class Board {

    private Integer bno;
    private String title;
    private String content;
    private String writer;
    private Date regdate;
    private int hit;
    private boolean deleteYn;
    private boolean noticeYn;
    private Integer userIdx;

    /*페이징 기능 추가*/
    private Integer pageNo;	    // 현재 페이지 번호
    private int pageSize;	    // 페이지 당 항목 수
    private int pageOffset; 	// 현재 페이지 이전 항목 수

    /*첨부파일*/
    private List<FileDto> list;
    private String filename;
    private String[] uuids;
    private String[] filenames;
    private String[] contentTypes;

}
  • PaginationDto.java
    package org.study.board.dto;

import lombok.Getter;

import java.io.Serializable;

@Getter
public class PaginateDto implements Serializable {

    private static final long serialVersionUID = 1L;

    private int totalSize;				// 총 항목 수
    private int totalPage;				// 총 페이지 수

    private int pageNo = 1;				// 현재 페이지 번호
    private int pageSize;				// 페이지 당 항목 수
    private String pageName = "page";	// 페이지 파라미터명

    private boolean pageLoop = false;	// 페이지 순환 여부(pageNo가 totalPage보다 클 경우 pageNo 설정 방법)

    private int pageOffset;				// 현재 페이지 이전 항목 수
    private int pageFinal;				// 현재 페이지 마지막 항목 수

    private int nationSize;				// 페이지 네비게이션 묶음 당 수
    private int nationBegin;			// 페이지 네비게이션 시작 번호
    private int nationClose;			// 페이지 네비게이션 끝 번호

    private String params;				// 파라미터(key1=value1&key2=value2)

    public PaginateDto(int pageSize, int nationSize) {
        this.pageSize = pageSize;
        this.nationSize = nationSize;
    }

    public PaginateDto(int pageSize) {
        this(pageSize, 0);
    }

    public void setPageNo(int pageNo) {
        this.pageNo = pageNo;
    }

    public void setPageLoop(boolean pageLoop) {
        this.pageLoop = pageLoop;
    }

    public void setTotalSize(int totalSize) {
        this.totalSize = totalSize;

        this._calc();
    }

    public void setPageName(String pageName) {
        this.pageName = pageName;
    }

    public void setParams(String params) {
        this.params = params;
    }

    private void _calc() {
        if (pageSize <= 0) return;

        // 전체 페이지 수 계산
        totalPage = (int) Math.ceil(totalSize / (double) pageSize);
        if (totalPage < 1) {
            totalPage = 1;
        }

        // 현재 페이지 번호 확인
        if (pageNo < 1) {
            pageNo = 1;
        }
        if (totalPage < pageNo) {
            pageNo = (pageLoop ? 1 : totalPage);
        }

        // 페이지 번호 계산
        pageOffset = (pageNo - 1) * pageSize;
        pageFinal = pageOffset + pageSize;
        if (pageFinal > totalSize) {
            pageFinal = totalSize;
        }

        // 페이지 네비게이션 계산
        if (nationSize > 0) {
            int share = (int) Math.floor(pageNo / (double) nationSize);

            nationBegin = (share * nationSize) + 1;
            nationClose = (share + 1) * nationSize;

            if (nationClose > totalPage) {
                nationClose = totalPage;
            }
            if (pageNo % nationSize == 0) {
                nationBegin -= nationSize;
                nationClose = nationBegin + nationSize - 1;
            }
        }
    }

    @Override
    public String toString() {
        return "PaginateDto [totalSize=" + totalSize + ", totalPage=" + totalPage + ", pageNo=" + pageNo + ", pageSize="
                + pageSize + ", pageOffset=" + pageOffset + ", pageFinal=" + pageFinal + ", nationSize=" + nationSize
                + ", nationBegin=" + nationBegin + ", nationClose=" + nationClose + "]";
    }

}

Board

  • BoardController.java
    package org.study.board.controller;

import lombok.extern.slf4j.Slf4j;
import org.apache.commons.io.FileUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.Resource;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import org.study.board.dto.Board;
import org.study.board.dto.FileDto;
import org.study.board.dto.PaginateDto;
import org.study.board.dto.User;
import org.study.board.repository.BoardMapper;
import org.study.board.repository.UserMapper;
import org.study.board.service.BoardService;
import org.study.board.util.FileUtil;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;
import java.util.Map;
import java.util.UUID;

@Slf4j
@Controller
public class BoardController {

    @Autowired
    private BoardService boardService;
    @Autowired
    private UserMapper userMapper;
    @Autowired
    private HttpServletRequest request;

    @RequestMapping("/main")
    public String main(Board board, Model model, @RequestParam(defaultValue = "1") int page){

        // 게시글 총 개수
        int total = boardService.cntBoard();
        model.addAttribute("cntBoard", total);
        // 페이징
        PaginateDto paginate = new PaginateDto(5, 3);
        paginate.setPageNo(page);
        paginate.setTotalSize(total);

        board.setPageNo(page);
        board.setPageSize(paginate.getPageSize());
        board.setPageOffset(paginate.getPageOffset());

        model.addAttribute("paginate", paginate);
        model.addAttribute("board", boardService.getBoardlist(board));
        return "board/main";
    }

    @GetMapping("/board/{bno}")
    public String boardDetail(@PathVariable Integer bno, Model model, Board board){
        Board boardDetail = boardService.getBoard(bno);
        List<FileDto> file = boardService.getFile(board);

        model.addAttribute("board", boardDetail);
        model.addAttribute("getFile", file);
        return "board/write";
    }

    @RequestMapping("/write")
    public String write(@CookieValue(name="idx", required = false) Long idx, Model model, Board board){
        User loginUser=userMapper.findById(idx);
        model.addAttribute("user", loginUser);
        if(board.getBno()==null){
            model.addAttribute("getBoard", board);
            model.addAttribute("getFile", boardService.getFile(board));
        }
        return "board/write";
    }

    @RequestMapping("/insertBoard")
    public String insertBoard(@ModelAttribute Board board, @CookieValue(name="idx", required = false) Long idx, Model model) {
        User loginUser=userMapper.findById(idx);
        board.setWriter(loginUser.getUsername());
        model.addAttribute("user", loginUser);
        boardService.insertBoard(board);
        return "redirect:/main";
    }

    @DeleteMapping("/delete/{bno}")
    public ResponseEntity<String> deleteBoard(@PathVariable Integer bno) {
        boolean deleted = boardService.deleteBoard(bno);
        if (deleted) {
            return ResponseEntity.ok("게시물이 성공적으로 삭제되었습니다.");
        } else {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body("게시물 삭제 중에 오류가 발생했습니다.");
        }
    }

    /*ajax로 첨부파일 처리*/
    @RequestMapping("/ajaxFile")
    @ResponseBody
    public List<FileDto> ajaxFile(@RequestParam("files") MultipartFile[] uploadFile) {
        // 파일 등록
        List<FileDto> fileList = FileUtil.uploadFile(uploadFile);
        return fileList;
    }

    /*파일 다운로드*/
    @RequestMapping("/downloadFile")
    public ResponseEntity<Resource> downloadFile(@ModelAttribute FileDto fileDto) throws IOException {
        return boardService.downloadFile(fileDto);
    }

}
  • BoardService.java
    package org.study.board.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.InputStreamResource;
import org.springframework.core.io.Resource;
import org.springframework.http.ContentDisposition;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Service;
import org.study.board.dto.Board;
import org.study.board.dto.FileDto;
import org.study.board.repository.BoardMapper;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.List;

@Slf4j
@Service
public class BoardService {

    @Autowired
    private BoardMapper mapper;

    public List<Board> getBoardlist(Board board) {
        return mapper.getBoardList(board);
    }

    // 첨부파일 리스트
    public List<FileDto> getFile (Board board) {return mapper.getFile(board);}

    public Board getBoard(Integer bno){
        return mapper.getBoard(bno);
    }

    public Integer cntBoard() {return mapper.cntBoard();}

    public void insertBoard(Board board){
        if (board.getBno() != null) {
            mapper.deleteFile(board);
        }
        if(board.getBno()!=null){
            mapper.updateBoard(board);
        }else{
            mapper.insertBoard(board);
        }
        // 파일 이름 유니크하게 생성
        List<FileDto> list = new ArrayList<>();
        String[] uuids = board.getUuids();
        String[] fileNames = board.getFilenames();
        String[] contentTypes = board.getContentTypes();

        if(uuids!=null){
            for(int i=0;i<uuids.length;i++){
                FileDto fileDto = new FileDto();
                fileDto.setFilename(fileNames[i]);
                fileDto.setUuid(uuids[i]);
                fileDto.setContentType(contentTypes[i]);
                list.add(fileDto);
            }
        }

        // 첨부파일 등록 (게시글이 있을경우)
        if (!list.isEmpty()) {
            board.setList(list);
            mapper.insertFile(board);
        }
    }

    // 파일 다운로드
    public ResponseEntity<Resource> downloadFile(FileDto fileDto) throws IOException {
        // 파일 저장 경로 설정
        String filePath = "d:\\image";
        Path path = Paths.get(filePath + "/" + fileDto.getUuid() + "_" + fileDto.getFilename());
        String contentType = Files.probeContentType(path);
        // header를 통해서 다운로드 되는 파일의 정보를 설정한다.
        HttpHeaders headers = new HttpHeaders();
        headers.setContentDisposition(ContentDisposition.builder("attachment")
                .filename(fileDto.getFilename(), StandardCharsets.UTF_8)
                .build());
        headers.add(HttpHeaders.CONTENT_TYPE, contentType);

        Resource resource = new InputStreamResource(Files.newInputStream(path));

        return new ResponseEntity<>(resource, headers, HttpStatus.OK);
    }

    public boolean deleteBoard(Integer bno){
        return mapper.deleteBoard(bno);
    }

}
  • BoardMapper.java
    package org.study.board.repository;

import org.apache.ibatis.annotations.Mapper;
import org.study.board.dto.Board;
import org.study.board.dto.FileDto;

import java.util.List;

@Mapper
public interface BoardMapper {

    List<Board> getBoardList(Board board);
    List<FileDto> getFile(Board board);
    Board getBoard(Integer bno);
    Integer cntBoard();
    void insertBoard(Board board);
    void updateBoard(Board board);
    boolean deleteBoard(Integer bno);
    void insertFile(Board board);
    void deleteFile(Board board);
}
  • boardMapper.xml
    <?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="org.study.board.repository.BoardMapper">

    <select id="getBoardList" resultType="org.study.board.dto.Board">
        /*SELECT *
        from board
        where delete_yn!=1*/
        SELECT b.*
             , CASE WHEN COUNT(*)  <![CDATA[>]]> 1
                        THEN CONCAT(f.filename, '외 ' , COUNT(*)-1, '건')
                    ELSE f.filename
            END file_name
        FROM board b
        LEFT JOIN file f ON b.bno = f.bno
        WHERE b.delete_yn != 1
        GROUP BY b.bno
        ORDER BY b.bno DESC
            LIMIT #{pageSize} OFFSET ${pageOffset}
    </select>

    <select id="getBoard" parameterType="int"
            resultType="org.study.board.dto.Board">
        select *
        from board
        where delete_yn!=1 and bno=#{bno}
    </select>

    <select id="cntBoard" resultType="Integer">
        SELECT count(*)
        FROM board
        WHERE delete_yn!=1
    </select>

    <!--첨부파일 리스트-->
    <select id="getFile" resultType="org.study.board.dto.FileDto">
        SELECT *
        FROM file
        WHERE delete_yn!=1 and bno=#{bno}
    </select>

    <insert id="insertBoard" parameterType="org.study.board.dto.Board">
        INSERT INTO board (title, content, writer, regdate, hit, delete_yn, user_idx)
        VALUES (#{title}, #{content}, #{writer}, NOW(), 0, 0, #{userIdx})
        <selectKey keyProperty="bno" resultType="int" order="AFTER">
            SELECT LAST_INSERT_ID()
        </selectKey>
    </insert>

    <update id="updateBoard" parameterType="org.study.board.dto.Board">
        UPDATE board
        SET title=#{title}, content=#{content},regdate=NOW(), hit = #{hit}, delete_yn=0, user_idx = #{userIdx}
        WHERE bno = #{bno}
    </update>

    <update id="deleteBoard" parameterType="int">
        update board
        SET delete_yn=1
        WHERE bno=#{bno}
    </update>

    <!-- 파일 정보를 삽입하는 쿼리 -->
    <insert id="insertFile" parameterType="org.study.board.dto.Board">
        INSERT INTO file (bno, uuid, filename, content_type)
        VALUES
        <foreach collection="list" separator="," index="index" item="item">
            (#{bno}, #{item.uuid}, #{item.filename}, #{item.contentType})
        </foreach>
    </insert>

    <update id="deleteFile" parameterType="org.study.board.dto.Board">
        UPDATE file
        SET delete_yn=1
        WHERE bno=#{bno} AND delete_yn=0
    </update>

</mapper>

View (webapp/WEB-INF/jsp/views)

  • board
    • main.jsp

      • 게시판 메인 페이지

        <%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib prefix="fn" uri="http://java.sun.com/jsp/jstl/functions" %>
<!DOCTYPE HTML>
<head>
    <title>게시판 메인</title>
    <style>
        .button-container {
            margin-top: 20px;
        }
        .button-container input {
            margin-right: 10px;
        }
        table {
            width: 100%;
            border-collapse: collapse;
        }
        th, td {
            border: 1px solid #ddd;
            padding: 8px;
        }
        th {
            background-color: #f2f2f2;
        }
    </style>
</head>
<body>
<h1>게시글 목록</h1>
게시판 총 ${cntBoard} 개
<table>
    <thead>
    <tr>
        <th class="one wide">번호</th>
        <th class="ten wide">글제목</th>
        <th class="two wide">작성자</th>
        <th class="three wide">작성일</th>
    </tr>
    </thead>

    <tbody>
    <c:forEach var="board" items="${board}">
        <tr>
            <td><span>${board.bno}</span></td>
            <td><a href="/board/${board.bno}"><span>${board.title}</span></a></td>
            <td><span>${board.writer}</span></td>
            <td><span>${board.regdate}</span></td>
        </tr>
    </c:forEach>
    </tbody>
</table>
<%--페이징 처리 시작--%>
<div class="col-sm-12 col-md-7" style="margin: auto">
    <div class="dataTables_paginate paging_simple_numbers" id="dataTable_paginate">
        <div class="paging">
            <c:set var="_paginate" value="${paginate}" />
            <c:if test="${not empty _paginate}">
                <c:set var="_page_no" value="${_paginate.pageNo}" />
                <c:set var="_page_name" value="${_paginate.pageName}" />
                <c:set var="_page_total" value="${_paginate.totalPage}" />
                <c:set var="_page_params" value="${fn:escapeXml(_paginate.params)}${empty _paginate.params ? '' : '&'}" />
                <c:set var="_nation_size" value="${_paginate.nationSize}" />
                <c:set var="_nation_begin" value="${_paginate.nationBegin}" />
                <c:set var="_nation_close" value="${_paginate.nationClose}" />
                <c:set var="_paging" value="" />

                <%-- c:choose>
                    <c:when test="${_page_no gt 1}">
                        <c:set var="_paging">${_paging}<a href="?${_page_params}${_page_name}=1" page="1" class="first">처음</a></c:set>
                    </c:when>
                    <c:otherwise>a href="#" onclick="re
                <c:set var="_paging">${_paging}<turn false" class="first">처음</a></c:set>
                    </c:otherwise>
                </c:choose --%>

                <c:choose>
                    <c:when test="${_nation_begin gt 1}">
                        <c:set var="_page_prev" value="${_nation_begin - 1}" />
                        <c:set var="_paging">${_paging}<a href="?${_page_params}${_page_name}=${_page_prev}" page="${_page_prev}" class="prev">이전</a></c:set>
                    </c:when>
                    <c:otherwise>
                        <c:set var="_paging">${_paging}<a href="#" onclick="return false" class="prev">이전</a></c:set>
                    </c:otherwise>
                </c:choose>

                <c:forEach var="__p" begin="${_nation_begin}" end="${_nation_close}">
                    <c:choose>
                        <c:when test="${__p eq _page_no}">
                            <c:set var="_paging">${_paging}<strong class="current">${__p}</strong></c:set>
                        </c:when>
                        <c:otherwise>
                            <c:set var="_paging">${_paging}<a href="?${_page_params}${_page_name}=${__p}" page="${__p}">${__p}</a></c:set>
                        </c:otherwise>
                    </c:choose>
                </c:forEach>

                <c:choose>
                    <c:when test="${_nation_close ne _page_total}">
                        <c:set var="_page_next" value="${_nation_begin + _nation_size}" />
                        <c:set var="_paging">${_paging}<a href="?${_page_params}${_page_name}=${_page_next}" page="${_page_next}" class="next">다음</a></c:set>
                    </c:when>
                    <c:otherwise>
                        <c:set var="_paging">${_paging}<a href="#" onclick="return false" class="next">다음</a></c:set>
                    </c:otherwise>
                </c:choose>

                <%-- c:choose>
                    <c:when test="${_page_no lt _page_total}">
                        <c:set var="_paging">${_paging}<a href="?${_page_params}${_page_name}=${_page_total}" page="${_page_total}" class="last">마지막</a></c:set>
                    </c:when>
                    <c:otherwise>
                        <c:set var="_paging">${_paging}<a href="#" onclick="return false" class="last">마지막</a></c:set>
                    </c:otherwise>
                </c:choose --%>

                <c:out value="${_paging}" escapeXml="false" />
            </c:if>
        </div>
    </div>
</div>
<%--페이징 처리 끝--%>
    <%
    // 쿠키 배열 가져오기
    Cookie[] cookies = request.getCookies();
    boolean isLoggedIn = false;

    // 쿠키 배열을 순회하며 idx 쿠키의 존재 여부 확인
    if (cookies != null) {
        for (Cookie c : cookies) {
            if (c.getName().equals("idx")) {
                // idx 쿠키가 존재하면 로그인 상태로 설정
                isLoggedIn = true;
                break; // 로그인 상태이므로 더 이상 반복할 필요가 없음
            }
        }
    }
%>

<div class="button-container">
    <%
        // 로그인 상태에 따라 버튼 표시
        if (isLoggedIn) {
    %>
    <input type="button" value="user 목록" onclick="location.href='/user/main'"><br/><br/>
    <input type="button" value="글 작성" onclick="location.href='/write'"><br/><br/>
    <input type="button" value="로그아웃" onclick="location.href='/logout'"><br/><br/>
    <%
    } else {
    %>
    <input type="button" value="로그인" onclick="location.href='/login'"><br/><br/>
    <input type="button" value="회원가입" onclick="location.href='/join'"><br/><br/>
    <%
        }
    %>
</div>

</body>
</html>

실행 화면

  • /main

    • 메인 페이지 - 1페이지

    • 메인 페이지 - 2페이지 /main?page=2

profile
예림
백엔드 개발하는 사람
이전 포스트

스프링부트(Spring Boot) MyBatis 게시판 만들기1 - CRUD 처리 [Mysql, DBeaver, IntelliJ, Maven]

다음 포스트

스프링부트(Spring Boot) MyBatis 게시판 만들기3 - Interceptor 처리 [Mysql, DBeaver, IntelliJ, Maven]

0개의 댓글
