Networking

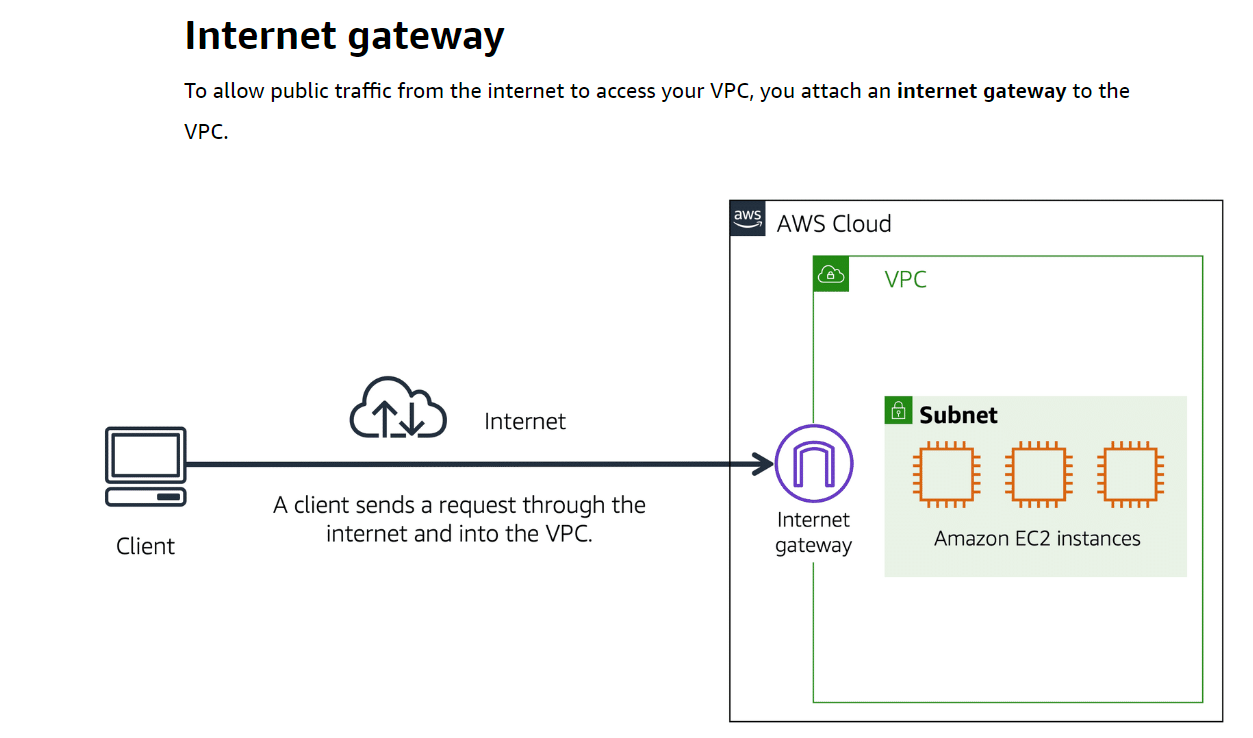

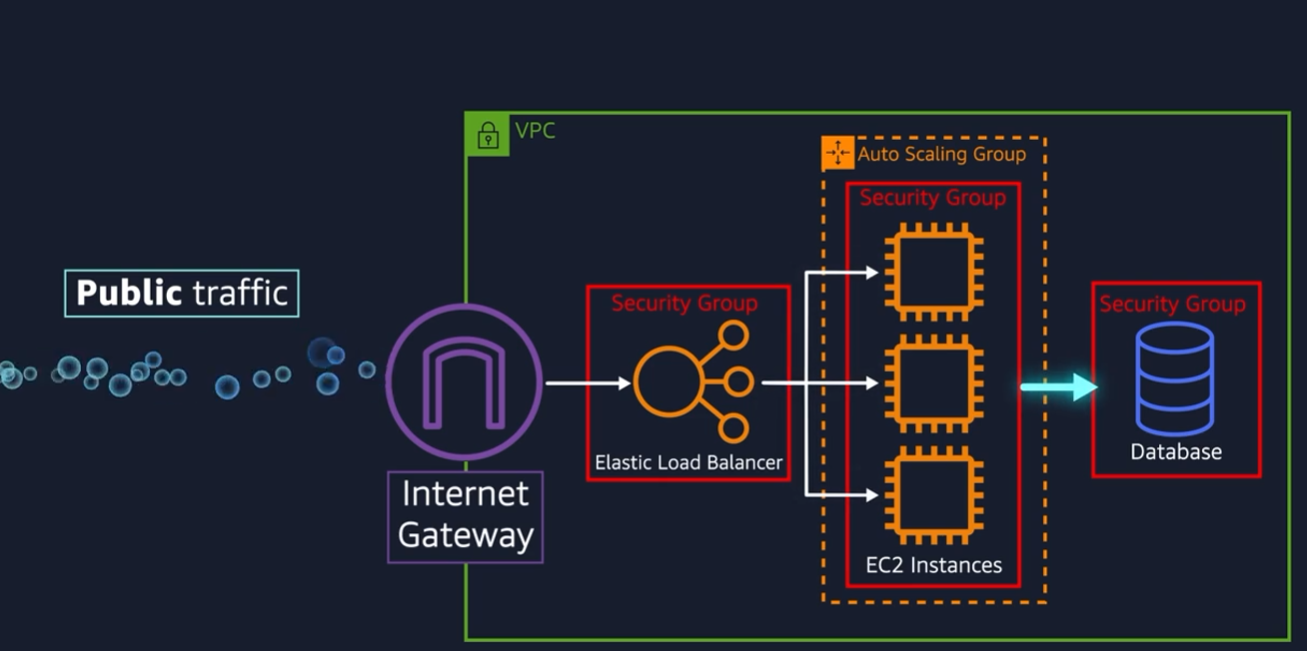

You need to attach IGW Internet Gateway to let public traffic access your VPC.
An internet gateway is a connection between a VPC and the internet

Install Virtual Private Gateway to avoid public traffic and only allows private traffic and allows private connection, for example, your data center. (VPN)

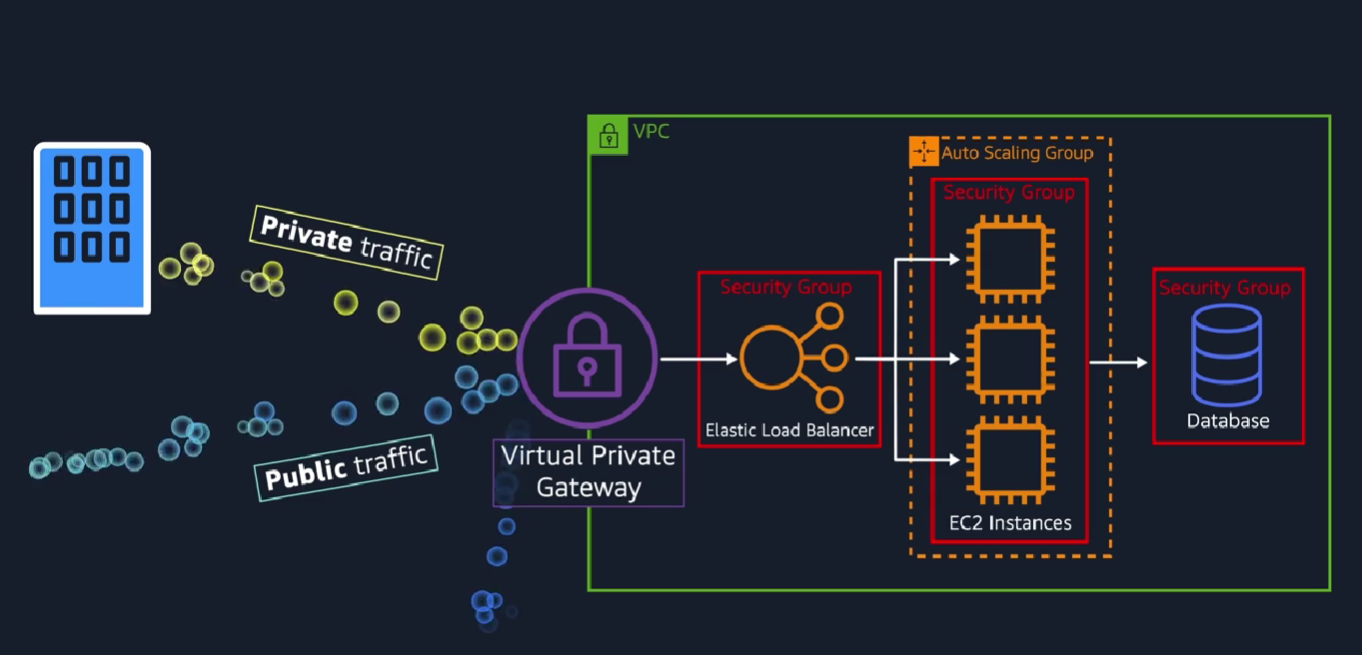

Virtual private gateway

To access private resources in a VPC, you can use a virtual private gateway.

Here’s an example of how a virtual private gateway works. You can think of the internet as the road between your home and the coffee shop. Suppose that you are traveling on this road with a bodyguard to protect you. You are still using the same road as other customers, but with an extra layer of protection.

The bodyguard is like a virtual private network (VPN) connection that encrypts (or protects) your internet traffic from all the other requests around it.

The virtual private gateway is the component that allows protected internet traffic to enter into the VPC. Even though your connection to the coffee shop has extra protection, traffic jams are possible because you’re using the same road as other customers.

Next, let's talk about a VPC with all internal private resources. We don't want just anyone from anywhere to be able to reach these resources. So we don't want an internet gateway attached to our VPC. Instead, we want a private gateway that only allows people in if they are coming from an approved network, not the public internet. This private doorway is called a virtual private gateway, and it allows you to create a VPN connection between a private network, like your on-premises data center or internal corporate network to your VPC.

To relate this back to the coffee shop, this would be like having a private bus route going from my building to the coffee shop. If I want to go get coffee, I first must badge into the building, thus authenticating my identity, and then I can take the secret bus route to the internal coffee shop that only people from my building can use. So if you want to establish an encrypted VPN connection to your private internal AWS resources, you would need to attach a virtual private gateway to your VPC.

Now the problem with our super secret bus route is that it still uses the open road. It's susceptible to traffic jams and slowdowns caused by the rest of the world going about their business. The same thing is true for VPN connections. They are private and they are encrypted, but they still use a regular internet connection that has bandwidth that is being shared by many people using the internet.

AWS Direct Connect

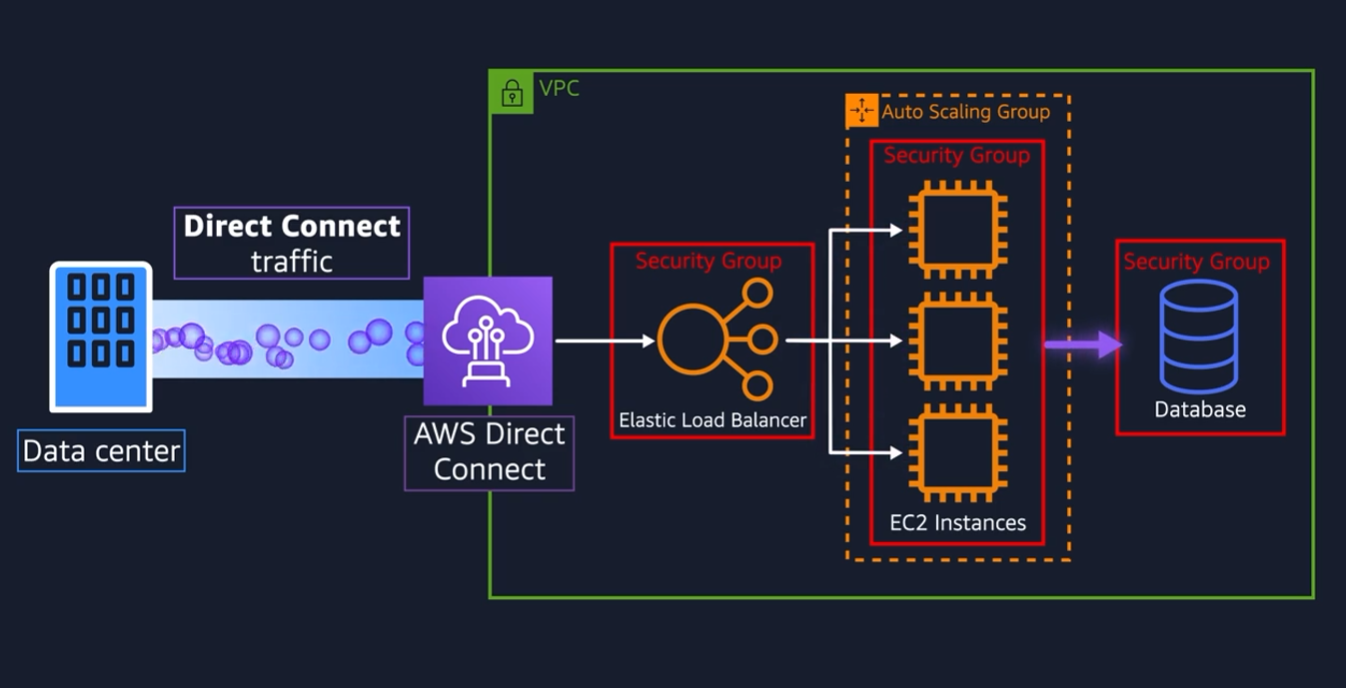

AWS Direct Connect(opens in a new tab) is a service that lets you to establish a dedicated private connection between your data center and a VPC.

Suppose that there is an apartment building with a hallway directly linking the building to the coffee shop. Only the residents of the apartment building can travel through this hallway.

This private hallway provides the same type of dedicated connection as AWS Direct Connect. Residents are able to get into the coffee shop without needing to use the public road shared with other customers.

So what I've done to make things more reliable and less susceptible to slowdowns is I made a totally separate magic doorway that leads directly from the studio into the coffee shop. No one else driving around on the road can slow me down because this is my direct doorway; no one else can use it. What, did you not have a secret magic doorway into your favorite coffee shop? All right, moving on. The point being is you still want a private connection, but you want it to be dedicated and shared with no one else. You want the lowest amount of latency possible with the highest amount of security possible.

With AWS, you can achieve that using what is called AWS Direct Connect. Direct Connect allows you to establish a completely private, dedicated fiber connection from your data center to AWS. You work with a Direct Connect partner in your area to establish this connection, because like my magic doorway, AWS Direct Connect provides a physical line that connects your network to your AWS VPC. This can help you meet high regulatory and compliance needs, as well as sidestep any potential bandwidth issues. It's also important to note that one VPC might have multiple types of gateways attached for multiple types of resources all residing in the same VPC, just in different subnets.

In summary

1. Private Subnet: Isolate databases containing customers' personal information.
2. Virtual Private Gateway: Create a VPN connection between the VPC and the internal corporate network.
3. Public Subnet: Support the customer-facing website.
4. AWS Direct Connect: Establish a dedicated connection between the on-premises data center and the VPC.
