✅ What I did today

Udemy Course : Unity Shader

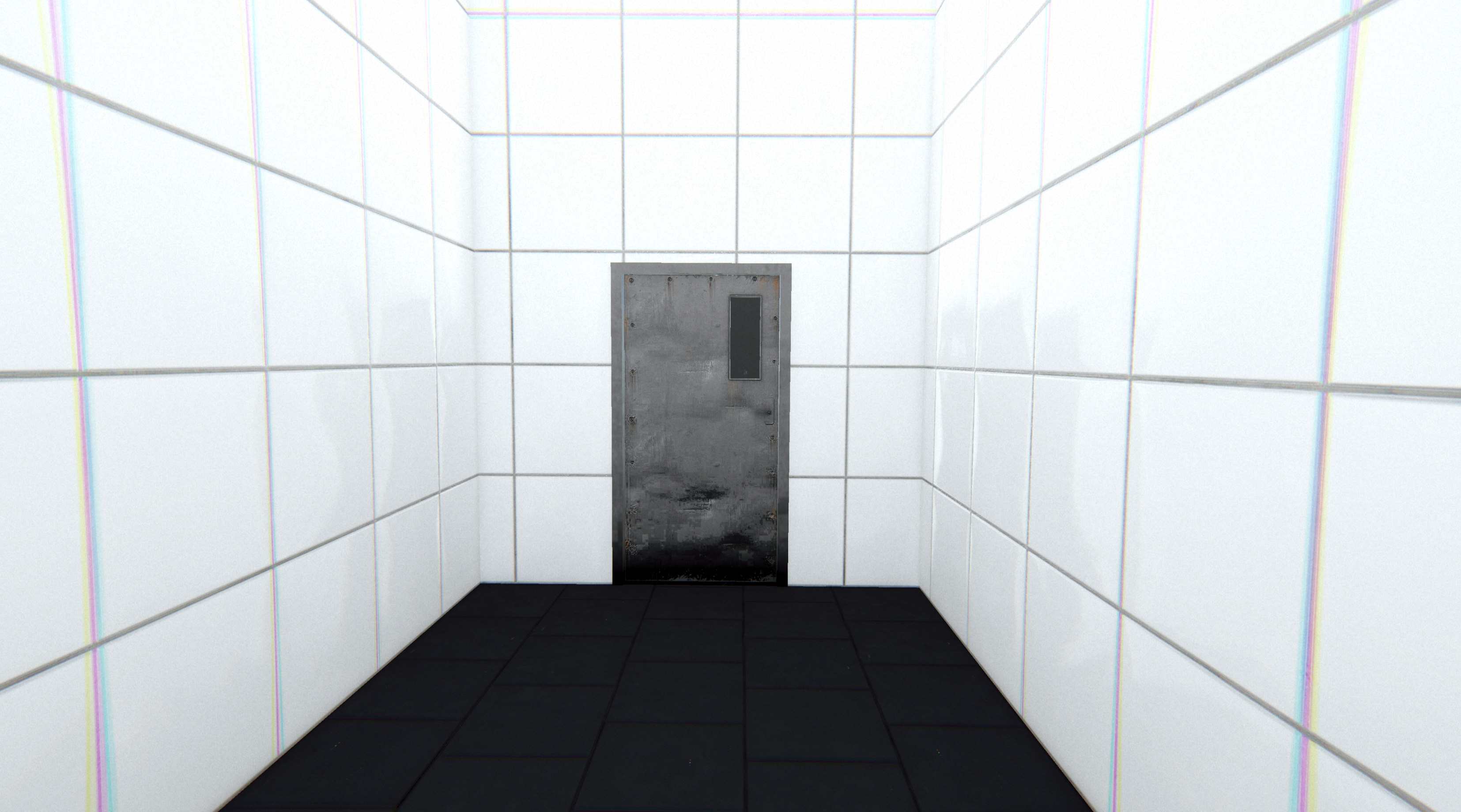

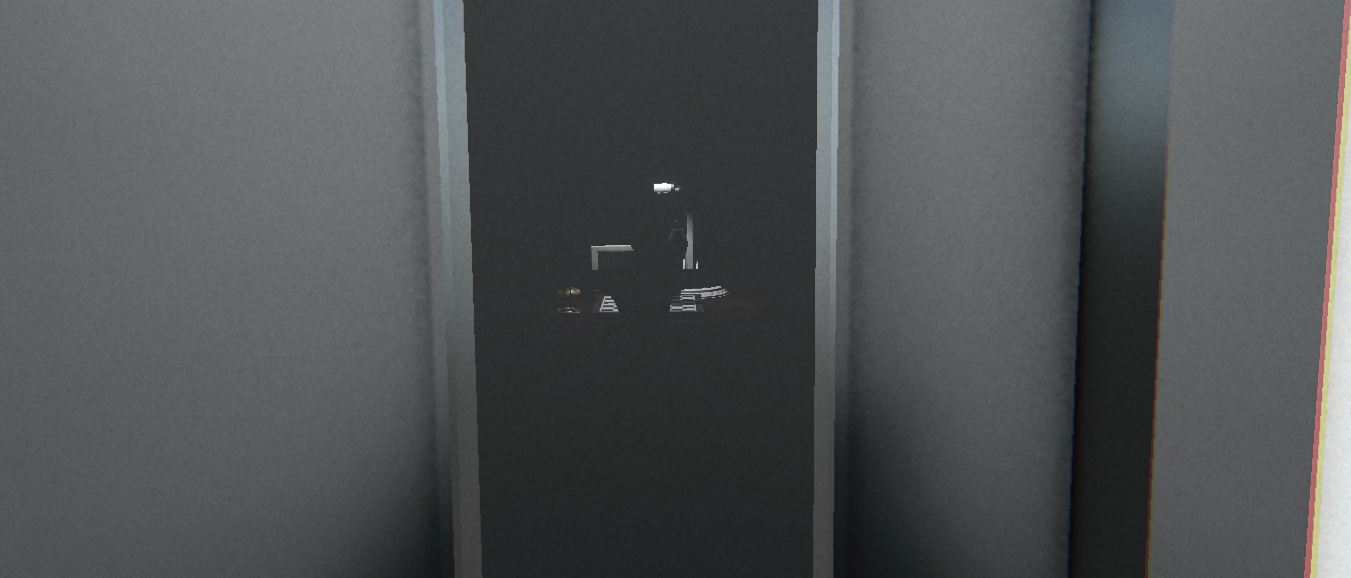

Project BCA

📝 Things I Learned

🏷️ Unity :: How to hide water in the boat

https://www.youtube.com/watch?v=z2uFaBoYhaY

Shader "Masked/Mask" {
    SubShader {
        // Render the mask after regular geometry, but before masked geometry and transparent things.
        Tags { "Queue" = "Geometry+10" }

        // Don't draw in the RGBA channels; just the depth buffer
        ColorMask 0
        ZWrite On

        // Do nothing specific in the pass:
        Pass {}
    }
}

Invisible rendering (ColorMask 0)
Writes to depth only (ZWrite On)
Placed in the render queue after geometry (Queue = "Geometry+10")

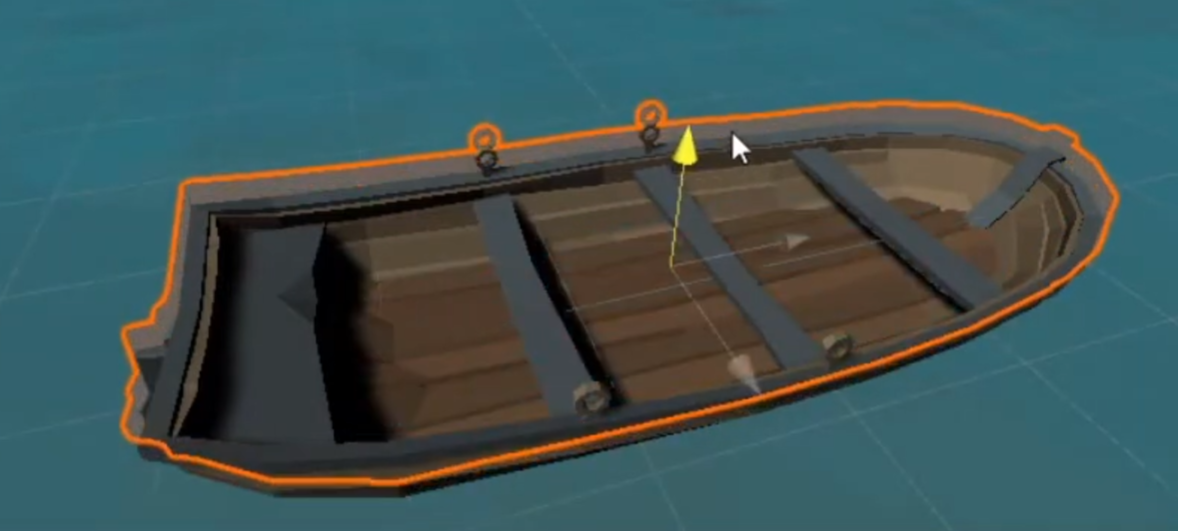

Copy the boat and apply this shader.
Move it to hide the water inside the boat.

The shader works as a mask by using depth buffer.
A water may be rendered after the boat and the its mask, causing it to disappear due to the depth test.

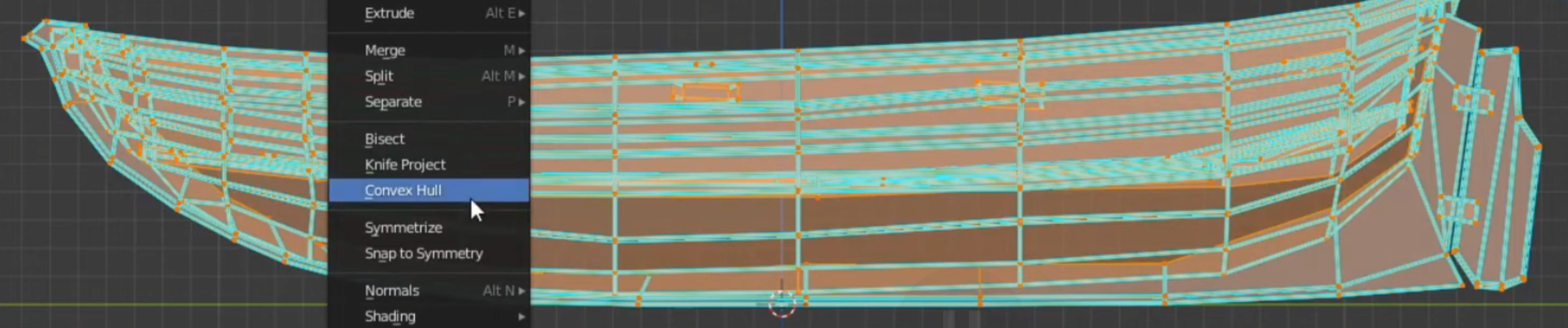

Go to Blender, delete the unnecessary details, go to Mesh > Convex Hull, and you'll get an optimized mesh for depth testing.

🎞️ Udemy Course : Unity Shader

~ 37.

램버트 모델 : 노멀 벡터와 광원 방향 벡터 내적
퐁 모델 : 표면에 반사된 빛 벡터와 시선 벡터의 각도 차이
블린퐁 모델 : 반사된 빛 벡터와 시선 벡터를 더하고 정규화한 하프 벡터와 노멀 벡터를 내적

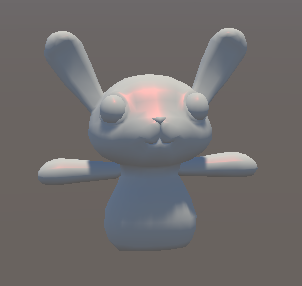

Shader "Holistic/BasicBlinn" {
    Properties{
        _Colour("Colour", Color) = (1,1,1,1)
        _SpecColor("Colour", Color) = (1,1,1,1)
        _Spec("Specular", Range(0,1)) = 0.5
        _Gloss("Gloss", Range(0,1)) = 0.5
    }

    SubShader {
        Tags {
            "Queue" = "Geometry"
        }

        CGPROGRAM
        #pragma surface surf BlinnPhong

        float4 _Colour;
        half _Spec;
        fixed _Gloss;

        struct Input {
            float2 uv_MainTex;
        };

        void surf(Input IN, inout SurfaceOutput o) {
            o.Albedo = _Colour.rgb;
            o.Specular = _Spec;
            o.Gloss = _Gloss;
        }
        ENDCG
    }
    Fallback "Diffuse"
}

SpecColor는 정의하지 않는 이유 : 유니티의 'include' 파일에 이미 정의돼있음

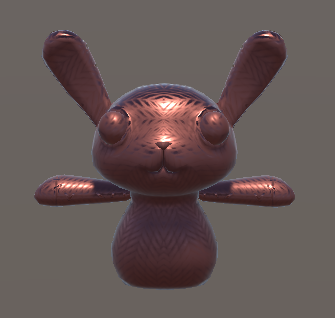

Shader "Holistic/StandardPBR" {
    Properties {
        _Color("Color", Color) = (1,1,1,1)
        _MetalicTex ("Metalic (R)", 2D) = "white" {}
        _Metalic("Metalic", Range(0.0, 1.0)) = 0.0
    }
    SubShader {
        Tags { "Queue" = "Geometry" }

        CGPROGRAM
        #pragma surface surf Standard

        sampler2D _MetalicTex;
        half _Metalic;
        fixed4 _Color;

        struct Input {
            float2 uv_MetalicTex;
        };

        void surf(Input IN, inout SurfaceOutputStandard o) {
            o.Albedo = _Color.rgb;
            o.Smoothness = tex2D (_MetalicTex, IN.uv_MetalicTex).r;
            o.Metallic = _Metalic;
        }
        ENDCG
    }
    Fallback "Diffuse"
}

Shader "Holistic/StandardSpecPBR" {
    Properties {
        _Color("Color", Color) = (1,1,1,1)
        _MetalicTex ("Metalic (R)", 2D) = "white" {}
        _SpecColor("Specular", Color) = (1,1,1,1)
    }
    SubShader {
        Tags { "Queue" = "Geometry" }

        CGPROGRAM
        #pragma surface surf StandardSpecular

        sampler2D _MetalicTex;
        fixed4 _Color;

        struct Input {
            float2 uv_MetalicTex;
        };

        void surf(Input IN, inout SurfaceOutputStandardSpecular o) {
            o.Albedo = _Color.rgb;
            o.Smoothness = tex2D (_MetalicTex, IN.uv_MetalicTex).r;
            o.Specular = _SpecColor;
        }
        ENDCG
    }
    Fallback "Diffuse"
}

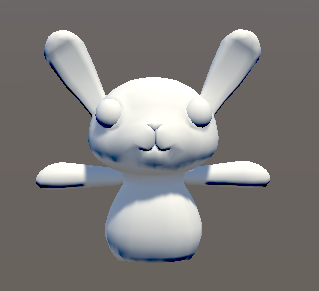

        #pragma surface surf BasicLambert

        half4 LightingBasicLambert (SurfaceOutput s, half3 lightDir, half atten) {
            half NdotL = dot (s.Normal, lightDir);
            half4 c;
            c.rgb = s.Albedo * _LightColor0.rgb * (NdotL * atten);
            c.a = s.Alpha;
            return c;
        }

custom lighting model

atten : 표면에서의 빛의 감쇄율
_LightColor0 : 오브젝트를 비추는 '모든' 빛의 합

        #pragma surface surf BasicBlinn

        half4 LightingBasicBlinn (SurfaceOutput s, half3 lightDir, half3 viewDir, half atten) {
            half3 h = normalize (lightDir + viewDir);

            half diff = max (0, dot (s.Normal, lightDir));

            float nh = max (0, dot(s.Normal, h));
            float spec = pow (nh, 48.0);

            half4 c;
            c.rgb = (s.Albedo * _LightColor0.rgb * diff + _LightColor0.rgb * spec) * atten;
            c.a = s.Alpha;
            return c;
        }

        #pragma surface surf ToonRamp

        float3 _Color;
        sampler2D _RampTex;

        float4 LightingToonRamp (SurfaceOutput s, fixed3 lightDir, fixed atten)
        {
            float diff = dot (s.Normal, lightDir);
            float h = diff * 0.5 + 0.5;
            float2 rh = h;
            float3 ramp = tex2D(_RampTex, rh).rgb;

            float4 c;
            c.rgb = s.Albedo * _LightColor0.rgb * (ramp);
            c.a = s.Alpha;
            return c;
        }
