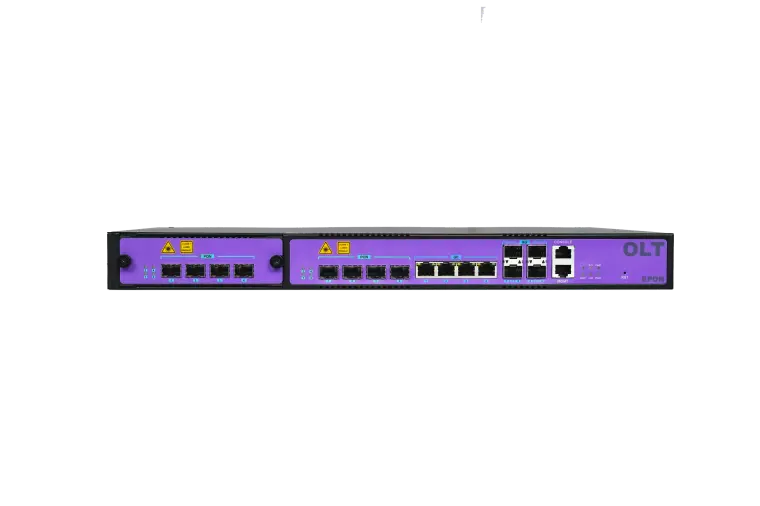

4/8 Ports EPON OLT
FD1304E
4+4 PON PORTS EPON OLT 4PON
EPON OLT FD1304E-B1 completely meet relative standard of IEEE 802.3x and FSAN, which is 1U rack-mounted device 4 uplink GE ports, 4*10GE uplink ports, 4 fixed EPON ports and 4 optional EPON ports. Each uplink EPON port supports the splitting ratio of 1:64, the EPON system supports up to 512 terminal connections.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
TECHNICAL SPECIFICATIONS
ITEM FD1304E-B1
Rack Type 1U 19-inch standard box
Uplink Port COMBO port 4 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit 4 SFP+ interfaces
PON Port Quantity 4-8
Physical interface SFP
Interface type EPON: IEEE802.3ah
Max splitting ratio EPON: 1:64
Management Port 1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
PON Port attribute Transmission distance 20KM
Port rate EPON: Symmetrical 1.25Gbps
Wavelength Forwarding: 1490nm
Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF ((Single Mode Fiber)
Receiving sensitivity EPON: -27dBm
Saturation power EPON: -6dBm
Network management method Support CLI, SNMP, TELNET, SSH, WEB
Business capabilities Support device log, device upgrade, device management, condition monitoring, configuration management, and user management
Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QOS and so on.
PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on.
Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth 108G
Size 44029344mm
Weight 4.0Kg
Power supply 220VAC AC: 100V～240V，47/63Hz
-48DC DC:-40V～-72V
BBU DC: 11V～14V
(Backup Battery Unit) Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply
Maximum power 78W
Working environment Working temperature -15～50℃
Storage temperature -40～85℃
Humidity 5～90% (Non-condensing)
Now the epon olt price is reasonable, anything you need, please contact us.
