Workholding is a crucial aspect of
CNC machining, ensuring that the workpiece remains secure and stable throughout the cutting process. While professional workholding solutions like precision vises, vacuum tables, and modular clamps are highly effective, they can also be expensive. For hobbyists, small workshop owners, and cost-conscious machinists, DIY CNC workholding solutions offer a practical alternative without compromising accuracy.
In this article, we’ll explore various cost-effective DIY workholding methods that you can implement using readily available materials. Whether you’re machining wood, metal, or plastics, these solutions will help you achieve better results while keeping costs low.
Budget-Friendly Workholding Hacks
Workholding is a critical aspect of CNC machining, ensuring that the workpiece remains stable during cutting, drilling, or milling operations. However, high-quality commercial workholding solutions—such as precision vises, vacuum tables, and modular fixtures—can be costly, making them inaccessible for hobbyists, small workshops, or those on tight budgets. Budget-friendly workholding hacks provide an affordable alternative, allowing machinists like Zintilon to secure their materials effectively without sacrificing accuracy or repeatability.
These cost-saving solutions are particularly useful for those working with custom or irregularly shaped parts, where standard clamps and vises may not provide a secure grip. By using creative, low-cost methods, machinists can improve workpiece stability, reduce vibration, and prevent misalignment. Additionally, DIY workholding hacks offer flexibility, as they can be adapted to suit different machining projects without requiring a significant financial investment.
To implement these workholding hacks, machinists will need a few essential materials and tools commonly found in most workshops. A strong, flat surface—such as an MDF board, aluminum plate, or even a repurposed metal sheet—serves as a reliable base for securing workpieces. Clamps, such as F-clamps, C-clamps, or toggle clamps, provide simple yet effective ways to hold materials in place. Double-sided tape, hot glue, or spray adhesive can offer additional grip for lightweight or delicate materials, reducing the risk of movement during machining.
For machinists who prefer adjustable setups, a few pieces of scrap wood, threaded rods, and bolts can be transformed into custom fixtures, providing reusable and adaptable workholding solutions. If precision is a priority, simple modifications such as adding locating pins, wedges, or soft jaw inserts can significantly enhance positioning accuracy. Additionally, incorporating household items like rubber mats, silicone pads, or even sandbags can help dampen vibration and improve stability.
Shop-Made Fixtures
For those who frequently work with CNC machines, investing time in creating reusable, shop-made fixtures can significantly improve precision, repeatability, and efficiency. Unlike temporary workholding hacks, these fixtures are built to last and can be customized to fit specific machining needs. Here are some of them:
Modular Aluminum Plates
Modular aluminum plates serve as a versatile and durable workholding solution for CNC machining. These plates can be drilled, tapped, and customized to fit a wide range of workpieces. By designing a modular system with multiple holes, slots, or threaded inserts, you can create a universal fixture that accommodates various part sizes without needing constant modifications.
Aluminum plates are lightweight yet rigid enough to withstand the forces of machining. A common DIY approach is to repurpose scrap aluminum sheets or use 6061 aluminum, which is easy to machine. With simple hand tools, you can drill threaded holes at regular intervals to create a grid pattern for clamping flexibility. Some machinists even add locating pins for precise alignment, reducing setup time. When paired with DIY clamps or bolts, a modular aluminum plate provides a stable and reusable workholding solution for both professional and hobby CNC users.
3D-Printed Accessories
3D printing offers an affordable way to create custom workholding accessories tailored to specific CNC machining needs. With a 3D printer, you can design and produce clamps, soft jaws, brackets, and even vacuum fixtures that fit your workpiece perfectly. This level of customization allows for improved accuracy and repeatability, especially when working with irregularly shaped materials.
PLA and PETG filaments are great for lightweight applications, while stronger materials like nylon or carbon fiber-infused filaments provide enhanced durability. One common use of 3D printing in CNC workholding is the creation of low-profile clamps that don’t interfere with cutting tools. Additionally, machinists often design sacrificial layers to protect both the workpiece and the spoilboard. Since 3D-printed accessories can be quickly replaced or modified, they offer a flexible and cost-effective alternative to traditional clamping systems.
Adjustable Wooden Jigs
Wooden jigs are an excellent DIY solution for holding oddly shaped workpieces during CNC machining. They can be made from plywood, MDF, or hardwood, depending on the required durability. By incorporating adjustable slots, dowels, or clamps, a wooden jig can hold different part sizes without needing a complete redesign for each project.
A common application of wooden jigs is for batch machining, where multiple identical parts need to be processed efficiently. By cutting precise recesses in the jig, you can create a snug fit that prevents workpieces from shifting. Wood jigs also work well for soft materials like plastic or foam, as they provide secure support without marring the surface. Although they may wear out over time, replacing them is inexpensive and straightforward, making them a great option for cost-conscious machinists.
Threaded Wasteboard System
A threaded wasteboard system is a highly flexible and reusable workholding solution that allows you to secure workpieces using T-nuts, bolts, and clamps. This system involves drilling an array of threaded holes into an MDF or aluminum wasteboard, creating multiple attachment points for different-sized workpieces.
One of the biggest advantages of a threaded wasteboard is its ability to hold irregularly shaped materials without requiring custom fixtures for each project. By using simple hold-down clamps, machinists can quickly secure and release parts, reducing setup time. This system is particularly useful for woodworking and light metal machining, where a strong yet adaptable hold is required. To extend its lifespan, an MDF wasteboard can be resurfaced periodically to ensure a flat working surface.
DIY Low-Profile Clamps
Low-profile clamps are essential for securing workpieces without obstructing the cutting area. Many machinists create their own DIY versions using scrap aluminum, steel, or even strong 3D-printed plastics. These clamps apply downward pressure on the workpiece while staying clear of the cutting tool, reducing the risk of accidental collisions.
A simple way to make low-profile clamps is by cutting aluminum strips and drilling a slot for adjustable positioning. The clamp is then tightened using a T-nut and bolt system, allowing for quick adjustments. This method is particularly useful for thin materials or delicate parts that require a firm hold without excessive pressure. With the right design, DIY low-profile clamps can match the performance of commercial alternatives at a fraction of the cost.

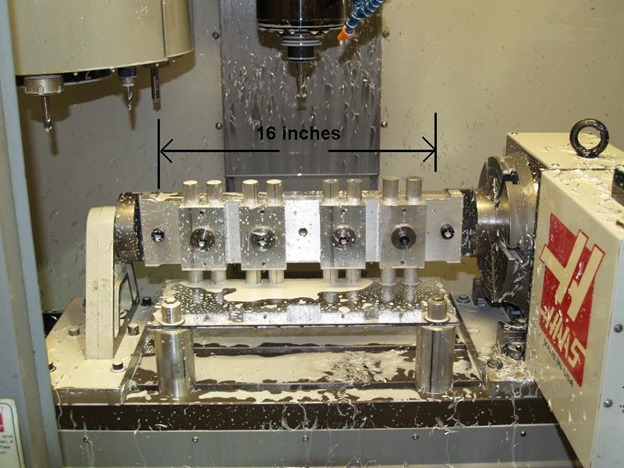

Tooling Plate Modifications
A tooling plate serves as the foundation for many CNC 5-axis workholding setups, providing a stable, flat surface with pre-drilled holes or slots for securing workpieces. While commercial tooling plates can be expensive, these modifications allow machinists to customize their setup for improved flexibility and cost savings.
T-Slot Adaptations
T-slots are a highly effective way to create a modular workholding system, allowing clamps and bolts to be positioned anywhere along the slot. While professional T-slot plates can be expensive, a DIY version can be made by machining grooves into an aluminum plate or bolting prefabricated T-slot tracks onto a flat base.
A common approach is to cut parallel slots into an aluminum or MDF plate using a router or CNC machine. By ensuring that the slot dimensions match standard T-nuts and bolts, you can create a flexible workholding system without the cost of commercial T-slot tables. This adaptation allows for quick repositioning of clamps and fixtures, making it easier to secure different-sized workpieces efficiently. For added durability, some machinists reinforce MDF-based T-slot adaptations with aluminum inserts to prevent wear and tear.
Custom Jaw Inserts
For machinists using vises, custom jaw inserts provide a tailored solution for holding irregularly shaped workpieces. Standard vise jaws are designed for general use, but modifying them with custom inserts ensures a more secure and precise grip. These inserts can be made from aluminum, steel, plastic, or even wood, depending on the material being machined.
One common modification is to machine soft aluminum jaws with cutouts that match the shape of a workpiece, preventing movement during machining. For delicate materials, machinists often use rubber or plastic jaw inserts to reduce surface damage. Another effective method is to integrate magnetic or interchangeable jaw inserts, allowing for quick swaps between different setups. By using custom jaws, machinists can improve stability and reduce the risk of workpiece misalignment.
Threaded Hole Grid System
A threaded hole grid system transforms a basic tooling plate into a highly adaptable workholding surface. This modification involves drilling and tapping a series of evenly spaced holes across the plate, providing multiple attachment points for clamps, bolts, and fixtures.
Machinists often use an aluminum or steel plate as the base, ensuring that the hole pattern is precisely spaced for maximum versatility. The grid system allows for quick adjustments when securing workpieces, eliminating the need for a dedicated fixture for each job. Additionally, by using removable inserts or helicoil thread reinforcements, machinists can extend the lifespan of the plate and prevent thread wear. This setup is particularly useful for prototyping and small-batch production, where frequent workpiece changes are required.
Fixture Pin Locating System
Adding a fixture pin locating system to a tooling plate enhances repeatability and precision, making it easier to position workpieces consistently. This modification involves drilling a series of alignment holes and inserting hardened steel pins that serve as reference points for part placement.
A simple way to implement this system is by using dowel pins or precision-machined locating pins that fit snugly into reamed holes on the plate. Workpieces can then be positioned against these pins, ensuring accurate alignment without the need for excessive clamping. This approach is particularly beneficial for machining identical parts in a production setting, as it reduces setup time and improves accuracy. Fixture pin systems are commonly used in combination with threaded hole grids or T-slot adaptations to provide a more versatile workholding solution.
Conclusion
Effective workholding is essential for achieving precision and stability in CNC machining, but high-end solutions are often expensive. Fortunately, budget-friendly DIY methods offer a practical alternative, allowing machinists to secure their workpieces without breaking the bank. The key to successful DIY workholding lies in creativity and adaptability. Whether it’s using modular aluminum plates, 3D-printed accessories, or vacuum channels, these cost-effective solutions can be tailored to different projects and materials. With the right approach, even the simplest modifications can make a significant impact on workflow, reducing setup time and minimizing errors.
