Spring Boot Validation

• If the server needs to receive fields like name,email,phone number, etc, there must be some form of validation logic implemented to ensure those fields follow certain requirements. This can result in a longer and complicated validation logic if the number of fields received from the client increases. This is where Spring Boot Validation can come in useful.

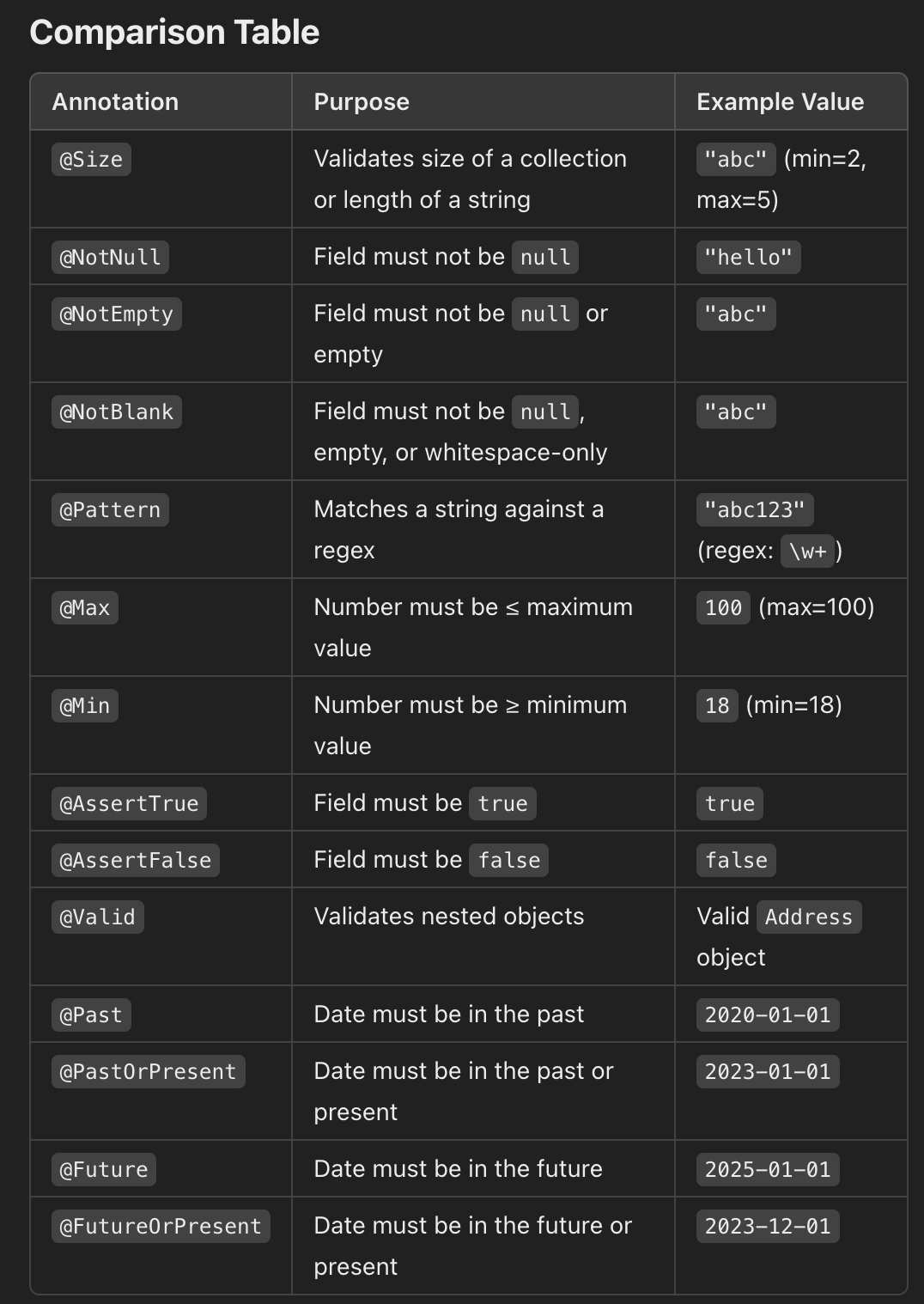

• The Built-in Constraint definitions are the annotations available for validations.

@Size

• Validates that the size of a collection, array, or string falls within a specified range:
• Attributes:
  - min: Minimum size (default 0)
  • max: Maximum size (default Integer.MAX_VALUE

@Size(min = 2, max = 10)
private String userName;
//The userName must be between 2 and 10 characters

@NotNull, @NotEmpty, @NotBlank

• @NotNull ensures that a field is not null

@NotNull
private String email;
//The email field must not be null

• @NotEmpty ensures that a field is not null and is not empty (size > 0 for collections or length > 0 for strings)

• NotBlank ensures that a string is not null, empty or only contains whitespace

@Pattern

• Validates a string against a specified regex
• Attributes:
  - regexp: The regex pattern
  • message: Custom error message

@Pattern(regexp = "^[a-zA-Z0-9]{6,}$", message = "Password must be at least 6 characters long and alphanumeric")
private String password;

• The password must have at least 6 alphanumeric characters.

@Max, @Min

• @Max validates that a number is less than or equal to the specified maximum.

@Max(100)
private int age;
//The age must be <= 100

• @Min validates that a number is greater than or equal to the specified minimum.

@min(18)
private int age;
//The age must be >= 18

@AssertTrue, @AssertFalse

• @AssertTrue validates that a boolean field is true.

@AssertTrue
private boolean isActive;
//The isActive field must be true

• AssertFalse is opposite of @AssertTrue

@Valid

• Validates nested objects or collections.

@Valid
private Address address;
// Validates the fields of the Address object using its own annotations

@Past, @PastOrPresent, @Future, @FutureOrPresent

• @Past validates that a java.util.Date or java.time object represents a date/time in the past.
• @PastOrPresent validates that a date/time is in the past or present.
• @Future validates a date/time is in the future
• @FutureOrPresent validates that a date/time is in the future or present.

@Past
private LocalDate birthDate;
// The birthDate must be before the current date

@PastOrPresent
private LocalDate registrationDate;
//registrationDate cannot be in the future

@Future
private LocalDate expiryDate;
//expiryDate must be after the current date

@FutureOrPresent
private LocalDate appointmentDate;
//appointmentDate cannot be in the past

Example

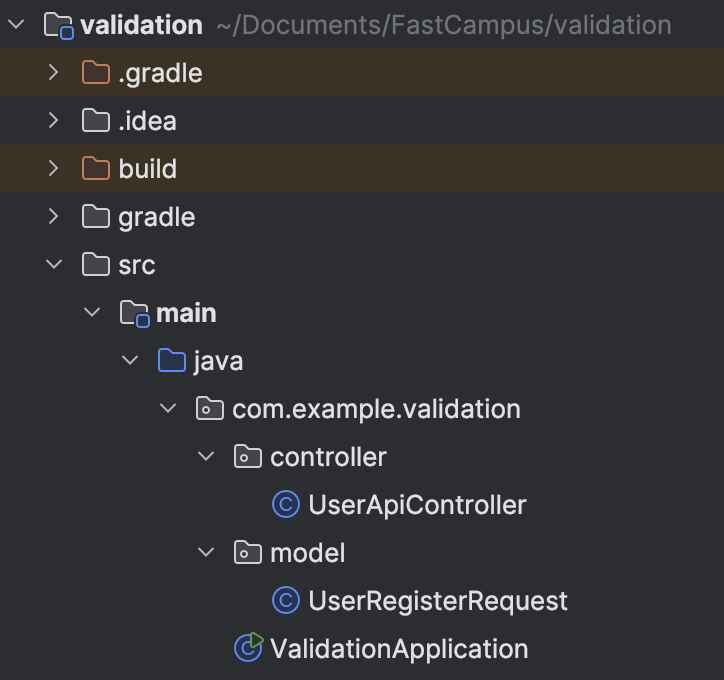

• Project Structure:

• UserRegisterRequest.java:

@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
@JsonNaming(value = PropertyNamingStrategies.SnakeCaseStrategy.class)
public class UserRegisterRequest {
    @NotBlank
    private String name;

    @NotBlank
    @Size(min = 1, max = 12)
    private String password;

    @NotNull //since Integer
    @Min(1)
    @Max(100)
    private Integer age;

    @Email
    private String email;

    @Pattern(regexp = "^\\d{2,3}-\\d{3,4}-\\d{4}$")
    private String phoneNumber;

    @FutureOrPresent
    private LocalDateTime registerAt;
}

• UserApiController.java

@RestController
@RequestMapping("/api/user")
@Slf4j
public class UserApiController {

    @PostMapping("")
    public UserRegisterRequest regiester(
            @Valid
            @RequestBody
            UserRegisterRequest userRegisterRequest
    ){
        log.info("init: {}", userRegisterRequest);

        return userRegisterRequest;
    }
}

• If we send a POST request to http://localhost:8080/api/user with the following json body:

{
  "name": "",
  "password": "",
  "age": 20,
  "email": "",
  "phone_number": "",
  "register_at": "2024-11-18T13:06:00"
}

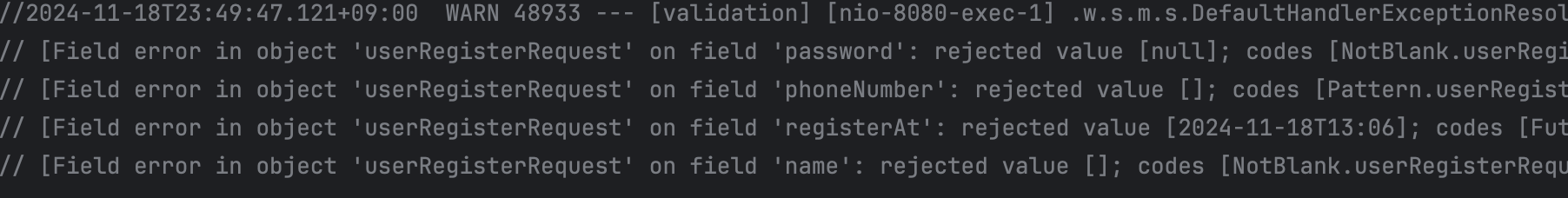

• We get the following error log:

• With a valid json body like below, we receive a status code 200.

{
  "name": "Choi Seunghwan",
  "password": "password",
  "age": 20,
  "email": "gdis@fds.com",
  "phone_number": "010-3829-3923",
  "register_at": "2024-12-18T13:06:00"
}

• Invalid Json body would be flagged by the server but the client would not know because as of the above implementation, we are not returning anything to the client to notify which field was accepted/rejected. So we create Api.java which acts as a blueprint for all API requests.
• Api.java:

@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class Api<T> {
    private String resultCode;
    private T data;
    private String resultMessage;
    private Error error;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    @Builder
    public static class Error{
        private List<String> errorMessage;
    }
}

• Modified UserApiController.java to wrap the UserRegisterRequest with Api:

@RestController
@RequestMapping("/api/user")
@Slf4j
public class UserApiController {

    @PostMapping("")
    public Api<UserRegisterRequest> regiester(
            @Valid
            @RequestBody
            Api<UserRegisterRequest> userRegisterRequest
    ){
        log.info("init: {}", userRegisterRequest);

        return userRegisterRequest;
    }
}

• Now all the requests must go through the format specified in the Api.java:

{
  "result_code": "",
  "result_message": "",
  "data": {
    "name": "Choi Seunghwan",
    "password": "password1111111111111",
    "age": 20,
    "email": "gdis@fds.com",
    "phone_number": "010-3829-3923",
    "register_at": "2024-12-18T13:06:00"
  },
  "error": {
    "error_message": [
    ]
  }
}

• The above request gets a status 200 by the server. Notably, the password is beyond what we specified in the UserRegisterRequest.java. This is because within the Api.java, the UserRegisterRequest is saved within private T data. If we do not annotate the private T data with @Valid, it does not run all the validations specified within the UserRegisterRequest. Once we modify the Api.java as below:

public class Api<T> {
    private String resultCode;

	//Added @Valid annotation
    @Valid
    private T data;

    private String resultMessage;
    private Error error;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    @Builder
    public static class Error{
        private List<String> errorMessage;
    }
}

• we can see that the validations specified in the UserRegisterRequest.java were performed, rejecting the password with length greater than 12 as specified.

[Field error in object 'api' on field 'data.password': rejected value [password1111111111111]; codes [Size.api.data.password,Size.data.password,Size.password,Size.java.lang.String,Size]; arguments [org.springframework.context.support.DefaultMessageSourceResolvable: codes [api.data.password,data.password]; arguments []; default message [data.password],12,1]; default message [크기가 1에서 12 사이여야 합니다]]

Binding Result

• How BindingResult works:
  - When a request is mapped to a controller, Spring automatically binds the incoming data to a Java object
  • If the object has validation annotations (e.g. @NotNull, @Size), Spring performs validations.
  • If validation errors occur, Spring populates the BindingResult object with those errors.

Basic Structure

@RestController
public class UserController {
	@PostMapping("/register")
    public String registerUser(
    	@Valid
        @RequestBody
        UserDto userDto, //Bind and validate the request body

        BindingResult bindingResult //To capture validation errors
    ){
    	//check for errors
        if (bindingResult.hasErrors()){
        	//Handle validation errors
        }
        //Proceed with normal logic
    }
}

• Position in Method Signature:
  - The BindingResult must immediately follow the @Validated or @Valid object in the method signature.
  • If the BindingResult is not placed directly after the validated object, Spring will throw an IllegalStateException.

Key Methods in BindingResult

1. hasErrors()
   • Returns true if there are any validation or binding errors.

   if (bindingResult.hasErrors()){
   	//Handle errors
   }

2. getAllErrors()
   • Returns a list of all errors (both field errors and global errors)

   List<ObjectError> errors = bindingResult.getAllErrors();

3. getFieldErrors()
   • Returns a list of errors specific to fields.

   List<FieldError> fieldErrors = bindingResult.getFieldErrors();

4. `getFieldError(String field)
   • Gets the error for a specific field

   FieldError fieldError = bindingResult.getFieldError("email");

5. getFieldValue(String field)
   • Retrieves the rejected value for a specific field

   Object rejectedValue = bindingResult.getFieldValue("username");

Implementation of BindingResult in UserApiController

@RestController
@RequestMapping("/api/user")
@Slf4j
public class UserApiController {

    @PostMapping("")
    public Api<? extends Object> regiester(
            @Valid
            @RequestBody
            Api<UserRegisterRequest> userRegisterRequest,

            BindingResult bindingResult
    ){
        log.info("init: {}", userRegisterRequest);

        if(bindingResult.hasErrors()){
        //Collect error messages using a stream to process all FieldError objects from bindingResult
            var errorMessageList = bindingResult.getFieldErrors().stream()
                    .map(it -> {
                        var format = "%s : { %s } is %s";
                        var message = String.format(format, it.getField(), it.getRejectedValue());
                        return message;
                    }).collect(Collectors.toList());
		//Create an error object, encapsulating the list of error messages
            var error = Api.Error
                    .builder()
                    .errorMessage(errorMessageList)
                    .build();
		//Create an error response
            var errorResponse = Api
                    .builder()
                    .resultCode(String.valueOf(HttpStatus.BAD_REQUEST.value()))
                    .resultMessage(HttpStatus.BAD_REQUEST.getReasonPhrase())
                    .error(error)
                    .build();

            return errorResponse;
        }

		//Handle valid requests
        Api<UserRegisterRequest> response = Api.<UserRegisterRequest>builder()
                .resultCode(String.valueOf(HttpStatus.OK.value()))
                .resultMessage(HttpStatus.OK.getReasonPhrase())
                .data(userRegisterRequest.getData())
                .build();

        return response;
    }
}

• Api<? extends Object>: The method returns a generic Api object, where the actual type of data can vary. This supports flexible response types.
• Once we send a invalid body like:

{
  "result_code": "",
  "result_message": "",
  "data": {
    "name": "",
    "password": "password",
    "age": 20,
    "email": "gdis@fds.com",
    "phone_number": "010-43829-3923",
    "register_at": "2024-12-18T13:06:00"
  },
  "error": {
    "error_message": [
    ]
  }
}

• We get the following response:

{
    "result_code": "400",
    "data": null,
    "result_message": "Bad Request",
    "error": {
        "error_message": [
            "data.name : {  } 은 공백일 수 없습니다",
            "data.phoneNumber : { 010-43829-3923 } 은 \"^\\d{2,3}-\\d{3,4}-\\d{4}$\"와 일치해야 합니다"
        ]
    }
}

Global Exception Handling

• The controller should focus on handling business logic and routing requests to the appropriate services.
• Validation error handling is not part of the core business logic and can clutter the controller code if done inline.
• Conducting this error handling in a global exception handler ensures that validation concerns are handled separately from business logic, keeping the controller clean and focused.
• MethodArgumentNotValidException:
  - Triggered by @Valid. If any validation fails, Spring throws a MethodArgumentNotValidException.
• So we can place the entire error-handling logic into a global exception handler with a method that catches MethodArgumentNotValidException, significantly de-cluttering our controller logic.
• Creating ValidationExceptionHandler under package exception:

@RestControllerAdvice
@Slf4j
public class ValidationExceptionHandler {

    @ExceptionHandler(value = {MethodArgumentNotValidException.class})
    public ResponseEntity<Api> valdiationException(
            MethodArgumentNotValidException exception
    ) {
        log.error("", exception);

        var errorMessageList = exception.getFieldErrors().stream()
                .map(it -> {
                    var format = "%s : { %s } 은 %s";
                    var message = String.format(format, it.getField(), it.getRejectedValue(), it.getDefaultMessage());
                    return message;
                }).collect(Collectors.toList());

        var error = Api.Error
                .builder()
                .errorMessage(errorMessageList)
                .build();

        var errorResponse = Api
                .builder()
                .resultCode(String.valueOf(HttpStatus.BAD_REQUEST.value()))
                .resultMessage(HttpStatus.BAD_REQUEST.getReasonPhrase())
                .error(error)
                .build();

        return ResponseEntity
                .status(HttpStatus.BAD_REQUEST)
                .body(errorResponse);

    }
}

• Now with invalid body, we get the following response, which is the same as above response but generated from ValidationExceptionHandler:

{
    "result_code": "400",
    "data": null,
    "result_message": "Bad Request",
    "error": {
        "error_message": [
            "data.name : {  } 은 공백일 수 없습니다",
            "data.phoneNumber : { 010-43829-3923 } 은 \"^\\d{2,3}-\\d{3,4}-\\d{4}$\"와 일치해야 합니다"
        ]
    }
}

Custom Validations using Assert

• Assume we have to receive either name or nickName. There is no built-in validation that involves the above checking, hence we need to perform custom validations.
• In UserRegisterRequest.java,

public class UserRegisterRequest {
//other fields...
@NotBlank
private String name;

private String nickName;

@AssertTrue(message = "name or nickname must exist)
public boolean isNameCheck(){
	if(Objects.nonNull(name) && !name.isBlank()){
            return true;
        }
        if(Objects.nonNull(nickName) && !nickName.isBlank()){
            return true;
        }
        return false;
	}
}

• The above validation returns the following response if
  - Both name and nickname are null.
  - Both name and nickname are empty.
  - One of name or nickname is null and the other is empty

{
    "result_code": "400",
    "data": null,
    "result_message": "Bad Request",
    "error": {
        "error_message": [
            "data.nameCheck : { false } 은 name or nickname must exist",
            "data.name : {  } 은 공백일 수 없습니다"
        ]
    }
}

Custom Validation using custom annotations

• A custom annotation paired with a ConstraintValidator allows for creation of reusable, custom validation rules beyond the default annotations provided.

Defining custom annotations

• @Constraint: Links the annotation to a specific validator class
• @Target: Specifies where the annotation can be applied (e.g. fields, methods)
• @Retention: Indicates how long the annotation should be retained (typically at runtime)

@Constraint(validatedBy = CustomValidator.class) //Specifies the validator class
@Target({ElementType.FIELD, ElementType.METHOD}) //Where the annotation can be applied
@Retention(RetentionPolicy.RUNTIME) //Retained at runtime for reflection
public @interface CustomValidation {
	String message() default "Invalid value"; //Default error message
    Class<?> groups() default {}; //For grouping constraints (optional)
    Class<? extends Payload>[] payload() default {}; //Metadata for additional processing (optional)
}

Implementing the ConstraintValidator

• The ConstraintValidator interface contains two methods:
  - initialize: Optional initialization logic
  - isValid: Implements the validation logic

public class CustomValidator implements ConstraintValidator<CustomValidation, String>{
	@Override
    public void initialize(CustomValidation constraintAnnotation){
    	//Initialization logic (if any)
    }

    @Override
    public boolean isValid(String value, ConstraintValidatorContext context){
    	//Validation logic
        if (value == null || value.trim().isEmpty()){
        	return false; //Fails validation
        }
        return value.matches("^[a-zA-Z]+$"); // Passes if only letters
    }
}

Example (PhoneNumber)

• annotation/PhoneNumber:

@Target({ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Constraint(validatedBy = {PhoneNumberValidator.class})
public @interface PhoneNumber {

    String message() default "Phone number invalid format. e.g.) 000-0000-0000";
    String regex() default "^\\d{2,3}-\\d{3,4}-\\d{4}$";

    Class<?>[] groups() default {};
    Class<? extends Payload>[] payload() default {};
}

• validator/PhoneNumberValidator:

public class PhoneNumberValidator implements ConstraintValidator<PhoneNumber, String> {

    private String regexp;

    @Override
    public void initialize(PhoneNumber constraintAnnotation) {
        this.regexp = constraintAnnotation.regex();
    }

    @Override
    public boolean isValid(String s, ConstraintValidatorContext constraintValidatorContext) {
        boolean result = Pattern.matches(s, regexp);
        return result;
    }
}

• Within UserRegisterRequest:

public class UserRegisterRequest {
	@PhoneNumber
    private String phoneNumber;

    //other fields
}

• Note that custom annotation can be annotated with built-in annotations. For example,

@Target({ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Constraint(validatedBy = {YearMonthValidator.class})
@NotBlank
public @interface YearMonth {

    String message() default "Invalid Year Month format. e.g.) 20241124";
    String pattern() default "yyyyMMdd";

    Class<?>[] groups() default {};
    Class<? extends Payload>[] payload() default {};
}
