Oracle 21c PDB 생성

작업 환경

• Docker Container 로 동작하는 Oracle 21c XE
• DB클라이언트는 DBeaver 이용

작업 과정

1. SYSDBA 계정 접속

2. PDB 생성

CREATE pluggable DATABASE "{PDB 이름}" admin USER "{DBA ID}" IDENTIFIED BY "{Password}"
	roles=(dba) file_name_convert=('{Source PDB 경로}, '{PDB 생성 경로});

-- 예제
CREATE pluggable DATABASE "homelab" admin USER "pdbadmin" IDENTIFIED BY "j&u&Q*hz#@CRZ3"
	roles=(dba) file_name_convert=('/opt/oracle/oradata/XE/pdbseed', '/opt/oracle/oradata/XE/homelab');

실행 결과

oracle-21-xe  | CREATE pluggable DATABASE "homelab" admin USER "pdbadmin" IDENTIFIED BY *
oracle-21-xe  |         roles=(dba) file_name_convert=('/opt/oracle/oradata/XE/pdbseed', '/opt/oracle/oradata/XE/homelab')
oracle-21-xe  | 2023-04-25T12:47:53.418228+00:00
oracle-21-xe  | PDB$SEED(2): AUDSYS.AUD$UNIFIED (SQL_TEXT) - CLOB populated
oracle-21-xe  | 2023-04-25T12:48:00.479970+00:00
oracle-21-xe  | HOMELAB(4):Endian type of dictionary set to little
oracle-21-xe  | ****************************************************************
oracle-21-xe  | Pluggable Database HOMELAB with pdb id - 4 is created as UNUSABLE.
oracle-21-xe  | If any errors are encountered before the pdb is marked as NEW,
oracle-21-xe  | then the pdb must be dropped
oracle-21-xe  | local undo-1, localundoscn-0x0000000000000121
oracle-21-xe  | ****************************************************************
oracle-21-xe  | HOMELAB(4):Pluggable database HOMELAB pseudo opening
oracle-21-xe  | HOMELAB(4):SUPLOG: Initialize PDB SUPLOG SGA, old value 0x0, new value 0x18
oracle-21-xe  | HOMELAB(4):Autotune of undo retention is turned on.
oracle-21-xe  | HOMELAB(4):Undo initialization recovery: Parallel FPTR complete: start:2784005433 end:2784005434 diff:1 ms (0.0 seconds)
oracle-21-xe  | HOMELAB(4):Undo initialization recovery: err:0 start: 2784005432 end: 2784005434 diff: 2 ms (0.0 seconds)
oracle-21-xe  | HOMELAB(4):[43113] Successfully onlined Undo Tablespace 2.
oracle-21-xe  | HOMELAB(4):Undo initialization online undo segments: err:0 start: 2784005435 end: 2784005501 diff: 66 ms (0.1 seconds)
oracle-21-xe  | HOMELAB(4):Undo initialization finished serial:0 start:2784005432 end:2784005505 diff:73 ms (0.1 seconds)
oracle-21-xe  | HOMELAB(4):Database Characterset for HOMELAB is AL32UTF8
oracle-21-xe  | HOMELAB(4):Pluggable database HOMELAB pseudo closing
oracle-21-xe  | HOMELAB(4):JIT: pid 43113 requesting stop
oracle-21-xe  | HOMELAB(4):Closing sequence subsystem (7078972854992).
oracle-21-xe  | HOMELAB(4):Buffer Cache flush started: 4
oracle-21-xe  | HOMELAB(4):Buffer Cache flush finished: 4
oracle-21-xe  | Completed: CREATE pluggable DATABASE "homelab" admin USER "pdbadmin" IDENTIFIED BY *
oracle-21-xe  |         roles=(dba) file_name_convert=('/opt/oracle/oradata/XE/pdbseed', '/opt/oracle/oradata/XE/homelab')

3. PDB 생성 확인

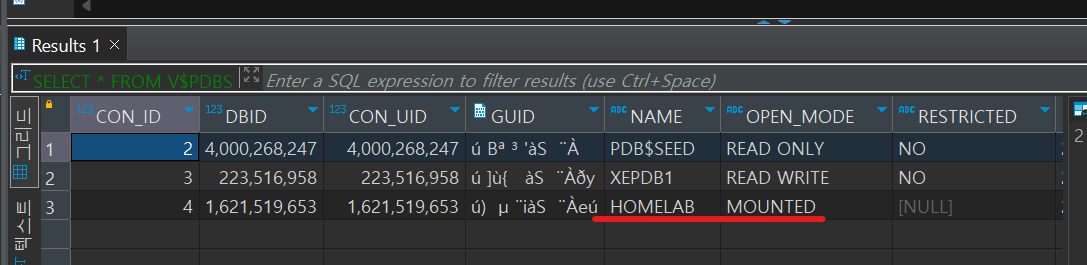

SELECT * FROM V$PDBS;

PDB가 생성 되었고, open_mode 가 mounted 로 된 것 확인

4. 오픈 모드 변경

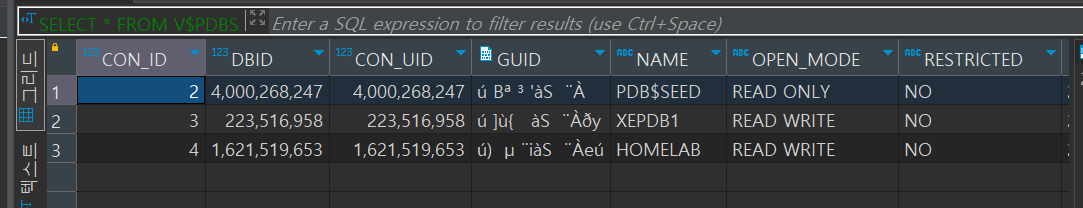

ALTER pluggable DATABASE homelab OPEN READ WRITE;
SELECT * FROM V$PDBS;
