Unity Study_week8

#61 단순 타이머

QuizCanvas > UI > Image
TimeImage(타이머) 생성하기

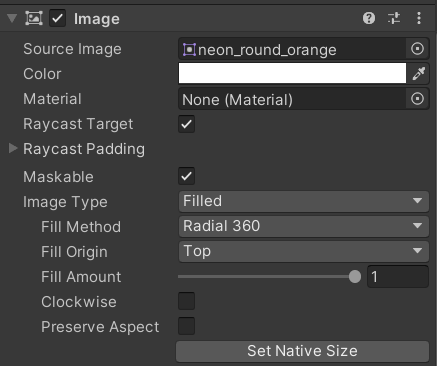

Image Type 설정

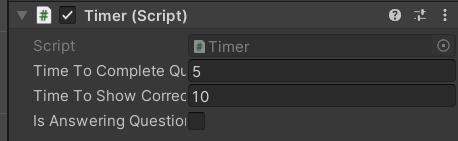

Timer C# 스크립트 생성, Empty 객체 만들고 Timer 로 명명

Timer Script 가 해야할 일

• 게임이 어떤 상태에 있는가?
  • 플레이어가 정답을 보고 있는지 문제를 풀고 있는지
• 해당 상태에서 시간이 다 되었는가?
  • 시간이 남아있다면: 타이머 이미지에 사용할 Fill Amount 정보 관리
  • 시간이 다 되면: 게임 상태 변경

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Timer : MonoBehaviour
{
    [SerializeField] float timeToCompleteQuestion = 30f;
    [SerializeField] float timeToShowCorrectAnswer = 10f;

    public bool isAnsweringQuestion = false;

    float timerValue;

    void Update()
    {
        UpdateTimer();
    }

    void UpdateTimer()
    {
        timerValue -= Time.deltaTime;

        if(isAnsweringQuestion)
        {
            if(timerValue <= 0)
            {
                isAnsweringQuestion = false;
                timerValue = timeToShowCorrectAnswer;
            }
        }
        else
        {
            if(timerValue <= 0)
            {
                isAnsweringQuestion = true;
                timerValue = timeToCompleteQuestion;
            }
        }

        Debug.Log(timerValue);
    }
}

#62 타이머 채우기 분수

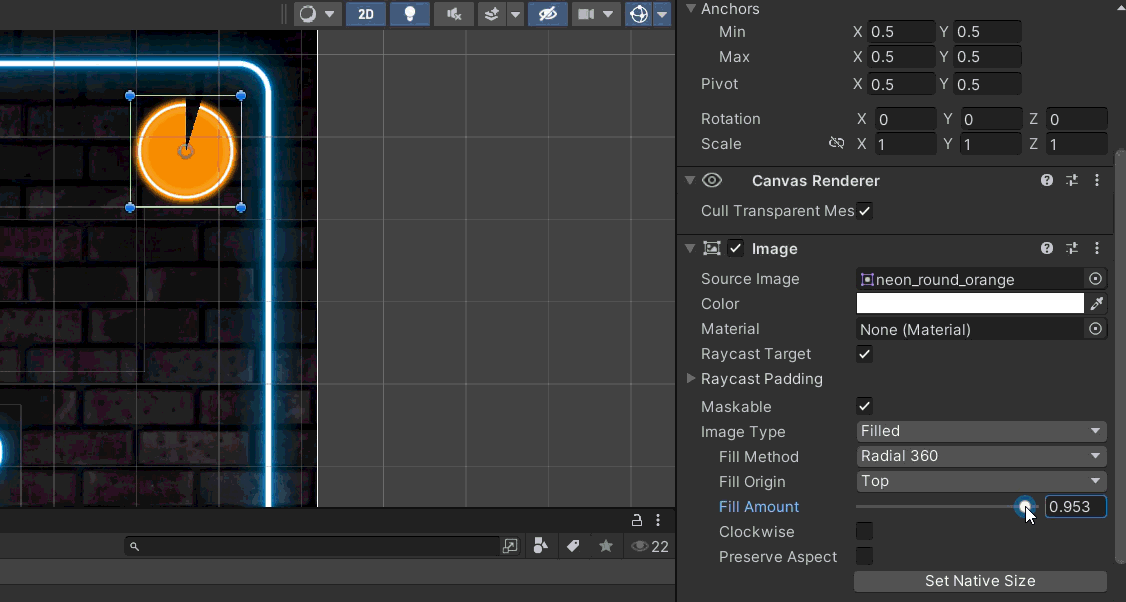

Timer Image를 타이머가 부여한 시간에 따라 0~1까지로 표준화 하여 분수로 반환

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Timer : MonoBehaviour
{
    [SerializeField] float timeToCompleteQuestion = 30f;
    [SerializeField] float timeToShowCorrectAnswer = 10f;

    public bool loadNextQuestion;
    public bool isAnsweringQuestion = false;
    public float fillFraction;

    float timerValue;

    void Update()
    {
        UpdateTimer();
    }

    public void CancelTomer()
    {
        timerValue = 0;
    }

    void UpdateTimer()
    {
        timerValue -= Time.deltaTime;

        if(isAnsweringQuestion)
        {
            if(timerValue > 0)
            {
                fillFraction = timerValue / timeToCompleteQuestion;
            }
            else
            {
                isAnsweringQuestion = false;
                timerValue = timeToShowCorrectAnswer;
            }
        }
        else
        {
            if(timerValue > 0)
            {
                fillFraction = timerValue / timeToShowCorrectAnswer;
            }
            else
            {
                isAnsweringQuestion = true;
                timerValue = timeToCompleteQuestion;
                loadNextQuestion = true;
            }
        }

        Debug.Log(isAnsweringQuestion + ": " + timerValue + " = " + fillFraction);
    }
}

#63 타이머 연결하기

Timer Script와 Quiz Script 연결하기

Timer Script

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Timer : MonoBehaviour
{
    [SerializeField] float timeToCompleteQuestion = 30f;
    [SerializeField] float timeToShowCorrectAnswer = 10f;

    public bool loadNextQuestion;
    public bool isAnsweringQuestion;
    public float fillFraction;

    float timerValue;

    void Update()
    {
        UpdateTimer();
    }

    public void CancelTimer()
    {
        timerValue = 0;
    }

    void UpdateTimer()
    {
        timerValue -= Time.deltaTime;

        if(isAnsweringQuestion)
        {
            if(timerValue > 0)
            {
                fillFraction = timerValue / timeToCompleteQuestion;
            }
            else
            {
                isAnsweringQuestion = false;
                timerValue = timeToShowCorrectAnswer;
            }
        }
        else
        {
            if(timerValue > 0)
            {
                fillFraction = timerValue / timeToShowCorrectAnswer;
            }
            else
            {
                isAnsweringQuestion = true;
                timerValue = timeToCompleteQuestion;
                loadNextQuestion = true;
            }
        }

        Debug.Log(isAnsweringQuestion + ": " + timerValue + " = " + fillFraction);
    }
}

Quiz Script

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using TMPro;
using UnityEngine.UI;

public class Quiz : MonoBehaviour
{
    [Header("Questions")]
    [SerializeField] TextMeshProUGUI questionText;
    [SerializeField] QuestionSO question;

    [Header("Answers")]
    [SerializeField] GameObject[] answerButtons;
    int correctAnswerIndex;
    bool hasAnsweredEarly;

    [Header("Button Colors")]
    [SerializeField] Sprite defaultAnswerSprite;
    [SerializeField] Sprite correctAnswerSprite;

    [Header("Timer")]
    [SerializeField] Image timerImage;
    Timer timer;

    void Start()
    {
        timer = FindObjectOfType<Timer>();
        GetNextQuestion();
        //DisplayQuesetion();
    }

    void Update()
    {
        timerImage.fillAmount = timer.fillFraction;
        if(timer.loadNextQuestion)
        {
            hasAnsweredEarly = false;
            GetNextQuestion();
            timer.loadNextQuestion = false;
        }
        else if(!hasAnsweredEarly && !timer.isAnsweringQuestion)
        {
            DisplayAnswer(-1);
            SetButtonState(false);
        }
    }

    public void OnAnswerSelected(int index)
    {
        hasAnsweredEarly = true;
        DisplayAnswer(index);
        SetButtonState(false);
        timer.CancelTimer();
    }

    void DisplayAnswer(int index)
    {
         Image buttonImage;

        if(index == question.GetCorrectAnswerIndex())
        {
            questionText.text = "Correct!";
            buttonImage = answerButtons[index].GetComponent<Image>();
            buttonImage.sprite = correctAnswerSprite;
        }
        else
        {
            correctAnswerIndex = question.GetCorrectAnswerIndex();
            string correctAnswer = question.GetAnswer(correctAnswerIndex);
            questionText.text = "Sorry, the correct answer was;\n" + correctAnswer;
            buttonImage = answerButtons[correctAnswerIndex].GetComponent<Image>();
            buttonImage.sprite = correctAnswerSprite;
        }
    }

    void GetNextQuestion()
    {
        SetButtonState(true);
        SetDefaultButtonSprites();
        DisplayQuestion();
    }

    void DisplayQuestion()
    {
        questionText.text = question.GetQuestion();

        for (int i = 0; i < answerButtons.Length; i++)
        {
            TextMeshProUGUI buttonText = answerButtons[i].GetComponentInChildren<TextMeshProUGUI>();
            buttonText.text = question.GetAnswer(i);
        }
    }

    void SetButtonState(bool state)
    {
        for(int i = 0; i < answerButtons.Length; i++)
        {
            Button button = answerButtons[i].GetComponent<Button>();
            button.interactable = state;
        }
    }

    void SetDefaultButtonSprites()
    {
        for(int i = 0; i < answerButtons.Length; i++)
        {
            Image buttonImage = answerButtons[i].GetComponent<Image>();
            buttonImage.sprite = defaultAnswerSprite;
        }
    }
}

#64 리스트

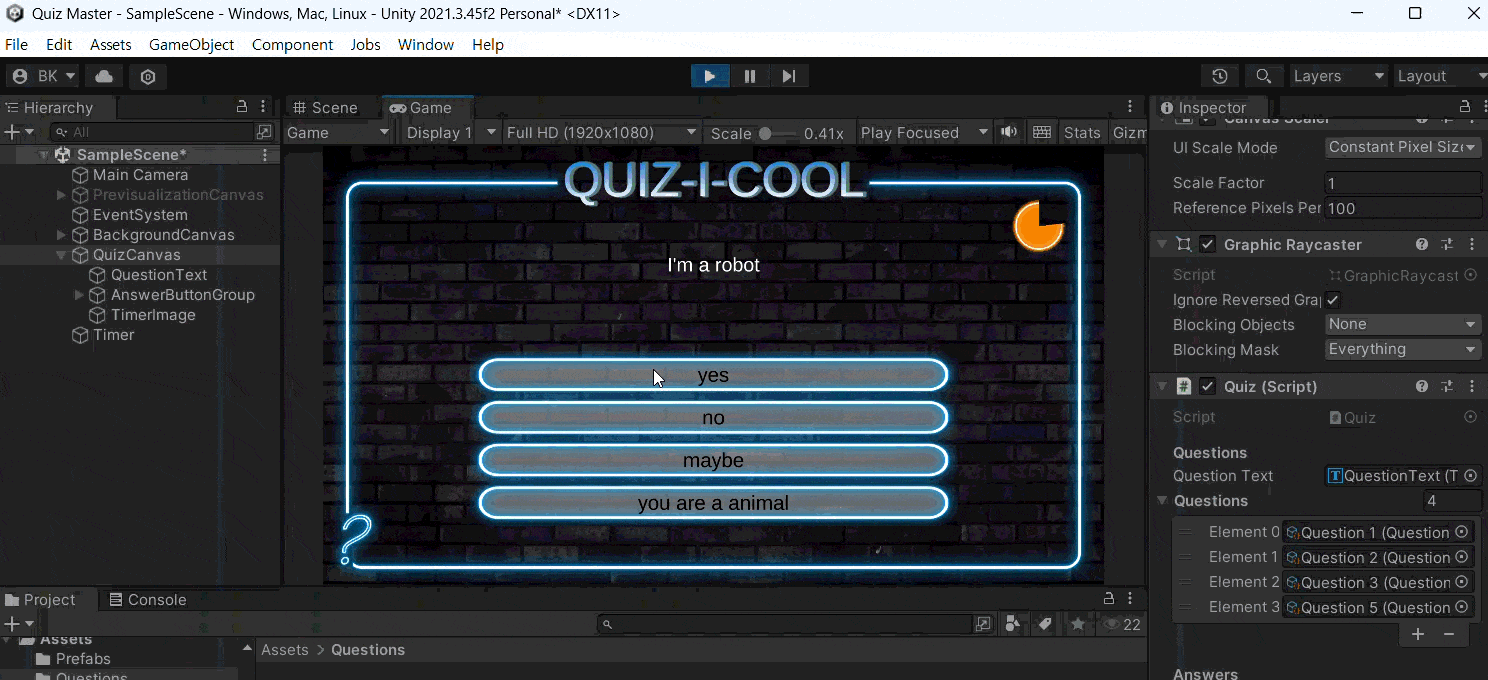

퀴즈 리스트 만들기

Quiz Script

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using TMPro;
using UnityEngine.UI;

public class Quiz : MonoBehaviour
{
    [Header("Questions")]
    [SerializeField] TextMeshProUGUI questionText;
    [SerializeField] List<QuestionSO> questions = new List<QuestionSO>();
    QuestionSO currentQuestion;

    [Header("Answers")]
    [SerializeField] GameObject[] answerButtons;
    int correctAnswerIndex;
    bool hasAnsweredEarly;

    [Header("Button Colors")]
    [SerializeField] Sprite defaultAnswerSprite;
    [SerializeField] Sprite correctAnswerSprite;

    [Header("Timer")]
    [SerializeField] Image timerImage;
    Timer timer;

    void Start()
    {
        timer = FindObjectOfType<Timer>();
    }

    void Update()
    {
        timerImage.fillAmount = timer.fillFraction;
        if(timer.loadNextQuestion)
        {
            hasAnsweredEarly = false;
            GetNextQuestion();
            timer.loadNextQuestion = false;
        }
        else if(!hasAnsweredEarly && !timer.isAnsweringQuestion)
        {
            DisplayAnswer(-1);
            SetButtonState(false);
        }
    }

    public void OnAnswerSelected(int index)
    {
        hasAnsweredEarly = true;
        DisplayAnswer(index);
        SetButtonState(false);
        timer.CancelTimer();
    }

    void DisplayAnswer(int index)
    {
         Image buttonImage;

        if(index == currentQuestion.GetCorrectAnswerIndex())
        {
            questionText.text = "Correct!";
            buttonImage = answerButtons[index].GetComponent<Image>();
            buttonImage.sprite = correctAnswerSprite;
        }
        else
        {
            correctAnswerIndex = currentQuestion.GetCorrectAnswerIndex();
            string correctAnswer = currentQuestion.GetAnswer(correctAnswerIndex);
            questionText.text = "Sorry, the correct answer was;\n" + correctAnswer;
            buttonImage = answerButtons[correctAnswerIndex].GetComponent<Image>();
            buttonImage.sprite = correctAnswerSprite;
        }
    }

    void GetNextQuestion()
    {
        if(questions.Count > 0)
        {
            SetButtonState(true);
            SetDefaultButtonSprites();
            GetRandomQuestion();
            DisplayQuestion();
        }
    }

    void GetRandomQuestion()
    {
        int index = Random.Range(0, questions.Count);
        currentQuestion = questions[index];

        if(questions.Contains(currentQuestion))
        {
        questions.Remove(currentQuestion);
        }
    }

    void DisplayQuestion()
    {
        questionText.text = currentQuestion.GetQuestion();

        for (int i = 0; i < answerButtons.Length; i++)
        {
            TextMeshProUGUI buttonText = answerButtons[i].GetComponentInChildren<TextMeshProUGUI>();
            buttonText.text = currentQuestion.GetAnswer(i);
        }
    }

    void SetButtonState(bool state)
    {
        for(int i = 0; i < answerButtons.Length; i++)
        {
            Button button = answerButtons[i].GetComponent<Button>();
            button.interactable = state;
        }
    }

    void SetDefaultButtonSprites()
    {
        for(int i = 0; i < answerButtons.Length; i++)
        {
            Image buttonImage = answerButtons[i].GetComponent<Image>();
            buttonImage.sprite = defaultAnswerSprite;
        }
    }
}
