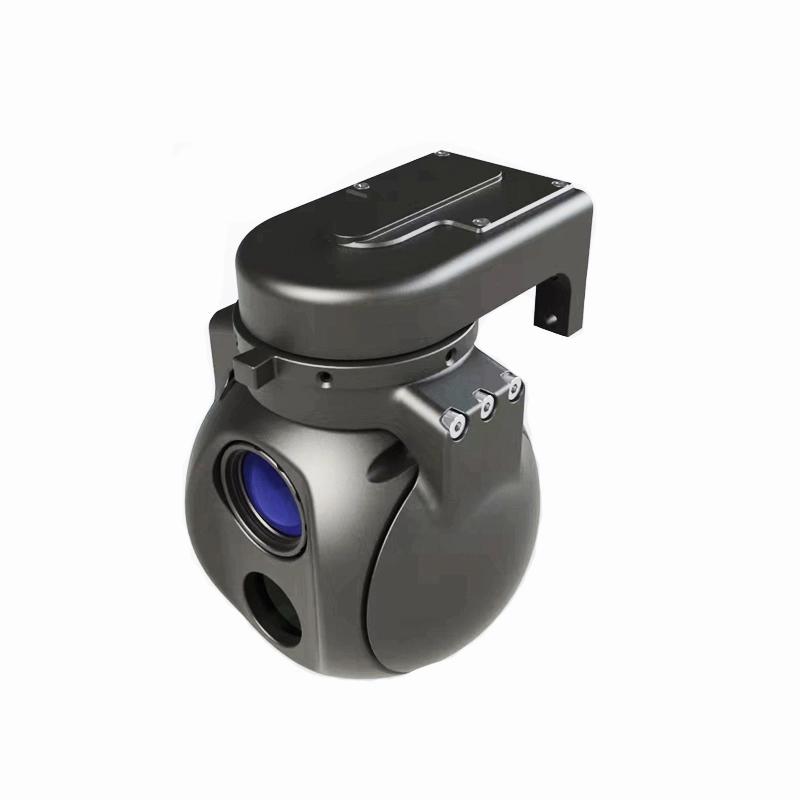

Mini Gimbal Camera Payload with Dual-sensor

This Mini Gimbal Camera Electro-optical Payload with Dual-sensor is currently Eyoung's smallest and lightest gyro-stabilized gimbal, which is equipped with an SD 640×512 resolution infrared thermal sensor and a full HD Color COMS visible light camera. Thus the electro-optical payload drone camera system can delivery exceptional daytime and nighttime surveillance capabilities in an ultra-low power consumption solution. Embedded video processing, image stabilization, and target tracking further optimize its imaging capabilities. Built with a metal shell, the aerial surveillance camera is rock-solid and shock-resistant, enabling you to carry out your mission even in rough conditions. Our light-weight gimbal camera is specifically designed for surveillance, inspection, and search operations on small drones and UAVs of any configuration.

Specifications of Mini Gimbal Camera Electro-Optical Pod with Dual-sensor
Serial number Items Parameter
1 Thermal sensor Detector 640×512 Uncooled infrared
2 Field of view (focal length) 24.1°×19.4° (18mm)
3 Operating distance Vehicles (4.6m×2.3m) recognizing distance:1.0km；
4 Visible light camera (2× digital zoom) Type of detector 1920×1080 Color COMS camera
5 Field of view (focal length) 26.1°×14.8°(12mm)
6 Operating distance Vehicles (4.6m×2.3m) recognizing distance:2.0km；
7 Working angle range Azimuth angle：-150°~+150°；pitch angle：-90° ~ +30°
8 Measuring precision of angle ≤0.3°
9 Maximum angular velocity ≥60°/s
10 Maximum angular acceleration ≥100°/s2
11 Dimension ≤Φ64mm×85mm；
12 Weight ≤260g
13 Electrical interface 1 network video interface, 1 RS232 asynchronous serial port
14 Power supply 14VDC~28VDC
15 Power consumption Average power consumption≤6W
16 Condition Operating temperature：-40℃～+55℃；launch shock：≥400g

Drawing of Mini Gimbal Camera Payload with Dual-sensor
Features of Mini Gimbal Camera Payload with Dual-sensor

Ultra-compact size (≤Φ64mm×85mm)

Ultra-light weight (weighs only 260 g)

Full HD day-view Color COMS camera

Built-in 640×512 uncooled thermal imager

AI algorithm and software for target tracking

Self-checking and fault-reporting functions

Low power consumption of 6W on average

Applications of Mini Gimbal Camera Electro-Optical Pod with Dual-sensor

Aviation Disaster Rescue
Integrated into a UAV or drone, Eyoung's lightweight UAV Gimbal Payload with a gimbal camera electro-optical system can be used in aviation accidents to carry out important aviation rescue missions, including spotting aircraft in distress and searching for missing people.

Urban Management
By loading high-definition optical cameras, the UAV Gimbal Payload with a gimbal camera electro-optical system can obtain information such as the traffic situation and building status in the city to further improve the degree of modern urban management and urban governance.

Reconnaissance and Surveillance
The aerial surveillance camera electro-optical payload can be loaded with thermal sensor and visible light camera, capable of obtaining real-time intelligence information about the target area, including images, video, remote sensing and other data. The UAV Gimbal Payload with a gimbal camera electro-optical system ensures that all this information is captured accurately and efficiently.
