PVDF Pellet SF-F22MP

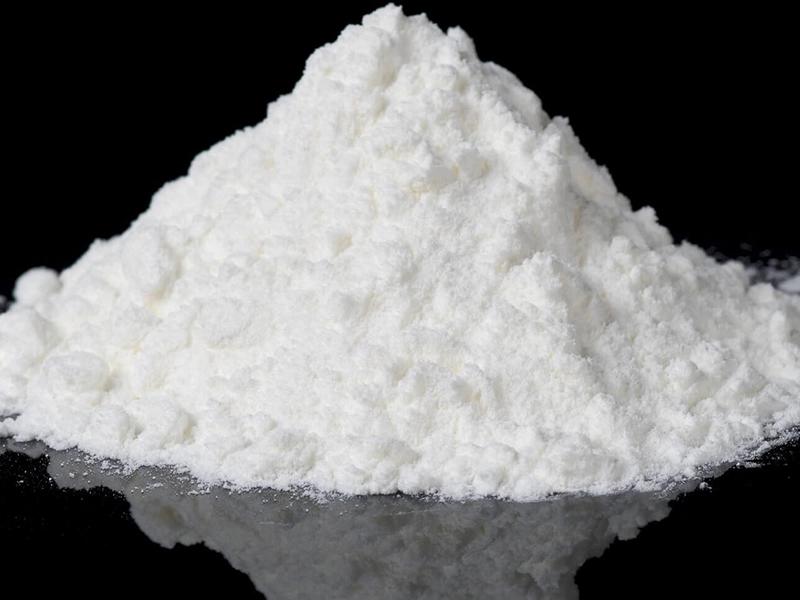

SF-F22MP is powder form PVDF material designed for compression molding process for the production of molding parts.

Product Description of PVDF Pellet SF-F22MP
Polyvinylidene fluoride (PVDF) is a new fluorocarbon thermoplastic with excellent mechanical performance, good impact resistance, abrasion resistance, weatherability and chemical stability. It is widely used in chemical industry, electrical and electronic industry, food industry, space industry and architectural decoration industry as it can be used to produce pump valves, pipe fittings, films, wire insulating layers, lithium battery adhesive and fluorocarbon coatings.

Specification of PVDF Pellet SF-F22MP
Item Unit Test standard SF-F22MP
Appearance / White Powder
Average Particle Size μm Laser Sizer ＜130
Melting Point ℃ ASTM D3418, 10℃/min 171
Density g/cm3 ASTM D792 1.77
MFR g/10min ASTM D1238, 230℃/12.5kg 1-10
Water Absorption % ASTM D570 ≤0.03
Inst Viscosity MPa.S 0.1g/g NMP 500-5000

Process Safety Instructions of PVDF Pellet SF-F22MP
This product should be processed under 370℃,to avoid producing toxic gases;

PVDF has good fire resistance and smoke inhibition property, however, when meets with fire, it will release toxic hydrogen fluoride gas and fluorocarbon compounds;

Operators should take good care of personal protection during the use procedure and processing.

Packaging and Storage of PVDF Pellet SF-F22MP
25 kg and 250 kg packages can be provided. PVDF is packed in double layer of polyethylene plastic bag and then put into a hard cardboard drum.

It must be stored in clean, cool, dry place.
