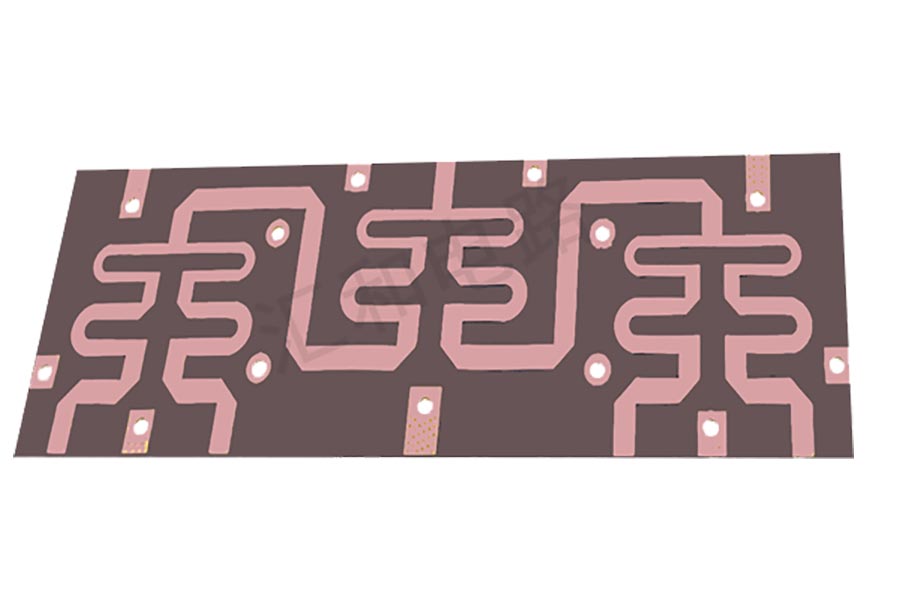

2 Layer F4B ENIG PCB

Number of layers: 2
Surface finish: ENIG
Base material: F4B
Min. hole diameter: 0.8mm
Outer Layer W: 6mil
Outer layer S: 6mil
Thickness: 1.0mm

Advantages Of 2 Layer F4B PCB
Own lamination process to convenient production for Multilayer PCB and shorten the lead time.
Jiangxi facility is environmental-friendly approved by the government .
Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.
Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.
Engineers with more than 15 years of experience
Customers located in more than 20 countries, the common choice of 500 high-end companies.
High staff stability, low mobility.
UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.
Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.
Establish an e-commerce system to reduce transaction costs and increase market response speed.

As the cheapest pcb manufacturer, we will do our best to meet all the needs of customers.
