최종 학습 및 평가 (4) : 후처리

<post_process.py>

import os
import cv2
import torch
import numpy as np
from PIL import Image
from torchvision import transforms
from transformers import SegformerFeatureExtractor, SegformerForSemanticSegmentation
from ultralytics import YOLO
from scipy.ndimage import label
from collections import Counter, defaultdict
import pandas as pd
import matplotlib.pyplot as plt

# 경로 설정
video_path = "YOUR_VID_PATH"
output_path = "YOUR_OUTPUT_PATH"
log_path = "YOUR_LOG_PATH"
save_plot_dir = "YOUR_PLOT_PATH"
segformer_path = "YOUR_SEGFORMER_MODEL_PATH"
yolo_model_path = "YOUR_YOLO_MODEL_PATH"

# 클래스 이름 및 범주 설정
class_names = [
    "Disabled Icon", "Women Icon", "No Parking Sign", "Traffic Cone",
    "Two-wheeled Vehicle", "Vehicle", "Human", 'Compact Car Icon'
]

object_categories = {
    "Reserved": [0, 7],
    "NoParking": [2, 3],
    "Vehicle": [4, 5],
    "Human": [6]
}


BACKGROUND_ID = 0
DRIVING_AREA_ID = 1
PARKING_AREA_ID = 2

parking_status_colors = {
    "Empty": (100, 255, 100),
    "Caution": (0, 140, 255),
    "Reserved": (255, 255, 0),
    "Blocked": (0, 0, 200)
}

segformer_colors = {
    0: (0, 0, 0),
    1: (200, 150, 255),
}

def get_category(class_id):
    for category, ids in object_categories.items():
        if class_id in ids:
            return category
    return "Other"

# 모델 로드
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
yolo_model = YOLO(yolo_model_path)
feature_extractor = SegformerFeatureExtractor.from_pretrained("nvidia/segformer-b2-finetuned-ade-512-512")
segformer_model = SegformerForSemanticSegmentation.from_pretrained(segformer_path).to(device)
segformer_model.eval()

cap = cv2.VideoCapture(video_path)
fourcc = cv2.VideoWriter_fourcc(*'mp4v')
fps = int(cap.get(cv2.CAP_PROP_FPS))
w, h = int(cap.get(3)), int(cap.get(4))
out = cv2.VideoWriter(output_path, fourcc, fps, (w, h))

log_data = []
performance_counter = defaultdict(Counter)

frame_idx = 0
while cap.isOpened():
    ret, frame = cap.read()
    if not ret:
        break

    original = frame.copy()
    image = Image.fromarray(cv2.cvtColor(frame, cv2.COLOR_BGR2RGB))
    inputs = feature_extractor(images=image, return_tensors="pt").to(device)
    with torch.no_grad():
        outputs = segformer_model(**inputs)
        logits = torch.nn.functional.interpolate(outputs.logits, size=(h, w), mode="bilinear", align_corners=False)
        preds = torch.argmax(logits, dim=1)[0].cpu().numpy()

    color_mask = np.zeros_like(frame)
    color_mask[preds == DRIVING_AREA_ID] = segformer_colors[1]

    yolo_results = yolo_model(original)[0]
    boxes = yolo_results.boxes.data.cpu().numpy()

    empty_count = caution_count = reserved_count = blocked_count = 0
    risk_names = []

    parking_mask = (preds == PARKING_AREA_ID).astype(np.uint8)
    labeled_mask, num_labels = label(parking_mask)

    for i in range(1, num_labels + 1):
        region_mask = (labeled_mask == i).astype(np.uint8)
        if np.count_nonzero(region_mask) == 0:
            continue

        region_status = "Empty"

        for box in boxes:
            class_id = int(box[5])
            category = get_category(class_id)
            x1, y1, x2, y2 = map(int, box[:4])
            cx, cy = int((x1 + x2) / 2), int((y1 + y2) / 2)

            # 중심점 기반 조건
            in_region_by_center = (cy < h and cx < w and region_mask[cy, cx] == 1)

            # IoU 및 region 기준 조건 (NoParking, Human)
            iou_condition = False
            if category in ["NoParking", "Human"]:
                box_mask = np.zeros((h, w), dtype=np.uint8)
                box_mask[y1:y2, x1:x2] = 1
                intersection = np.logical_and(region_mask, box_mask).sum()
                region_area = region_mask.sum()
                box_area = (x2 - x1) * (y2 - y1)
                if box_area > 0 and (intersection / box_area > 0.02):
                    iou_condition = True
                elif region_area > 0 and (intersection / region_area > 0.02):
                    iou_condition = True

            # 중심점 or IoU 기반 조건 중 하나라도 만족하면 적용
            if not (in_region_by_center or iou_condition):
                continue

            # 일반 카테고리 분류 기준
            if category == "Reserved":
                region_status = "Reserved"
            elif category == "Human":
                region_status = "Caution"
            elif category in ["NoParking", "Vehicle"]:
                region_status = "Blocked"


        if region_status == "Empty":
            empty_count += 1
        elif region_status == "Reserved":
            reserved_count += 1
        elif region_status == "Blocked":
            blocked_count += 1
        elif region_status == "Caution":
            caution_count += 1

        for c in range(3):
            color_mask[:, :, c][region_mask == 1] = parking_status_colors[region_status][c]

        contours, _ = cv2.findContours(region_mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
        cv2.drawContours(color_mask, contours, -1, (255, 255, 255), 2)

    overlay = cv2.addWeighted(frame, 0.6, color_mask, 0.4, 0)
    edge_map = cv2.Canny(preds.astype(np.uint8), 50, 150)
    edges_rgb = cv2.cvtColor(edge_map, cv2.COLOR_GRAY2BGR)
    edges_rgb[np.where((edges_rgb != [0, 0, 0]).all(axis=2))] = [255, 255, 255]
    final_overlay = cv2.addWeighted(overlay, 1.0, edges_rgb, 0.7, 0)

    for box in boxes:
        class_id = int(box[5])
        category = get_category(class_id)
        x1, y1, x2, y2 = map(int, box[:4])
        cx, cy = int((x1 + x2) / 2), int((y1 + y2) / 2)
        cv2.circle(final_overlay, (cx, cy), 5, (255, 255, 255), -1)

        if category == "Reserved":
            cls_name = class_names[class_id] if class_id < len(class_names) else f"Class {class_id}"
            cv2.rectangle(final_overlay, (x1, y1), (x2, y2), (255, 255, 0), 3)
            text_size = cv2.getTextSize(cls_name, cv2.FONT_HERSHEY_SIMPLEX, 1.0, 2)[0]
            cv2.rectangle(final_overlay, (x1, y2 + 10), (x1 + text_size[0], y2 + 10 + text_size[1]), (0, 0, 0), -1)
            cv2.putText(final_overlay, cls_name, (x1, y2 + 30), cv2.FONT_HERSHEY_SIMPLEX, 1.0, (255, 255, 0), 2)

        if category in ["Vehicle", "Human"]:
            cls_name = class_names[class_id] if class_id < len(class_names) else f"Class {class_id}"
            cv2.rectangle(final_overlay, (x1, y1), (x2, y2), (0, 0, 255), 4)
            text_size = cv2.getTextSize(cls_name, cv2.FONT_HERSHEY_SIMPLEX, 1.2, 2)[0]
            cv2.rectangle(final_overlay, (x1, y2 + 15), (x1 + text_size[0], y2 + 15 + text_size[1]), (0, 0, 0), -1)
            cv2.putText(final_overlay, cls_name, (x1, y2 + 35), cv2.FONT_HERSHEY_SIMPLEX, 1.2, (0, 0, 255), 2)

        if category == "NoParking":
            cls_name = class_names[class_id] if class_id < len(class_names) else f"Class {class_id}"
            cv2.rectangle(final_overlay, (x1, y1), (x2, y2), (0, 0, 200), 4)
            text_size = cv2.getTextSize(cls_name, cv2.FONT_HERSHEY_SIMPLEX, 1.2, 2)[0]
            cv2.rectangle(final_overlay, (x1, y2 + 15), (x1 + text_size[0], y2 + 15 + text_size[1]), (0, 0, 0), -1)
            cv2.putText(final_overlay, cls_name, (x1, y2 + 35), cv2.FONT_HERSHEY_SIMPLEX, 1.2, (0, 0, 200), 2)

    risk_names = [class_names[int(box[5])] for box in boxes if get_category(int(box[5])) in ["Vehicle", "Human", "NoParking"]]
    risk_counts = Counter(risk_names)
    risk_str = ", ".join([f"{k}({v})" for k, v in risk_counts.items()]) or "None"

    log_data.append({
        "frame": frame_idx,
        "empty": empty_count,
        "caution": caution_count,
        "reserved": reserved_count,
        "blocked": blocked_count,
        "risks": risk_str
    })

    for box in boxes:
        class_id = int(box[5])
        category = get_category(class_id)
        class_name = class_names[class_id] if class_id < len(class_names) else f"Class {class_id}"
        performance_counter[category][class_name] += 1

    cv2.rectangle(final_overlay, (0, 0), (w, 90), (0, 0, 0), -1)
    cv2.putText(final_overlay, f"Frame: {frame_idx}", (10, 35), cv2.FONT_HERSHEY_SIMPLEX, 1.4, (0, 255, 255), 4)
    cv2.putText(final_overlay, f"Risk: {risk_str}", (10, 75), cv2.FONT_HERSHEY_SIMPLEX, 1.1, (0, 100, 255), 3)
    cv2.putText(
        final_overlay,
        f"Parking: Empty({empty_count}), Caution({caution_count}), Reserved({reserved_count}), Blocked({blocked_count})",
        (500, 35), cv2.FONT_HERSHEY_SIMPLEX, 1.0, (100, 255, 100), 3
    )

    out.write(final_overlay)
    frame_idx += 1
    print(f"Processed frame {frame_idx}", end='\r')

cap.release()
out.release()

# CSV 로그 저장
pd.DataFrame(log_data).to_csv(log_path, index=False)
print(f"\n📄 CSV 로그 저장 완료: {log_path}")

# 성능 시각화
os.makedirs(save_plot_dir, exist_ok=True)
for category, counter in performance_counter.items():
    plt.figure(figsize=(10, 6))
    names = list(counter.keys())
    values = list(counter.values())
    plt.barh(names, values, color='skyblue')
    plt.title(f"{category} Category Frequency")
    plt.xlabel("Frequency")
    plt.tight_layout()
    plt.savefig(os.path.join(save_plot_dir, f"{category}_performance.png"))
    plt.close()

print(f" 분류별 성능 시각화 완료: {save_plot_dir}")
print(f" 영상 처리 완료: {output_path}")

---

1. Class 카테고리 분류

class_names = [
    "Disabled Icon", "Women Icon", "No Parking Sign", "Traffic Cone",
    "Two-wheeled Vehicle", "Vehicle", "Human", 'Compact Car Icon'
]

object_categories = {
    "Reserved": [0, 7],
    "NoParking": [2, 3],
    "Vehicle": [4, 5],
    "Human": [6]
}

• 인식된 Class에 따라 4가지 카테고리로 분류

---

2. BBOX / 라벨 / 중심점 표시

---

3. 주차 공간 상태 판단

• Parking Area가 인식되면 상태에 따라 Empty/ Reserved/ Caution/ Blocked로 분류
  • Reserved : Parking Area에 Disabled Icon, Women Icon 인식 시
  • Blocked : Parking Area에 No Parking Sign, Traffic Cone,Two-wheeled Vehicle, Vehicle인식 시
  • Caution : Parking Area에 Human 인식 시

Trouble Shooting : 분류 조건

• NoParking 카테고리(NO Parking Sign, Traffic Cone)는 주차공간 앞쪽에 위치한 경우가 많음
• Human은 주차공간에 조금만 겹쳐도 Caution으로 분류해야 함

IoU 조건을 추가 :
1. Parking Area와 NoParking 카테고리가 일정 이상 겹치면 Blocked로 판단
2. Parking Area와 Human 카테고리가 조금이라도 겹치면 Caution으로 판단

---

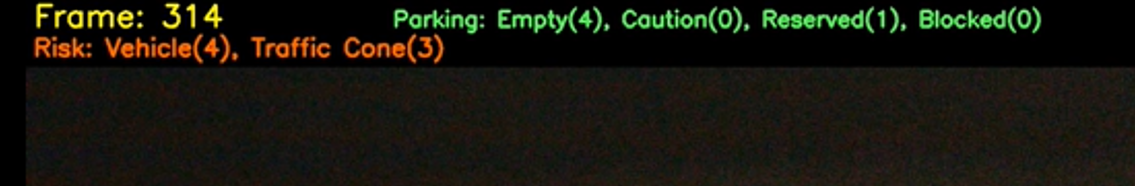

4. 정보창 표시

a ) 프레임 표시

cv2.putText(final_overlay, f"Frame: {frame_idx}", (10, 35),
            cv2.FONT_HERSHEY_SIMPLEX, 1.4, (0, 255, 255), 4)

b ) 위험 요소 목록 표시

cv2.putText(
    final_overlay,
    f"Parking: Empty({empty_count}), Caution({caution_count}), Reserved({reserved_count}), Blocked({blocked_count})",
    (500, 35), cv2.FONT_HERSHEY_SIMPLEX, 1.0, (100, 255, 100), 3
)

c ) 주차 공간 상태 요약 표시

cv2.putText(
    final_overlay,
    f"Parking: Empty({empty_count}), Caution({caution_count}), Reserved({reserved_count}), Blocked({blocked_count})",
    (500, 35), cv2.FONT_HERSHEY_SIMPLEX, 1.0, (100, 255, 100), 3
)

---
