Coil Upender

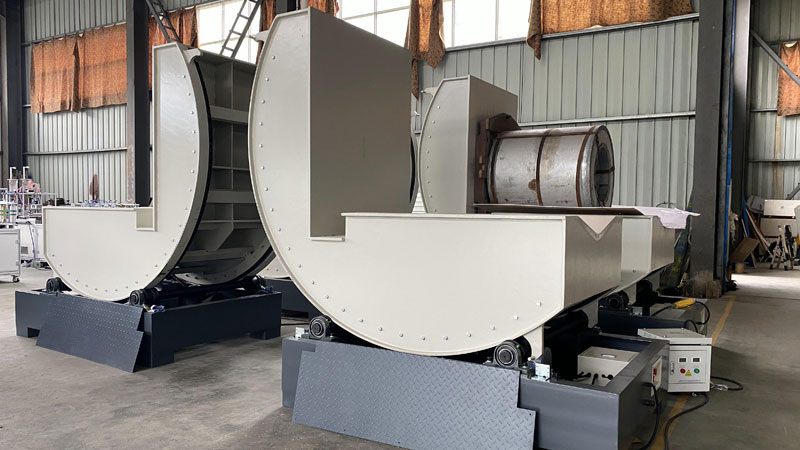

The steel coil upender is used for 90-degree rollover of steel coil. The steel coil upender consists of a base, turntable, roller shaft group system, transmission shaft group, transmission system, and electric control system.

Hangzhou Roll Forming Co., Ltd. is a coil load upender manufacturer supplying ready coil upender for sale. Our upender machine has a large loading capacity. If you are looking for reliable coil upender manufacturers, coil former manufacturers, we are your perfect choice. You are welcome to contact us for more information about our used upenders for sale.

Main Structural Forms and Characteristics of Steel Coil Upender

The base is welded by steel profiles and plates with shot blasting process; which makes the whole up ender machine with beautiful appearance, stable structure, and good impact resistance.

The turntable mainly adopts high-quality medium carbon steel plate, which is processed by roll bending, welding and shot blasting. The upender machine has characters of high strength and stable structure.

Rotation of turntable is driven by deceleration motor with brake device and chain transmission pair, so as to realize positive and negative rotation, start smoothly and achieve the purpose of turning over.

Setting a plane and a plane plus V plane on the turning table can meet the requirements of different states of the coil.

Operational Instructions of Coil Upender Machine

Switch power supply.

Turn on the power switch and emergency stop button.

Put the coil to be rolling over on the upender.

Using the operation button (positive/negative) key, the steel coil upender starts to work and the turntable is in operation.

The button of the up ender machine is loosened, the flip machine stops, the flip machine stops automatically when it turns to 90 degrees, and the work is finished.

Remove the product after the reversal and operate in a circular way.
