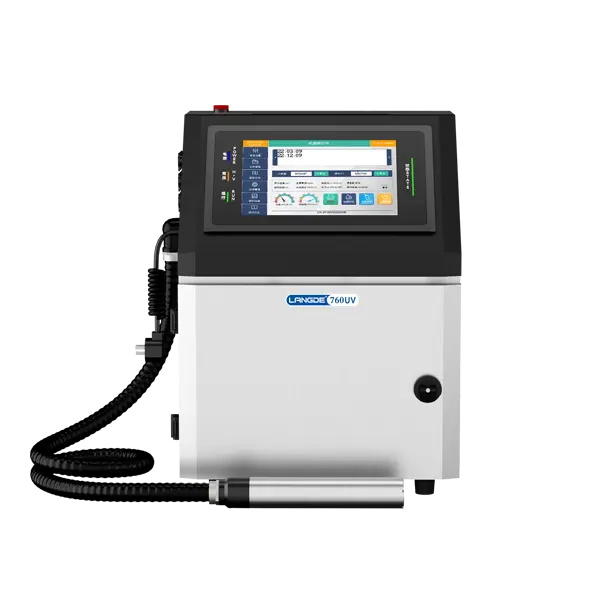

LANGDE 760 UV Continuous Inkjet Printer

White UV ink print continuous inkjet UV printer, ideal for low VOC environment and special materials with high adhesion requirements.

Key Benefits:

Special diaphragm solenoid valve design. Efficiently and thoroughly treat the nozzle to ensure smooth and clean startup and shutdown every time.

Three sets of intelligent stirring systems and self-awakening system prevent ink from settling and allow it to be stored for a long time.

The uniquely designed on/off program keeps the nozzle and the conduit clean and free of clogging. It can be started at any time.

Specification of LANGDE 760 UV Ink Jet Printer

Overall Performance of LANGDE 760 UV Cured Inkjet Printers
32-bit embedded ARM structure, 8-core ARM processor

Internet remote assistance, monitoring, upgrade

System hardware and software intelligent self-check system

Printhead automatic cleaning

Ink line automatic detection

Screen fault diagnosis display

Machine status automatic display, intelligent alarm

Work log record

USB data information import

Wired, wireless WIFI, mobile phone hotspot Internet access

Printhead fully sealed integrated design (all-round printing)

Operation Interface of LANGDE 760 UV Continuous Inkjet Printer
10.1-inch color touch screen Color LED touch screen

Image graphic menu

Multi-level password protection

System language selection/with screen saver function

Automatic display of fault detection

Different types of information are displayed in different colors

What you see is what you get

External Extension of LANGDE 760 UV Continuous Inkjet Printer
Beacon (Alarm light) output; Relay output;

Photoelectric input x2; Encoder input

RS-232, RS-485

SD card; USB; WIFI; Ethernet

Reserved multi-channel control output

Interface Language of LANGDE 760 UV Continuous Inkjet Printer
Simplified Chinese, Traditional Chinese, English, Portuguese, Spanish, Arabic, Bengali, Turkish, Czech, French, Korean, Russian, Vietnamese, Thai, Persian, Indonesian

Standard Features of LANGDE 760 UV Continuous China Industrial Inkjet Printer
Printing lines: 1-5 lines

Printing dot matrix: 5x5 5x7 7x9 6x12 8x16 12x16 11x24 16x32 (Self-edited dot information within 34 dots)

Printing speed: 5.5m/s (5 dots), 5.25m/s (7 dots), 4.1m/s (9 dots), 2.3m/s (12 dots), 1.6m/s (16 dots), 0.6m/s (24 dots)

Storage information: unlimited storage of printing information

Printing content: date, time, automatic date, automatic validity period, class number, batch number, serial number, four groups of counters, meter, self-edited pattern, variable barcode, anti-counterfeit code, multi-language, multiple fonts (support personal signature)

Printing length: N*1024 characters (customizable length)

Printing ink: white, yellow, green and other pigment based inks

Printing character height: 1~12mm (adjustable)

Printing distance: 1~30mm (adjustable)

Font widening: 1~9 times, can be widened for a single character

Font direction: normal characters, reverse characters, inverted characters, reversed characters, can set the printing direction independently for a single character

Font spacing: 1~8 times, can be edited point by point

As one of uv inkjet printer manufacturers and uv inkjet printer suppliers, we will do our best to meet all the needs of customers.
