📌소켓통신 구조

Server PORT = 9090	Client1 IP = 123. 0. 0. 1	Client2 IP = 123. 0. 0. 2
무한반복,클라이언트의 접속 대기	← Socket s = new Socket(Ip,Port)
↓ Client1 담당자 배정 Socket 생성 (InStream,OutStream) JSON(ResponseDto) ⇆	↲ 회원가입 Json(RequestDto)
↓ Client2 담당자 배정 Socket 생성 (InStream,OutStream) JSON(ResponseDto) ⇆

Thread1 (serverSocket)	List1
S1. 무한루프 (reader) → Controller → Sevice → Repository → DB	static

Thread2 (serverSocket)	List1
S2. 무한루프 (reader) → Controller → Sevice → Repository → DB	static

🔥windowBuilder 복습

📑Server - ServerApplication

package simplechatting.server;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.PrintWriter;
import java.net.ServerSocket;
import java.net.Socket;

public class ServerApplication {


	public static void main(String[] args) {
		ServerSocket serverSocket = null;
		try {
			 serverSocket = new ServerSocket(9090);
			System.out.println("====<<< 서버 실행 >>>====");


				Socket socket = serverSocket.accept(); // 클라이언트의 접속을 기다리는 녀석 // 연결버튼 누를때 까지

				OutputStream outputStream = socket.getOutputStream(); //client에게 통로를 열어줌
				PrintWriter out = new PrintWriter(outputStream,true);
				out.println("join"); //client에게 전달

				InputStream inputStream = socket.getInputStream();  // 들어올 문을 열어줌
				BufferedReader in = new BufferedReader(new InputStreamReader(inputStream));

				String welcomeMessage = in.readLine();
				System.out.println(welcomeMessage);  //server console 창
				out.println(welcomeMessage); //클라이언트에게 돌려주는 용도

				while(true) {  //서버 안꺼지게 하는 용도
				in.readLine();
				}


		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}finally {
			if(serverSocket != null) {
				try {
					serverSocket.close();
				} catch (IOException e) {
					// TODO Auto-generated catch block
					e.printStackTrace();
				}
			}

			System.out.println("====<<< 서버 종료 >>>====");

		}
	}

}

📑Client - ChattingClinet

package simplechatting.client;

import java.awt.EventQueue;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.PrintWriter;
import java.net.ConnectException;
import java.net.Socket;
import java.net.UnknownHostException;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;
import javax.swing.JTextField;
import javax.swing.border.EmptyBorder;

public class ChattingClient extends JFrame {



	private Socket socket;
	private String username;



	private JPanel contentPane;
	private JTextField ipInput;
	private JTextField portInput;
	private JTextArea contentView;


	public static void main(String[] args) {
		EventQueue.invokeLater(new Runnable() {
			public void run() {
				try {
					ChattingClient frame = new ChattingClient();
					frame.setVisible(true);
				} catch (Exception e) {
					e.printStackTrace();
				}
			}
		});
	}


	public ChattingClient() {
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		setBounds(100, 100, 587, 444);
		contentPane = new JPanel();
		contentPane.setBorder(new EmptyBorder(5, 5, 5, 5));

		setContentPane(contentPane);
		contentPane.setLayout(null);

		ipInput = new JTextField();
		ipInput.setBounds(337, 11, 97, 32);
		contentPane.add(ipInput);
		ipInput.setColumns(10);

		JButton connectButton = new JButton("연결");

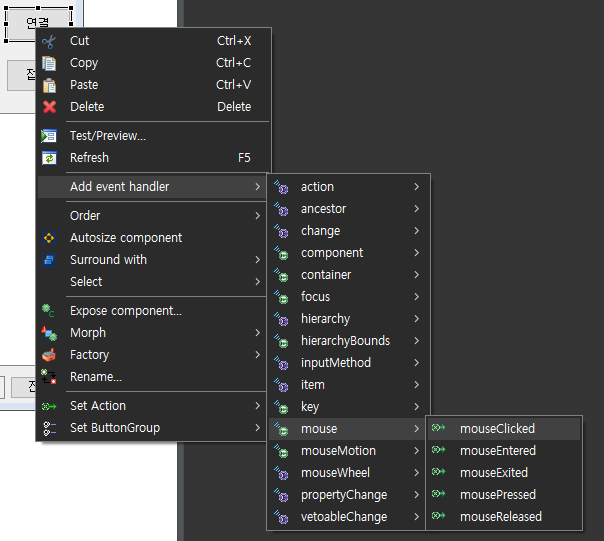

		connectButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e) {
				String ip = null;   // 텍스트 필드에 있는 값을 가져옴
				int port = 0; // 텍스트 필드에 있는 값을 가져옴

				ip = ipInput.getText();
				port = Integer.parseInt(portInput.getText());

				try {

					socket = new Socket(ip, port);   //client → server단의 serverSocket.accept(); 에게 전달
					JOptionPane.showMessageDialog(null,
							socket.getInetAddress() + "서버 접속" ,
							"접속성공",
							JOptionPane.INFORMATION_MESSAGE);

					InputStream inputStream = socket.getInputStream(); // 서버로부터 올 메시지 통로를 열어줌
					BufferedReader in = new BufferedReader(new InputStreamReader(inputStream));

					if(in.readLine().equals("join")) {

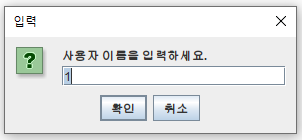

						username = JOptionPane.showInputDialog(null,"사용자 이름을 입력하세요.",JOptionPane.INFORMATION_MESSAGE);

						OutputStream outputStream = socket.getOutputStream();  // 서버에게 갈 통로를 열어줌
						PrintWriter out = new PrintWriter(outputStream,true);

						out.println(username + "님이 접속하였습니다."); // 서버로 전달

						String welcomMessage = in.readLine() ; //server단의 welcomeMessage
						contentView.append(welcomMessage);

					}


				}catch (ConnectException e1) {

					JOptionPane.showMessageDialog(null,
							"서버 접속 실패" ,
							"접속실패",
							JOptionPane.ERROR_MESSAGE);
				}catch (UnknownHostException e1) {
					e1.printStackTrace();
				}catch (IOException e1) {
					e1.printStackTrace();
				}
			}
		});
		connectButton.setBounds(501, 10, 65, 33);
		contentPane.add(connectButton);

		portInput = new JTextField();
		portInput.setBounds(446, 11, 43, 32);
		contentPane.add(portInput);
		portInput.setColumns(10);

		JScrollPane contentScroll = new JScrollPane();
		contentScroll.setBounds(12, 10, 313, 358);
		contentPane.add(contentScroll);

		contentView = new JTextArea();
		contentScroll.setViewportView(contentView);

		JScrollPane userListScroll = new JScrollPane();
		userListScroll.setBounds(337, 53, 222, 315);
		contentPane.add(userListScroll);

		JTextArea userList = new JTextArea();
		userListScroll.setViewportView(userList);

		JScrollPane messageScroll = new JScrollPane();
		messageScroll.setBounds(12, 378, 488, 23);
		contentPane.add(messageScroll);

		JTextArea messageInput = new JTextArea();
		messageScroll.setViewportView(messageInput);

		JButton sendButton = new JButton("전송");
		sendButton.setBounds(505, 378, 61, 23);
		contentPane.add(sendButton);
	}
}

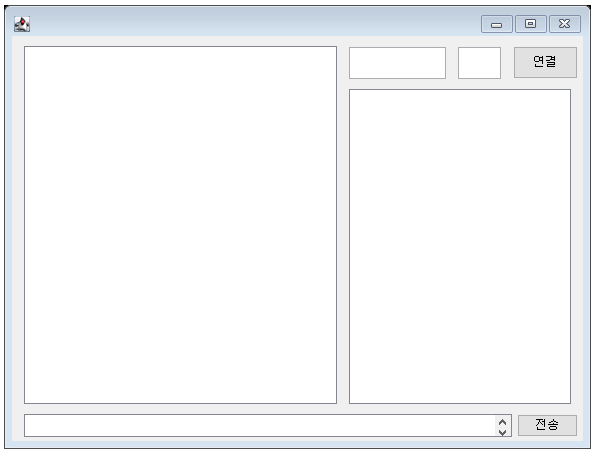

📑Client - ChattingClient(Design)

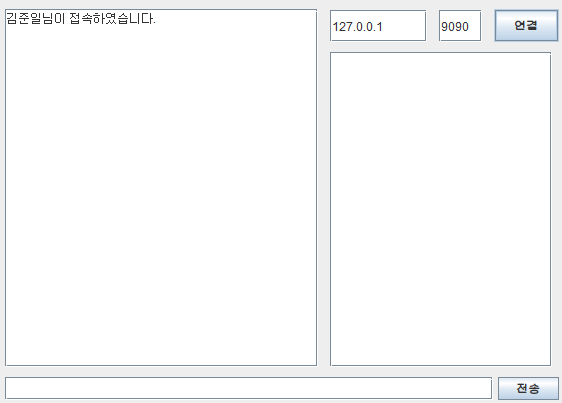

ServerApplication 실행 → CahttingClient 실행
