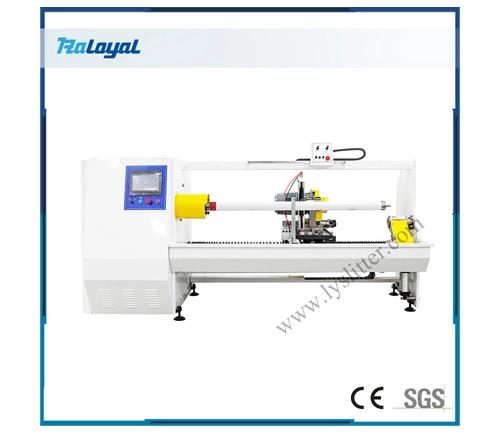

LY-701 Tape Log Slitter Machine

This Tape Log Roll Slitter Machine is suitable for cutting various materials such as PVC, OPP, PE, graphite roll, Crepe paper, etc. It is a double sided adhesive tape slitting machine.

Application of LY-701 Tape Log Slitter Machine
This PE tape log cutting machine is suitable for cutting various materials such as BOPP tape, electric insulating tape, masking tape, double or single side tape, cleaning paper tape, kraft paper tape, foam tape, medical tape, duck tape, PVC, OPP, PE, graphite roll, Crepe paper, Adhesive transfer tapes, vinyl logs, Car Vinyl Wrap film, window tint film, Masking tape, Stationery tapes, Packaging tapes, Double Sided tapes, Medicial tapes, Poli-Tape, RTape, Thermal Pad Tape, graphite roll with one side adhesive, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, Reinforced kraft paper tape, Fibafuse Waterproof tape, Fiberglass Tissue Tape, s/a vinyl or application tape, semi Conductive water blocking tape, semiconductive non-woven tape, polyimide tape, kapton tape, Adhesive Glass Tape, Mica Laminate tape, filament tape, reinforced paper tape, kraft papers tape, D/S polyester tape, surface protection ＆ floor guard tape, hdpe woven sack tape, double side filament tape, double side cloth tape, single sided polyester tape, fiberglass mesh tape, etc.

Application Industry of This Adhesive Tape Cutting Machine Includes:

Automotive

Jointing

Bonding

Mounting

Cable

Insulation

Sealing

Masking

Protection

Splicing

Technical Parameter of LY-701 Tape Log Slitter Machine
Machine model LY-701
Cutting diameter 350mm
Cutting speed 35cuts/min
Cutting precision ±0.05mm
Max. length of cut 1300mm or 1600mm
Paper core I.D. 76mm
Cutting width 1-1300/1600mm
Machine dimension(LWH) 3100mm1500mm1700mm
Power source 380V 50HZ 3PHASE
Air source 5KG ( prepared by user)
Characteristic of LY-701 Tape Log Slitter Machine
Our Difference

Min slitting width: 1 mm
Max slitting width: 2300 mm
Angular adjustment also controlled by servo motor
Short delivery time

Advantages of This Log Slitting Machine China:

1. Touch screen control panel.
2. Control panel provides major functions: material and blade running speed, width counter, number of cuts counter (LED touch screen operation).
3. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
4. PLC programmable control.
5. Equipped with an automatic flip system, which greatly improves work efficiency.

Now the price of tape slitting machine for sale is reasonable, anything you need, please contact us.
