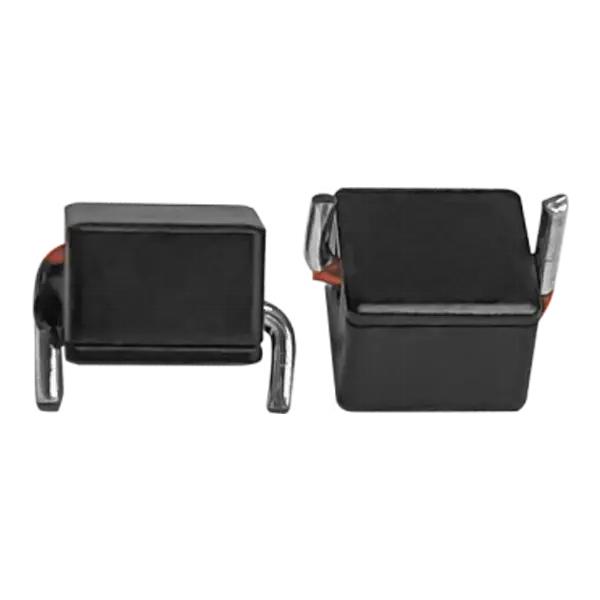

Inductor DS Series

Height: 8mm Max.

Footprint: 15.5*11mm Max.

Current Rating: up to 50Apk.

Inductance Component Range: 0.14μH to 2.25μH.

As one of the trusted carbon inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.

Explanation of part numbers
Boundary dimension
Series Size A B C D E F
DS4280 11.0 Max 15.5 Max 8.0 Max 3.2 ±0.5 12.7 ±0.5 1.6 Ref.

Packing Information
Electrical characteristics:
PART NO. L(0A)(uH)(±20%) Irms(A)(Typ.) Isat(A)(Typ.) DCR(mΩ )(Typ.) DCR(mΩ)Max. PDF
DS4280-R28M 0.28 38.7 45 0.7 0.8

As an inductive components manufacturing inc, we will do our best to meet all the needs of customers.
