Choosing the Right Cable Cleats for Power Distribution Systems

Choose cable cleats based on voltage rating, short-circuit withstand, material, and environment. Match to system specs for safety and reliability.

What Are Electrical Cable Cleats?

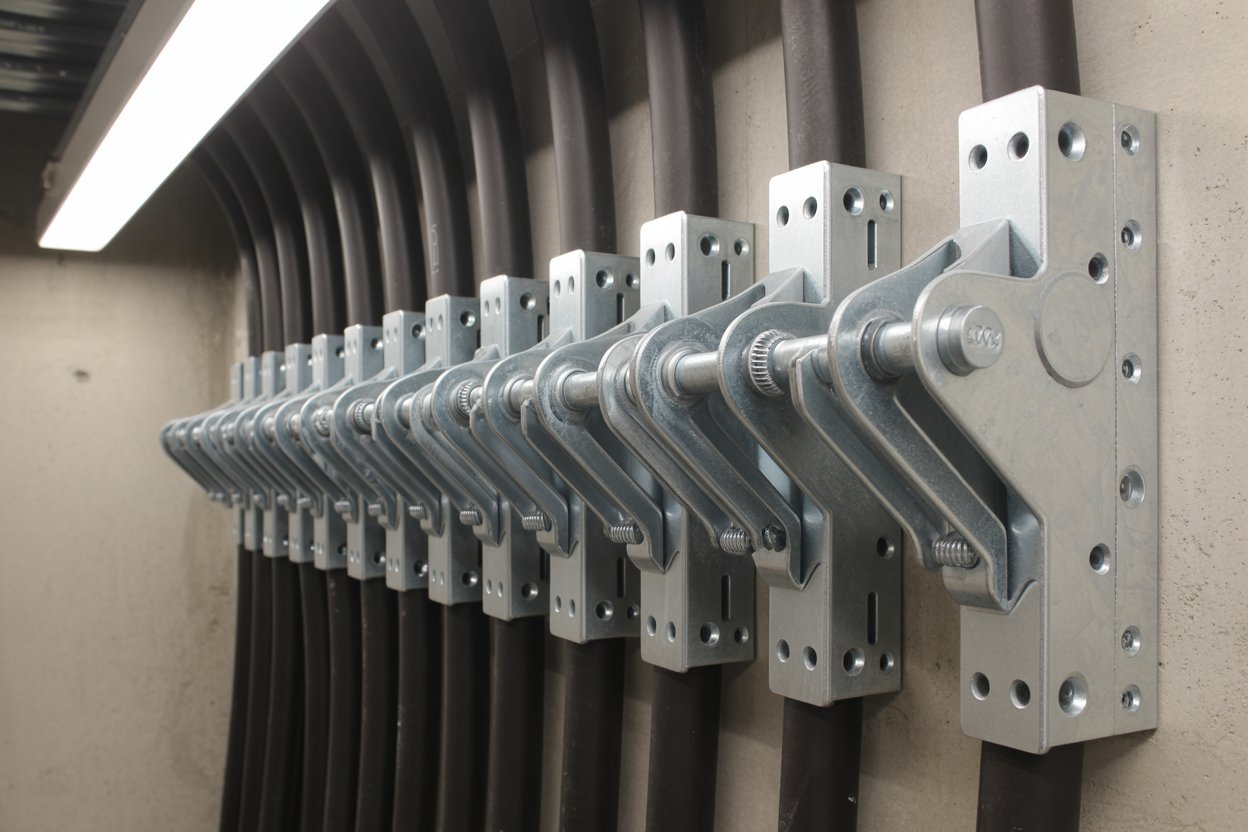

Electrical cable cleats secure cables, absorb fault forces, and prevent movement or damage.
Why Cable Cleats Matter
They protect against electromagnetic forces in faults (up to 100kA+). Poor cleating causes outages and fires. Compliant systems show 95% fewer fault damages (IEC 61914).

Types of Cable Cleats

Single-bolt: low voltage, simple.
Two-bolt: medium voltage, stronger grip.
Trefoil: three-phase, reduces heating.
Quad: bundled cables.
High voltage cable cleats: 66kV+, fault-resistant.

Key Selection Factors

Voltage rating (high voltage cable cleats for 33kV+).
Material (stainless steel, polymer).
Short-circuit rating.
Environment (UV, corrosion, fire).
Standards compliance (IEC 61914, BS EN 50368).

Cable Cleat Installation Best Practices

Space 0.6–1.2 m.
Align cables properly.
Torque to spec.
Test after install.
Inspect annually.

High Voltage Cable Cleats Notes

Use corrosion-resistant, insulated designs. Add anti-vibration features for overhead lines.

Conclusion

Match cleats to voltage and conditions. Follow standards. Invest in quality.
Contact a supplier for electrical cable cleats consultation.

FAQs

What is an electrical cable cleat?
Secures cables and absorbs fault forces.
How to choose high voltage cable cleats?
Match fault current, material, and IEC standards.
Best cable cleat installation spacing?
0.6–1.2 meters.
Why use cable cleats?
Prevent damage and outages.
Common types?
Single-bolt, two-bolt, trefoil, high voltage.
Inspection frequency?
Annually or after faults.
Can bad installation cause failure?
Yes—fires, blackouts.
