ALV 생성 순서
- 필요한 ITAB 및 Structure 및 ALV 관련 Class Instance 등을 선언
- Selection Screen 작성
- START-OF-SELECTION 이벤트 작성
-> Open SQL 작성 및 Loop 문 Read Table 구문 사용해서 ALV 출력할 ITAB 레코드 생성 - CALL SCREEN을 통해 ALV를 화면으dmfh cnffur
4-1. PF-STATUS를 통해서 버튼을 정의하고 SET TITLES를 통해서 100번 Screen의 타이틀 정의
4-2. ALV의 출력 형태를 정할 Layout을 정의
4-3. ALV에 Display할 필드 정보를 새엇ㅇ <- Field Catalog 생성
4-4. ALV를 출력할 Container와 ALV Grid 등 Instance Object 생성
4-5. ALC에 Data를 출력할 Method 호출 - (PAI) AT EXIT-COMMAND Module 작성
1. TOP INCLUDE
- Container , ALV Grid Class Instance 선언
- Field Caltog W/A & Internal Table, ALV Layout W/A 선언
*&---------------------------------------------------------------------*
*& Include ZC3R13_036TOP - Report ZC3R13_036
*&---------------------------------------------------------------------*
REPORT zc3r13_036 MESSAGE-ID k5.**********************************************************************
* TABELS
**********************************************************************
TABLES : zc3t26002.
**********************************************************************
* Class Instance
**********************************************************************
**DATA : go_container TYPE REF TO cl_gui_docking_container,
go_alv_grid TYPE REF TO cl_gui_alv_grid.**
**********************************************************************
* Internal Table and Work Area
**********************************************************************
DATA : BEGIN OF gs_docu,
icon TYPE icon-id.
INCLUDE STRUCTURE zc3t26002.
DATA : txt50 TYPE skat-txt50,
END OF gs_docu.
DATA : gt_docu LIKE TABLE OF gs_docu.
**DATA : gs_layout TYPE lvc_s_layo,
gs_fcat TYPE lvc_s_fcat,
gt_fcat TYPE lvc_t_fcat.**
**********************************************************************
* Common Variables
**********************************************************************
DATA : gv_okcdoe TYPE sy-ucomm.2. Selection Screen 작성
*&---------------------------------------------------------------------*
*& Include ZC3R13_036S01
*&---------------------------------------------------------------------*
SELECTION-SCREEN BEGIN OF BLOCK pa1 WITH FRAME TITLE TEXT-t01.
PARAMETERS : pa_com TYPE zc3t26002-bukrs MODIF ID mdf,
pa_fy TYPE zc3t26002-gjahr MODIF ID mdf.
SELECTION-SCREEN END OF BLOCK pa1.3. START-OF-SELECTION 이벤트 작성
START-OF-SELECTION.
**PERFORM get_base_data.**
**PERFORM make_result_data.**
CALL SCREEN 100.*&---------------------------------------------------------------------*
*& Form get_base_data
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& --> p1 text
*& <-- p2 text
*&---------------------------------------------------------------------*
FORM get_base_data .
DATA : lv_cnt TYPE i.
**SELECT bukrs gjahr belnr saknr bktxt wrbtr waers
FROM zc3t26002
INTO CORRESPONDING FIELDS OF TABLE gt_docu
WHERE bukrs EQ pa_com
AND gjahr EQ pa_fy.
IF gt_docu IS INITIAL.
MESSAGE s037 DISPLAY LIKE 'E'.
STOP.
ENDIF**.
ENDFORM.*&---------------------------------------------------------------------*
*& Form make_result_data
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& --> p1 text
*& <-- p2 text
*&---------------------------------------------------------------------*
FORM make_result_data .
DATA : lt_skat TYPE TABLE OF skat,
ls_skat TYPE skat,
lv_tabix TYPE sy-tabix,
lv_cnt TYPE i.
**" 텍스트 테이블 데이터 SELECT**
**SELECT saknr txt50
FROM skat
INTO CORRESPONDING FIELDS OF TABLE lt_skat
WHERE spras EQ sy-langu
AND ktopl EQ 'BKMG'
ORDER BY saknr.**
LOOP AT gt_docu INTO gs_docu.
lv_tabix = sy-tabix.
CLEAR ls_skat.
**" 텍스트테이블 데이터 추가**
READ TABLE lt_skat INTO ls_skat WITH KEY saknr = gs_docu-saknr BINARY SEARCH.
IF sy-subrc EQ 0.
gs_docu-txt50 = ls_skat-txt50.
ENDIF.
**" ICON 추가**
CASE gs_docu-waers.
WHEN 'KRW'.
gs_docu-icon = icon_sum.
ENDCASE.
MODIFY gt_docu FROM gs_docu INDEX lv_tabix
TRANSPORTING icon txt50.
CLEAR gs_docu.
ENDLOOP.
IF gt_docu IS NOT INITIAL.
lv_cnt = lines( gt_docu ).
MESSAGE s001 WITH lv_cnt TEXT-i01.
ENDIF.
ENDFORM.3. CALL SCREEN을 통해 ALV 화면 출력
START-OF-SELECTION.
PERFORM get_base_data.
PERFORM make_result_data.
**CALL SCREEN 100.**-

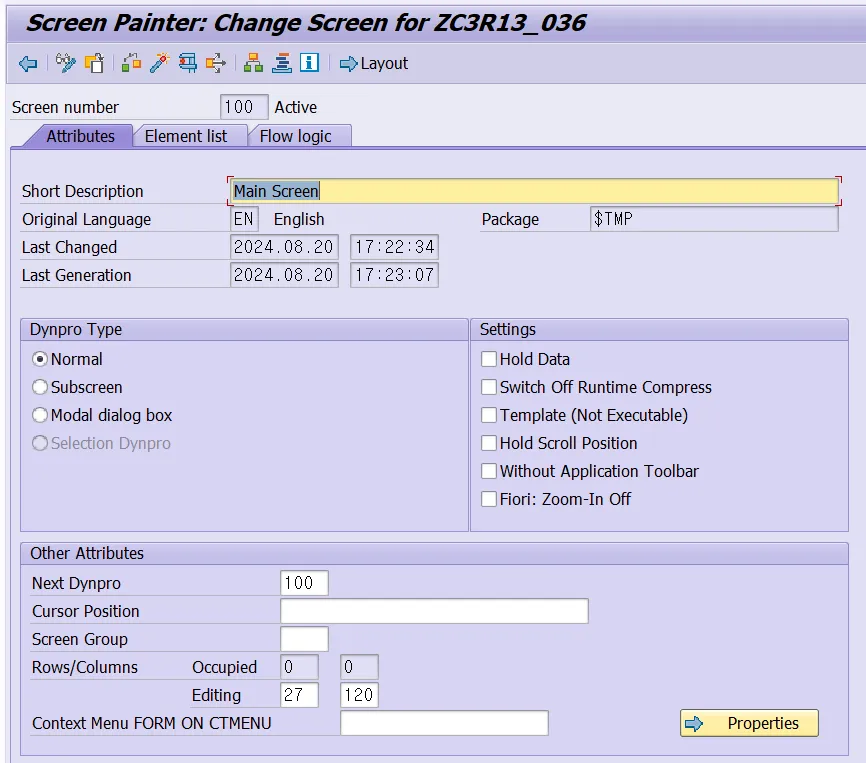

Short Description 추가
-

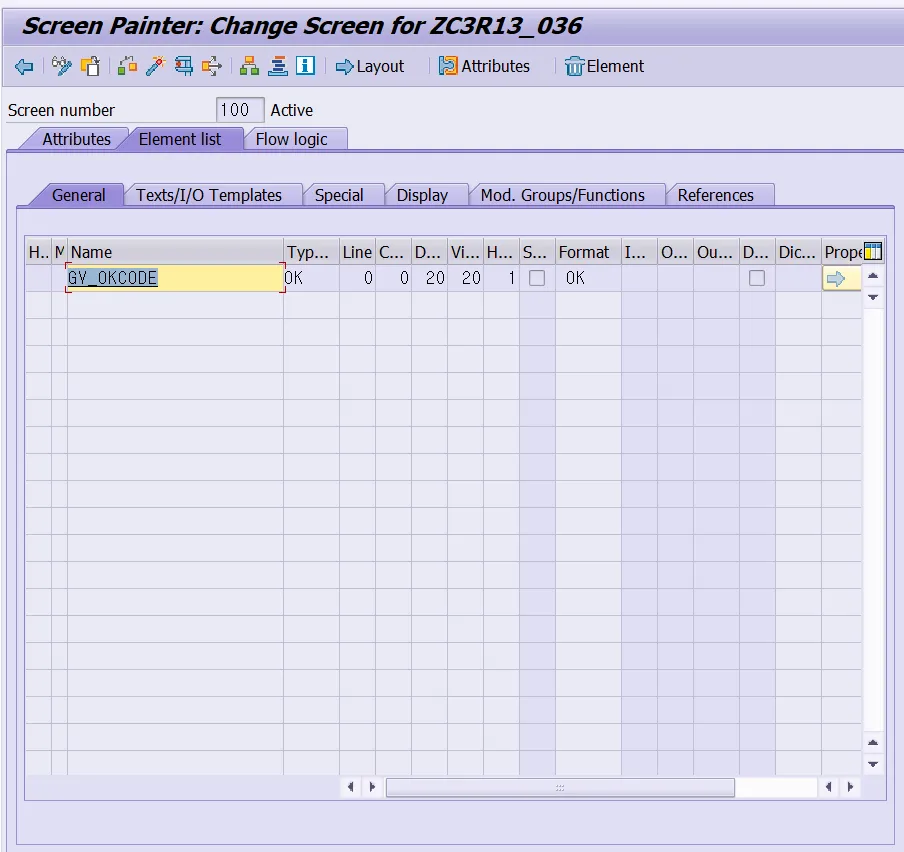

okcode 저장할 변수 지정
-
Flow Logic
PROCESS BEFORE OUTPUT. **MODULE status_0100.** **MODULE init_process_control.** PROCESS AFTER INPUT. **MODULE exit AT EXIT-COMMAND.**-
PBO
-
MODULE status_0100
*&---------------------------------------------------------------------* *& Include ZC3R13_036O01 *&---------------------------------------------------------------------* *&---------------------------------------------------------------------* *& Module STATUS_0100 OUTPUT *&---------------------------------------------------------------------* *& *&---------------------------------------------------------------------* MODULE status_0100 OUTPUT. SET PF-STATUS 'MENU100'. SET TITLEBAR 'TITLE100'. ENDMODULE.-

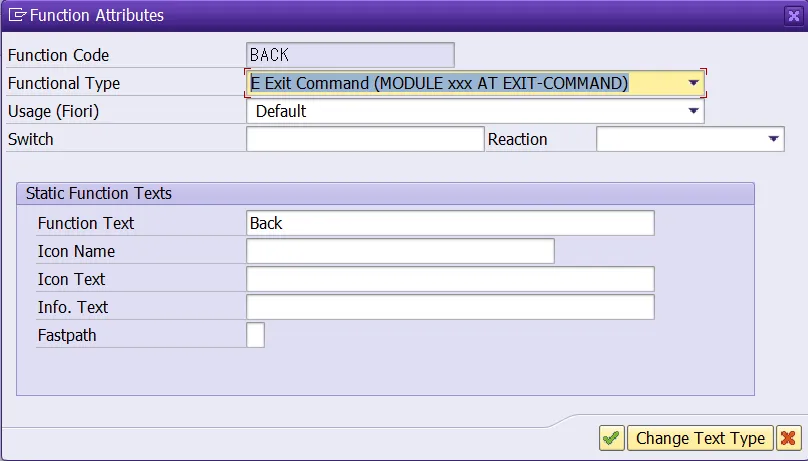

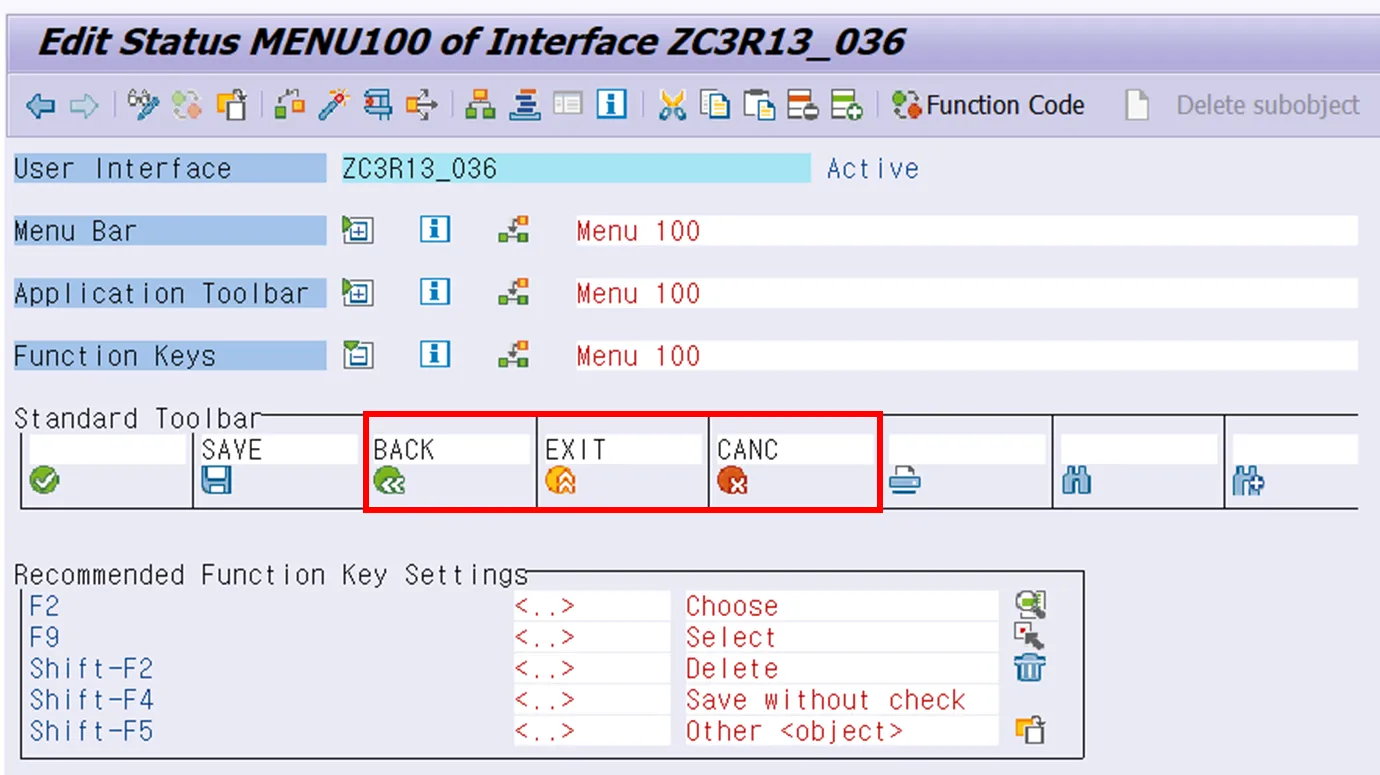

MENU100
-

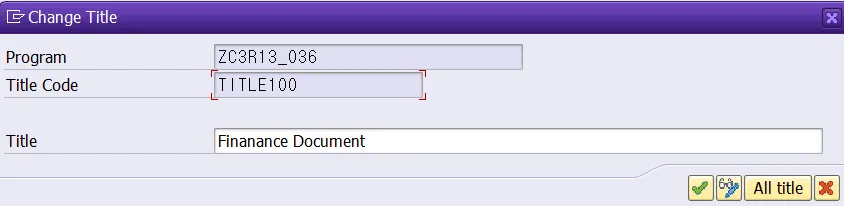

TITLE100
-
-
MODULE init_process_control
*&---------------------------------------------------------------------* *& Module INIT_PROCESS_CONTROL OUTPUT *&---------------------------------------------------------------------* *& *&---------------------------------------------------------------------* MODULE init_process_control OUTPUT. **PERFORM display_screen.** ENDMODULE.*&---------------------------------------------------------------------* *& Form display_screen *&---------------------------------------------------------------------* *& text *&---------------------------------------------------------------------* *& --> p1 text *& <-- p2 text *&---------------------------------------------------------------------* FORM **display_screen** . IF go_container IS NOT BOUND. " Key Field Name Table Just Emphasis PERFORM **set_field_catalog** USING : 'X' 'ICON' '' 'C' '', 'X' 'BUKRS' 'ZC3T26002' 'C' '', 'X' 'GJAHR' 'ZC3T26002' 'C' '', 'X' 'BELNR' 'ZC3T26002' 'C' '', '' 'SAKNR' 'ZC3T26002' 'C' '', '' 'TXT50' 'SKAT' '' 'X', '' 'BKTXT' 'ZC3T26002' 'C' '', '' 'WRBTR' 'ZC3T26002' '' '', '' 'WAERS' 'ZC3T26002' '' ''. PERFORM **create_object.** CALL METHOD go_alv_grid->set_table_for_first_display EXPORTING i_save = 'A' i_default = 'X' is_layout = gs_layout CHANGING it_outtab = gt_docu it_fieldcatalog = gt_fcat. ELSE. CALL METHOD go_alv_grid->refresh_table_display. ENDIF. ENDFORM.-
set_field_catalog
*&---------------------------------------------------------------------* *& Form set_field_catalog *&---------------------------------------------------------------------* *& text *&---------------------------------------------------------------------* *& --> P_ *& --> P_ *& --> P_ *& --> P_ *& --> P_ *&---------------------------------------------------------------------* FORM **set_field_catalog** USING pv_key pv_field pv_table pv_just pv_emph. gs_fcat-key = pv_key. gs_fcat-fieldname = pv_field. gs_fcat-ref_table = pv_table. gs_fcat-just = pv_just. gs_fcat-emphasize = pv_emph. CASE pv_field. WHEN 'WRBTR'. gs_fcat-cfieldname = 'WAERS'. WHEN 'ICON'. gs_fcat-coltext = 'Status'. ENDCASE. APPEND gs_fcat TO gt_fcat. CLEAR gs_fcat. CLEAR gs_layout. gs_layout-cwidth_opt = 'A'. gs_layout-sel_mode = 'D'. ENDFORM. -
create_object
*&---------------------------------------------------------------------* *& Form create_object *&---------------------------------------------------------------------* *& text *&---------------------------------------------------------------------* *& --> p1 text *& <-- p2 text *&---------------------------------------------------------------------* FORM **create_object** . CREATE OBJECT go_container EXPORTING side = go_container->dock_at_left extension = 5000. CREATE OBJECT go_alv_grid EXPORTING i_parent = go_container. ENDFORM.
-
-
-
PAI
-
exit
MODULE exit INPUT. CALL METHOD : go_alv_grid->free, go_container->free. FREE: go_alv_grid, go_container. LEAVE TO SCREEN 0. ENDMODULE.
-
-
-

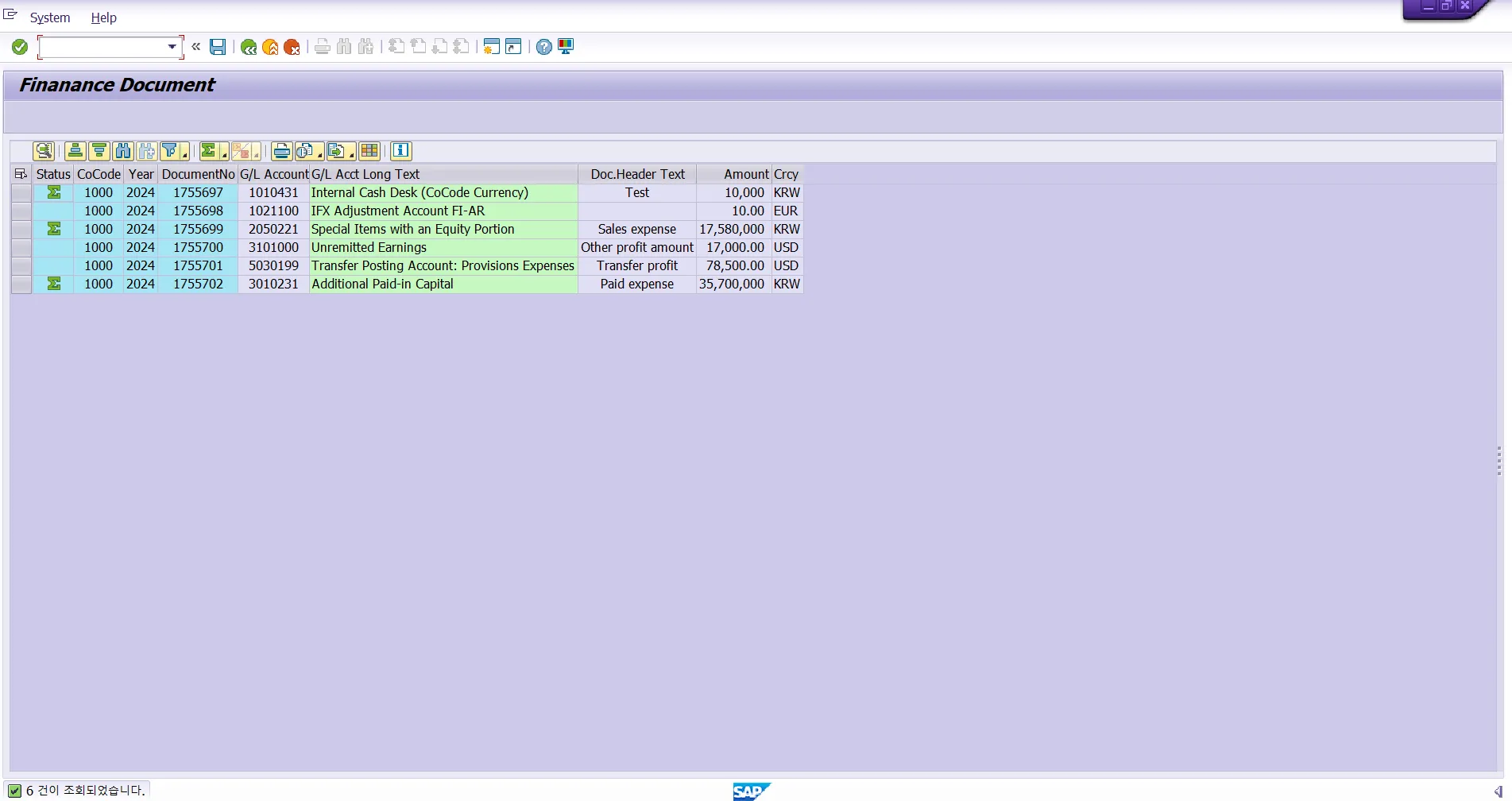

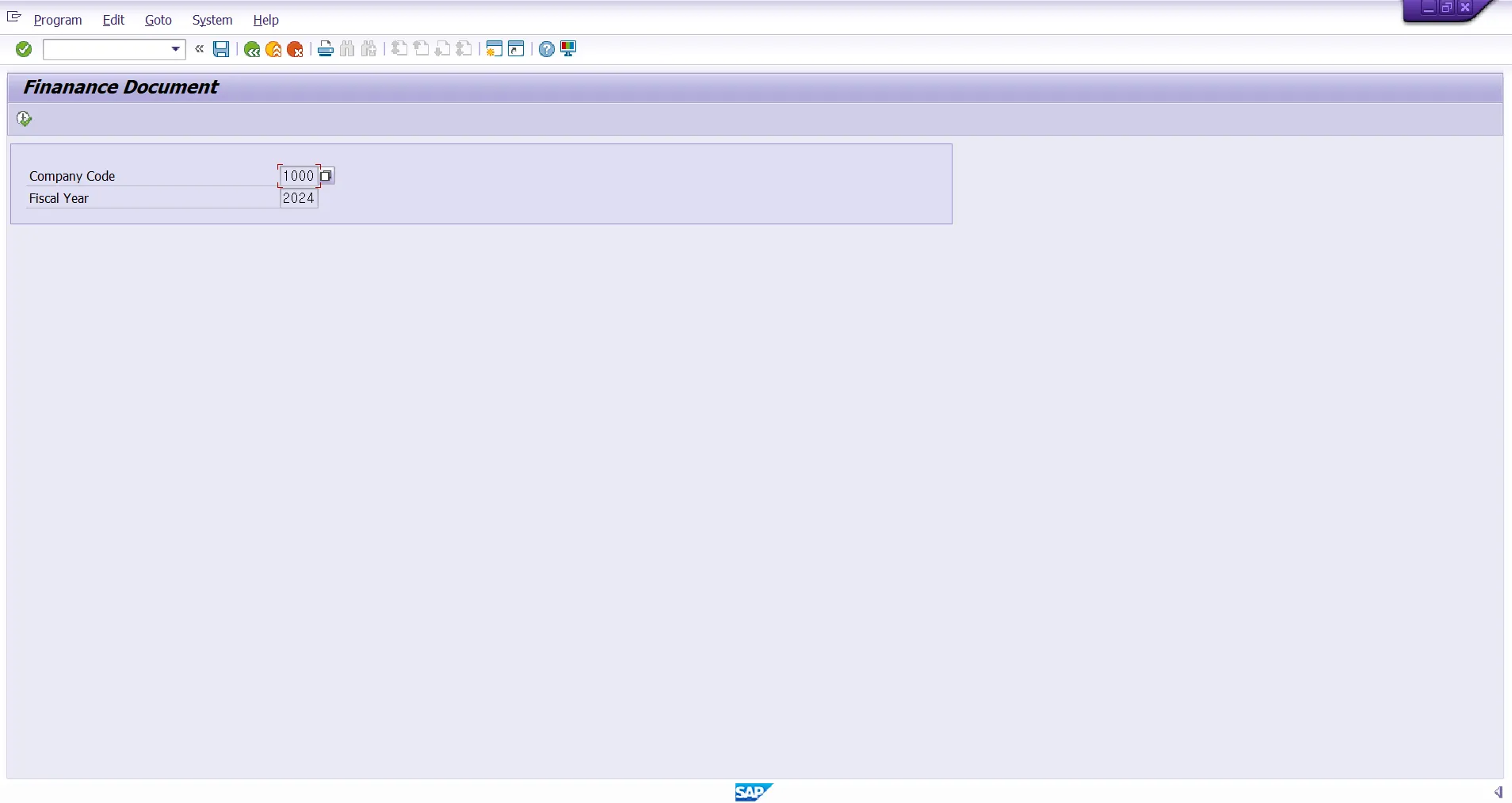

결과값
