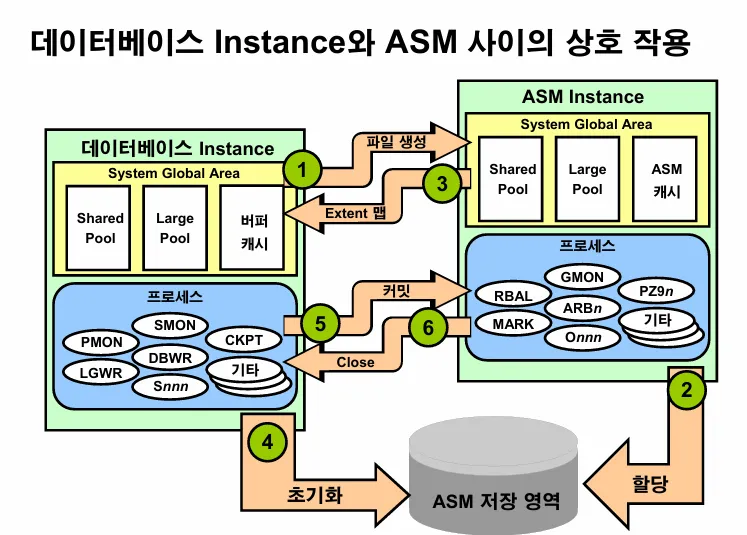

💡 ASM 인스턴스의 역할
- ASM 영역을 관리하기 위한 백그라운드 프로세서와 메모리가 있는 영역으로
이 인스턴스가 있어야raid 0 + 1의 효과도 누릴 수 있고 asm의 장점을 누릴 수 있음
[실습1] ASM 인스턴스가 떠 있는지 확인하시오
[+ASM:~]$ ps -ef |grep pmon
oracle 5369 1 0 11:14 ? 00:00:02 asm_pmon_+ASM
oracle 5562 1 0 11:14 ? 00:00:02 ora_pmon_orcl
oracle 6281 5761 0 14:45 pts/2 00:00:00 grep pmon
[+ASM:~]$[실습2] ASM 인스턴스를 내렸다 올리시오
[+ASM:~]$ . oraenv
ORACLE_SID = [+ASM] ? orcl
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/dbhome_1 is /u01/app/oracle
[orcl:~]$ sys
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:46:01 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Partitioning, Automatic Storage Management, OLAP, Data Mining
and Real Application Testing options
SQL> shutdown immediate
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL> exit;
[orcl:~]$ ps -ef |grep pmon
oracle 5369 1 0 11:14 ? 00:00:02 asm_pmon_+ASM
oracle 6322 5761 0 14:46 pts/2 00:00:00 grep pmon
[orcl:~]$
[orcl:~]$
[orcl:~]$ . oraenv
ORACLE_SID = [orcl] ? +ASM
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/grid is /u01/app/oracle
[+ASM:~]$ sqlplus / as sysasm
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:47:03 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
SQL> shutdown immediate
ASM diskgroups dismounted
ASM instance shutdown
SQL>문제1. ASM 인스턴스가 내려가져 있는 상태에서 DB 인스턴스가 올라갈지 테스트하시오
--> 안 올라감. ASM 인스턴스 먼저 올려줘야 DB 인스턴스가 올라감
[+ASM:~]$ . oraenv
ORACLE_SID = [+ASM] ? orcl
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/dbhome_1 is /u01/app/oracle
[orcl:~]$
[orcl:~]$ sys
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:49:11 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
ORA-01078: failure in processing system parameters
ORA-01565: error in identifying file '+DATA/orcl/spfileorcl.ora'
ORA-17503: ksfdopn:2 Failed to open file +DATA/orcl/spfileorcl.ora
ORA-15077: could not locate ASM instance serving a required diskgroup
SQL>문제2. ASM 인스턴스도 올리고 DB 인스턴스도 올리시오
[+ASM:~]$ sqlplus / as sysasm
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:50:50 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
ASM instance started
Total System Global Area 284565504 bytes
Fixed Size 1336036 bytes
Variable Size 258063644 bytes
ASM Cache 25165824 bytes
ASM diskgroups mounted
SQL> exit;
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
[+ASM:~]$ . oraenv
ORACLE_SID = [+ASM] ? orcl
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/dbhome_1 is /u01/app/oracle
[orcl:~]$ sys
-bash: export: `=orcl': not a valid identifier
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:51:32 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
ORACLE instance started.
Total System Global Area 481259520 bytes
Fixed Size 1337352 bytes
Variable Size 306186232 bytes
Database Buffers 167772160 bytes
Redo Buffers 5963776 bytes
Database mounted.
Database opened.
SQL>[실습3] ASM 인스턴스의 파라미터를 수정하시오.
디스크 추가할 때 rebalancing을 빨리 할 수 있도록 rbal의 프로세서의 갯수를 2배로 늘리시오
SQL> select instance_name
2 from v$instance;
INSTANCE_NAME
----------------
+ASM
SQL> save i.sql
Created file i.sql
SQL>
SQL>
SQL> show parameter spfile
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
spfile string +DATA/asm/asmparameterfile/reg
istry.253.796856615
SQL>
SQL>
SQL>
SQL>
SQL> show parameter asm_power_limit
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
asm_power_limit integer 1
SQL>
SQL>
SQL>
SQL> exit;
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
[+ASM:~]$
[+ASM:~]$ ps -ef |grep rbal
oracle 6542 1 0 14:52 ? 00:00:00 asm_rbal_+ASM
oracle 6656 1 0 14:53 ? 00:00:00 ora_rbal_orcl
oracle 6813 5761 0 14:57 pts/2 00:00:00 grep rbal
[+ASM:~]$
[+ASM:~]$ sqlplus / as sysasm
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:57:52 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
SQL> alter system set asm_power_limit=2 scope=both;
System altered.
SQL> @i
INSTANCE_NAME
----------------
+ASM
[+ASM:~]$ . oraenv
ORACLE_SID = [+ASM] ? orcl
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/dbhome_1 is /u01/app/oracle
[orcl:~]$ sys
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 14:59:50 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Partitioning, Automatic Storage Management, OLAP, Data Mining
and Real Application Testing options
SQL> shutdown immediate
Database closed.
Database dismounted.
ORACLE instance shut down.
SQL>
SQL> exit;
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Partitioning, Automatic Storage Management, OLAP, Data Mining
and Real Application Testing options
[orcl:~]$
[orcl:~]$ . oraenv
ORACLE_SID = [orcl] ? +ASM
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/grid is /u01/app/oracle
[+ASM:~]$ sqlplus / as sysasm
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 15:00:15 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
SQL> shutdown immediate
ASM diskgroups dismounted
ASM instance shutdown
SQL>
SQL> startup
ASM instance started
Total System Global Area 284565504 bytes
Fixed Size 1336036 bytes
Variable Size 258063644 bytes
ASM Cache 25165824 bytes
ASM diskgroups mounted
SQL>
SQL> show parameter asm
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
asm_diskgroups string FRA
asm_diskstring string
asm_power_limit integer 2
asm_preferred_read_failure_groups string
SQL>
SQL> exit;
Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - Production
With the Automatic Storage Management option
[+ASM:~]$
[+ASM:~]$ . oraenv
ORACLE_SID = [+ASM] ? orcl
The Oracle base for ORACLE_HOME=/u01/app/oracle/product/11.2.0/dbhome_1 is /u01/app/oracle
[orcl:~]$ sys
SQL*Plus: Release 11.2.0.1.0 Production on Wed Sep 17 15:01:41 2025
Copyright (c) 1982, 2009, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
[orcl:~]$ ps -ef |grep rbal
oracle 7015 1 0 15:01 ? 00:00:00 asm_rbal_+ASM
oracle 7139 1 0 15:03 ? 00:00:00 ora_rbal_orcl
oracle 7237 5761 0 15:03 pts/2 00:00:00 grep rbal
[orcl:~]$
기본은 1개인데 rebalancing이 실제로 실행되면 2개로 활성화 됩니다.✔️ 순서
db 먼저 내리고(shutdown immediate)
asm 내리고(shutdown immediate)
asm 올리고(startup)
db 올리기(startup)
