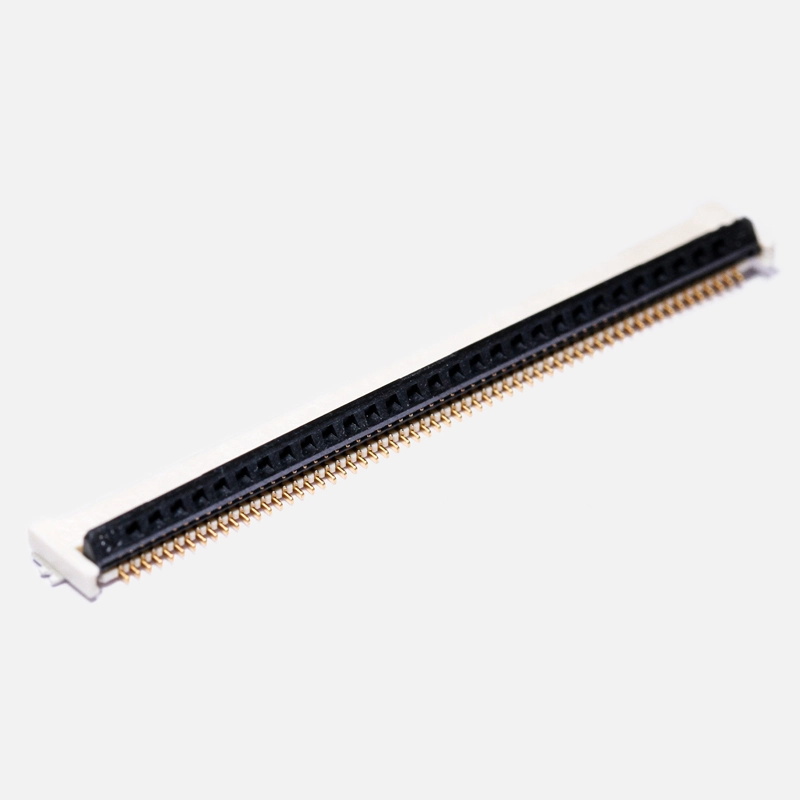

60004 Series 0.5Pitch H=1.20 Side Contact FFC/FPC Connector

Contact resistance: 50mΩ Max

Insulation impendance: 500MΩMin

Durability: 20 Times/Min

Material

Housing: LCP Natural UL94V-0

Cover: PA Black UL94V-0

Terminal: Copper alloy Plating: Au

Stator: Copper alloy Plating: Tin

Contact Type: Double contact

Important Safety Information

Note: Do not close connector without FPC/FFC

Environmental Protection Standard

Comply with the EU RoHS, Reach

Product Details
The 90602 series FPC/FFC connectors are precision electronic connectors designed for compact electronic devices. They feature the following characteristics:

ffc cable 0.5 mm pitch: This fine pitch allows for more connection points in a limited space, suitable for high-density wiring requirements.

Plastic height of 1.2mm: The connector's vertical profile is very low, which helps in designing thinner electronic devices and reducing overall volume.

Double-sided contact: The fpc or ffc connectors are designed to make contact from both sides, increasing the reliability and flexibility of the connection.

Rear locking mechanism: The connectors use a rear locking system to ensure that the FPC or FFC is firmly inserted and locked in place, preventing it from dislodging during use.

Installation method: Fixed by reflow soldering with an SMT machine, when installing the FPC/FFC connector, first insert the FPC or FFC flex cable into the connector slot, and then secure it by pressing down or sliding the locking mechanism.

Rtench connectors are suitable for a variety of electronic devices that require miniaturization and highly reliable connections, such as portable devices, smartphones, tablets, laptops, and other consumer electronics. Their design aims to simplify the assembly process while ensuring long-term stable connection performance.

As an ffc fpc connector factory, we focus on delivering precision-engineered interconnect solutions that support high-density layouts, flexible designs, and stable transmission, making them ideal for today’s increasingly lightweight and compact electronic products.
