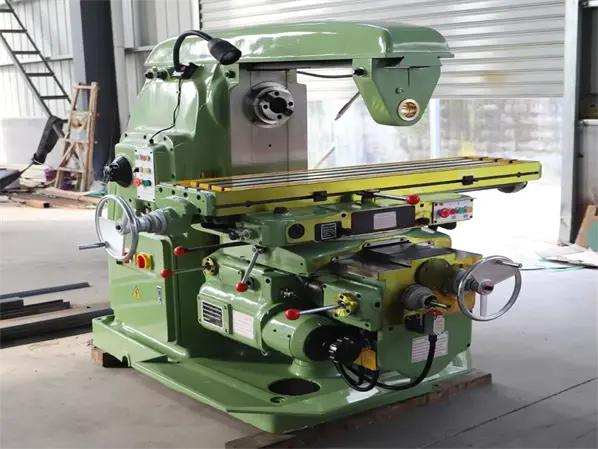

Horizontal Milling Machine

The spindle of a in horizontal milling machine is parallel to the worktable and in a horizontal position. In order to adapt to the milling of spiral grooves, the longitudinal worktable of the milling machine can rotate within the range of ±45° on the horizontal plane. This type of milling machine is called a universal horizontal milling machine to distinguish it from a general horizontal milling machine cutting tools. A horizontal spindle milling machine consists of a bed, suspension beam, lifting platform, worktable, saddle, spindle and base. If a turntable is added between the worktable and the slide of the horizontal milling machine axis, and the turntable can rotate in the horizontal plane to adjust a certain angle, it becomes a universal manual horizontal boring mill machine.

Features of horizontal milling machine and vertical milling machine
The spindle sleeve can be manually fed micro-feed, and is equipped with a limit device. The milling head can be adjusted 45° clockwise and counterclockwise;

The worktable can be manually fed longitudinally and transversely and lifted vertically. At the same time, it can realize motorized fast feeding, motorized feeding and vertical motorized lifting in the longitudinal and transverse directions;

It adopts a 1200mm extended slide and a 1500mm extended worktable. The longitudinal stroke of the worktable can reach 1000mm, with a long stroke and stronger stability;

The main transmission and feed both adopt gear speed change mechanism, with a wide speed regulation range;

The spindle bearing adopts tapered roller bearing, which has strong load-bearing capacity, and adopts energy-consuming braking, with large braking torque, rapid stopping and reliable braking.

There are many horizontal milling machine manufacturers, but we are one of the best choices for you.

As a trustworthy and reliable metalworking machinery manufacturers, we provide you with roof roll forming machine.
