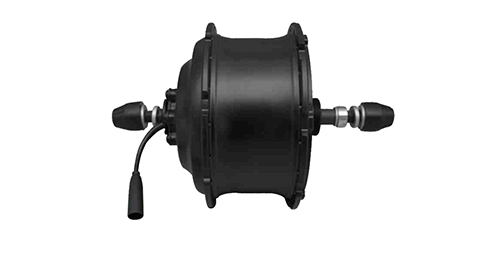

DGW25P-Rear Drive Motor-MTB

This motor is the most powerful one in our company, wheel size 20in~28in, rated power 750W~1000w.

Main parameter of DGW25P-Rear Drive Motor-MTB
specification parameter
Driving position Rear
Wheel size 20in-28in
Spoke 36holes 12G
Rated power 750W
Rated voltage 36V~48V
Max.torque ≥90N.m
Efficiency ≥80％
Cable side Left
Number of magnet 20
Reduction gear ratio 1:05
Installation dimension 175mm(Cassette&Screw)190mm(Cassette)
Inside speed sensor 1~6
Hall sensor With/Without
Free wheel Cassette 9-10s/Screw 6-7s
Brake Disc-brake/ V-brake
Classification of waterproof IPX5
Weight 4.9Kg

Suzhou Shengyi Motor Co, Ltd was established in 2003, a leading manufactuer specialized in theesearch, development, production, sales and service of the ebike motor china. As one of the prominent electric bike motor manufacturers, our products are popular and distributed all over the world.
