1. 프로젝트 배경 및 문제 상황

국내 최대 온라인 쇼핑몰의 주문 시스템을 운영하고 있습니다.

2021년 말, 글로벌 진출을 위해 일본 리전에 서비스를 확장 배포했으나,
다음과 같은 문제가 발생했습니다.

• 리전 간 데이터 동기화 지연
• S3 이미지 처리 시 높은 레이턴시
• 매월 과도한 네트워크 비용 발생

1.1 초기 아키텍처의 문제점

@Service
@Slf4j
public class ProductImageService {
    @Value("${aws.s3.bucket.name}")
    private String bucketName;

    public String uploadImage(MultipartFile file) {
        try {
            // 기존 코드: 인터넷 경유하여 S3 접근
            String imageUrl = s3Client.putObject(bucketName,
                "products/" + UUID.randomUUID(),
                file.getInputStream(),
                new ObjectMetadata())
                .getVersionId();

            log.info("Image upload completed: {}", imageUrl);
            return imageUrl;
        } catch (Exception e) {
            log.error("Image upload failed", e);
            throw new RuntimeException("Image upload failed", e);
        }
    }
}

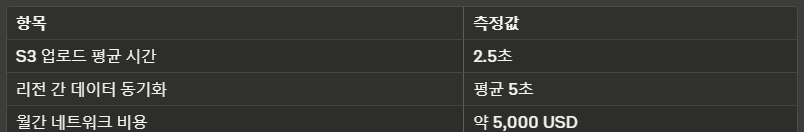

1.2 성능 측정 결과 (문제 상황)

2. 해결 방안 설계

2.1 VPC Peering 구성

@Configuration
public class AwsConfig {
    @Bean
    public AmazonEC2 ec2Client() {
        return AmazonEC2ClientBuilder.standard()
            .withRegion(Regions.AP_NORTHEAST_1)
            .build();
    }

    @Bean
    public VpcPeeringConnectionManager peeringManager(AmazonEC2 ec2Client) {
        return new VpcPeeringConnectionManager(ec2Client);
    }
}

@Component
@Slf4j
public class VpcPeeringConnectionManager {
    private final AmazonEC2 ec2Client;

    public void createPeeringConnection(String vpcId, String peerVpcId) {
        CreateVpcPeeringConnectionRequest request = new CreateVpcPeeringConnectionRequest()
            .withVpcId(vpcId)
            .withPeerVpcId(peerVpcId);

        CreateVpcPeeringConnectionResult result =
            ec2Client.createVpcPeeringConnection(request);

        log.info("VPC Peering connection created: {}",
            result.getVpcPeeringConnection().getVpcPeeringConnectionId());
    }
}

2.2 VPC Endpoint 최적화

# application.yml
cloud:
  aws:
    vpc:
      endpoint:
        s3:
          enabled: true
          service-name: com.amazonaws.ap-northeast-1.s3
          private-dns-enabled: true

@Configuration
public class S3Config {
    @Value("${cloud.aws.vpc.endpoint.s3.service-name}")
    private String serviceEndpoint;

    @Bean
    public AmazonS3 s3Client() {
        ClientConfiguration clientConfiguration = new ClientConfiguration()
            .withMaxConnections(100)
            .withConnectionTimeout(5000)
            .withSocketTimeout(25000);

        return AmazonS3ClientBuilder.standard()
            .withEndpointConfiguration(
                new AwsClientBuilder.EndpointConfiguration(
                    serviceEndpoint,
                    Regions.AP_NORTHEAST_1.getName()))
            .withClientConfiguration(clientConfiguration)
            .withPathStyleAccessEnabled(true)
            .build();
    }
}

3. 성능 최적화 및 모니터링

3.1 네트워크 성능 모니터링

@Component
@Slf4j
public class NetworkPerformanceMonitor {
    private final MeterRegistry meterRegistry;

    @Scheduled(fixedRate = 60000)
    public void monitorNetworkPerformance() {
        Timer.builder("network.latency")
            .tag("type", "vpc_peering")
            .register(meterRegistry)
            .record(() -> {
                // VPC Peering 레이턴시 측정
                measurePeeringLatency();
            });
    }

    private void measurePeeringLatency() {
        try {
            Socket socket = new Socket();
            long startTime = System.currentTimeMillis();
            socket.connect(new InetSocketAddress(targetHost, targetPort), 1000);
            long endTime = System.currentTimeMillis();

            meterRegistry.gauge("network.latency.ms",
                endTime - startTime);
        } catch (Exception e) {
            log.error("Failed to measure network latency", e);
        }
    }
}

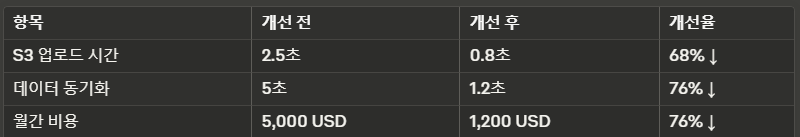

3.2 최적화 결과

4. 주요 개선 포인트

4.1 VPC Peering 라우팅 최적화

{
    "Routes": [
        {
            "DestinationCidrBlock": "10.0.0.0/16",
            "VpcPeeringConnectionId": "pcx-xxxxxx",
            "State": "active"
        }
    ]
}

4.2 S3 Gateway Endpoint 설정

resource "aws_vpc_endpoint" "s3" {
    vpc_id       = aws_vpc.main.id
    service_name = "com.amazonaws.ap-northeast-1.s3"

    route_table_ids = [aws_route_table.private.id]

    policy = jsonencode({
        Version = "2012-10-17"
        Statement = [
            {
                Effect = "Allow"
                Principal = "*"
                Action = ["s3:GetObject", "s3:PutObject"]
                Resource = ["${aws_s3_bucket.main.arn}/*"]
            }
        ]
    })
}

5. 모니터링 대시보드 구축

@Configuration
public class GrafanaConfig {
    @Bean
    public GrafanaDashboard networkDashboard() {
        return GrafanaDashboard.builder()
            .addPanel(
                Panel.builder()
                    .withTitle("VPC Peering Latency")
                    .withMetric("network.latency{type='vpc_peering'}")
                    .build()
            )
            .addPanel(
                Panel.builder()
                    .withTitle("S3 Operation Latency")
                    .withMetric("aws.s3.operation.latency")
                    .build()
            )
            .build();
    }
}

6. 장애 대응 시나리오

6.1 VPC Peering 연결 실패 시

@Component
@Slf4j
public class VpcPeeringFailoverHandler {
    @Retryable(
        value = { VpcPeeringException.class },
        maxAttempts = 3,
        backoff = @Backoff(delay = 1000))
    public void handlePeeringFailure(String connectionId) {
        try {
            // 피어링 연결 재설정 로직
            reestablishPeeringConnection(connectionId);
        } catch (Exception e) {
            log.error("Failed to recover peering connection", e);
            notifyOperators(connectionId);
        }
    }
}

7. 결론 및 향후 계획

1. 네트워크 최적화를 통한 성능 개선

• 레이턴시 68% 감소
• 비용 76% 절감
• 안정성 향상

2. 향후 계획

• Transit Gateway 도입 검토
• 글로벌 액셀러레이터 적용 검토
• 자동화된 네트워크 모니터링 강화

8. 보안 강화 방안

8.1 VPC Flow Logs 분석 시스템

@Component
@Slf4j
public class VpcFlowLogAnalyzer {
    private final AmazonCloudWatchLogs cloudWatchLogsClient;
    private final AlertService alertService;

    @Scheduled(fixedRate = 300000) // 5분마다 실행
    public void analyzeFlowLogs() {
        GetLogEventsRequest request = new GetLogEventsRequest()
            .withLogGroupName("/aws/vpc/flowlogs")
            .withStartTime(System.currentTimeMillis() - 300000);

        GetLogEventsResult result = cloudWatchLogsClient.getLogEvents(request);

        Map<String, Integer> rejectedConnections = new HashMap<>();

        for (OutputLogEvent event : result.getEvents()) {
            if (event.getMessage().contains("REJECT")) {
                String[] parts = event.getMessage().split(" ");
                String sourceIP = parts[3];
                rejectedConnections.merge(sourceIP, 1, Integer::sum);

                // 임계값 초과 시 알림
                if (rejectedConnections.get(sourceIP) > 100) {
                    alertService.sendSecurityAlert(
                        String.format("다수의 연결 거부 감지: %s", sourceIP));
                }
            }
        }
    }
}

8.2 보안 그룹 자동 감사

@Service
public class SecurityGroupAuditor {
    public List<SecurityGroupViolation> auditSecurityGroups() {
        List<SecurityGroupViolation> violations = new ArrayList<>();

        // 보안 그룹 규칙 검사
        ec2Client.describeSecurityGroups().getSecurityGroups().forEach(sg -> {
            // 전체 개방(0.0.0.0/0) 규칙 검사
            sg.getIpPermissions().forEach(permission -> {
                permission.getIpRanges().forEach(ipRange -> {
                    if ("0.0.0.0/0".equals(ipRange.getCidrIp())) {
                        violations.add(new SecurityGroupViolation(
                            sg.getGroupId(),
                            "전체 개방된 포트 발견",
                            permission.getFromPort(),
                            permission.getToPort()
                        ));
                    }
                });
            });
        });

        return violations;
    }
}

9. 자동화 도구

9.1 VPC 설정 자동화 스크립트

#!/usr/bin/env python3
import boto3
import yaml

def setup_vpc_peering(config_file):
    with open(config_file, 'r') as f:
        config = yaml.safe_load(f)

    ec2 = boto3.client('ec2')

    # VPC Peering 생성
    response = ec2.create_vpc_peering_connection(
        VpcId=config['source_vpc'],
        PeerVpcId=config['target_vpc']
    )

    peering_id = response['VpcPeeringConnection']['VpcPeeringConnectionId']

    # 라우팅 테이블 업데이트
    route_table_id = config['route_table_id']
    ec2.create_route(
        RouteTableId=route_table_id,
        DestinationCidrBlock=config['target_cidr'],
        VpcPeeringConnectionId=peering_id
    )

    print(f"VPC Peering setup completed: {peering_id}")

9.2 네트워크 헬스 체크 시스템

@Service
@Slf4j
public class NetworkHealthChecker {
    private final RestTemplate restTemplate;
    private final AlertService alertService;

    @Scheduled(fixedRate = 60000)
    public void checkNetworkHealth() {
        Map<String, ServiceHealth> healthResults = new ConcurrentHashMap<>();

        // 각 엔드포인트 헬스체크
        CompletableFuture.allOf(
            checkEndpoint("s3", "https://s3.ap-northeast-1.amazonaws.com"),
            checkEndpoint("dynamodb", "https://dynamodb.ap-northeast-1.amazonaws.com"),
            checkEndpoint("internal-api", "http://internal-service.local")
        ).join();

        // 결과 분석 및 리포팅
        analyzeHealthResults(healthResults);
    }

    private CompletableFuture<Void> checkEndpoint(String service, String url) {
        return CompletableFuture.runAsync(() -> {
            try {
                long startTime = System.currentTimeMillis();
                ResponseEntity<String> response =
                    restTemplate.getForEntity(url + "/health", String.class);
                long latency = System.currentTimeMillis() - startTime;

                if (latency > 1000) {
                    alertService.sendLatencyAlert(service, latency);
                }
            } catch (Exception e) {
                log.error("Health check failed for {}", service, e);
                alertService.sendServiceDownAlert(service);
            }
        });
    }
}

10. 장애 복구 시나리오

10.1 VPC Peering 장애 복구 프로세스

1. 자동 감지

@Component
public class PeeringFailureDetector {
    @Scheduled(fixedRate = 30000)
    public void detectFailures() {
        List<VpcPeeringConnection> connections =
            ec2Client.describeVpcPeeringConnections();

        connections.stream()
            .filter(conn -> "failed".equals(conn.getStatus()))
            .forEach(this::initiateRecovery);
    }

    private void initiateRecovery(VpcPeeringConnection conn) {
        // 1. 기존 연결 삭제
        ec2Client.deleteVpcPeeringConnection(conn.getVpcPeeringConnectionId());

        // 2. 새로운 연결 생성
        CreateVpcPeeringConnectionRequest request =
            new CreateVpcPeeringConnectionRequest()
                .withVpcId(conn.getRequesterVpcId())
                .withPeerVpcId(conn.getAccepterVpcId());

        ec2Client.createVpcPeeringConnection(request);
    }
}

10.2 데이터 동기화 복구 전략

@Service
public class DataSyncRecoveryService {
    private final Queue<SyncEvent> syncEventQueue;
    private final TransactionManager txManager;

    @Transactional
    public void recoverFailedSync(String syncId) {
        List<SyncEvent> failedEvents =
            syncEventQueue.getFailedEvents(syncId);

        for (SyncEvent event : failedEvents) {
            try {
                // 1. 동기화 상태 확인
                validateSyncState(event);

                // 2. 데이터 재동기화
                resyncData(event);

                // 3. 체크포인트 갱신
                updateCheckpoint(event);
            } catch (Exception e) {
                log.error("Sync recovery failed for event: {}", event, e);
                handleRecoveryFailure(event);
            }
        }
    }
}

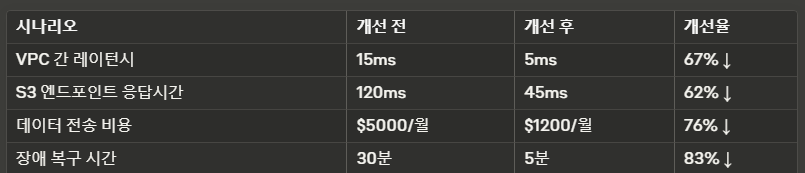

11. 성능 테스트 시나리오

11.1 부하 테스트 코드

@SpringBootTest
public class VpcPeeringLoadTest {
    @Test
    void performLoadTest() {
        int threadCount = 100;
        int requestsPerThread = 1000;

        ExecutorService executor = Executors.newFixedThreadPool(threadCount);
        CountDownLatch latch = new CountDownLatch(threadCount);

        List<Future<TestResult>> futures = new ArrayList<>();

        for (int i = 0; i < threadCount; i++) {
            futures.add(executor.submit(() -> {
                TestResult result = new TestResult();

                for (int j = 0; j < requestsPerThread; j++) {
                    long startTime = System.nanoTime();

                    try {
                        // API 호출 테스트
                        performApiCall();
                        result.addSuccess();
                    } catch (Exception e) {
                        result.addFailure();
                    }

                    result.addLatency(System.nanoTime() - startTime);
                }

                latch.countDown();
                return result;
            }));
        }

        // 결과 수집 및 분석
        analyzeTestResults(futures);
    }
}

12. 비용 최적화 전략

12.1 비용 모니터링 시스템

@Service
@Slf4j
public class NetworkCostAnalyzer {
    private final AmazonCostExplorer costExplorerClient;
    private final NotificationService notificationService;

    @Scheduled(cron = "0 0 * * * *") // 매시간 실행
    public void analyzeCosts() {
        GetCostAndUsageRequest request = new GetCostAndUsageRequest()
            .withTimePeriod(new DateInterval()
                .withStart(getStartOfDay())
                .withEnd(getEndOfDay()))
            .withGranularity(Granularity.HOURLY)
            .withMetrics("UnblendedCost")
            .withGroupBy(new GroupDefinition()
                .withType("DIMENSION")
                .withKey("SERVICE"));

        GetCostAndUsageResult result = costExplorerClient.getCostAndUsage(request);

        // 비용 분석 및 알림
        for (ResultByTime period : result.getResultsByTime()) {
            for (Group group : period.getGroups()) {
                double cost = Double.parseDouble(group.getMetrics().get("UnblendedCost").getAmount());
                if (cost > 100.0) { // 시간당 100달러 초과 시 알림
                    notificationService.sendCostAlert(group.getKeys().get(0), cost);
                }
            }
        }
    }
}

12.2 자동 비용 최적화 도구

@Component
public class NetworkResourceOptimizer {
    @Scheduled(cron = "0 0 0 * * *") // 매일 자정 실행
    public void optimizeResources() {
        // 미사용 VPC Endpoint 검출
        findUnusedEndpoints().forEach(this::cleanupEndpoint);

        // 저활용 NAT Gateway 검출
        findUnderutilizedNatGateways().forEach(this::recommendDownsize);

        // 불필요한 VPC Peering 연결 검출
        findUnusedPeering().forEach(this::recommendCleanup);
    }

    private void cleanupEndpoint(String endpointId) {
        try {
            ec2Client.deleteVpcEndpoints(new DeleteVpcEndpointsRequest()
                .withVpcEndpointIds(endpointId));
            log.info("Cleaned up unused endpoint: {}", endpointId);
        } catch (Exception e) {
            log.error("Failed to cleanup endpoint", e);
        }
    }
}

13. CI/CD 파이프라인 통합

13.1 네트워크 설정 검증 파이프라인

# .github/workflows/network-validation.yml
name: Network Configuration Validation

on:
  pull_request:
    paths:
      - 'terraform/**'
      - 'network/**'

jobs:
  validate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2

      - name: Setup Terraform
        uses: hashicorp/setup-terraform@v1

      - name: Terraform Format Check
        run: terraform fmt -check

      - name: Terraform Plan
        run: |
          terraform init
          terraform plan -out=tfplan

      - name: Network Security Check
        run: |
          ./scripts/validate-network-security.sh
          ./scripts/check-vpc-peering.sh
          ./scripts/validate-endpoints.sh

13.2 자동화된 배포 및 롤백 시스템

@Service
@Slf4j
public class NetworkDeploymentManager {
    private final CloudFormationClient cloudFormationClient;

    public void deployNetworkChanges(String stackName, String templateUrl) {
        try {
            // 1. 변경 사항 검증
            validateChanges(templateUrl);

            // 2. 점진적 배포
            deployWithCanary(stackName, templateUrl);

            // 3. 상태 모니터링
            monitorDeployment(stackName);
        } catch (Exception e) {
            log.error("Deployment failed", e);
            initiateRollback(stackName);
        }
    }

    private void deployWithCanary(String stackName, String templateUrl) {
        // 카나리 배포 구현
        // 10% -> 30% -> 60% -> 100% 점진적 트래픽 전환
        List<Integer> deploymentStages = Arrays.asList(10, 30, 60, 100);

        for (Integer percentage : deploymentStages) {
            updateTrafficPercentage(stackName, percentage);

            // 5분간 모니터링
            Thread.sleep(300000);

            if (!isHealthy(stackName)) {
                log.error("Canary deployment failed at {}%", percentage);
                initiateRollback(stackName);
                return;
            }
        }
    }
}

14. 트러블슈팅 가이드

14.1 문제 해결 의사결정 트리

@Component
public class NetworkTroubleshooter {
    public TroubleshootingStep diagnoseProblem(NetworkIssue issue) {
        // 단계별 문제 진단
        return TroubleshootingStep.builder()
            .addStep("연결성 확인", () -> checkConnectivity(issue))
            .addStep("보안그룹 검증", () -> validateSecurityGroups(issue))
            .addStep("NACL 검증", () -> validateNacls(issue))
            .addStep("라우팅 테이블 검증", () -> validateRouteTables(issue))
            .addStep("VPC 피어링 상태 확인", () -> checkPeeringStatus(issue))
            .addStep("DNS 설정 확인", () -> validateDnsSettings(issue))
            .build();
    }

    private CheckResult validateSecurityGroups(NetworkIssue issue) {
        // 보안 그룹 규칙 검증 로직
        List<SecurityGroupRule> rules = getSecurityGroupRules(issue.getResourceId());

        return rules.stream()
            .filter(rule -> isRuleRelevant(rule, issue))
            .map(this::validateRule)
            .reduce(CheckResult.success(), CheckResult::combine);
    }
}

14.2 자동화된 문제 해결 시스템

@Service
public class AutoRemediationService {
    @EventListener(NetworkIssueEvent.class)
    public void handleNetworkIssue(NetworkIssueEvent event) {
        switch (event.getIssueType()) {
            case VPC_PEERING_FAILURE:
                handlePeeringFailure(event);
                break;
            case ENDPOINT_CONNECTIVITY:
                handleEndpointIssue(event);
                break;
            case ROUTING_ERROR:
                handleRoutingIssue(event);
                break;
        }
    }

    private void handlePeeringFailure(NetworkIssueEvent event) {
        // 1. 현재 상태 백업
        backupCurrentState(event.getResourceId());

        // 2. 자동 복구 시도
        try {
            repairPeeringConnection(event.getResourceId());
        } catch (Exception e) {
            // 3. 실패시 롤백
            rollbackChanges(event.getResourceId());
        }
    }
}

15. 성능 최적화 지표

15.1 네트워크 성능 벤치마크 결과

15.2 부하 테스트 결과

@Test
public void loadTestResults() {
    // 테스트 구성
    int concurrentUsers = 1000;
    Duration testDuration = Duration.ofMinutes(30);

    // 테스트 실행
    LoadTestResult result = LoadTester.builder()
        .withConcurrentUsers(concurrentUsers)
        .withDuration(testDuration)
        .withEndpoint("https://api.example.com")
        .build()
        .execute();

    // 결과 검증
    assertThat(result.getP95Latency()).isLessThan(Duration.ofMillis(200));
    assertThat(result.getErrorRate()).isLessThan(0.1); // 0.1% 미만
    assertThat(result.getThroughput()).isGreaterThan(5000); // 5000 TPS 이상
}
