CICD STUDY-3주차

dev_suha·2025년 11월 1일

실습 환경 구성

kind k8s

(⎈|N/A:N/A) root@DESKTOP-8S932ET:~# kind create cluster --name myk8s --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
networking:
  apiServerAddress: "0.0.0.0"
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
  - containerPort: 30002
    hostPort: 30002
  - containerPort: 30003
    hostPort: 30003
- role: worker
EOF
Creating cluster "myk8s" ...
 ✓ Ensuring node image (kindest/node:v1.32.8) 🖼
 ✓ Preparing nodes 📦 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing CNI 🔌
 ✓ Installing StorageClass 💾
 ✓ Joining worker nodes 🚜
Set kubectl context to "kind-myk8s"
You can now use your cluster with:

kubectl cluster-info --context kind-myk8s

Have a question, bug, or feature request? Let us know! https://kind.sigs.k8s.io/#community 🙂
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# ls
yes  yes.pub
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# ls
yes  yes.pub
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# cd /usr/local/
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:/usr/local# ls
bin  etc  games  include  lib  man  sbin  share  src  tektoncd-cli-0.42.0_Linux-64bit.deb
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:/usr/local# cd
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# ls
yes  yes.pub
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# mkdir ~/cicd-labs
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# ls
cicd-labs  yes  yes.pub
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~# cd cicd-labs/
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~/cicd-labs# kind get nodes --name myk8s
myk8s-control-plane
myk8s-worker
(⎈|kind-myk8s:N/A) root@DESKTOP-8S932ET:~/cicd-labs# kubens default
✔ Active namespace is "default"

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# docker ps
CONTAINER ID   IMAGE                  COMMAND                  CREATED         STATUS         PORTS                                                           NAMES
c97fa93d706c   kindest/node:v1.32.8   "/usr/local/bin/entr…"   2 minutes ago   Up 2 minutes   0.0.0.0:30000-30003->30000-30003/tcp, 0.0.0.0:45769->6443/tcp   myk8s-control-plane
052045c35377   kindest/node:v1.32.8   "/usr/local/bin/entr…"   2 minutes ago   Up 2 minutes

kube config 파일 확인

cat ~/.kube/config

server: https://0.0.0.0:45769

ifconfig

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# ifconfig eth0
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.21.203.45  netmask 255.255.240.0  broadcast 172.21.207.255
        inet6 fe80::215:5dff:fecb:7947  prefixlen 64  scopeid 0x20<link>
        ether 00:15:5d:cb:79:47  txqueuelen 1000  (Ethernet)
        RX packets 7085  bytes 10081448 (10.0 MB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1525  bytes 122892 (122.8 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

}(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# curl -k https://172.21.203.45:45769/version
{
  "major": "1",
  "minor": "32",
  "gitVersion": "v1.32.8",
  "gitCommit": "2e83bc4bf31e88b7de81d5341939d5ce2460f46f",
  "gitTreeState": "clean",
  "buildDate": "2025-08-13T14:21:22Z",
  "goVersion": "go1.23.11",
  "compiler": "gc",
  "platform": "linux/amd64"
}(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs#

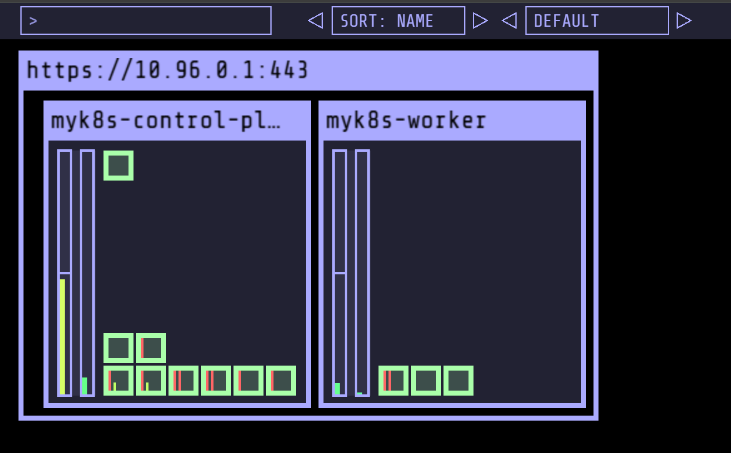

kube-ops-view

helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=**NodePort**,service.main.ports.http.nodePort=**30001** --set env.TZ="Asia/Seoul" --namespace kube-system

# 설치 확인
kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view

# kube-ops-view 접속 URL 확인 (1.5 , 2 배율)
open "http://*<각자 자신의 WSL Ubuntu Eth0 IP>*:30001/#scale=1.5"
open "http://172.21.203.45:30001/#scale=2"

docker compose

docker network ls

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
98c6ea9dcb48   bridge    bridge    local
d1a972e5533d   host      host      local
70c1f4e24e42   kind      bridge    local
023ed59033a3   none      null      local

docker-compose.yaml


cat <<EOT > docker-compose.yaml
**services**:

  **jenkins**:
    container_name: jenkins
    image: jenkins/jenkins
    restart: unless-stopped
    networks:
      - **kind**
    ports:
      - "**8080**:8080"
      - "50000:50000"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - **jenkins_home**:/var/jenkins_home

  **gogs**:
    container_name: gogs
    image: gogs/gogs
    restart: unless-stopped
    networks:
      - **kind**
    ports:
      - "10022:22"
      - "**3000**:3000"
    volumes:
      - **gogs-data**:/data

**volumes**:
  jenkins_home:
  gogs-data:

**networks**:
  **kind**:
    **external: true**
EOT

**docker compose up -d**
docker compose ps
**docker inspect kind**

인터페이스 이름	역할	생성 주체	비고
eth0	실제 물리/가상 네트워크 카드	OS (Ubuntu)	외부 인터넷 연결용 (진짜 IP: `172.21.203.45`)

jenkins 설정

Jenkins 컨테이너에서 호스트에 도커 데몬 사용 설정 (Docker-out-of-Docker) : Windows (WSL2 + Docker) 사용자

# Jenkins 컨테이너 내부에 도커 실행 파일 설치
**docker compose exec --privileged -u root jenkins bash**
-----------------------------------------------------
id

curl -fsSL https://download.docker.com/linux/debian/gpg -o /etc/apt/keyrings/docker.asc
chmod a+r /etc/apt/keyrings/docker.asc
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/debian \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
  tee /etc/apt/sources.list.d/docker.list > /dev/null
apt-get update && apt install **docker-ce-cli** curl tree jq yq -y

**docker info
docker ps**
which docker

# Jenkins 컨테이너 내부에서 root가 아닌 jenkins 유저도 docker를 실행할 수 있도록 권한을 부여
~~groupadd -g 989 -f docker  # **Windows** WSL2(Container) >> **cat /etc/group** 에서 docker 그룹ID를 지정~~

groupadd -g 2000 -f docker
chgrp docker /var/run/docker.sock
ls -l /var/run/docker.sock
usermod -aG docker jenkins
cat /etc/group | grep docker

exit
****--------------------------------------------

# Jenkins 컨테이너 재기동으로 위 설정 내용을 Jenkins app 에도 적용 필요
~~~~docker compose restart jenkins
~~~~
# jenkins user로 docker 명령 실행 확인
docker compose exec jenkins **id**
docker compose exec jenkins **docker info**
docker compose exec jenkins **docker ps**
docker compose exec jenkins cat /etc/group

gogs

hp980724

TOKEN = 47c99740cc9e14bf3f490ace539765f389706ad0

docker exec -it gogs bash
----------------------------------------------
*# (옵션) GIT 인증 정보 초기화
git credential-cache exit*

#
TMOUT=0
pwd
ls
cd /data # 호스트 mount 볼륨 공유 경로

#
git config --list --show-origin

#
TOKEN=***<각자 Gogs Token>***
TOKEN=7aa8e88fac50bb72cbed54d212f1262342108261

MyIP=***<각자 자신의 IP> # mac(PC IP), windows(ubuntu eth0)***
MyIP=192.168.254.110

git clone ***<각자 Gogs dev-app repo 주소>***
**git clone *http://*devops:$TOKEN@$MyIP*:3000/hp980724/dev-app.git***
*Cloning into 'dev-app'...
...*

#
cd /data/dev-app

#
git --no-pager config --local --list
git config --local user.name "hp980724"
git config --local user.email "hp980724@mail.com"
git config --local init.defaultBranch **main**
git config --local credential.helper **store**
git --no-pager config --local --list
cat .git/config

#
git --no-pager branch
git remote -v

# server.py 파일 작성
cat > **server.py** <<EOF
*from http.server import ThreadingHTTPServer, BaseHTTPRequestHandler
from datetime import datetime
import socket

class RequestHandler(BaseHTTPRequestHandler):
    def do_GET(self):
        match self.path:
            case '/':
                now = datetime.now()
                hostname = socket.gethostname()
                response_string = now.strftime("The time is %-I:%M:%S %p, VERSION **0.0.1**\n")
                response_string += f"Server hostname: {hostname}\n"
                self.respond_with(200, response_string)
            case '/healthz':
                self.respond_with(200, "Healthy")
            case _:
                self.respond_with(404, "Not Found")

    def respond_with(self, status_code: int, content: str) -> None:
        self.send_response(status_code)
        self.send_header('Content-type', 'text/plain')
        self.end_headers()
        self.wfile.write(bytes(content, "utf-8"))

def startServer():
    try:
        server = ThreadingHTTPServer(('', **80**), RequestHandler)
        print("Listening on " + ":".join(map(str, server.server_address)))
        server.serve_forever()
    except KeyboardInterrupt:
        server.shutdown()

if __name__== "__main__":
    startServer()*
EOF

~~# (참고) python 실행 확인
python3 server.py
curl localhost
curl localhost/healthz~~

# Dockerfile 생성
cat > **Dockerfile** <<EOF
FROM python:3.12
ENV PYTHONUNBUFFERED 1
COPY . /app
WORKDIR /app
CMD python3 server.py
EOF

# VERSION 파일 생성
echo "**0.0.1**" > VERSION

#
tree
git status
git add .
git commit -m "Add dev-app"
**git push -u origin main**
...

docker hub

dckr_pat_dmkS8UMD8bxc_dYXsRRLAvo29BA

jenkins

일련의 자동화 작업의 순서들의 집합인 Pipeline을 통해 CI/CD 파이프라인을 구축한다.

구성요소	설명
Master(Node)	웹 UI 및 Job 스케줄러 역할 (요즘은 Controller라고 부름)
Agent(Node)	실제 빌드 작업이 수행되는 워커 노드
Job / Pipeline	자동화 스크립트 (Jenkinsfile)
Plugin	Git, Docker, Kubernetes, Slack 등과 연동하는 확장 기능
Credential	Git, Docker Hub 등 외부 서비스 로그인 정보
Workspace	Job이 실행되는 디렉터리

Jenkins CI Pipeline

플러그인 설치

Pipeline: Stage View Plugin
docker pipeline
gogs
Generic Webhook Trigger

자격증명 생성

jenkins pipeline script

pipeline {
    agent any
    environment {
        DOCKER_IMAGE = 'hp980724/dev-app' // Docker 이미지 이름
    }
    stages {
        stage('Checkout') {
            steps {
                 git branch: 'main',
                 url: 'http://http://172.21.203.45/:3000/devops/dev-app.git',  // Git에서 코드 체크아웃
                 credentialsId: 'gogs-crd'  // Credentials ID
            }
        }
        stage('Read VERSION') {
            steps {
                script {
                    // VERSION 파일 읽기
                    def version = readFile('VERSION').trim()
                    echo "Version found: ${version}"
                    // 환경 변수 설정
                    env.DOCKER_TAG = version
                }
            }
        }
        stage('Docker Build and Push') {
            steps {
                script {
                    docker.withRegistry('https://index.docker.io/v1/', 'dockerhub-crd') {
                        // DOCKER_TAG 사용
                        def appImage = docker.build("${DOCKER_IMAGE}:${DOCKER_TAG}")
                        appImage.push()
                        appImage.push("latest")
                    }
                }
            }
        }
    }
    post {
        success {
            echo "Docker image ${DOCKER_IMAGE}:${DOCKER_TAG} has been built and pushed successfully!"
        }
        failure {
            echo "Pipeline failed. Please check the logs."
        }
    }
}

deploying to kubernetes

# 디플로이먼트 오브젝트 배포 : 리플리카(파드 2개), 컨테이너 이미지 >> 아래 도커 계정 부분만 변경해서 배포해보자
DHUSER=<도커 허브 계정명>
*DHUSER=gasida*

cat <<EOF | kubectl apply -f -
*apiVersion: apps/v1
kind: **Deployment**
metadata:
  name: **timeserver**
spec:
  **replicas: 2**
  selector:
    matchLabels:
      pod: timeserver-pod
  **template**:
    metadata:
      labels:
        pod: timeserver-pod
    spec:
      containers:
      - name: timeserver-container
        image: **docker.io/**$DHUSER**/dev-app:0.0.1**
        **livenessProbe**:
          initialDelaySeconds: 30
          periodSeconds: 30
          **httpGet**:
            **path: /healthz**
            port: 80
            scheme: HTTP
          timeoutSeconds: 5
          failureThreshold: 3
          successThreshold: 1*

트러블 슈팅

Every 2.0s: kubectl get deploy,rs,pod -o wide                                                                                                                                                      DESKTOP-8S932ET: Mon Oct 27 23:46:59 2025

NAME                         READY   UP-TO-DATE   AVAILABLE   AGE    CONTAINERS             IMAGES                             SELECTOR
deployment.apps/timeserver   0/2     2            0           117s   timeserver-container   docker.io/hp980724/dev-app:0.0.1   pod=timeserver-pod

NAME                                    DESIRED   CURRENT   READY   AGE    CONTAINERS             IMAGES                             SELECTOR
replicaset.apps/timeserver-7fc659bdcd   2         2         0       117s   timeserver-container   docker.io/hp980724/dev-app:0.0.1   pod=timeserver-pod,pod-template-hash=7fc659bdcd

NAME                              READY   STATUS             RESTARTS   AGE    IP           NODE           NOMINATED NODE   READINESS GATES
pod/timeserver-7fc659bdcd-d8cp5   0/1     ImagePullBackOff   0          117s   10.244.1.3   myk8s-worker   <none>           <none>
pod/timeserver-7fc659bdcd-vqrdv   0/1     ImagePullBackOff   0          117s   10.244.1.4   myk8s-worker   <none>           <none>

image pull error (ErrImagePull / ErrImagePullBackOff) 발생

주로 다음과 같은 3가지의 경우에 발생

컨테이너 이미지 정보를 잘못 기입하는 경우에 발생
이미지 저장소에 이미지가 없는 경우
이미지 가져오는 자격 증명이 없는 경우에 발생

secret 생성

kubectl get secret -A  # 생성 시 타입 지정

DHUSER=<도커 허브 계정>
DHPASS=<도커 허브 암호 혹은 토큰>
echo $DHUSER $DHPASS

*DHUSER=gasida
DHPASS=dckr_pat_JLKruUO5Ee8BGWhqxgRz50_jmT0
echo $DHUSER $DHPASS*

kubectl create **secret docker-registry dockerhub-secret** \
  --docker-server=https://index.docker.io/v1/ \
  --docker-**username**=$DHUSER \
  --docker-**password**=$DHPASS

secret 적용해서 다시 가져오기

cat <<EOF | kubectl apply -f -
*apiVersion: apps/v1
kind: **Deployment**
metadata:
  name: **timeserver**
spec:
  **replicas: 2**
  selector:
    matchLabels:
      pod: timeserver-pod
  **template**:
    metadata:
      labels:
        pod: timeserver-pod
    spec:
      containers:
      - name: timeserver-container
        image: docker.io/$DHUSER/**dev-app:0.0.1**
        **livenessProbe**:
          initialDelaySeconds: 30
          periodSeconds: 30
          **httpGet**:
            **path: /healthz**
            port: 80
            scheme: HTTP
          timeoutSeconds: 5
          failureThreshold: 3
          successThreshold: 1
      **imagePullSecrets:
      - name: dockerhub-secret***
EOF

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get deploy,pod
NAME                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/timeserver   1/2     2            1           5m1s

NAME                              READY   STATUS              RESTARTS   AGE
pod/timeserver-7b5b869d64-2zr4h   0/1     ContainerCreating   0          0s
pod/timeserver-7b5b869d64-w65ph   1/1     Running             0          70s
pod/timeserver-7fc659bdcd-d8cp5   0/1     ImagePullBackOff    0          5m1s
pod/timeserver-7fc659bdcd-vqrdv   0/1     Terminating         0          5m1s

service 생성

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: **Service**
metadata:
  name: timeserver
spec:
  selector:
    pod: timeserver-pod
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
    **nodePort: 30000**
  type: **NodePort**
EOF

curl http://127.0.0.1:30000
curl http://127.0.0.1:30000
curl http://127.0.0.1:30000/healthz

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get service,ep timeserver -owide
NAME                 TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE   SELECTOR
service/timeserver   NodePort   10.96.77.129   <none>        80:30000/TCP   17s   pod=timeserver-pod

NAME                   ENDPOINTS                     AGE
endpoints/timeserver   10.244.1.5:80,10.244.1.6:80   17s
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# curl http://127.0.0.1:30000
The time is 2:51:47 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-w65ph
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# curl http://127.0.0.1:30000/healthz
Healthy(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicdwhile true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done ; done
for i in {1..100};  do curl -s http://127.0.0.1:30000 | grep name; done | sort | uniq -c | sort -nr
The time is 2:52:09 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-w65ph
The time is 2:52:20 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:11 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-w65ph
The time is 2:52:12 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-w65ph
The time is 2:52:13 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-w65ph
^C
     52 Server hostname: timeserver-7b5b869d64-2zr4h
     48 Server hostname: timeserver-7b5b869d64-w65ph
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl scale deployment timeserver --replicas 4
deployment.apps/timeserver scaled
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get service,ep timeserver -owide
NAME                 TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE   SELECTOR
service/timeserver   NodePort   10.96.77.129   <none>        80:30000/TCP   68s   pod=timeserver-pod

NAME                   ENDPOINTS                                               AGE
endpoints/timeserver   10.244.1.5:80,10.244.1.6:80,10.244.1.7:80 + 1 more...   68s
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done
for i in {1..100};  do curl -s http://127.0.0.1:30000 | grep name; done | sort | uniq -c | sort -nr
The time is 2:52:32 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:33 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:34 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-7vczh
The time is 2:52:35 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-vgzrz
The time is 2:52:36 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:37 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-7vczh
The time is 2:52:38 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:39 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 2:52:40 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-vgzrz
^C
     26 Server hostname: timeserver-7b5b869d64-vgzrz
     26 Server hostname: timeserver-7b5b869d64-2zr4h
     25 Server hostname: timeserver-7b5b869d64-7vczh
     23 Server hostname: timeserver-7b5b869d64-w65ph
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs#

server.py 코드 변경

docker exec -it gogs bash
cd /data/dev-app

# VERSION 변경 : 0.0.2
# server.py 변경 : 0.0.2
git add . && git commit -m "VERSION $(cat VERSION) Changed" && git push -u origin main

확인

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done
for i in {1..100};  do curl -s http://127.0.0.1:30000 | grep name; done | sort | uniq -c | sort -nr
The time is 3:08:15 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-vgzrz
The time is 3:08:16 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 3:08:17 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 3:08:27 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-7vczh
The time is 3:08:19 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 3:08:20 PM, VERSION 0.0.1
Server hostname: timeserver-7b5b869d64-2zr4h
The time is 3:08:21 PM, VERSION 0.0.1

     27 Server hostname: timeserver-7b5b869d64-7vczh
     26 Server hostname: timeserver-7b5b869d64-w65ph
     24 Server hostname: timeserver-7b5b869d64-vgzrz
     23 Server hostname: timeserver-7b5b869d64-2zr4h
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl set image deployment timeserver timeserver-container=$DHUSER/dev-app:0.0.2 && watch -d "kubectl get deploy,ep timeserver -owide; echo; kubectl get rs,pod"
deployment.apps/timeserver image updated
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get deploy,rs,pod,svc,ep -owide
NAME                         READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS             IMAGES                   SELECTOR
deployment.apps/timeserver   3/4     3            3           23m   timeserver-container   hp980724/dev-app:0.0.2   pod=timeserver-pod

NAME                                    DESIRED   CURRENT   READY   AGE   CONTAINERS             IMAGES                             SELECTOR
replicaset.apps/timeserver-64b4759458   3         3         1       15s   timeserver-container   hp980724/dev-app:0.0.2             pod=timeserver-pod,pod-template-hash=64b4759458
replicaset.apps/timeserver-7b5b869d64   2         2         2       20m   timeserver-container   docker.io/hp980724/dev-app:0.0.1   pod=timeserver-pod,pod-template-hash=7b5b869d64
replicaset.apps/timeserver-7fc659bdcd   0         0         0       23m   timeserver-container   docker.io/hp980724/dev-app:0.0.1   pod=timeserver-pod,pod-template-hash=7fc659bdcd

NAME                              READY   STATUS              RESTARTS   AGE   IP           NODE           NOMINATED NODE   READINESS GATES
pod/timeserver-64b4759458-btfhx   0/1     ContainerCreating   0          2s    <none>       myk8s-worker   <none>           <none>
pod/timeserver-64b4759458-mjs7d   1/1     Running             0          15s   10.244.1.9   myk8s-worker   <none>           <none>
pod/timeserver-64b4759458-mkjdp   0/1     ContainerCreating   0          15s   <none>       myk8s-worker   <none>           <none>
pod/timeserver-7b5b869d64-2zr4h   1/1     Running             0          18m   10.244.1.6   myk8s-worker   <none>           <none>
pod/timeserver-7b5b869d64-7vczh   1/1     Terminating         0          16m   10.244.1.7   myk8s-worker   <none>           <none>
pod/timeserver-7b5b869d64-vgzrz   1/1     Terminating         0          16m   10.244.1.8   myk8s-worker   <none>           <none>
pod/timeserver-7b5b869d64-w65ph   1/1     Running             0          20m   10.244.1.5   myk8s-worker   <none>           <none>

NAME                 TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE    SELECTOR
service/kubernetes   ClusterIP   10.96.0.1      <none>        443/TCP        172m   <none>
service/timeserver   NodePort    10.96.77.129   <none>        80:30000/TCP   17m    pod=timeserver-pod

NAME                   ENDPOINTS                                   AGE
endpoints/kubernetes   172.18.0.3:6443                             172m
endpoints/timeserver   10.244.1.5:80,10.244.1.6:80,10.244.1.9:80   17m
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get deploy timeserver
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
timeserver   4/4     4            4           24m
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl get pods -l pod=timeserver-pod
NAME                          READY   STATUS        RESTARTS   AGE
timeserver-64b4759458-btfhx   1/1     Running       0          17s
timeserver-64b4759458-gwsdk   1/1     Running       0          14s
timeserver-64b4759458-mjs7d   1/1     Running       0          30s
timeserver-64b4759458-mkjdp   1/1     Running       0          30s
timeserver-7b5b869d64-2zr4h   1/1     Terminating   0          19m
timeserver-7b5b869d64-7vczh   1/1     Terminating   0          16m
timeserver-7b5b869d64-vgzrz   1/1     Terminating   0          16m
timeserver-7b5b869d64-w65ph   1/1     Terminating   0          20m
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# ```bash
# 반복 접속 해두기 : 부하분산 확인
**while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done**
for i in {1..100};  do curl -s http://127.0.0.1:30000 | grep name; done | sort | uniq -c | sort -nr

#
kubectl **set image** deployment timeserver timeserver-container=$DHUSER/**dev-app:0.0.2** && watch -d "kubectl get deploy,ep timeserver -owide; echo; kubectl get rs,pod"

# 롤링 업데이트 확인
watch -d kubectl get deploy,rs,pod,svc,ep -owide
kubectl get deploy,rs,pod,svc,ep -owide

# kubectl get deploy $DEPLOYMENT_NAME
kubectl get deploy timeserver
kubectl get pods -l pod=timeserver-pod

#
curl http://127.0.0.1:30000
```^C
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done
for i in {1..100};  do curl -s http://127.0.0.1:30000 | grep name; done | sort | uniq -c | sort -nr
The time is 3:09:17 PM, VERSION 0.0.2
Server hostname: timeserver-64b4759458-mjs7d
The time is 3:09:18 PM, VERSION 0.0.2
Server hostname: timeserver-64b4759458-mkjdp
The time is 3:09:19 PM, VERSION 0.0.2
Server hostname: timeserver-64b4759458-btfhx
The time is 3:09:20 PM, VERSION 0.0.2
Server hostname: timeserver-64b4759458-mkjdp
The time is 3:09:21 PM, VERSION 0.0.2

Gogs Webhooks 설정 : Jenkins Job Trigger

docker exec -it gogs bash

`/data/gogs/conf/app.ini` 수정

BRAND_NAME = Gogs
RUN_USER   = git
RUN_MODE   = prod

[database]
TYPE     = sqlite3
HOST     = 127.0.0.1:5432
NAME     = gogs
SCHEMA   = public
USER     = gogs
PASSWORD =
SSL_MODE = disable
PATH     = data/gogs.db

[repository]
ROOT           = /data/git/gogs-repositories
DEFAULT_BRANCH = main

[server]
DOMAIN           = localhost
HTTP_PORT        = 3000
EXTERNAL_URL     = http://172.21.203.45:3000/
DISABLE_SSH      = false
SSH_PORT         = 22
START_SSH_SERVER = false
OFFLINE_MODE     = false

[email]
ENABLED = false

[auth]
REQUIRE_EMAIL_CONFIRMATION  = false
DISABLE_REGISTRATION        = false
ENABLE_REGISTRATION_CAPTCHA = true
REQUIRE_SIGNIN_VIEW         = false

[user]
ENABLE_EMAIL_NOTIFICATION = false

[picture]
DISABLE_GRAVATAR        = false
ENABLE_FEDERATED_AVATAR = false

[session]
PROVIDER = file

[log]
MODE      = file
LEVEL     = Info
ROOT_PATH = /app/gogs/log

[security]
INSTALL_LOCK = true
SECRET_KEY   = SeG2qVPPLWBL5zh
LOCAL_NETWORK_ALLOWLIST = 172.21.203.45

**docker compose restart gogs**

gogs web-hook 설정

test 진행시 jenkins 미설정으로 error

jenkins 설정

gogs webhook payload에 맞게 item name 작성하기

jenkins file 생성 (gogs)

docker exec -it gogs bash
9657b615ff9e:/data/dev-app# pwd
/data/dev-app
9657b615ff9e:/data/dev-app# tree
.
├── Dockerfile
├── VERSION
└── server.py

0 directories, 3 files
9657b615ff9e:/data/dev-app#

Jenkinsfile

pipeline {
    agent any
    environment {
        DOCKER_IMAGE = 'hp980724/dev-app'
    }
    stages {
        stage('Checkout') {
            steps {
                 git branch: 'main',
                 url: 'http://172.21.203.45:3000/hp980724/dev-app.git',
                 credentialsId: 'gogs-crd'  // Credentials ID
            }
        }
        stage('Read VERSION') {
            steps {
                script {

                    def version = readFile('VERSION').trim()
                    echo "Version found: ${version}"
                    env.DOCKER_TAG = version
                }
            }
        }
        stage('Docker Build and Push') {
            steps {
                script {
                    docker.withRegistry('https://index.docker.io/v1/', 'dockerhub-crd') {
                        // DOCKER_TAG 사용
                        def appImage = docker.build("${DOCKER_IMAGE}:${DOCKER_TAG}")
                        appImage.push()
                        appImage.push("latest")
                    }
                }
            }
        }
    }
    post {
        success {
            echo "Docker image ${DOCKER_IMAGE}:${DOCKER_TAG} has been built and pushed successfully!"
        }
        failure {
            echo "Pipeline failed. Please check the logs."
        }
    }
}

troubleshooting

ERROR: permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Head "http://%2Fvar%2Frun%2Fdocker.sock/_ping": dial unix /var/run/docker.sock: connect: permission denied

docker.sock 접근을 위한 수정

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# stat -c '%g' /var/run/docker.sock
989
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# echo DOCKER_GID=989 > .env
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# ls
docker-compose.yaml
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# vi docker-compose.yaml
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# which docker
/usr/bin/docker
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# vi docker-compose.yaml
(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# cat docker-compose.yaml
services:

  jenkins:
    container_name: jenkins
    image: jenkins/jenkins
    networks:
      - kind
    ports:
      - "8080:8080"
      - "50000:50000"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - jenkins_home:/var/jenkins_home
      - /usr/bin/docker:/usr/bin/docker:ro
    group_add:
      - "${DOCKER_GID}"
    restart: unless-stopped

  gogs:
    container_name: gogs
    image: gogs/gogs
    restart: unless-stopped
    networks:
      - kind
    ports:
      - "10022:22"
      - "3000:3000"
    volumes:
      - gogs-data:/data

volumes:
  jenkins_home:
  gogs-data:

networks:
  kind:
    external: true

1️⃣ `/usr/bin/docker:/usr/bin/docker:ro`

의미: Jenkins 컨테이너 안에 도커 명령어(docker CLI)를 복사하는 것입니다.
- 왼쪽 /usr/bin/docker → 호스트에 설치된 Docker 실행파일
- 오른쪽 /usr/bin/docker → Jenkins 컨테이너 안의 경로
- :ro → 읽기 전용(Read-Only)으로 마운트 (수정 불가, 안전함)
왜 필요한가? Jenkins는 내부에서 sh 'docker build …' 같은 명령을 실행합니다. 하지만 Jenkins 이미지에는 docker 명령어가 기본 설치돼 있지 않습니다. 그래서 호스트의 docker CLI 바이너리를 그대로 빌려 쓰는 것입니다.

🔌 2️⃣ `group_add: - "${DOCKER_GID}"`

의미: Jenkins 컨테이너 안의 jenkins 사용자에게, 호스트 도커 소켓(/var/run/docker.sock)이 속한 그룹(GID)의 권한을 추가합니다.
왜 필요한가? Docker는 /var/run/docker.sock 파일을 통해 통신하는데, 이 파일은 보통 다음처럼 되어 있습니다:
```
srw-rw---- root docker /var/run/docker.sock
```
즉, root나 docker 그룹에 속해야 접근 가능합니다. Jenkins는 기본적으로 jenkins 유저로 실행되기 때문에 접근이 막힙니다. 따라서 .env 파일에 DOCKER_GID=989를 적어두고, 이 값을 group_add로 전달하여 Jenkins 컨테이너 안에서도 jenkins 유저가 도커 그룹(989번)에 포함되도록 만든 것입니다.

(⎈|kind-myk8s:default) root@DESKTOP-8S932ET:~/cicd-labs# kubectl set image deployment timeserver timeserver-container=$DHUSER/dev-app:0.0.3 && while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; sleep 1 ; done
deployment.apps/timeserver image updated
The time is 12:46:39 PM, VERSION 0.0.3
Server hostname: timeserver-7577795f7b-q4whg
The time is 12:46:40 PM, VERSION 0.0.3
Server hostname: timeserver-7577795f7b-q4whg

Jenkins Generic Webhook Trigger 플러그인으로 설정 구현

Generic Webhook Trigger 플러그인 설치

pipeline 생성후 Generic Webhook Trigger 활성화
Post content parameters 클릭

Name of variable	Expression	JSONPath
ref	$.ref	0
repository_name	$.repository.name	0
pusher_name	$.pusher.username	0
commit_msg	$.commits[0].message	0

token : my-webhook-token

pipeline script

pipeline {
  agent any

  triggers {
    GenericTrigger(
      genericVariables: [
        [key: 'ref',             value: '$.ref'],
        [key: 'repository_name', value: '$.repository.name'],
        [key: 'pusher_name',     value: '$.pusher.username'],
        [key: 'commit_msg',      value: '$.commits[0].message']
      ],
      causeString: 'Triggered on $ref by $pusher_name',
      token: 'my-webhook-token',                 // Gogs Webhook URL의 token과 일치
      printContributedVariables: true,           // 초기 디버그용(안정화 후 false)
      printPostContent: true,                    // 초기 디버그용(안정화 후 false)
      regexpFilterText: '$ref',
      regexpFilterExpression: '^refs/heads/(main|develop)$'  // main, develop만 처리
    )
  }

  environment {
    GIT_URL = 'http://172.21.203.45:3000/hp980724/dev-app.git'
    IMAGE   = 'hp980724/dev-app'
  }

  stages {
    stage('Checkout') {
      steps {
        // Git에서 소스 코드 체크아웃
        git url: env.GIT_URL, branch: 'main', credentialsId: 'gogs-crd'
      }
    }

    stage('Read VERSION') {
      steps {
        // VERSION 파일 읽기
        script { env.VERSION = readFile('VERSION').trim() }
        echo "Version: ${env.VERSION}, Ref: ${env.ref}, Pusher: ${env.pusher_name}"
      }
    }

    stage('Docker Build & Push') {
      when {
        expression { return env.ref == 'refs/heads/main' || env.ref == 'refs/heads/develop' }
      }
      steps {
        withCredentials([usernamePassword(credentialsId: 'dockerhub-crd', usernameVariable: 'DOCKERHUB_USER', passwordVariable: 'DOCKERHUB_PASS')]) {
          // Docker Hub 로그인
          sh 'echo "$DOCKERHUB_PASS" | docker login --username "$DOCKERHUB_USER" --password-stdin'
        }
        // Docker 빌드
        sh 'docker build -t ${IMAGE}:${VERSION} .'
        // Docker 푸시
        sh 'docker push ${IMAGE}:${VERSION}'
        sh 'docker tag ${IMAGE}:${VERSION} ${IMAGE}:latest'
        sh 'docker push ${IMAGE}:latest'
      }
    }
  }

  post {
    success { echo "✅ Pushed: ${IMAGE}:${VERSION} (and latest)" }
    failure { echo "❌ Pipeline failed. Check logs." }
    always  { echo "Build# ${env.BUILD_NUMBER}, Repo=${env.repository_name}, Msg=${env.commit_msg}" }
  }
}

빌드 이미지 Tag 를 Git Commit ID(SHA) 로 매칭(코드 버전과 이미지 버전 식별)하는 이미지 빌드 CI Pipeline 작성

jenkins file 수정

pipeline {
    agent any
    environment {
        DOCKER_IMAGE = 'hp980724/dev-app'
    }
    stages {
        stage('Checkout') {
            steps {
                git branch: 'main',
                    url: 'http://172.21.203.45:3000/hp980724/dev-app.git',
                    credentialsId: 'gogs-crd'  // Gogs credentials ID
            }
        }
        stage('Get Commit SHA') {
            steps {
                script {
                    def commitSHA = sh(script: "git rev-parse HEAD", returnStdout: true).trim()
                    echo "Commit SHA: ${commitSHA}"
                    env.DOCKER_TAG = commitSHA
                }
            }
        }
        stage('Docker Build and Push') {
            steps {
                script {
                    docker.withRegistry('https://index.docker.io/v1/', 'dockerhub-crd') {
                        def appImage = docker.build("${DOCKER_IMAGE}:${DOCKER_TAG}")
                        appImage.push()
                        appImage.push("latest")
                    }
                }
            }
        }
    }
    post {
        success {
            echo "Docker image ${DOCKER_IMAGE}:${DOCKER_TAG} has been built and pushed successfully!"
        }
        failure {
            echo "Pipeline failed. Please check the logs."
        }
    }
}

디플로이먼트에 파드 컨테이너 이미지에 latest 사용해서 배포 후 이미지 버전 업데이트 후 적용

명령어

kubectl set image deployment timeserver timeserver-container=$DHUSER/dev-app:0.0.2

kubectl set image: timeserver 배포의 timeserver-container 파드에 이미지를 새로 설정 (0.0.2 버전 사용)
CI 이후에

kubectl set image deployment timeserver timeserver-container=$DHUSER/dev-app:latest

dev-app:latest 를 적용하여도 이전꺼 가져옴

deployment 수정

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: timeserver
spec:
  replicas: 4
  selector:
    matchLabels:
      pod: timeserver-pod
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        pod: timeserver-pod
    spec:
      containers:
      - name: timeserver-container
        image: hp980724/dev-app:latest  # latest 이미지
        imagePullPolicy: Always  # 항상 최신 이미지를 가져옴
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 80
            scheme: HTTP
          initialDelaySeconds: 30
          periodSeconds: 30
          successThreshold: 1
          timeoutSeconds: 5
      imagePullSecrets:
      - name: dockerhub-secret
EOF

kubectl rollout status deployment timeserver
```![](https://velog.velcdn.com/images/sly0724/post/76d6320a-bfef-482a-8171-d2d1882b64bf/image.png)

dev_suha

이전 포스트

CICD STUDY-2주차

다음 포스트

CICD STUDY-3주차

실습 환경 구성

kind k8s

kube config 파일 확인

ifconfig

kube-ops-view

docker compose

docker network ls

docker-compose.yaml

jenkins 설정

Jenkins 컨테이너에서 호스트에 도커 데몬 사용 설정 (Docker-out-of-Docker) : Windows (WSL2 + Docker) 사용자

gogs

docker hub

jenkins

Jenkins CI Pipeline

플러그인 설치

자격증명 생성

jenkins pipeline script

deploying to kubernetes

트러블 슈팅

secret 생성

secret 적용해서 다시 가져오기

service 생성

server.py 코드 변경

확인

Gogs Webhooks 설정 : Jenkins Job Trigger

/data/gogs/conf/app.ini 수정

gogs web-hook 설정

jenkins 설정

jenkins file 생성 (gogs)

Jenkinsfile

troubleshooting

1️⃣ /usr/bin/docker:/usr/bin/docker:ro

🔌 2️⃣ group_add: - "${DOCKER_GID}"

Jenkins Generic Webhook Trigger 플러그인으로 설정 구현

Generic Webhook Trigger 플러그인 설치

pipeline script

빌드 이미지 Tag 를 Git Commit ID(SHA) 로 매칭(코드 버전과 이미지 버전 식별)하는 이미지 빌드 CI Pipeline 작성

jenkins file 수정

디플로이먼트에 파드 컨테이너 이미지에 latest 사용해서 배포 후 이미지 버전 업데이트 후 적용

명령어

CICD STUDY-2주차

CICD STUDY-4주차

0개의 댓글

`/data/gogs/conf/app.ini` 수정

1️⃣ `/usr/bin/docker:/usr/bin/docker:ro`

🔌 2️⃣ `group_add: - "${DOCKER_GID}"`
