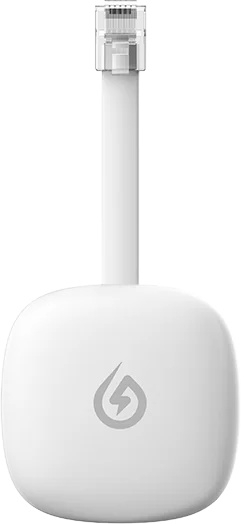

P1 Meter Reader
By collecting operating status and consumption data of meter, SOLARMAN P1 wifi electric meter reader can run a long-term and efficient monitoring of meter system. It can connect to a single p1meter via RJ12 interface to receive consumption data from the meter. Furthermore, it sends the data to the monitoring platform via WiFi. The real-time status and historical data can be displayed with graphs, enabling intuitive and clear understanding of the system.
(*Modern meters in the Netherlands, Lithuania, Finland and Belgium have a P1 port and are compatible with the p1 reader.)
wlan p1 meter
P1-2W
p1 monitor via wifi
P1-2W
p1 device
P1-2W
wlan p1 meter
P1-2W
PreviousNext
P1 Meter Reader Feature
Easy to use
Standard bluetooth network configuration
Compact-size design, no extra space required
Direct power from the Wi-Fi P1 Meter Reader with plug-and-play functionality
High Compatibility
Universal COM protocol for broad compatibility
Type-C interface addresses the power supply issue for P1 Meter Software Reader below DSMR 5.0
Stable & Reliable
Remote management software for visual data handling
Data encryption ensures secure and reliable remote transmission
Compliant with EN303645
Compliant with ETSI EN 303 645 standard
Excellent Performance
Accurate measurement of electrical energy data
Supports local API interface for efficient access to home energy management systems (HEMS)
Support local linkage with micro storage device
WLAN P1 Meter Reader Parameters
Communication Parameters
Remote Communication 2.4GHz WiFi
WiFi Standard 802.11b/g/n
WiFi Frequency 2.412GHz-2.472GHz (CH1~CH13）
WiFi Transmission Power 802.11b:+17dBm±1.5dBm (@11Mbps)
802.11g:+15dBm±1.5dBm (@54Mbps)
802.11n:+14dBm±1.5dBm (@HT20,MCS7)
Bluetooth Standard BLE5.0
Bluetooth Frequency 2.402GHz-2.480GHz
Bluetooth Transmission Power Max 15dBm
Hardware Parameters
Data Interface P1-RJ12
External Interface USB Type-C & RJ12
Working Voltage DC 5.0V±5%
Working Power <1W
Indicator Light P1 green light shows connection status with meter
WiFi blue light shows connection status with server
Memory 8MB FLASH
Working Temperature -20℃~+50℃
Working Humidity 10%-90% RH no condensation
Storage Temperature -30℃~+60℃
Storage Humidity ≤40%RH (No Condensation)
Software Parameters
No. of Connections One P1 meter
Serial Communication Rate Default: 115200bps (Configurable)
Data Transmission Interval Default: 5 mins (60-600s Configurable)
Firmware Upgrade Remote upgrade/Local upgrade
User Configuration APP/Web page
Software Watchdog √
Others Real-time Control
Works with Your Smart Meter
The smart P1 Meter Reader plugs into the P1 port of your smart meter and displays the electricity and gas consumption of your home. The p1 smart meter reader is compatible with most modern meters in Europe, and for modern smart meters, you don’t even need a power adapter! Just plug it in, connect to Wi-Fi, and you’re ready to go.
View Live or Explore Historical Data
With the app, you can see real-time events or revisit past data at any time.
FAQs of P1 Meter Reader
Q1: What information can be obtained through the P1 reader?
A1: The P1 Device Reader can upload the collected meter data to a local or remote software platform with WiFi connection. The specific data read is the data collected by the meter, which generally includes electricity measurement, voltage, current, and power.
Q2: Does the P1 Meter reader support remote update and configuration?
A2: The P1 Meter reader supports remote updates and configurations, allowing users to remotely update the firmware of the P1 meter reader to fix known issues, enhance functionality, or adapt to new meter types.
If you need more FAQs, please feel free to contact us.
If you want to know more about solar smart login, please visit our website.
