Image Sensor

InGaAs and CQD are utilized as materials for image sensors operating in the near-infrared and shortwave infrared bands, covering wavelengths from 0.4 to 2.5 microns. For mediumwave and longwave cooled detector, T2SL and VoX are the materials of choice. As one of top image sensor manufacturers, we provide different cmos sensor types with resolutions of 640x512 and 1280x1024, as well as linear sensors with resolutions of 512, 1024, and 2048, among others.

Types of ccd sensor for sale
InGaAs Image Sensor
SWIR InGaAs Detector GH-SW640Pro
SWIR InGaAs Detector GH-SW320
SWIR InGaAs Detector GH-SW1280

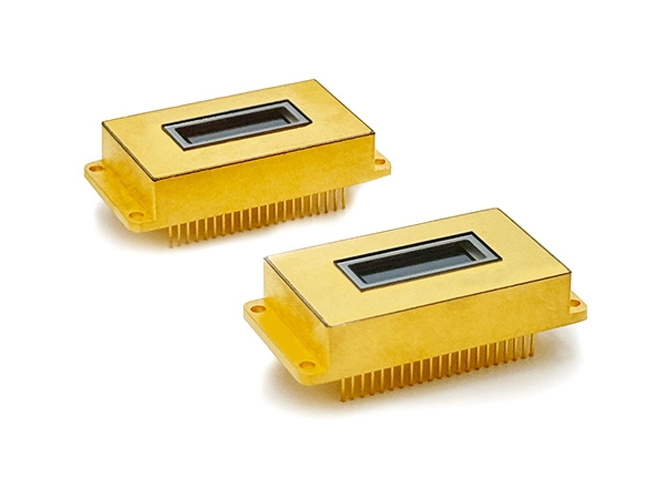

SWIR InGaAs Linear Detector 1024×1/12.5μm GH-SWLA-1024
SWIR InGaAs Linear Detector 512×1/2 GH-SWLA-512
Uncooled Short Wave Infrared LEOPAR-640/15-SW
InGaAs Image Sensor
Area sensor and linear sensor made of InGaAs (Indium Gallium Arsenide) show excellent photoelectric conversion efficiency and high sensitivity, and the device response band extends from 0.9-1.7nm to 0.4-1.7nm.

T2SL Image Sensor
LWIR 640 x 512 Focal Plane Array Detector AS-LW640P15
MWIR 640 x 512 Focal Plane Array Detector AS-ML640P20
MWIR 1280 x 1024 Focal Plane Array Detector AS-ML1280P15
HOT MWIR 640 x 512 Focal Plane Detector AS-MW640P10
MWIR/LWIR Dual band 640 x 512 Focal Plane Array Detector AS-DBML640P20
T2SL Image Sensor
T2SL (Type II Super Lattice) is widely used in applications requiring high-resolution and long-distance detection due to their excellent carrier transport properties and potential for high integration.

CQD Image Sensor
Readout Circuit for CQD Sensor 640×512 Array IR640
CQD Detector 640 Shortwave Focal Plane Detector ZXRC-SW640-F15-XX Series
CQD Detector 1280 Shortwave Focal Plane Detector ZXRC-SW1280-F15-XX Series
CQD Image Sensor
CQD (Colloidal Quantum Dot) offers novel solutions for shortwave infrared detectors, demonstrating enhanced detection capabilities and flexibility in specific wavelength ranges.

VOx Image Sensor
640×512/12μm Array Uncooled Infrared Focal Plane Microbolometer GH-LWA-612AC
VOx Image Sensor
With its excellent thermal and chemical stability, VOx (Vanadium Oxide) plays an important role in the manufacture of high-reliability, multi-pixel specifications (such as 15-micron and 12-micron pixel sizes) detectors, meeting the strict requirements for durability and accuracy in the field of longwave infrared detection.

Advantages of SYTO sensor used for image recognition
Low dark current
High quantum efficiency
High operability

How Do I Choose the Right optical sensor of the camera for My Application?
01
Dynamic Range and Frame Rate
Dynamic Range: A higher dynamic range allows the sensor to capture more detail in both the shadows and highlights, which is vital for high-contrast scenes. This is beneficial for both photography and videography, ensuring better image quality in challenging lighting conditions.

Frame Rate: The frame rate, measured in frames per second (fps), is crucial for video recording and high-speed photography. Higher frame rates (e.g., 60 fps or more) are necessary for smooth video playback and capturing fast-moving subjects without motion blur.

02
Power Consumption and Cost
Power Consumption: For battery-operated devices like cameras and drones, power efficiency is a key consideration. CMOS sensors are generally more power-efficient than CCD sensors, making them a better choice for portable applications.

Cost: Budget constraints will also influence your choice. While high-end sensors offer superior performance, they come at a higher cost. Working with reliable cmos sensor suppliers like Sytophotonics can help balance performance with budget, especially for consumer electronics and large-scale deployments in security systems.

03
Resolution and Pixel Size
Resolution: Higher resolution sensors capture more detail, which is crucial for applications like photography and scientific imaging where fine details are essential. For general photography, a sensor with 12-24 megapixels is often sufficient, while specialized applications may require higher resolutions.

Pixel Size: Larger pixels can gather more light, improving performance in low-light conditions and enhancing dynamic range. This is particularly important for videography and security applications where lighting conditions can vary.

For more information about working of image sensor and sensor image processing, please feel free to contact us!

We can also provide kinds of ingaas detector for sale, if you are interested, please contact us.
