Temp Controller Module: Precise Regulation

Temp Controller Module: Precise Regulation
The temp controller module is an electronic device that integrates a temperature sensor, control circuit, and actuator into one unit. Its main function is to detect the temperature of the environment or equipment and automatically adjust the temperature according to the set value, keeping it within the desired range in hot runner temperature controller systems.

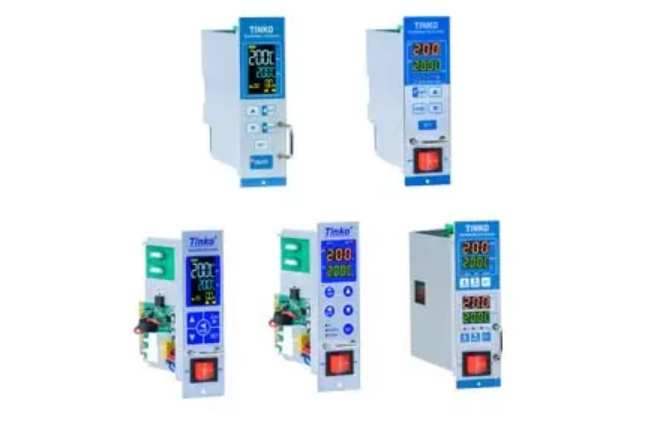

Features of Tinko's HRTC-C1 Temp Controller Module

Dual-line LED display

Automatic/Manual/Standby

Built-in buzzer

Intelligent soft-start function

Manual output in case of temperature sensor failure

Output percentage limit setting

Compatible with brands like DME, YUDO, etc.

Working Principle of the Temp Controller Module

The working principle of the temperature controller module is roughly as follows:

Temperature signal acquisition

The temperature sensor collects real-time temperature signals from the environment or controlled target.

Signal processing and amplification

The temperature signal is processed and amplified by the signal processing circuit to enhance the signal's sensitivity and measurable range.

Temperature signal interpretation and calculation

The control circuit receives the temperature signal collected by the temperature sensor and compares it with the preset target temperature parameters for calculation.

Control output

Based on the difference between the current temperature and the target temperature, the control circuit calculates the control quantity and sends it to the actuator.

Temperature adjustment

The actuator controls the temperature of the controlled target based on the control quantity, such as starting a heater to increase the temperature or starting a fan to lower the temperature.

Feedback control

The temp controller module continuously compares the actual temperature with the target temperature and constantly adjusts the control quantity to maintain the temperature within the target range for stable operation.

Application Fields of the Temp Controller Module

Temp controller modules by our temperature controller manufacturers are widely used in various fields, including but not limited to:

Industrial control

In industrial production, temp controller modules can be used to control the operating temperatures of various devices, ensuring production stability and product quality.

Agricultural field

Used for temperature regulation in greenhouse cultivation, improving the yield and quality of crops.

Medical field

Used for precise temperature control of medical equipment and instruments, ensuring the accuracy and safety of medical procedures.

Automotive electronics

Used for temperature regulation and control in systems like engine cooling and air conditioning.

Smart home

With the proliferation of smart homes, temp controller modules are also widely used in household appliances such as smart air conditioners and refrigerators.

As one of temperature controller manufacturers, we will do our best to meet all the needs of customers.
