Android Drawer Layout

안드로이드에서 사이드 메뉴를 구현할 때, 많이 사용되는 drawer layout입니다. 삼성의 캘린더 앱이나 슬랙앱에서 확인해 볼 수 있습니다.

drawer layout은 두가지 레이아웃으로 구성됩니다. 메인 화면을 표시해주는 메인 레이아웃과 가장자리를 스와이프 할 때, 나타나는 drawer 역할을 해주는 서브 레이아웃입니다.

저는 constraint layout과 navigation view를 사용하여 구현했습니다.

activity_main 레이아웃

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">
    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <androidx.constraintlayout.utils.widget.ImageFilterButton
            android:id="@+id/open_btn"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="16dp"
            android:layout_marginTop="16dp"
            android:src="@drawable/ic_action_name"
            android:tint="@color/red"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <TextView
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_marginTop="16dp"
            android:background="@color/red"
            android:gravity="center"

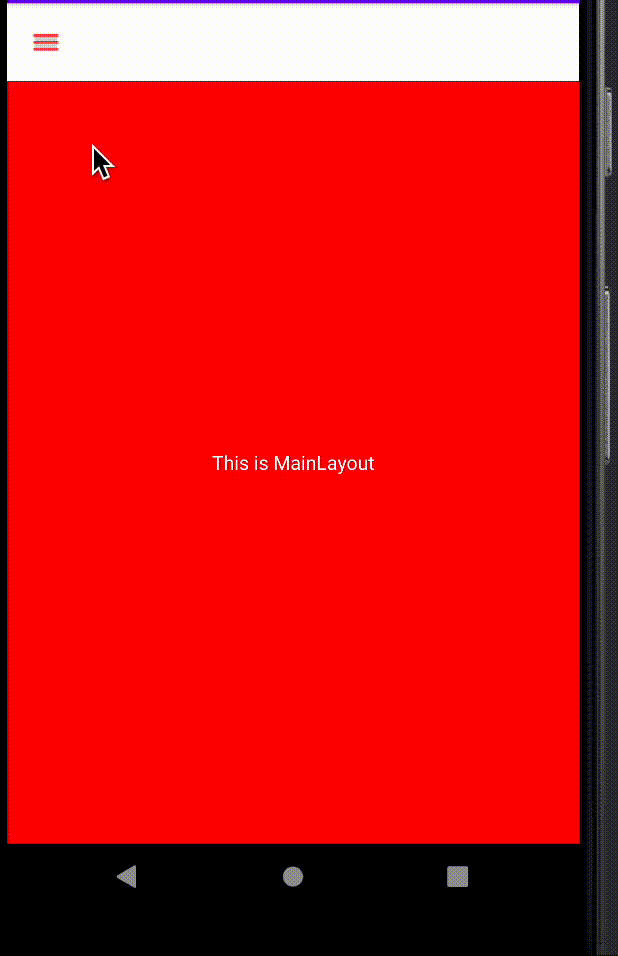

            android:text="This is MainLayout"
            android:textColor="@color/white"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintHorizontal_bias="0.0"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toBottomOf="@+id/open_btn" />

    </androidx.constraintlayout.widget.ConstraintLayout>
    <com.google.android.material.navigation.NavigationView
        android:id="@+id/navView"
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        app:headerLayout="@layout/nav_header_layout"
        app:menu="@menu/drawer_menu">
    </com.google.android.material.navigation.NavigationView>

nav_header 레이아웃

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/green">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginTop="16dp"
        android:backgroundTint="@color/green"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:srcCompat="@drawable/ic_launcher_foreground" />

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:text="This is Header"
        android:textColor="@color/white"
        android:textSize="20sp"
        app:layout_constraintBottom_toBottomOf="@+id/imageView"
        app:layout_constraintStart_toEndOf="@+id/imageView"
        app:layout_constraintTop_toTopOf="@+id/imageView" />

    <TextView
        android:id="@+id/textView2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="8dp"
        android:text="header blabla"
        android:textSize="16sp"
        android:textColor="@color/white"
        app:layout_constraintEnd_toEndOf="@+id/imageView"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/imageView" />
</androidx.constraintlayout.widget.ConstraintLayout>

drawer_menu 레이아웃

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/menu1"
        android:title="menu1"/>
    <item
        android:id="@+id/menu2"
        android:title="menu2"/>
    <item
        android:id="@+id/menu3"
        android:title="menu3"/>

</menu>

MainActivity 소스코드

package com.example.drawerlayoutpractice

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.MenuItem
import android.widget.Toast
import androidx.core.view.GravityCompat
import com.example.drawerlayoutpractice.databinding.ActivityMainBinding
import com.google.android.material.navigation.NavigationView

class MainActivity : AppCompatActivity(), NavigationView.OnNavigationItemSelectedListener {
    private lateinit var binding: ActivityMainBinding
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        binding = ActivityMainBinding.inflate(layoutInflater)
        setContentView(binding.root)
        binding.openBtn.setOnClickListener {
            if (!binding.drawerLayout.isDrawerOpen(GravityCompat.START))
                binding.drawerLayout.openDrawer(GravityCompat.START)
        }

        val navView = binding.navView
        navView.setNavigationItemSelectedListener(this)
    }

    override fun onNavigationItemSelected(item: MenuItem): Boolean {
        when (item.itemId) {
            R.id.menu1 -> Toast.makeText(this, "menu1 clicked", Toast.LENGTH_SHORT).show()
            R.id.menu2 -> Toast.makeText(this, "menu2 clicked", Toast.LENGTH_SHORT).show()
            R.id.menu3 -> Toast.makeText(this, "menu3 clicked", Toast.LENGTH_SHORT).show()
        }
        return false
    }
}
