Verification Envirionment

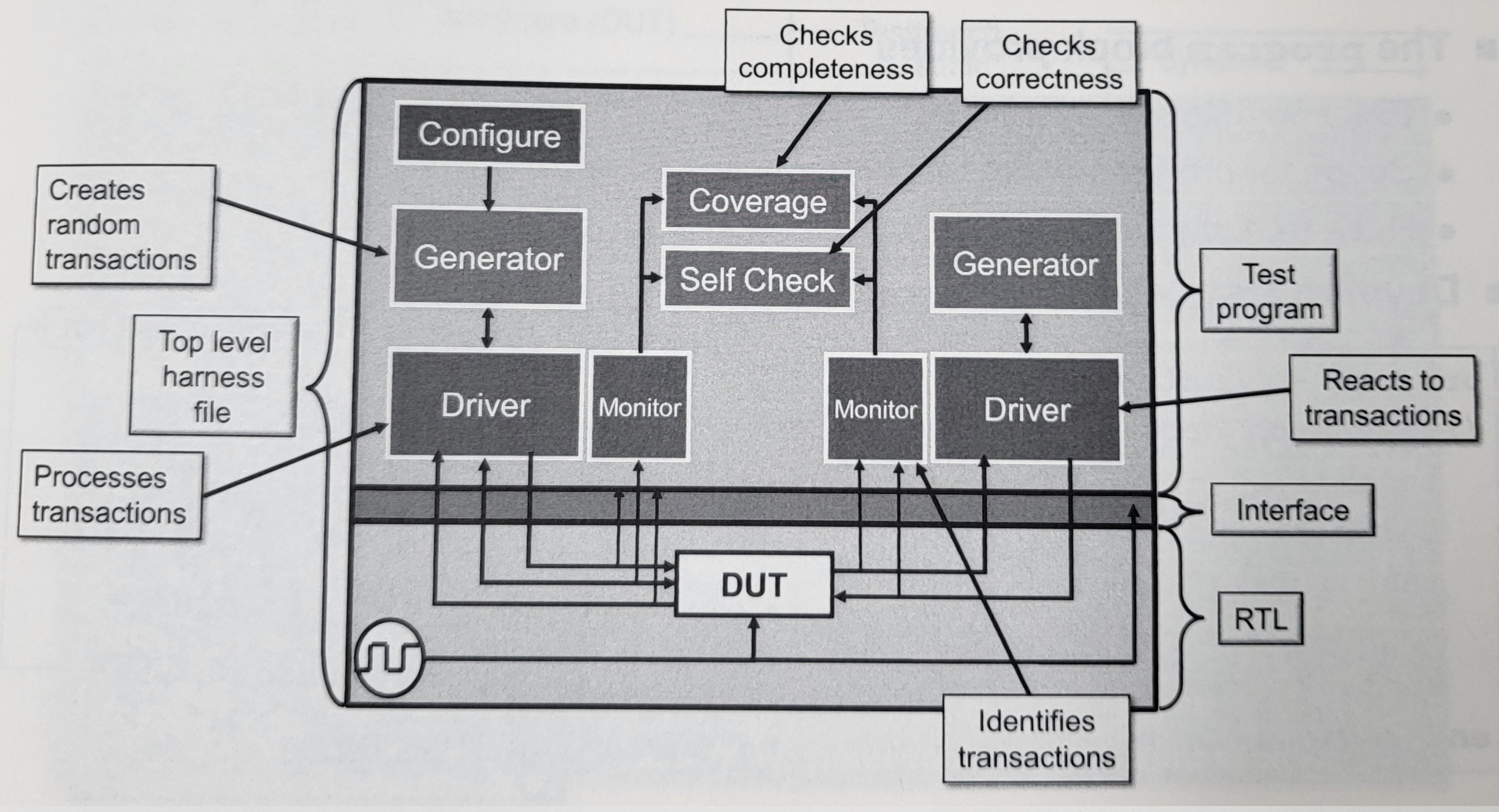

SystemVerilog Test Environment

• The program block
  • testbench code 적는 공간
  • entry point for testbench execution = main() 함수랑 같은 의미
• The interface
  • testbench랑 DUT 연결 메커니즘
  • named bundle of wires
  • 생략 가능
• Driving DUT Signals
  • device driver 를 통해 DUT signals 들이 driven 됨
• Sampling DUT Signals
  • device monitor 로 DUT signals 들이 samplied 됨

Program Block

• Entry point to test execution
• Scope for program-wide data and routines
• Race-free interaction between testbench and design
  : Re-Active 영역에서 동작하기 때문에.
• initial block 만 사용 가능함

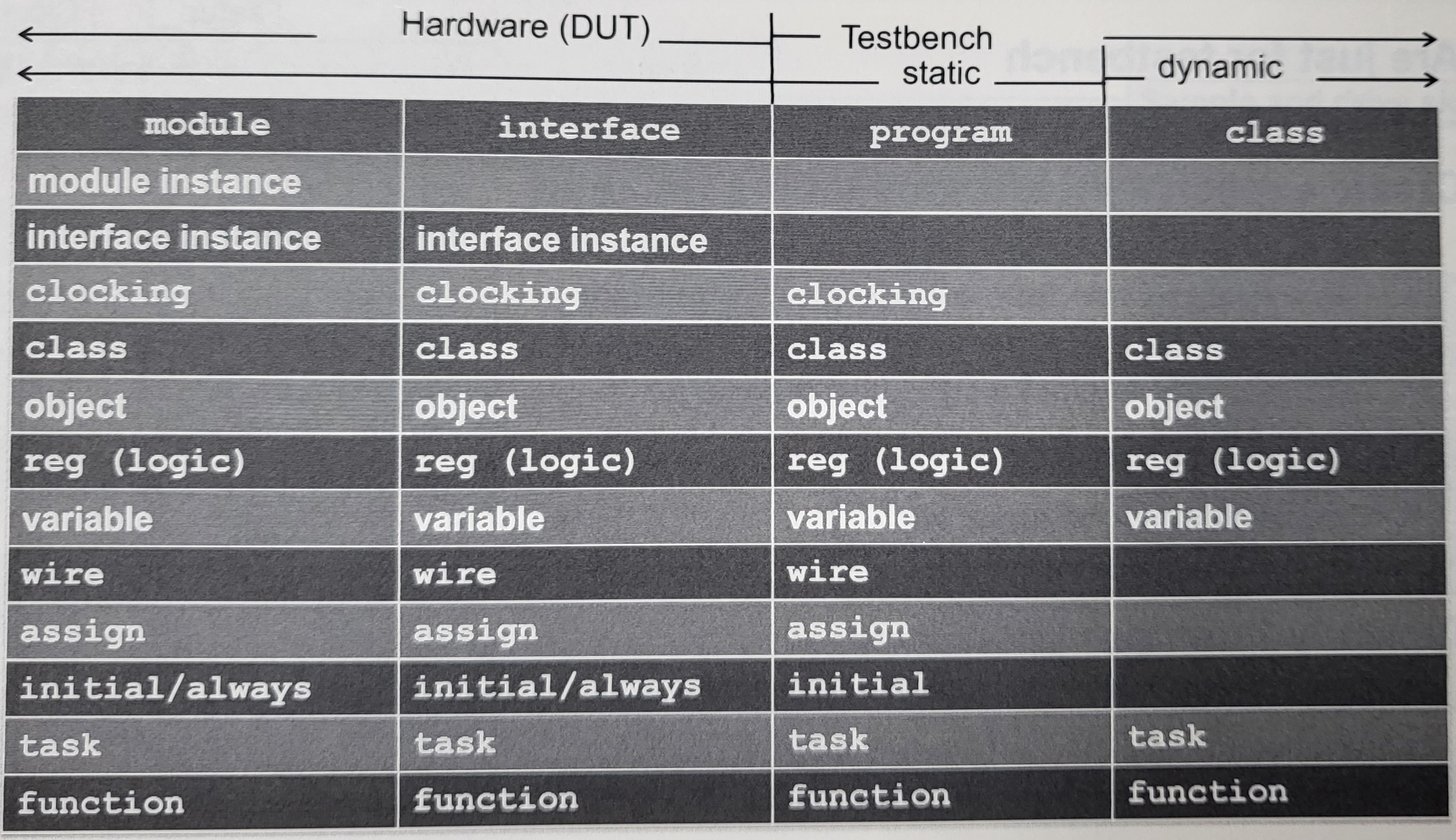

SystemVerilog Containers

---

Interface

• bundle of wires (signals) 연결
• Directional innformation (modports)
• Timing (clocking blocks)
• Functionality (routines, assertions, initial/always blocks)

interface simple_bus(input bit clk);
  logic req, gnt;
  logic [7:0] addr;
  wire  [7:0] data;
  logic [1:0] mode;
  logic start, rdy;
endinterface

module cpu(simple_bus sb);
...
endmodule

module top;
  logic clk = 0;
  always #10 clk = !clk;
  simple_bus sb(clk);
  test t1(sb);
  cpu c1(sb);
endmodule

clocking Blocks

Synchronous Timing

Just for testbench : Emulate the launch and capture flops at IO of DUT

clocking cb @(posedge clk);
  default input #1ns output #1ns;
  output reset_n;
  output din;
  output frame_n;
  output valid_n;
  input  dout;
  input  busy_n;
  input  valido_n;
  input  frameo_n;
endclocking: cb

TB 입장에서 input은 DUT의 output delay = setup time, 안쓰면 SAMPLE이 default
output은 DUT의 input delay = clk2q, 안쓰면 DRIVE가 default

modport

interface router_io(input bit clock);
  logic reset_n;
  ...
  clocking cb @ (posedge clock);
    default input #1ns output #1ns;
    output reset_n;
    output valid_n;
    ...
  endclocking
  modport DUT(input reset_n, input din, output dout, ...);
  modport TB(clocking cb, output reset_n);
endinterface: router_io

module router(
  router_io.DUT dut_io,
  input logic clk);
...
endmodule: router

program automatic test(router_io.TB rtr_io);
  initial begin
    rtr_io.reset_n = 1'b0;
    rtr_io.cb.reset_n <= 1'b1;
    rtr_io.cb.valid_n <= ~('b0);
  end
endprogram: test

---

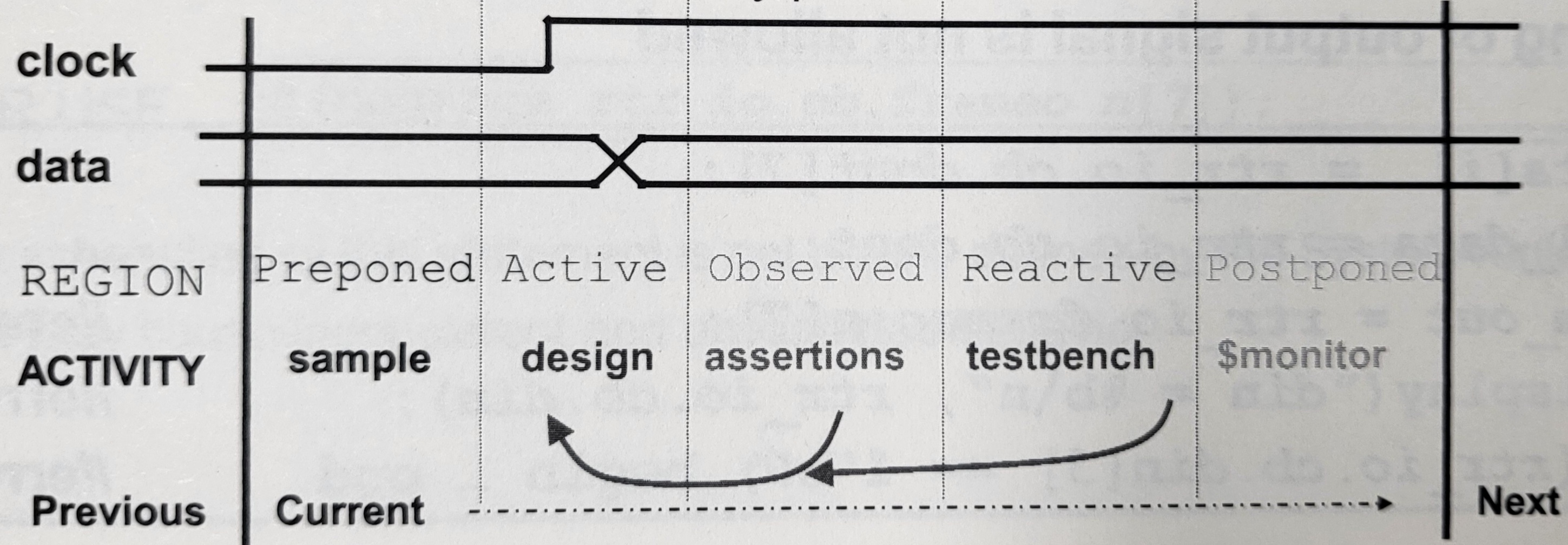

SystemVerilog Scheduling

time slot

Assertion and testbench events can trigger design evaluations

• Preponed : Sample signals before any changes (#1step)
• Active : Design simulation (module), including NBA
• Observed : Assertions evaluated after design executes
• Reactive : Testbench activity (program)
• Postponed : Read Only phase

Synchronous Drive Statements

• Drive must be NBA(non-blocking assignment)
• Driving of input signal(testbench 기준. DUT의 output) is not allowed

rtr_io.cb.din[3] <= var_a;   // legal

rtr_io.cb.din[3] = var_a;    // error
rtr_io.cb.dout[3] >= var_a;  // error

Sampling Synchronous Signals

• Avoid NBA
• Sampling of output signal is not allowed

all_data = rtr_io.cb.dout;                  // legal

frm_out = rtr_io.frameo_n[7];               // error
$display("din = %b\n", rtr_io.cb.din);      // error
if(rtr_io.cb.din[3] == 1'b0) begin ... end  // error

Signal Synchronization - Level Sensitive

• ALWAYS USE

if (rtr_io.cb.frameo_n[7] !== 1'b0)
@(rtr_io.cb iff(rtr_io.cb.frameo_n[7] === 1'b0));

• NEVER USE wait (rtr_io.cb.frameo_n[7] === 1'b0);

Signal Synchronization - Edge Sensitive

• ALWAYS USE

wait (rtr_io.cb.frameo_n[7] !== 1'b0);
@(rtr_io.cb iff(rtr_io.cb.frameo_n[7] === 1'b0));

• NEVER USE @(negedge rtr_io.cb.frameo_n[7]);

---

SystemVerilog Run-Time Options

initial begin: proc_user_args
  int user_seed;
  if ($value$plusargs("ntb_random_seed=%d", user_seed))
    $display("User seed is %d", user_seed);
  else
    $display("Using default seed");
end: proc_user_args

> ./simv +ntb_random_seed=100

$value$plusargs() 사용해서 +argument 받을 수 있음
