Custom Display Solutions for Smart Home Applications
As the smart home industry continues to evolve, the role of display technology has become increasingly central to user experience and product identity. From control panels to security systems, customized displays are now a defining feature of modern smart home devices. These displays not only deliver essential information but also serve as a key element of interaction, style, and functionality.
In this article, we will explore how custom display modules are designed for smart home applications, the importance of cover glass customization, and how integration with sensors and microphones creates a seamless, aesthetically pleasing user interface.
⸻
The Role of Displays in Smart Home Devices
Smart home products—from lighting control systems and thermostats to security panels and voice assistants—are built around human interaction. A well-designed display provides users with a simple and intuitive way to control their environment.
Typical smart home displays fall into several categories:
• Wall-mounted control panels (e.g., for lighting, HVAC, and home automation)
• Appliance interfaces (e.g., smart refrigerators, ovens, or washing machines)
• Door entry and intercom systems
• Security and surveillance displays
In all these products, a custom display module allows manufacturers to achieve an ideal balance between functionality, cost, and design. A generic display may suffice for prototyping, but for commercial smart home systems, customization is often necessary to match product aesthetics, performance requirements, and integration constraints.
⸻
Why Custom Displays Are Essential for Smart Homes

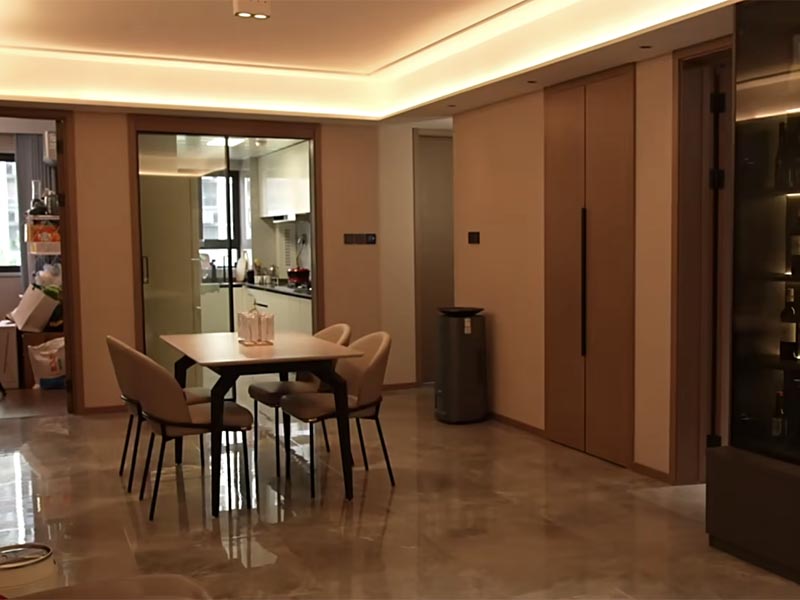

Smart home devices are no longer hidden in utility spaces—they are part of the living environment. Therefore, their visual design must align with modern interior styles while maintaining high reliability and performance.
Custom display modules offer several key benefits:
1. Perfect Size and Aspect Ratio – Devices can be optimized for standard wall switch boxes (like 86x86mm or 120x72mm panels) or any other enclosure format.
2. Enhanced Durability – Industrial-grade TFTs can withstand higher operating temperatures, prolonged backlight hours, and continuous operation.
3. Improved Visibility – IPS or high-brightness TFT displays ensure readability under varying lighting conditions, from dim hallways to sunlit rooms.
4. User Experience Optimization – Touch sensitivity, viewing angle, and UI design can be customized for smooth and intuitive control.
Moreover, a custom display ensures mechanical compatibility with the device’s casing, allowing the integration of additional components such as sensors, microphones, and cameras without compromising the product’s aesthetics.
⸻
Cover Glass: Function and Design
While the display is the functional core, the cover glass is what users actually touch and see. It plays a dual role—protecting the underlying components while defining the look and feel of the product.
1. Protective Role
The cover glass protects the display and touch panel from scratches, moisture, and accidental impacts. For smart home applications, the glass thickness typically ranges from 0.7mm to 2.0mm, depending on the mechanical design.
2. Aesthetic Role
In consumer-facing smart devices, aesthetics matter. The cover glass is often extended beyond the active display area to serve as the front face of the product. It can include:
• Custom shapes with rounded or chamfered corners
• Colored borders or printed frames (black, white, silver, or brand colors)
• Company logos or icons printed using ceramic ink or silk-screening
This design approach eliminates the need for an additional front bezel, creating a minimalist and unified appearance that blends naturally into the home interior.
3. Optical Bonding and Surface Treatment
To improve visual clarity and touch performance, many manufacturers use optical bonding—a process where the cover glass is laminated directly to the display using a transparent adhesive (OCA or OCR). This reduces internal reflections and improves sunlight readability.
Surface coatings like anti-glare (AG), anti-fingerprint (AF), or anti-reflective (AR) further enhance user comfort and maintain a clean appearance.
⸻
Integrating Sensors and Microphones
A defining feature of custom smart home displays is their integration with other interactive elements. Typical examples include:
• Cameras for video intercom or facial recognition
• Ambient light sensors for automatic brightness adjustment
• Proximity or gesture sensors for touchless interaction
• Microphones for voice assistants or intercom functions
Transparent and Through Holes
To accommodate these components, the cover glass must be carefully designed with transparent or through holes:
• Transparent holes are made by removing the color printing layer, allowing sensors or cameras to operate without obstruction.
• Through holes are mechanically drilled or laser-cut to expose components like microphones or status LEDs.
Each opening must be precisely positioned to match the PCB and housing layout. The surrounding area may be reinforced or layered with anti-dust mesh to prevent contamination.
Design Considerations
When designing these openings, engineers must balance functionality with appearance:
• Camera apertures should align with optical axes and avoid light leakage.
• Microphone holes must ensure acoustic transparency while preventing moisture ingress.
• Sensor windows should minimize light distortion and color shift.
By integrating these features into the cover glass, the final product achieves both technical performance and aesthetic harmony.
⸻
Enlarged Cover Glass as a Product Enclosure
A common design choice in smart home panels is to extend the cover glass beyond the active display area. This serves multiple purposes:
1. Visual Simplicity – The large glass panel hides internal seams and mounting screws, giving the product a seamless look.
2. Structural Efficiency – The glass acts as the external shell, reducing the number of mechanical parts.
3. Customization Flexibility – Manufacturers can tailor the edge size and printing to match wall plate dimensions or brand styles.
For example, a 4-inch or 5-inch display module may be mounted under a 86mm × 86mm glass cover, aligning perfectly with standard wall switch boxes. This approach is now widely adopted in smart thermostats, lighting panels, and HMI control units.
⸻
Customization Workflow
Developing a custom display solution for a smart home product involves several coordinated steps between the customer and the manufacturer:
1. Requirement Definition
Define display size, resolution, brightness, and touch interface (capacitive or resistive).
2. Mechanical Design
Design the PCB and frame according to housing constraints and cover glass dimensions.
3. Optical and Functional Design
Determine the shape, hole positions, and surface treatments for the cover glass.
4. Prototype and Validation
Produce sample units for mechanical fit, visual inspection, and functional testing.
5. Mass Production
After validation, the final module is assembled under clean-room conditions and delivered as a plug-and-play solution.
By partnering with an experienced display manufacturer, smart home brands can minimize R&D time and ensure that the product not only performs well but also looks exceptional.
⸻
The Future of Smart Home Displays
The demand for intelligent and personalized home environments continues to grow. Custom display modules are evolving beyond simple interfaces—they now include AI-driven voice assistance, gesture control, and wireless connectivity.
Future trends may include:
• Integration of ultra-thin OLED or mini-LED panels for premium designs
• Flexible glass and edge-to-edge displays for wall-mount control panels
• Embedded AI vision sensors for occupant recognition and adaptive control
• Sustainable materials and low-power display technologies to meet energy standards
In this context, customization remains the key to differentiation. Every brand can define its own style, whether minimalistic, futuristic, or natural—using the display as a signature element.
⸻
Conclusion
In smart home applications, the display is far more than a simple screen—it’s the face of the product. Custom display modules, combined with thoughtfully designed cover glass, transparent sensor windows, and precise mechanical integration, define both usability and aesthetic quality.
By investing in tailored display solutions, smart home manufacturers can create products that not only look beautiful but also feel intuitive and connected—perfectly reflecting the intelligence of the modern home.
