[MLflow] Model Registry

Model Registry

• Centralized Model Store
• Model Lineage
• Model Versioning
• Stage Transition
• Model Annotations

※ NOTE: As of 2025, stage has been removed from MLflow.

Model Registry

import mlflow
from sklearn.ensemble import RandomForestRegressor
from mlflow_utils import create_mlflow_experiment

class CustomModel(mlflow.pyfunc.PythonModel):

    def predict(self, context, model_input):
        prediction = model_input
        return prediction

c:\Users\dof07\anaconda3\envs\mlflow\lib\site-packages\mlflow\pyfunc\utils\data_validation.py:168: UserWarning: Add type hints to the `predict` method to enable data validation and automatic signature inference during model logging. Check https://mlflow.org/docs/latest/model/python_model.html#type-hint-usage-in-pythonmodel for more details.
  color_warning(

Create an experiment

experiment_id = create_mlflow_experiment(
    experiment_name="model_registry",
    artifact_location="model_registry_artifacts",
    tags={"purpose": "learning"},
)

Experiment model_registry already exists.

Run three models

• The first two models will be registerd but not the third one.

with mlflow.start_run(experiment_id=experiment_id, run_name="model_registry") as run:
    model = CustomModel()
    mlflow.pyfunc.log_model(artifact_path="custom_model", python_model=model, registered_model_name="CustomModel")
    mlflow.sklearn.log_model(artifact_path="rfr_model", sk_model=RandomForestRegressor(), registered_model_name="RandomForestRegressor")
    mlflow.sklearn.log_model(artifact_path="rft_modelx", sk_model=RandomForestRegressor())

2025/03/04 16:12:08 WARNING mlflow.models.model: Model logged without a signature and input example. Please set `input_example` parameter when logging the model to auto infer the model signature.
Successfully registered model 'CustomModel'.
Created version '1' of model 'CustomModel'.
2025/03/04 16:12:14 WARNING mlflow.models.model: Model logged without a signature and input example. Please set `input_example` parameter when logging the model to auto infer the model signature.
Successfully registered model 'RandomForestRegressor'.
Created version '1' of model 'RandomForestRegressor'.
2025/03/04 16:12:19 WARNING mlflow.models.model: Model logged without a signature and input example. Please set `input_example` parameter when logging the model to auto infer the model signature.

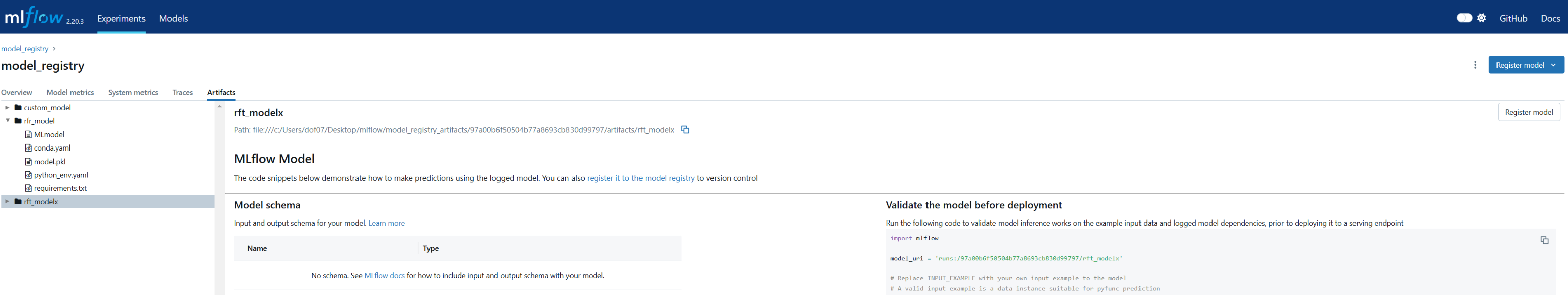

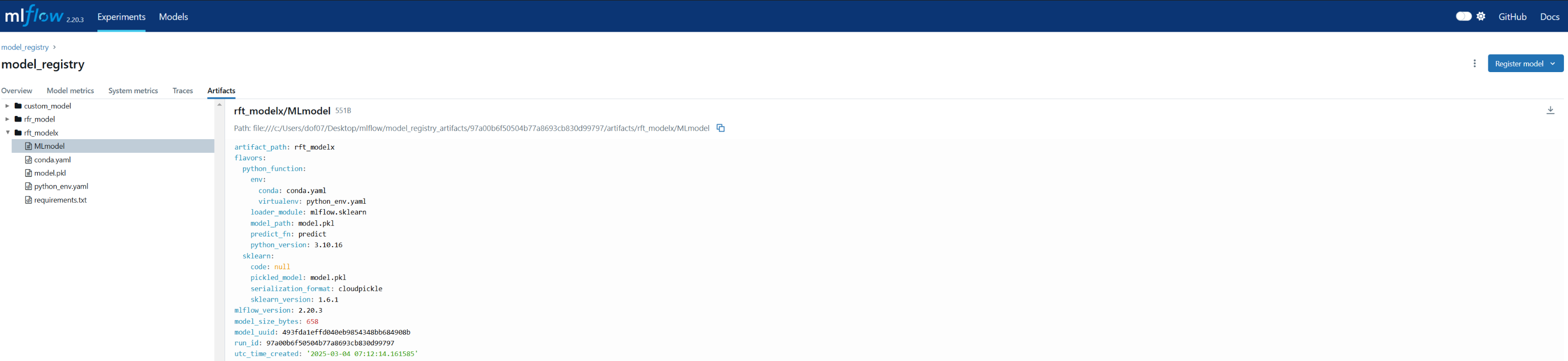

All of the three models are saved as artifacts

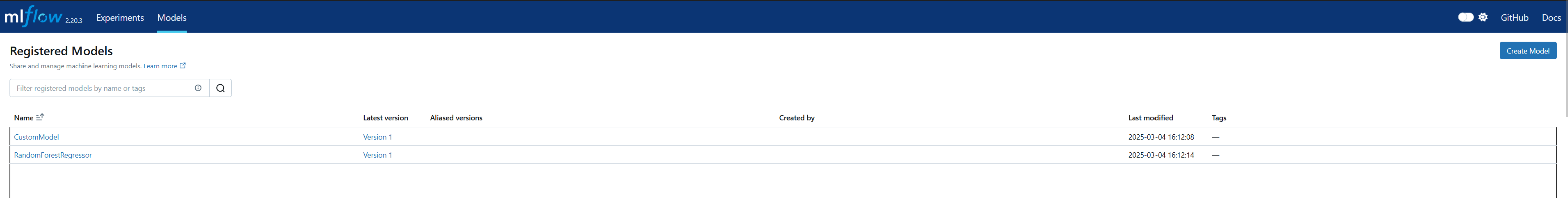

Only the first two models with registry name are regitstered in Models tab

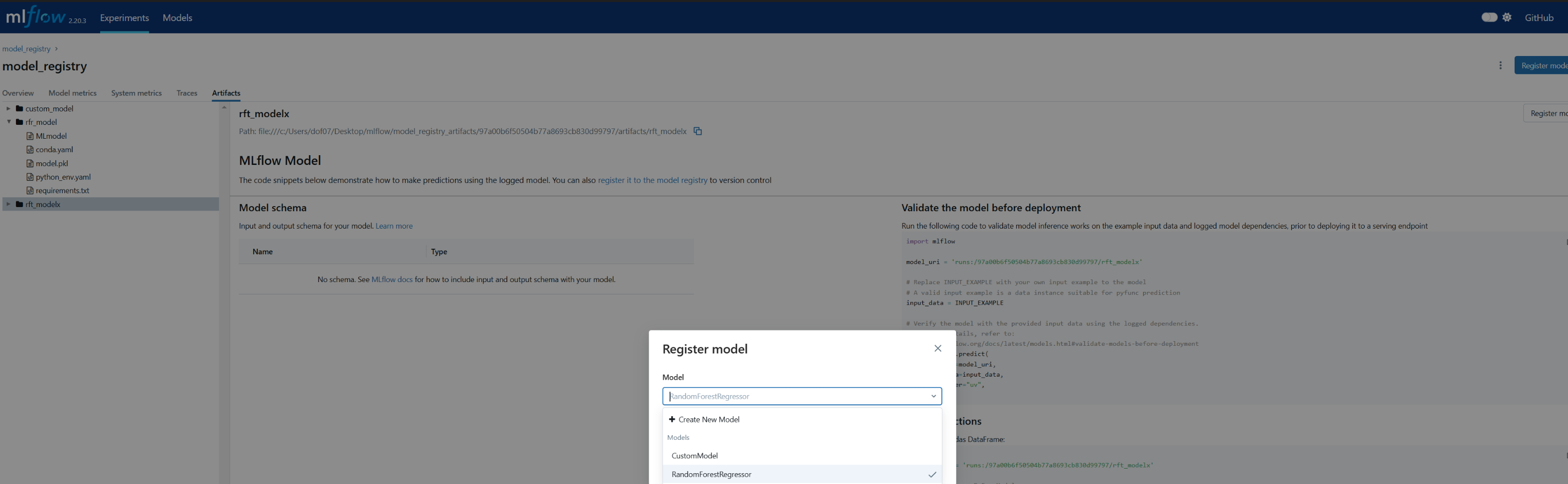

You can register the third model on MLflow ui.

You can choose which model to overwrite with this unregisted model

Choosing RandomForestRegressor results in a new version of it.
