Cylone™ Aspiration Catheter

OVERVIEW

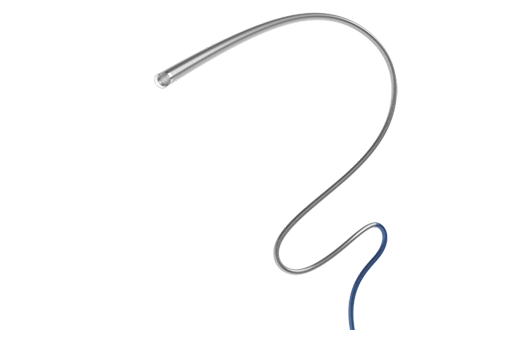

Cylone™ Aspiration Catheter
The Cylone™ aspiration catheter, featuring an end-to-end coil and braid construction, ensures easy navigation to the M1 and M2 segments and effective and atraumatic clot removal for patients experiencing acute ischemic stroke

CYLONE™ ASPIRATION CATHETER FEATURES
END-TO-END
NITINOL COIL + BRAID DESIGN
Braid improves torsion control and tensile strength of the device.

Inner coil layer provides superior kink resistance and enhances radial force under negative pressure resulting in optimized thrombus aspiration ability

Inner coil layer
Excellent navigability

Great pushability

Maintain lumen integrity during navigation and aspiration

Multi Transition Zones Enhance Force Transmission And Provide Extra Support Throughout Aortic Arch
Lower bending rigidity at distal segment - Softer distal segment allows aspiration cyclone to overcome the most tortuous anatomies.

Greater bending rigidity at proximal segment -Excellent pushability and push/pull control

ORDERING INFORMATION
Product Code Catheter Size OD（in/mm） ID（in/mm） Working length
TGC070-06-115 6 0.0825/2.10 0.070/1.80 115
TGC070-06-125 6 0.0825/2.10 0.070/1.80 125
TGC070-06-130 6 0.0825/2.10 0.070/1.80 130
TGC070-06-135 6 0.0825/2.10 0.070/1.80 135
TGC055-05-115 5 0.068 / 1.70 0.055/1.40 115
TGC055-05-125 5 0.068 / 1.70 0.055/1.40 125
TGC055-05-130 5 0.068 / 1.70 0.055/1.40 130
TGC055-05-135 5 0.068 / 1.70 0.055/1.40 135

INDICATION
Cylone™ Aspiration Technology Catheter
The Tonbridge Medical Aspiration Catheter is intended for use in the removal/aspiration of emboli and thrombi from selected blood vessels in the arterial system including the peripheral and neurovasculatures. Moreover, the Ton-bridge Aspiration Catheter can be used to facilitate introduction of diagnostic or therapeutic agents.
