오늘 배운 내용

- DFS

- BFS

---

DFS

• Queue를 사용한다.

• 위와 같은 순서로 읽는것을 DFS 라고한다.

class Program
{
    static void Main(string[] args)
    {
        MatrixGraph graph = new MatrixGraph(15);

        graph.AddEdge(0,1);
        graph.AddEdge(0,2);
        graph.AddEdge(1,3);
        graph.AddEdge(1,4);
        graph.AddEdge(3,7);
        graph.AddEdge(3,8);
        graph.AddEdge(4,9);
        graph.AddEdge(4,10);
        graph.AddEdge(2,5);
        graph.AddEdge(2,6);
        graph.AddEdge(5,11);
        graph.AddEdge(5,12);
        graph.AddEdge(6,13);
        graph.AddEdge(6,14);

        List<int> stackDFSPath = graph.StackDFS(0);

        PrintPath(stackDFSPath);
    }

    static void PrintPath(List<int> list)
    {
        foreach (int i in list)
        {
            Console.Write($"[{i}]")
        }
    }
}

public class MatrixGraph
{
    private readonly bool[,] _matrix;

    private int _vertextCount;

    public MatrixGraph(int vertextCount)
    {
        _vertextCount = vertextCount;
        _matrix = new bool[vertextCount, vertextCount];
    }

    public void AddEdge(int from, int to)
    {
        _matrix[from, to] = true;
        _matrix[to, from] = true;
    }

    public bool HasEdge(int from, int to) => _matrix[from, to];

    public List<int> DFS(int start)
    {
        List<int> path = new List<int>();
        bool[] visited = new bool[_vertextCount];

        InternalDFS(start, visited, path);

        return path;
    }

    public void InternalDFS(int current, bool[] visited, List<int> path)
    {
        visited[current] = true;
        path.Add(current);

        for(int to = 0; to < _vertextCount; to++)                          // 재귀 함수
        {
            if (_matrix[current, to] && !visited[to])
            {
                InternalDFS(to, visited, path);
            }
        }
    }

    public List<int> StackDFS(int start)
    {
        List<int> path = new List<int>();
        Stack<int> stack = new Stack<int>();

        bool[] visited = new bool[_vertextCount];
        visited[start] = true;
        stack.Push(start);

        while (stack.Count > 0)
        {
            int current = stack.Pop();
            path.Add(current);

            for (int to = 0; to < _vertextCount; to++)
            {
                if (_matrix[current, to] && !visited[to])
                {
                    visited[to] = true;
                    stack.Push(to);
                }
            }
        }
        return path;
    }
}

BFS

• stack을 사용한다.

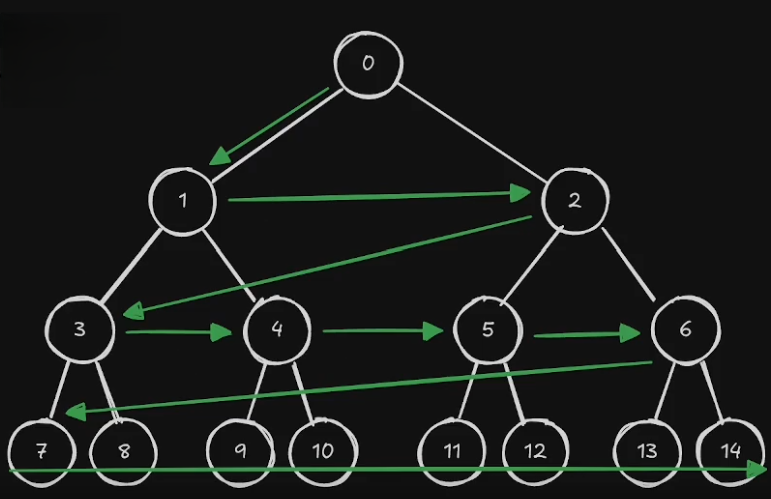

• 위와 같은 순서로 읽는것을 BFS 라고한다.

class Program
{
    static void Main(string[] args)
    {
        MatrixGraph graph = new MatrixGraph(15);

        graph.AddEdge(0,1);
        graph.AddEdge(0,2);
        graph.AddEdge(1,3);
        graph.AddEdge(1,4);
        graph.AddEdge(3,7);
        graph.AddEdge(3,8);
        graph.AddEdge(4,9);
        graph.AddEdge(4,10);
        graph.AddEdge(2,5);
        graph.AddEdge(2,6);
        graph.AddEdge(5,11);
        graph.AddEdge(5,12);
        graph.AddEdge(6,13);
        graph.AddEdge(6,14);

        List<int> BFSPath = graph.BFS(0);

        foreach (int i in BFSPath)
        {
            Console.WriteLine($"[{i}]");
        }
    }

}

public class MatrixGraph
{
    private readonly bool[,] _matrix;

    private int _vertextCount;

    public MatrixGraph(int vertextCount)
    {
        _vertextCount = vertextCount;
        _matrix = new bool[vertextCount, vertextCount];
    }

    public void AddEdge(int from, int to)
    {
        _matrix[from, to] = true;
        _matrix[to, from] = true;
    }

    public bool HasEdge(int from, int to) => _matrix[from, to];

    public List<int> BFS(int start)
    {
        List<int> path = new List<int>();
        Queue<int> queue = new Queue<int>();

        bool[] visited = new bool[_vertextCount];
        visited[start] = true;

        queue.Enqueue(start);

        while (queue.Count > 0)
        {
            int current = queue.Dequeue();
            path.Add(current);

            for (int to = 0; to < _vertextCount; to++)
            {
                if (_matrix[current, to] && !visited[to])
                {
                    visited[to] = true;
                    queue.Enqueue(to);
                }
            }
        }

        return path;
    }
}
