DSP Amplifier

DSP Amp Meaning

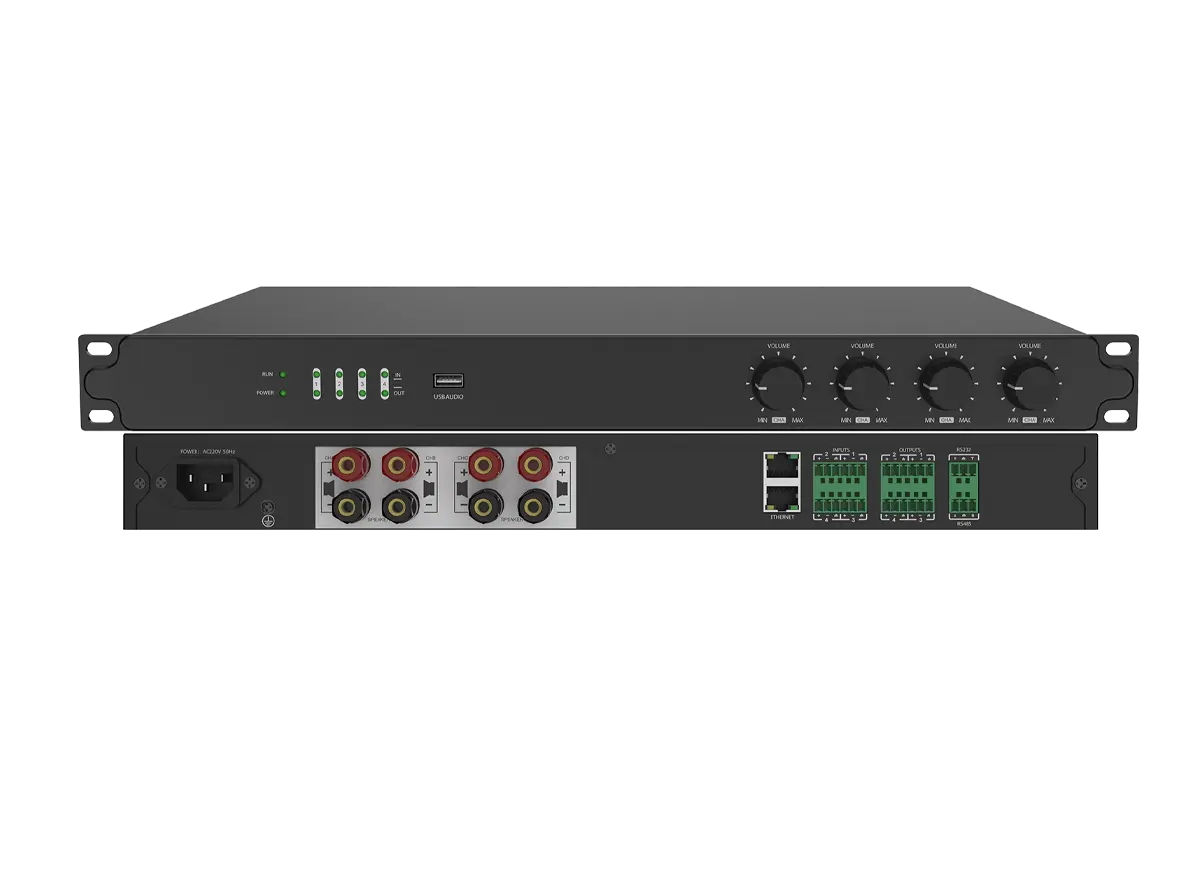

TE series is an all-in-one audio-video processor with a built-in USB sound card supporting playback, recording, and conferencing (e.g., ZOOM, Tencent, DingTalk). It features 8-band parametric EQ with 5 filter options, a customizable user interface for managing up to 30 devices, and centralized control via RS232, RS485, and UDP for seamless system integration.

Specification of DSP and Amplifier

Processor
ADI SHARC 21489
Sampling Rate/Bit Depth
48K/24bit with 40-bit DSP with Amp floating-point engine
Analog Input/Output Channels
4 x 2
Input Gain
0/6/12/18/24/30/36/42/48 dB
Phantom Power
+48V/10mA max
Frequency Response (20~20kHz)
±0.5dB
Maximum Level
+18dBu
THD+N
< -100dB @4dBu
Dynamic Range (Analog Channels)
110dB
Input Dynamic Range
110dB
Output Dynamic Range
112dB
Channel Isolation @1kHz
108dB
Input Impedance (Balanced)
5.4kΩ
Output Impedance (Balanced)
600Ω
System Latency
< 3ms
Amplifier Specifications
Output Power (EIAJ Standard)
Stereo 2 x 150W/8Ω, Bridged 300W/8Ω
Input Sensitivity
2V
Frequency Response
20Hz-20kHz (±0.5dB) @1W, 8Ω
Signal-to-Noise Ratio

Highlights of Digital Amplifier with DSP

TE1208

Dual ADI SHARC 21489 Processors;

High-Quality Audio;

Versatile Inputs and Outputs;

Integrated Amplification;

Advanced Control Interfaces;

User-Friendly Monitoring.

TE0402A

Integrated Amplifier;

Flexible Analog I/O;

High Audio Fidelity;

Phantom Power Support;

Compact Design;

Robust Connectivity.

TE0404A

Powerful Multi Channel DSP Processing;

Expanded I/O Channels;

High Output Powe;

Enhanced Dynamic Range;

Low THD+N;

Universal Power Supply.

TE0402P

Four Analog Input/Output Channels;

Enhanced Signal-to-Noise Ratio;

Rated Power of 2x100W at 4Ω;

Improved Crosstalk Attenuation;

Voltage Gain of 29dB;

Comprehensive Frequency Response.

As an audio video equipment company, we will do our best to meet all the needs of customers.
