T-effective of our digital ACE audio processor products, offering AEC/AFC/AGC/AMM/ANS 5A algorithmic processing, as well as built-in USB sound card functionality to support music playback, recording and soft video conferencing. Compatible with all control panels in terms of control, it also offers customized user interface controls, allowing for unrestricted use.

8-band parametric equalizer with 5 filter options (Parametric, Lowshelf, Highshelf, Lowpass, Highpass)

Channel-independent AFC, Transmit Gain Boost: 10dB

Bus AEC with long tail time: 512ms

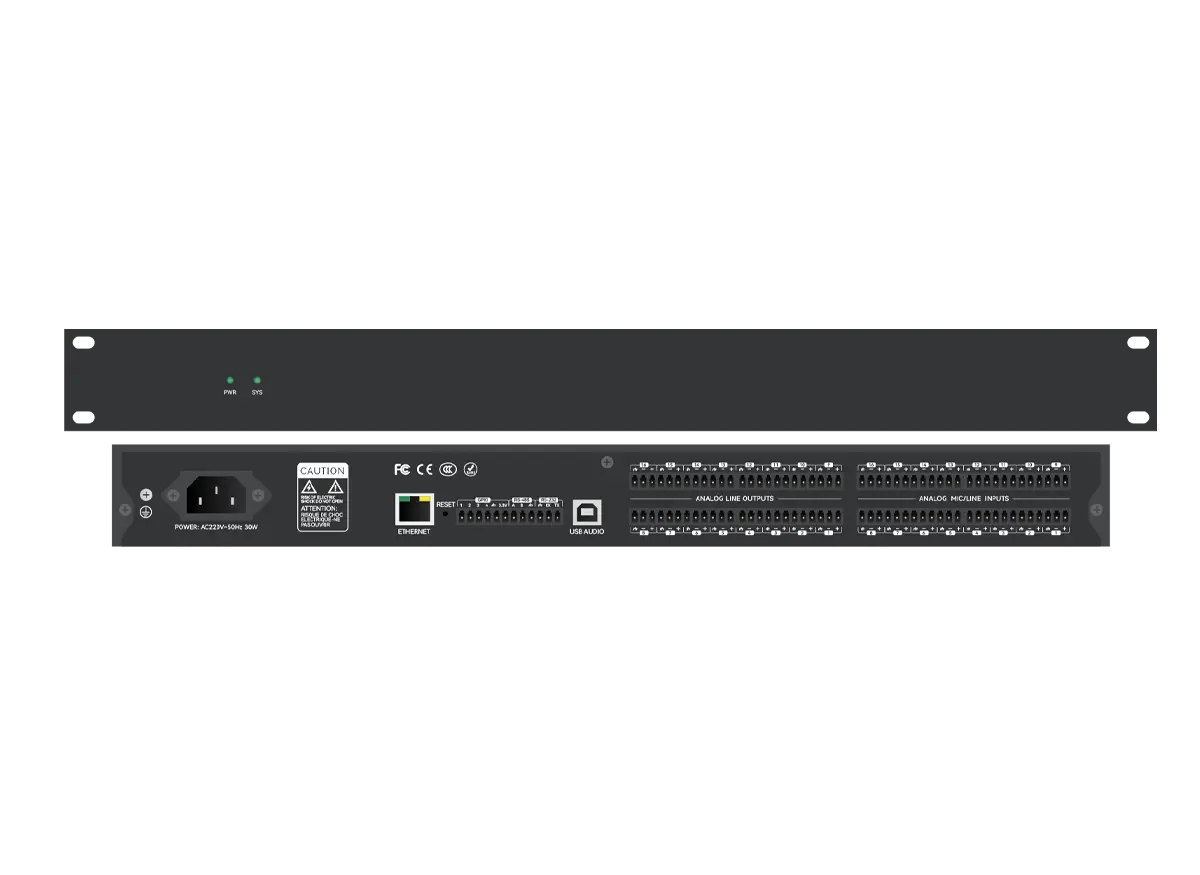

Specification of Fixed Architecture OEM Integration DSP Beidou
Processor
ADI SHARC 21489
Analog input channels
4
Analog output channels
4
Processor
ADI SHARC 21489@450 MHz SIMD;
DSP processing capability
400 MIPS, 1.6 GFLOPS;
Sampling rate
48 kHz, ± 100 ppm;
THD+N
0.002% @+4dBu
Sampling rate/quantization bits
48K/24bit
40bit DSP floating point operation engine
Number of analog input and output channels
4 x 4
Input gain
0/6/12/18/24/30/36/42/48dB
Phantom power
+48V/10mA max
Frequency response (20~20kHz)
±0.5dB
Maximum level
+18dBu
THD+N
0.002% @+4dBu
Input dynamic range
110dB
Output dynamic range
110dB
Channel isolation @1kHz
108dB
Input impedance (balanced connection)
5.4KΩ
Output impedance (balanced connection)
600Ω
System delay
<3ms
Working power supply
AC 220V, 50Hz
Dimensions (width x depth x height)
482 x 200 x 45mm
Shipping weight
3KG

Highlights of Fixed Architecture DSP Beidou

The use of ADI high-performance chip:

BeiDou series all adopt ADI SHARC 21489@450 MHz SIMD processor chip, which can be better for the internal algorithm and DSP work processing.

Bus type AEC function:

Bus AEC algorithm, eliminating the tail for a long time can be as high as 512ms, and echo convergence rate can be done to 60dB/S, echo elimination amplitude of 60dB, to meet the majority of the hall building acoustics is not good and there is a large reflection of the sound case, do the echo elimination of teleconferencing issues.

Built-in USB sound card interface:

Beidou series are built-in USB sound card interface, can be accessed through the interface to the computer, automatic recognition of the sound card, computer audio playback or audio recording. At the same time can also be accessed through the interface to the computer for remote video conferencing audio function options.
