벡터와 행렬의 Norm

명대리·2023년 10월 24일

Linear Algebra

목록 보기
2/2
post-thumbnail

1. Inner product space

  • vector space에서 Inner poduct 즉 내적 연산이 추가된(equipped된) space를 의미함 (innder product ,:V×VR\langle\cdot, \cdot\rangle: \mathcal{V} \times \mathcal{V} \rightarrow \mathbb{R})
  • Inner Product은 두 벡터간의 유사도, 그리고 Projection을 위해 정의됨
  • 아래 조건 3가지 조건을 만족해야 함
    1. x,y=y,x for all x,yV\langle \mathbf{x}, \mathbf{y}\rangle = \langle \mathbf{y}, \mathbf{x}\rangle \ \text{for all} \ \mathbf{x},\mathbf{y} \in \mathcal{V}(교환 법칙 성립)
    2. cx+y,z=cx,z+y,z for all x,y,zV and cR\langle \mathbf{cx +\mathbf{y}}, \mathbf{z}\rangle = c\langle \mathbf{x}, \mathbf{z}\rangle + \langle \mathbf{y}, \mathbf{z} \rangle \ \text{for all} \ \mathbf{x,y,z} \in \mathcal{V} \ \text{and} \ c \in \mathbb{R}
    3. x,x>0 for all xV\{0}\langle \mathbf{x},\mathbf{x} \rangle > 0 \ \text{for all} \ \mathbf{x} \in \mathcal{V} \backslash \{ \mathbf{0} \}

앞의 Linear Algebra Chapter1에서 Vector Space라는 Basis vector를 늘리고 더해서 만들 수 있는 점들이 모여 이루는 공간이라고 설명하였다. Inner Product Space는 벡터공간에서 내적 연산을 갖춘(정의된)공간을 의미한다.

2. Normed space

  • vector space에 norm연산이 equipped된 경우를 의미

    (norm :VR\|\cdot\|: \mathcal{V} \rightarrow \mathbb{R})

  • Norm이라는 Operation은 스칼라의 크기의 개념을 벡터와 행렬에 적용하고 싶어서 정의됨

  • 아래 4가지 조건을 만족해야 함

    1. x0 for all xV\|\mathbf{x}\| \geq 0 \ \text{for all } \mathbf{x} \in \mathcal{V}
    2. x=0 if only if x=0\| \mathbf{x} \| = 0 \ \text{if only if } \mathbf{x} = 0
    3. cx=cx for all  cR and xR\|c\mathbf{x}\| = |c|\|\mathbf{x}\| \ \text{for all } \ c \in \mathbb{R} \text{ and } \mathbf{x} \in \mathbb{R}
    4. x+yx+y for all x,yV\| \mathbf{x+y} \| \leq \|\mathbf{x} \| + \|\mathbf{y}\| \text{ for all } \mathbf{x},\mathbf{y} \in \mathbb{V}

    Matrix나 Vector의 Norm (노름)이란 무엇일까?
    Vector 혹은 Matrix의 Norm이란 스칼라에서 정의한 '크기'라는 개념을 Vector와 Matrix에 확장시킨 것이다.
    3 >1, 5 < 10이라는 것은 너무나 당연하다. 그렇다면 Vector나 Matrix에서도 크기를 정의할 수 있어야 하지 않을까 --> Norm😍

    Vector Space에서 Norm이라는 크기를 정의할 수 있는 공간을 Normed Space라고 한다.

Theorem

  • Finite-dimensional vector space에서 모든 norm은 Equivalent
    c1x1<=x2<=c2 * x1c_1 *\|\mathbf{x}\|_ 1<=\|\mathbf{x}\|_ 2<=c_2 \text { * }\|\mathbf{x}\|_ 1
    • 즉 모든 놈은 서로 어떤 상수 배로 관련이 있음
    • 어떤 Norm을 쓰던 scalar배만 달라질 뿐 크기의 따른 순서는 모두 같음.

Vector와 Matrix의 크기(Norm)을 다양한 방법으로 정의할 수 있는데,
어떤 방법으로 정의하든 그 대소관계는 변하지 않는다!
'가'라는 방법으로 정의한 vector a의 크기 > vector b의 크기라면, '나','다','마'.. 방법으로 정의한 벡터의 크기의 부호도 똑같다!

3. 유명한 Norm

  • Lp\mathbb {L}^p Norm
xp=(i=1nxip)1p\|\mathbf{x}\|_p=\left(\sum_{i=1}^n\left|x_i\right|^p\right)^{\frac{1}{p}}

L2\mathbb {L}^2 Norm이 유클리디안 space에서 벡터의 크기를 정의하기 위해서 고등학생 때 부터 많이 사용됬었음

중학교때부터, 벡터의 크기를 2차원 3차원에서 정의했던 방법이 Lp Norm이였다...

  • Frobenius Norm
AF=i=1mj=1naij2=tr(ATA)\|A\|_F=\sqrt{\sum_{i=1}^m \sum_{j=1}^n\left|a_{i j}\right|^2} = \sqrt{\operatorname{tr}\left(A^T A\right)}

Frobenius Norm은 L2\mathbb {L}^2 Norm을 Matrix로 확장시킨 개념

  • Operator Norm
Aop=supv0Avpvp\|A\|_{o p}=\sup _{\mathbf{v} \neq \mathbf{0}} \frac{\|A \mathbf{v}\|_p}{\|\mathbf{v}\|_p}

Chapter1에서 벡터공간에서 행렬은 함수가 될 수 있다고 설명했다.
Operator Norm은 행렬을 Linear Function으로 생각했을 때, 이 연산자가 벡터에 작용했을 때의 최대 확대/축소 비율을 의미.

참고) 특히 L2\mathbb {L}^2 Norm의 Operator Norm은 Eigenvalue의 최대값임.

이 내용은 나중에 Spectral Decomposition의 개념과 Convex Optimization의 개념을 배우면 다시 돌아와서 보면 될듯...

proof

A22=supx21Ax22=supx21xTATAx=supx21xTVD2VTx=supx21(VTx)TD2VTx=supx21(d12x12++dn2xn2)=d12\begin{aligned} \|\mathbf{A}\|_2^2 &= \sup_{\|\mathbf{x}\|_2\leq 1} \|\mathbf{Ax}\|_2^2 \\ & =\sup_{\|\mathbf{x}\|_2\leq 1} \mathbf{x^TA^TAx} \\ & = \sup_{\|\mathbf{x} \|_2\leq 1 }\mathbf{x^TVD^2V^Tx} \\ & = \sup_{\|\mathbf{x} \|_2\leq 1 }\mathbf{(V^Tx)^TD^2V^Tx} \\ & = \sup_{\|\mathbf{x} \|_2\leq 1 }(d_1^2 x_1^2 + \cdots +d_n^2 x_n^2) \\ & = d_1^2 \end{aligned}

4. Cauchy-Schwarz inequalilty

  • V:Inner product space\mathcal{V}: \text{Inner product space}
x,y2x2y2for all x,yV|\langle\mathbf{x}, \mathbf{y}\rangle|^2 \leq\|\mathbf{x}\|^2\|\mathbf{y}\|^2 \quad \text{for all } \mathbf{x},\mathbf{y} \in \mathcal{V}

업로드중..

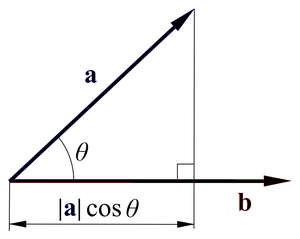

벡터의 내적은 b방향으로 a벡터를 내려찍은 값과 b벡터의 크기의 곱이다!
그림을 보면 너무나 당연하게도 a벡터의 크기 자체와 b벡터의 크기 자체를 곱한값보다는 작겠지?
