DIN RAIL ROLL FORMING MACHINE

DIN RAIL ROLL FORMING MACHINE

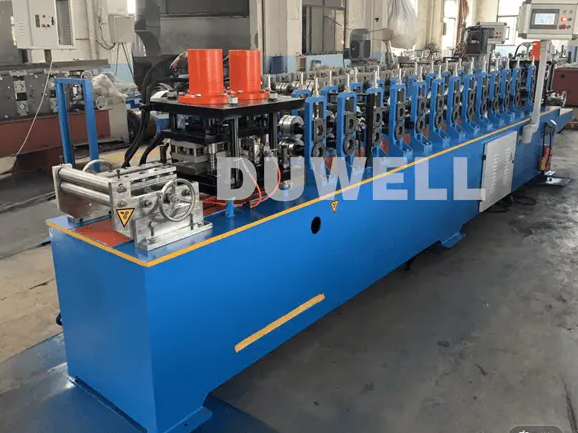

A DIN Rail Roll Forming Machine is a specialized cold-forming equipment designed to produce DIN rails—standardized metal rails used for mounting circuit breakers, terminal blocks, and other electrical components in control panels and switchgear. The din rail roll forming machine processes metal strips (typically steel, stainless steel, or aluminum) through a series of rollers that gradually shape the material into the precise profile of a DIN rail (such as TS-35, TS-32, or TH-35 standards).

COMPONENTS of Din Rail Roll Forming Machine
Uncoiler: Loading the steel coil

Profiling Roll Forming Machine: For precise profile forming.

Flying punching device: Punch the holes on din rail.

Adjusting device: For final cable tray straight adjusting.

Flying cutting device: Cut off the finished rails according to setting length.

Stacking Table: Stacking the finished cable tray.

TECHNICIAN DETAILS of Din Rail Roll Forming Machine
Working process

Decoiler —→Guiding —→ Roll-forming Machine —→Flying punching—→Adjusting —→Flying cutting —→Run out table

Machine parameters

TECHNICIAN DETAILS of Din Rail Roll Forming Machine

Suitable plate of the rolling: Steel , with thickness 0.8~1.0mm,

Working speed: 8~12 meters/min

Forming stations: 14 stations

Roller material: GCr15 with quenching and chrome plating on surface, hardness: HRC58-62

Material of principal axis: #45 advanced steel

Main machine power: 7.5 KW

Control system: The din rail roll forming machine is controlled by PLC system

Q & A Of Din Rail Roll Forming Machine

What materials can be used in your DIN rail roll forming line machine?
Our machine can process carbon steel, galvanized steel, stainless steel, and aluminum, depending on customer requirements.

What are the standard DIN rail profiles your machine can produce?
It can form TS-35 (Top Hat 35mm), TS-32, TH-35, and other custom profiles upon request.

What is the production speed of your machine?
The speed ranges from 5 to 25 meters per minute, adjustable based on material thickness and profile complexity.

Can the machine cut DIN rails to custom lengths?
Yes, it includes an automatic hydraulic/pneumatic cutter for precise length control.

Do you provide tooling customization for non-standard profiles?
Yes, we offer custom roll tooling design for unique DIN rail specifications.
