DOOR FRAME ROLL FORMING MACHINE
DOOR FRAME ROLL FORMING MACHINE

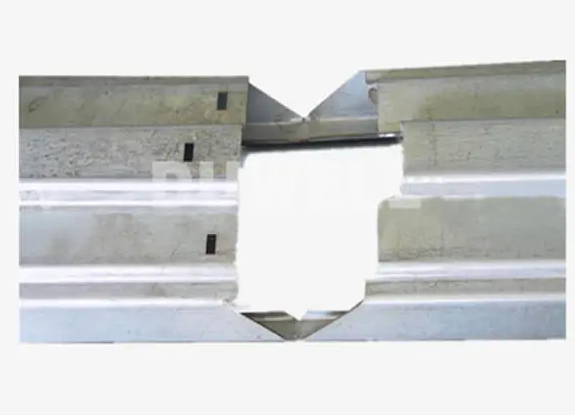

DUWELL company is one of the professional door frame roll forming machine manufacturers. The line usually includes DECOILER, PUNCHING DEVICE, ROLL FORMING MACHINE, HYDRAULIC CUTTING DEVICE, OUT TABLE AND CONTROLLER complete line. It can punch the hinge holes, lock holes, 45 degree end cutting in one machine, and also for left and right frames both. Some difficult holes can be punched in separate multi-mold hydraulic punching devices.
APPLICATION of Door Frame Roll Forming Machine
Residential & Commercial Doors
Security Door Frames
Fire-Rated Door Systems
Aluminum & Steel Door Frames
COMPONENTS of Door Frame Roll Forming Machine
Uncoiler: Holds and feeds the steel coil into the machine.
Roll Forming Station: A series of rollers that gradually shape the steel into the desired profile.
Punching Unit: Adds holes or cutouts for hinges, locks, or other hardware.
Cutting System: Cuts the formed steel to the required length (e.g., hydraulic cutting or flying cutoff).
Control System: PLC for automation and precision.
Output Conveyor: Transports the finished door frames for further processing or packaging.
TECHNICIAN DETAILS of Door Frame Roll Forming Machine
Main specification
Suitable material: Galvanized steel or prepainted steel
Working speed: Depend on door frame hole details
Material of rollers: Gcr15, with heat treatment and chrome plating on the surface. HRC58~62
Material of shaft: 45# steel, with heat treatment ,
Cutting: Hydraulic cutting after forming
Material of cutting knife: Cr12Mov, Quench HRC58-62
The whole machine is controlled by PLC.
Q & A Of Door Frame Roll Forming Machine
What materials can be processed by the door frame forming machine, door frame making machine?
The machine can work with galvanized steel, stainless steel, aluminum, and other metal coils, depending on the required door frame specifications.
What is the production speed of the machine?
Production speeds vary by model but typically range between 5-25 meters per minute, depending on material thickness and complexity.
Can the machine produce different door frame sizes?
Yes, the machine is adjustable and can be adjustable sizes automatically for different widths, or fitted with different roller dies to produce various profiles.
Is the machine fully automated?
Most models feature semi-automatic or fully automatic operation, including automatic feeding, punching, cutting, and stacking options.
How is the metal door frame making machine, steel door frame making machine maintained?
Regular lubrication, roller inspection, and alignment checks ensure smooth operation. Detailed maintenance guidelines are provided with the machine.
Can the machine include punching or notching functions?
Yes, integrated punching and notching units can be added for pre-punched holes or screw slots in the frames.
What is the expected lifespan of the machine?
With proper maintenance, the machine can last 10-15 years or more, depending on usage and care.
Do you provide training and technical support?
Yes, we offer on-site or remote training, along with 24/7 technical support to ensure smooth operation.
As a roll forming equipment manufacturer, we will do our best to meet all the needs of customers.
