[CV] Linear Algebra and Probability, 선형대수학과 확률론

1. Linear Algebra in Computer Vision

1-1. Vector

• Geometric object that has both a magnitude and direction
  $x\in R^n$,   $x = \begin{pmatrix}x_1\\x_2\\...\\x_n\\ \end{pmatrix}=(x_1,x_2,...,x_n)^\top$
• Magnitude of vector
  $||x|| = \sqrt {x_1^2+x_2^2+...+x_n^2}$

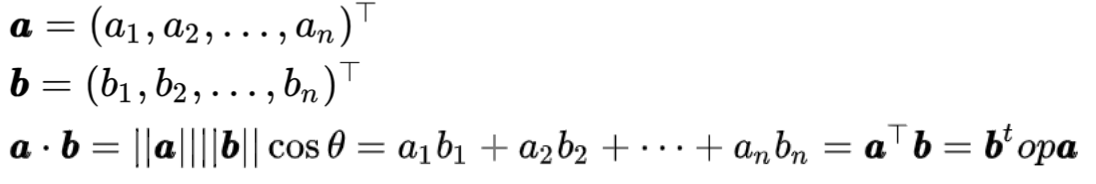

• Dot Product

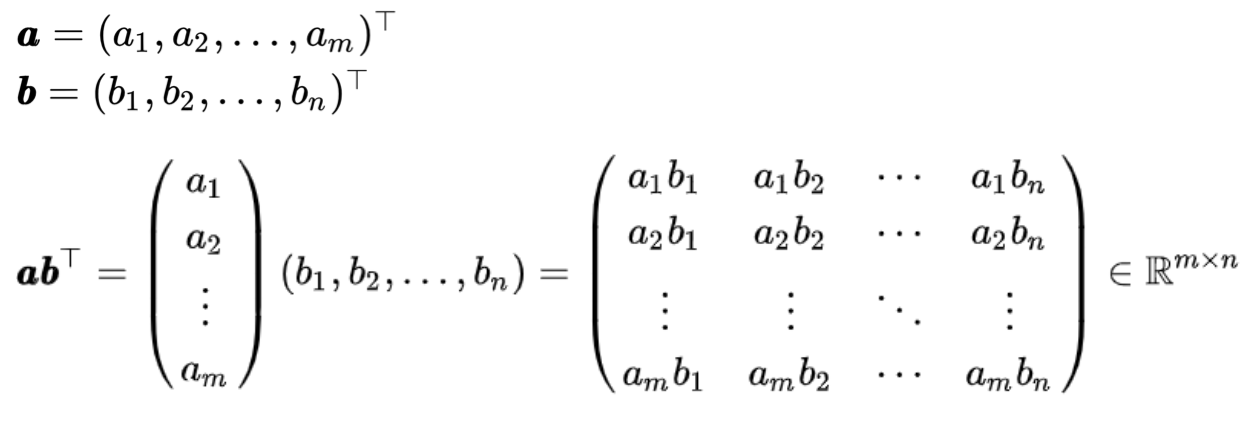

• Outer Product

• Norm
  p-norm : $||x||=(\sum_{i=1}^{n} |x_i|^p)^{\frac{1}{p}}$

1-2. Basis

• Linear Dependency
  Given a set of vectors $X = \{x_1,x_2,...x_n\}$
  $x_i\in X$ is linearly dependent if it can be written as a linear combination of $X-\{x_i\}$
• Basis
  A basis is an lineraly independent set of vectors that spans the "whole space"
• Standard Basis
  Othogonal $e_i^{\top}e_j = 0$, Normalized $e_i^{\top}e_i=1$ → Orthonormal

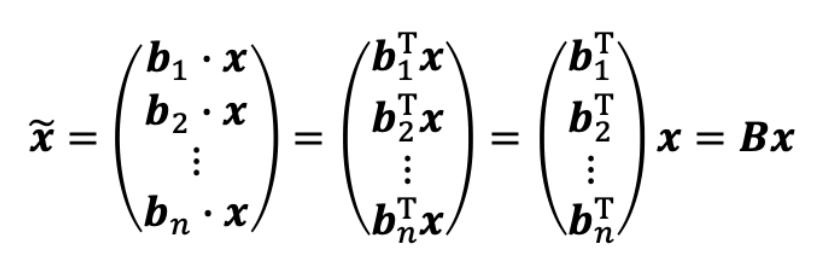

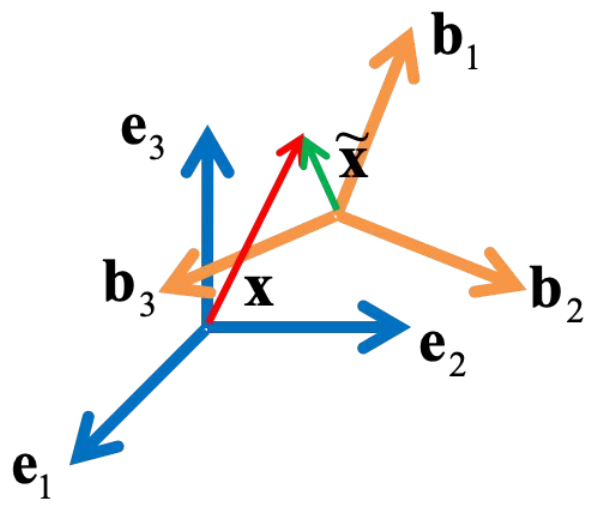

• Change of Basis
  $B=\{b_1,b_2,...,b_n\}, b_i = R^m$ : basis


1-3. Matrix

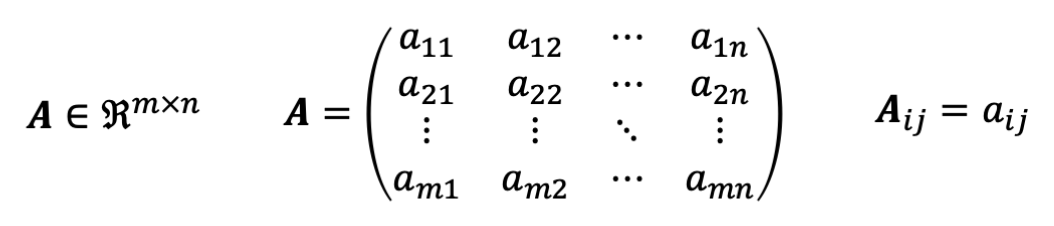

• Rectangular (2D) array of numbers

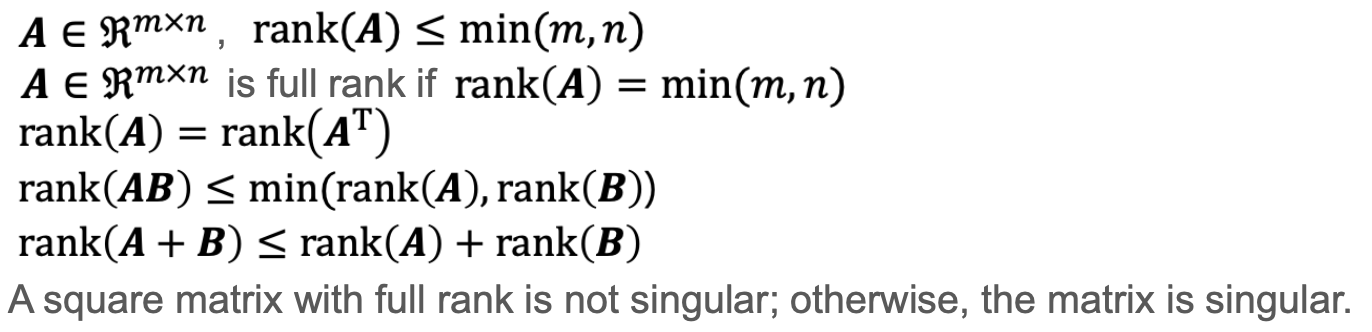

• Rank of Matrix
  The number of linearly independent rows or columns in matrix

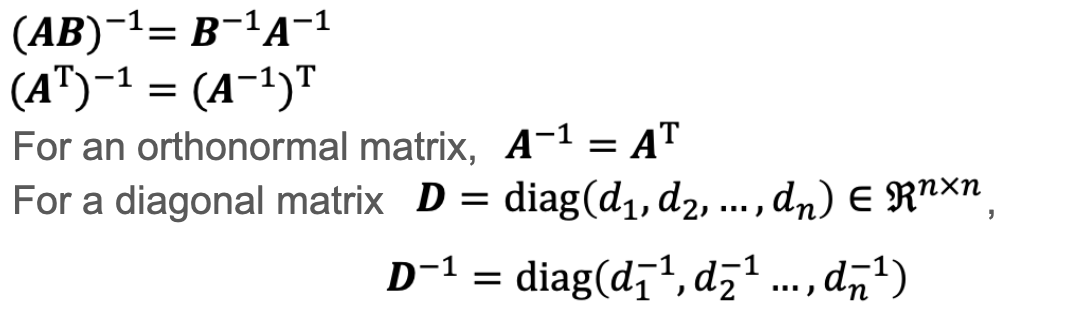

• Matrix Inversion
  To have inversion matrix, the matrix should be square and non-singular.

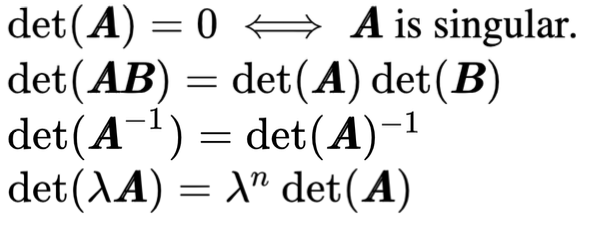

• Determinant


1-4. Solving Linear Equations

• Finding the exact solution (m = n)
  $x=A^{-1}b$
• Finding the least square solution (m>n)
  $x=(A^{\top}A)^{-1}(A^{\top}b)$
  When A's independent row is smaller than n, m gets smaller than n in fact.

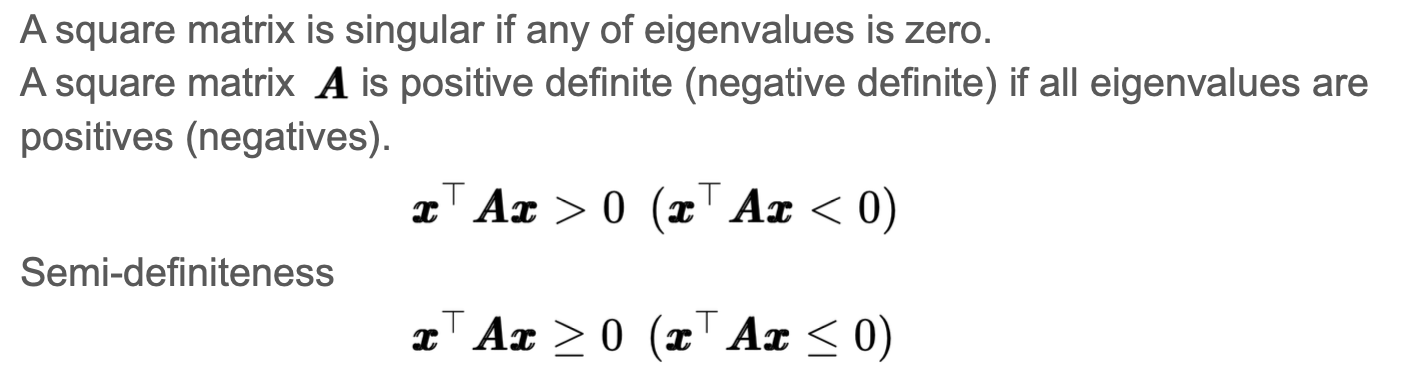

• Eigen Vector & Eigen Value
  $Ax=\lambda x$ (square matrix A, eigen value $\lambda$, eigen vector x)
  A를 x방향으로 projection하면 $\lambda$만큼의 magnitude를 가진다.
• Eigen Decomposition
  Square and symmetric matrix A can be decomposed as $A=VDV^{\top}$
  where V is orthonormal matrix of A's eigenvectors and D is a diagonal matrix of the associated eigenvalues.


2. Probability in Computer Vision

2-1. Definitions

• Sample Space ($\Omega$) : The set of all the outcomes
• Event Space ($E$) : A set whose element is a subset of Sample space.
• Random Variable : A function that assigns a number to each point in sample space.

2-2. Conditional Probability

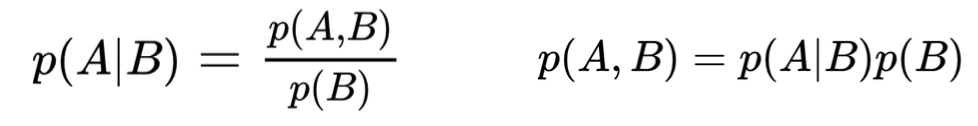

• Conditional Probability of A given B

• Independence

• Conditional Independence
  A and B are conditionally independent given C,


2-3. Chain Rule

2-4. Bayes' Theorem

• Posterior probability (사후확률) : 사건 B가 발생했을 때, 그 사건이 특정 모델 A에서 발생했을 확률
• Likelihood : 어떤 모델 A에서 B가 관측될 확률
• Prior : 어떤 모델이 가지고 있는 선험적 확률

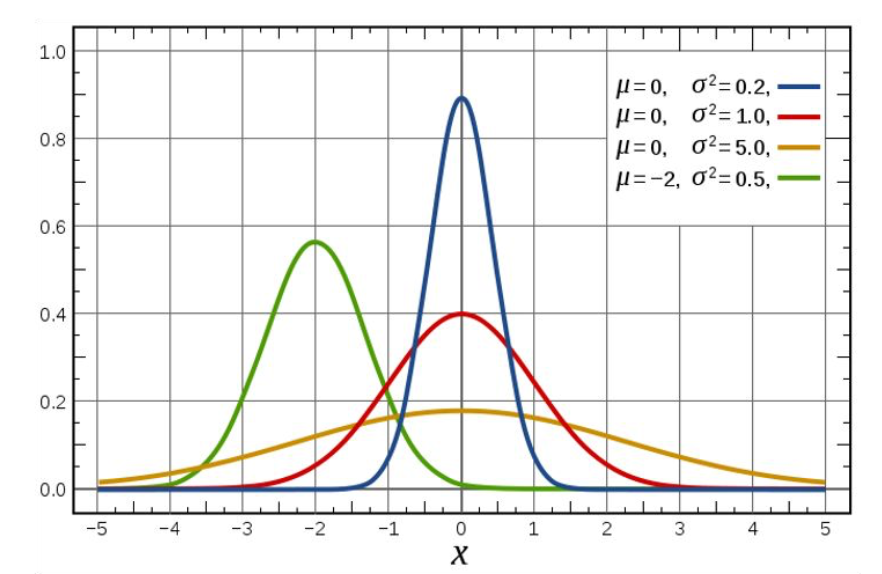

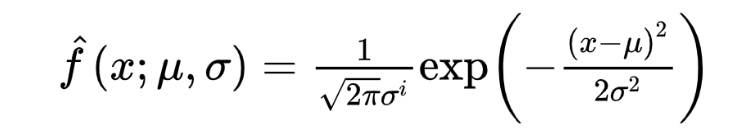

2-5. Gaussian Distribution

요약

1. Linear Algebra

• Vector : operations, norm
• Basis, linear dependency
• Matrix : rank, inversion, determinant
• Linear Equations : Least square solution, Eigen Decomposition

2. Probability

• Conditional Probability, Independence
• Chain Rule
• Bayes' Theorem
• Gaussian Distribution
