JavaFx: 2. Simple design

I hope I can do this 2nd javafx this time. I tried before but I couldnt get it.

https://docs.oracle.com/javafx/2/get_started/form.htm

This one this time.

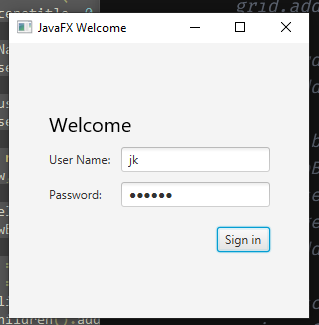

Probably the image will be the result of this time. But the codes this page show me are not whole codes about it. So I need to assemble the codes by myself.

//Example 2-1 Application Stage

@Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        primaryStage.show();
    }

By the way this page encourages me use 'NetBeans IDE'. But I dont have and I am friendly with notepad++ already. So I try it with notepad++ as usual.

And by the way again, What is the 'start'??? Let me compare with the codes I wrote in 1st post.

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFx0");
        Button btn = new Button();
        btn.setText("Say 'Salam'");
        btn.setOnAction(new EventHandler<ActionEvent>() {
            @Override
            public void handle(ActionEvent event) {
                System.out.println("Salam!");
            }
        });

        StackPane root = new StackPane();
        root.getChildren().add(btn);
        primaryStage.setScene(new Scene(root, 256, 128));
        primaryStage.show();
    }

OK. I found it. This one has the 'start' too. It sets the title and show the GUI I guess.

Let me build from this one.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;

public class JavaFx2 extends Application {
    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        primaryStage.show();
    }
}

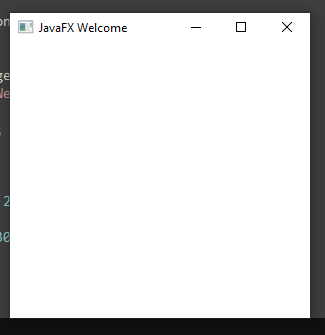

I tried this one. And the result is like that.

It is just a white window. I think the size is default.

//Example 2-2 GridPane with Gap and Padding Properties

GridPane grid = new GridPane();
grid.setAlignment(Pos.CENTER);
grid.setHgap(10);
grid.setVgap(10);
grid.setPadding(new Insets(25, 25, 25, 25));

Scene scene = new Scene(grid, 300, 275);
primaryStage.setScene(scene);

This one is next code. Let me try this under the start method.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.GridPane;
import javafx.stage.Stage;
import javafx.geometry.Pos;
import javafx.geometry.Insets;

public class JavaFx2 extends Application {

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        GridPane grid = new GridPane();
        grid.setAlignment(Pos.CENTER);
        grid.setHgap(10);
        grid.setVgap(10);
        grid.setPadding(new Insets(25, 25, 25, 25));

        Scene scene = new Scene(grid, 300, 275);
        primaryStage.setScene(scene);

        primaryStage.show();
    }
}

I imported GridPane, Pos, Insets. And it does work anyway.

The window got smaller. But thats all from the look yet. Lets go to next code.

//Example 2-3 Controls

Text scenetitle = new Text("Welcome");
scenetitle.setFont(Font.font("Tahoma", FontWeight.NORMAL, 20));
grid.add(scenetitle, 0, 0, 2, 1);

Label userName = new Label("User Name:");
grid.add(userName, 0, 1);

TextField userTextField = new TextField();
grid.add(userTextField, 1, 1);

Label pw = new Label("Password:");
grid.add(pw, 0, 2);

PasswordField pwBox = new PasswordField();
grid.add(pwBox, 1, 2);

Where should I put this code? I dont know. Let me just try and see.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.control.PasswordField;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.GridPane;
import javafx.scene.text.Font;
import javafx.scene.text.Text;
import javafx.scene.text.FontWeight;
import javafx.stage.Stage;
import javafx.geometry.Pos;
import javafx.geometry.Insets;

public class JavaFx2 extends Application {

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        GridPane grid = new GridPane();
        grid.setAlignment(Pos.CENTER);
        grid.setHgap(10);
        grid.setVgap(10);
        grid.setPadding(new Insets(25, 25, 25, 25));

        Text scenetitle = new Text("Welcome");
        scenetitle.setFont(Font.font("Tohoma", FontWeight.NORMAL, 20));
        grid.add(scenetitle, 0, 0, 2, 1);

        Label userName = new Label("User Name:");
        grid.add(userName, 0, 1);

        TextField userTextField = new TextField();
        grid.add(userTextField, 1, 1);

        Label pw = new Label("Password:");
        grid.add(pw, 0, 2);

        PasswordField pwBox = new PasswordField();
        grid.add(pwBox, 1, 2);

        Scene scene = new Scene(grid, 300, 275);
        primaryStage.setScene(scene);

        primaryStage.show();
    }
}

OK this one. I imported some classes. I think * will be better eventually. But not now. I am analyzing little by little now.

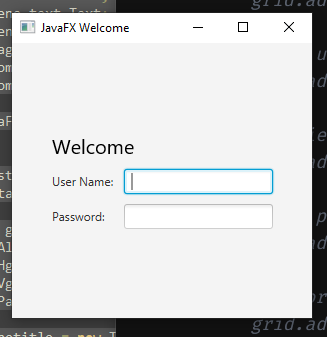

And it does work. There are id and password in the window. But I think I cant interact with the functions yet. Lets continue.

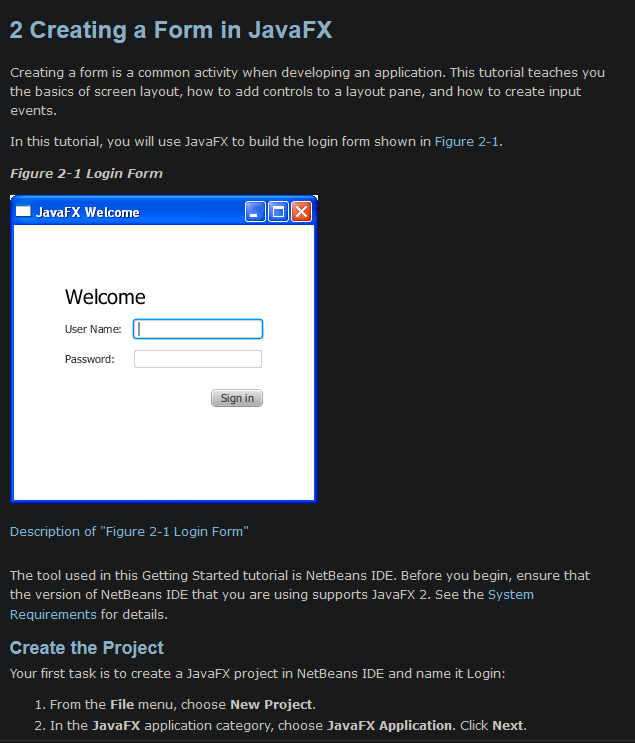

This image is on the oracle tutorial page. I get it. But I prefer pixel positions. Not like this. I hope I learn pixel positioning soon.

//Example 2-4 Button

Button btn = new Button("Sign in");
HBox hbBtn = new HBox(10);
hbBtn.setAlignment(Pos.BOTTOM_RIGHT);
hbBtn.getChildren().add(btn);
grid.add(hbBtn, 1, 4);

It looks like adding button. Easy.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.control.PasswordField;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.HBox;
import javafx.scene.text.Font;
import javafx.scene.text.Text;
import javafx.scene.text.FontWeight;
import javafx.stage.Stage;
import javafx.geometry.Pos;
import javafx.geometry.Insets;

public class JavaFx2 extends Application {

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        GridPane grid = new GridPane();
        grid.setAlignment(Pos.CENTER);
        grid.setHgap(10);
        grid.setVgap(10);
        grid.setPadding(new Insets(25, 25, 25, 25));

        Text scenetitle = new Text("Welcome");
        scenetitle.setFont(Font.font("Tohoma", FontWeight.NORMAL, 20));
        grid.add(scenetitle, 0, 0, 2, 1);

        Label userName = new Label("User Name:");
        grid.add(userName, 0, 1);

        TextField userTextField = new TextField();
        grid.add(userTextField, 1, 1);

        Label pw = new Label("Password:");
        grid.add(pw, 0, 2);

        PasswordField pwBox = new PasswordField();
        grid.add(pwBox, 1, 2);

        Button btn = new Button("Sign in");
        HBox hbBtn = new HBox(10);
        hbBtn.setAlignment(Pos.BOTTOM_RIGHT);
        hbBtn.getChildren().add(btn);
        grid.add(hbBtn, 1, 4);

        Scene scene = new Scene(grid, 300, 275);
        primaryStage.setScene(scene);

        primaryStage.show();
    }
}

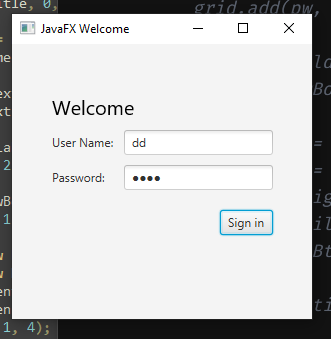

Good. But the button doesnt work yet. Keep going.

//Example 2-5 Text

final Text actiontarget = new Text();
        grid.add(actiontarget, 1, 6);

I am not sure what is this. But I can try at least.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.control.PasswordField;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.HBox;
import javafx.scene.text.Font;
import javafx.scene.text.Text;
import javafx.scene.text.FontWeight;
import javafx.stage.Stage;
import javafx.geometry.Pos;
import javafx.geometry.Insets;

public class JavaFx2 extends Application {

    final Text actiontarget = new Text();

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        GridPane grid = new GridPane();
        grid.setAlignment(Pos.CENTER);
        grid.setHgap(10);
        grid.setVgap(10);
        grid.setPadding(new Insets(25, 25, 25, 25));

        Text scenetitle = new Text("Welcome");
        scenetitle.setFont(Font.font("Tohoma", FontWeight.NORMAL, 20));
        grid.add(scenetitle, 0, 0, 2, 1);

        Label userName = new Label("User Name:");
        grid.add(userName, 0, 1);

        TextField userTextField = new TextField();
        grid.add(userTextField, 1, 1);

        Label pw = new Label("Password:");
        grid.add(pw, 0, 2);

        PasswordField pwBox = new PasswordField();
        grid.add(pwBox, 1, 2);

        Button btn = new Button("Sign in");
        HBox hbBtn = new HBox(10);
        hbBtn.setAlignment(Pos.BOTTOM_RIGHT);
        hbBtn.getChildren().add(btn);
        grid.add(hbBtn, 1, 4);

        grid.add(actiontarget, 1, 6);

        Scene scene = new Scene(grid, 300, 275);
        primaryStage.setScene(scene);

        primaryStage.show();
    }
}

I dont know I did well or not. And I dont know what is the difference. I will learn later probably.

//Example 2-6 Button Event

btn.setOnAction(new EventHandler<ActionEvent>() {

    @Override
    public void handle(ActionEvent e) {
        actiontarget.setFill(Color.FIREBRICK);
        actiontarget.setText("Sign in button pressed");
    }
});

Ok here is actiontarget again. It must be related with last code.

package practice;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.control.PasswordField;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.HBox;
import javafx.scene.text.Font;
import javafx.scene.text.Text;
import javafx.scene.text.FontWeight;
import javafx.scene.paint.Color;
import javafx.stage.Stage;
import javafx.geometry.Pos;
import javafx.geometry.Insets;

public class JavaFx2 extends Application {

    final Text actiontarget = new Text();

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("JavaFX Welcome");

        GridPane grid = new GridPane();
        grid.setAlignment(Pos.CENTER);
        grid.setHgap(10);
        grid.setVgap(10);
        grid.setPadding(new Insets(25, 25, 25, 25));

        Text scenetitle = new Text("Welcome");
        scenetitle.setFont(Font.font("Tohoma", FontWeight.NORMAL, 20));
        grid.add(scenetitle, 0, 0, 2, 1);

        Label userName = new Label("User Name:");
        grid.add(userName, 0, 1);

        TextField userTextField = new TextField();
        grid.add(userTextField, 1, 1);

        Label pw = new Label("Password:");
        grid.add(pw, 0, 2);

        PasswordField pwBox = new PasswordField();
        grid.add(pwBox, 1, 2);

        Button btn = new Button("Sign in");
        btn.setOnAction(new EventHandler<ActionEvent>() {
            @Override
            public void handle(ActionEvent e) {
                actiontarget.setFill(Color.FIREBRICK);
                actiontarget.setText("Sign in button pressed");
            }
        });
        HBox hbBtn = new HBox(10);
        hbBtn.setAlignment(Pos.BOTTOM_RIGHT);
        hbBtn.getChildren().add(btn);
        grid.add(hbBtn, 1, 4);

        grid.add(actiontarget, 1, 6);

        Scene scene = new Scene(grid, 300, 275);
        primaryStage.setScene(scene);

        primaryStage.show();
    }
}

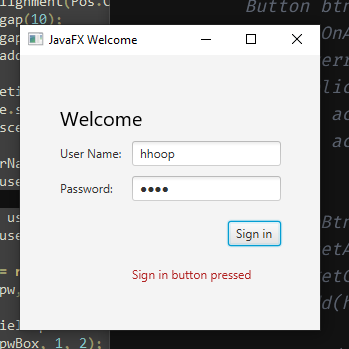

Ok finish. But it doesnt have enough functions still. I wanna know how to deal with the valuables in real time interactions. Where is the while loop?
