클락으로 카운트되는 모드와 버튼으로 카운트되는 모드 분리
loadable BCD counter
module loadable_counter_bcd_60(
input clk, reset_p,
input clk_time,
input load_enable,
input [3:0] load_bcd1, load_bcd10, //덮어쓰기 로드를 받기위한 입력
output reg [3:0] bcd1, bcd10);
wire clk_time_nedge;
edge_detector_n ed_clk(
.clk(clk), .reset_p(reset_p), .cp(clk_time),
.n_edge(clk_time_nedge));
always @(posedge clk or posedge reset_p)begin
if(reset_p)begin //리셋 우선
bcd1 = 0;
bcd10 = 0;
end
else begin
if(load_enable)begin
bcd1 = load_bcd1;
bcd10 = load_bcd10;
end
else if(clk_time_nedge)begin
if(bcd1 >= 9)begin
bcd1 = 0;
if(bcd10 >= 5)bcd10 = 0;
else bcd10 = bcd10 + 1;
end
else bcd1 = bcd1 + 1;
end
end
end
endmoduleloadable 시계
module loadable_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7);
wire btn_mode; //버튼 입력 펄스를 알기위함
wire btn_sec; //버튼 입력 펄스를 알기위함
wire btn_min; //버튼 입력 펄스를 알기위함
wire set_watch; //모드 변경 토글
wire inc_sec, inc_min;
wire clk_usec, clk_msec, clk_sec, clk_min; //분주기 인스턴스 사용
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_mode));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_sec));
button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_min));
/*
edge_detector_n ed_btn0(
.clk(clk), .reset_p(reset_p), .cp(btn[0]),
.p_edge(btn_mode));
edge_detector_n ed_btn1(
.clk(clk), .reset_p(reset_p), .cp(btn[1]),
.p_edge(btn_sec));
edge_detector_n ed_btn2(
.clk(clk), .reset_p(reset_p), .cp(btn[2]),
.p_edge(btn_min));
*/
T_flip_flop_p t_mode(.clk(clk), .reset_p(reset_p), .t(btn_mode), .q(set_watch)); //T플립플롭의 파워 리셋으로 q=0
wire watch_load_en, set_load_en;

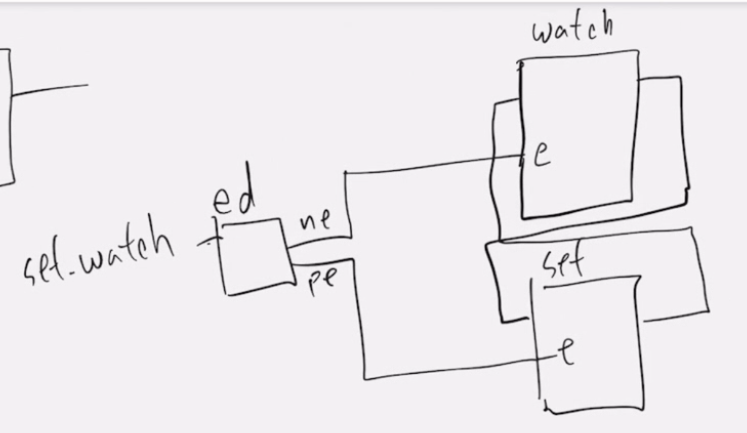

edge_detector_n ed_source(
.clk(clk), .reset_p(reset_p), .cp(set_watch),
.n_edge(watch_load_en), .p_edge(set_load_en));
assign inc_sec = set_watch ? btn_sec : clk_sec; //mux사용
assign inc_min = set_watch ? btn_min : clk_min;
clock_div_100 usec_clk(.clk(clk), .reset_p(reset_p), .clk_div_100(clk_usec)); //100분주기 1us로 만듬
clock_div_1000 msec_clk(.clk(clk), .reset_p(reset_p), .clk_source(clk_usec), .clk_div_1000(clk_msec)); //1000분주기 1ms로 만듬
clock_div_1000 sec_clk(.clk(clk), .reset_p(reset_p), .clk_source(clk_msec), ./*clk_div_1000*/clk_div_1000_nedge(clk_sec)); //1000분주기 1s로 만듬
clock_div_60 min_clk(.clk(clk), .reset_p(reset_p), .clk_source(inc_sec), ./*clk_div_60*/clk_div_60_nedge(clk_min)); //60분주기 1분 만듬
//30초 이후, 0.5초이후 에 모드버튼을 눌러도 분, 초가 올라가는 현상 해결
loadable_counter_bcd_60 sec_watch(
.clk(clk), .reset_p(reset_p),
.clk_time(clk_sec),
.load_enable(watch_load_en),
.load_bcd1(set_sec1), .load_bcd10(set_sec10), //덮어쓰기 로드를 받기위한 입력
.bcd1(watch_sec1), .bcd10(watch_sec10));
loadable_counter_bcd_60 min_watch(
.clk(clk), .reset_p(reset_p),
.clk_time(clk_min),
.load_enable(watch_load_en),
.load_bcd1(set_min1), .load_bcd10(set_min10), //덮어쓰기 로드를 받기위한 입력
.bcd1(watch_min1), .bcd10(watch_min10));
loadable_counter_bcd_60 sec_set(
.clk(clk), .reset_p(reset_p),
.clk_time(btn_sec),
.load_enable(set_load_en),
.load_bcd1(watch_sec1), .load_bcd10(watch_sec10), //덮어쓰기 로드를 받기위한 입력
.bcd1(set_sec1), .bcd10(set_sec10));
loadable_counter_bcd_60 min_set(
.clk(clk), .reset_p(reset_p),
.clk_time(btn_min),
.load_enable(set_load_en),
.load_bcd1(watch_min1), .load_bcd10(watch_min10), //덮어쓰기 로드를 받기위한 입력
.bcd1(set_min1), .bcd10(set_min10));
wire [15:0] value, watch_value, set_value;
wire [3:0] watch_sec1, watch_sec10, watch_min1, watch_min10; //BCD 60진 카운터 인스턴스 사용
wire [3:0] set_sec1, set_sec10, set_min1, set_min10;
assign watch_value = {watch_min10, watch_min1, watch_sec10, watch_sec1}; //결합연산자 사용하여 FND에 표시
assign set_value = {set_min10, set_min1, set_sec10, set_sec1};
assign value = set_watch ? set_value : watch_value;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmodule스탑워치
xdc
# LEDs
set_property -dict { PACKAGE_PIN U16 IOSTANDARD LVCMOS33 } [get_ports {led_start}]
#set_property -dict { PACKAGE_PIN E19 IOSTANDARD LVCMOS33 } [get_ports {led[1]}]
#set_property -dict { PACKAGE_PIN U19 IOSTANDARD LVCMOS33 } [get_ports {led[2]}]
#set_property -dict { PACKAGE_PIN V19 IOSTANDARD LVCMOS33 } [get_ports {led[3]}]
#set_property -dict { PACKAGE_PIN W18 IOSTANDARD LVCMOS33 } [get_ports {led[4]}]
#set_property -dict { PACKAGE_PIN U15 IOSTANDARD LVCMOS33 } [get_ports {led[5]}]
#set_property -dict { PACKAGE_PIN U14 IOSTANDARD LVCMOS33 } [get_ports {led[6]}]
#set_property -dict { PACKAGE_PIN V14 IOSTANDARD LVCMOS33 } [get_ports {led[7]}]
#set_property -dict { PACKAGE_PIN V13 IOSTANDARD LVCMOS33 } [get_ports {led[8]}]
#set_property -dict { PACKAGE_PIN V3 IOSTANDARD LVCMOS33 } [get_ports {led[9]}]
#set_property -dict { PACKAGE_PIN W3 IOSTANDARD LVCMOS33 } [get_ports {led[10]}]
#set_property -dict { PACKAGE_PIN U3 IOSTANDARD LVCMOS33 } [get_ports {led[11]}]
#set_property -dict { PACKAGE_PIN P3 IOSTANDARD LVCMOS33 } [get_ports {led[12]}]
#set_property -dict { PACKAGE_PIN N3 IOSTANDARD LVCMOS33 } [get_ports {led[13]}]
#set_property -dict { PACKAGE_PIN P1 IOSTANDARD LVCMOS33 } [get_ports {led[14]}]
#set_property -dict { PACKAGE_PIN L1 IOSTANDARD LVCMOS33 } [get_ports {led[15]}]stop_watch_top
module stop_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start);
//output [15:0] led_start);
wire btn_start;
wire start_stop;
wire clk_usec, clk_msec, clk_sec, clk_min;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_p), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(inc_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
// button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_sec));
// button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_min));
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_p), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
//assign led_start[0] = start_stop;
//assign led_start[1] = start_stop;
//assign led_start[2] = start_stop;
//assign led_start[3] = start_stop; //한번에 여러개 키는법, 실제 포트에는 하나씩 넣어줘야한다. 팬아웃 주의
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_60 counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60 counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .bcd1(min1), .bcd10(min10));
wire [15:0] value;
assign value = {min10, min1, sec10, sec1};
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmodulelap기능 추가
xdc
led_lap 추가
# LEDs
set_property -dict { PACKAGE_PIN U16 IOSTANDARD LVCMOS33 } [get_ports {led_start}]
set_property -dict { PACKAGE_PIN E19 IOSTANDARD LVCMOS33 } [get_ports {led_lap}]
#set_property -dict { PACKAGE_PIN U19 IOSTANDARD LVCMOS33 } [get_ports {led_start[2]}]
#set_property -dict { PACKAGE_PIN V19 IOSTANDARD LVCMOS33 } [get_ports {led_start[3]}]
#set_property -dict { PACKAGE_PIN W18 IOSTANDARD LVCMOS33 } [get_ports {led_start[4]}]
#set_property -dict { PACKAGE_PIN U15 IOSTANDARD LVCMOS33 } [get_ports {led_start[5]}]
#set_property -dict { PACKAGE_PIN U14 IOSTANDARD LVCMOS33 } [get_ports {led_start[6]}]
#set_property -dict { PACKAGE_PIN V14 IOSTANDARD LVCMOS33 } [get_ports {led_start[7]}]
#set_property -dict { PACKAGE_PIN V13 IOSTANDARD LVCMOS33 } [get_ports {led_start[8]}]
#set_property -dict { PACKAGE_PIN V3 IOSTANDARD LVCMOS33 } [get_ports {led_start[9]}]
#set_property -dict { PACKAGE_PIN W3 IOSTANDARD LVCMOS33 } [get_ports {led_start[10]}]
#set_property -dict { PACKAGE_PIN U3 IOSTANDARD LVCMOS33 } [get_ports {led_start[11]}]
#set_property -dict { PACKAGE_PIN P3 IOSTANDARD LVCMOS33 } [get_ports {led_start[12]}]
#set_property -dict { PACKAGE_PIN N3 IOSTANDARD LVCMOS33 } [get_ports {led_start[13]}]
#set_property -dict { PACKAGE_PIN P1 IOSTANDARD LVCMOS33 } [get_ports {led_start[14]}]
#set_property -dict { PACKAGE_PIN L1 IOSTANDARD LVCMOS33 } [get_ports {led_start[15]}]스탑워치 lap기능 추가
module stop_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start);
//output [15:0] led_start);
wire start_stop;
wire clk_usec, clk_msec, clk_sec, clk_min;
wire btn_start, btn_lap;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_p), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(inc_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_lap));
// button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_min));
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_p), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
//assign led_start[0] = start_stop;
//assign led_start[1] = start_stop;
//assign led_start[2] = start_stop;
//assign led_start[3] = start_stop; //한번에 여러개 키는법, 실제 포트에는 하나씩 넣어줘야한다. 팬아웃 주의
T_flip_flop_p t_lap(.clk(clk), .reset_p(reset_p), .t(btn_lap), .q(lap));
assign led_lap = lap;
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_60 counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60 counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .bcd1(min1), .bcd10(min10));
reg [15:0] lap_time;
wire [15:0] cur_time;
assign cur_time = {min10, min1, sec10, sec1};
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap_time = 0;
else if(btn_lap)lap_time = cur_time;
end
wire [15:0] value;
assign value = lap ? lap_time : cur_time;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmoduleclear기능 추가
bcd-60진 카운터 모듈 생성, counter_bcd_60_clear
module counter_bcd_60_clear(
input clk, reset_p,
input clk_time,
input clear,
output reg [3:0] bcd1, bcd10);
wire clk_time_nedge;
edge_detector_n ed_clk(
.clk(clk), .reset_p(reset_p), .cp(clk_time),
.n_edge(clk_time_nedge));
always @(posedge clk or posedge reset_p)begin
if(reset_p)begin
bcd1 = 0;
bcd10 = 0;
end
else begin
if(clear)begin
bcd1 = 0;
bcd10 = 0;
end
else if(clk_time_nedge)begin
if(bcd1 >= 9)begin
bcd1 = 0;
if(bcd10 >= 5)bcd10 = 0;
else bcd10 = bcd10 + 1;
end
else bcd1 = bcd1 + 1;
end
end
end
endmodulestop_watch_top 모듈, 클리어한뒤 다시 시간을 재면 60초가 되기전에 '분'이 증가하는 현상이 있음
module stop_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start, led_lap);
//output [15:0] led_start);
wire start_stop;
wire clk_usec, clk_msec, clk_sec, clk_min;
wire btn_start, btn_lap, btn_clear;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_p), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_lap));
button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_clear));
wire reset_start;
assign reset_start = reset_p | btn_clear;
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_start), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
//assign led_start[0] = start_stop;
//assign led_start[1] = start_stop;
//assign led_start[2] = start_stop;
//assign led_start[3] = start_stop; //한번에 여러개 키는법, 실제 포트에는 하나씩 넣어줘야한다. 팬아웃 주의
T_flip_flop_p t_lap(.clk(clk), .reset_p(reset_p), .t(btn_lap), .q(lap));
assign led_lap = lap;
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_60_clear counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .clear(btn_clear), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60_clear counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .clear(btn_clear), .bcd1(min1), .bcd10(min10));
reg [15:0] lap_time;
wire [15:0] cur_time;
assign cur_time = {min10, min1, sec10, sec1};
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap_time = 0;
else if(btn_lap)lap_time = cur_time;
else if(btn_clear) lap_time = 0;
end
wire [15:0] value;
assign value = lap ? lap_time : cur_time;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmodule수정-60분주 인스턴스의 reset_p연결 와이어 변경
module stop_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start, led_lap);
//output [15:0] led_start);
wire reset_start;
wire start_stop;
wire clk_usec, clk_msec, clk_sec, clk_min;
wire btn_start, btn_lap, btn_clear;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_p), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_p), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_lap));
button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_clear));
assign reset_start = reset_p | btn_clear;
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_start), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
//assign led_start[0] = start_stop;
//assign led_start[1] = start_stop;
//assign led_start[2] = start_stop;
//assign led_start[3] = start_stop; //한번에 여러개 키는법, 실제 포트에는 하나씩 넣어줘야한다. 팬아웃 주의
T_flip_flop_p t_lap(.clk(clk), .reset_p(reset_p), .t(btn_lap), .q(lap));
assign led_lap = lap;
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_60_clear counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .clear(btn_clear), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60_clear counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .clear(btn_clear), .bcd1(min1), .bcd10(min10));
reg [15:0] lap_time;
wire [15:0] cur_time;
assign cur_time = {min10, min1, sec10, sec1};
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap_time = 0;
else if(btn_lap)lap_time = cur_time;
else if(btn_clear) lap_time = 0;
end
wire [15:0] value;
assign value = lap ? lap_time : cur_time;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmodulelap모드에서 클리어버튼을 누르면 lap모드로 남아있는게 아니라 초기화상태(시계모드)로 바뀌게 변경
module stop_watch_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start, led_lap);
//output [15:0] led_start);
wire reset_start;
wire start_stop;
wire clk_usec, clk_msec, clk_sec, clk_min;
reg lap; //always문에 사용하기 위한 reg선언
wire btn_start, btn_lap, btn_clear;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_start), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_lap));
button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_clear));
assign reset_start = reset_p | btn_clear;
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_start), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap=0;
else begin
if(btn_lap)lap=~lap;
else if(btn_clear) lap = 0; //기존의 T플립플롭에서 추가(이것때문에 기존의 T플립플롭 모듈을 바꿀순 없고 실행되는 부분만 가져와서 수정
end
end
//assign led_start[0] = start_stop;
//assign led_start[1] = start_stop;
//assign led_start[2] = start_stop;
//assign led_start[3] = start_stop; //한번에 여러개 키는법, 실제 포트에는 하나씩 넣어줘야한다. 팬아웃 주의
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_60_clear counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .clear(btn_clear), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60_clear counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .clear(btn_clear), .bcd1(min1), .bcd10(min10));
reg [15:0] lap_time;
wire [15:0] cur_time;
assign cur_time = {min10, min1, sec10, sec1};
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap_time = 0;
else if(btn_lap)lap_time = cur_time; //btn_lap의 one cycle clock의 순간에 cur_time을 한번 읽어와서 lap_time에 넘겨줌(지속적으로 연결되어 있는것 아님)
else if(btn_clear) lap_time = 0;
end
wire [15:0] value;
assign value = lap ? lap_time : cur_time;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmodule초:밀리초 단위의 스탑워치
module stop_watch_ms_top(
input clk, reset_p,
input [2:0] btn,
output [3:0] com,
output [7:0] seg_7,
output led_start, led_lap);
//output [15:0] led_start);
wire reset_start;
wire start_stop;
wire clk_usec, clk_msec, clk_10msec, clk_sec, clk_min;
reg lap;
wire btn_start, btn_lap, btn_clear;
wire clk_start;
assign clk_start = start_stop ? clk : 0;
clock_div_100 usec_clk(.clk(clk_start), .reset_p(reset_start), .clk_div_100(clk_usec));
clock_div_1000 msec_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_usec), .clk_div_1000(clk_msec));
clock_div_10(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_msec), .clk_div_10(clk_10msec));
clock_div_1000 sec_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_msec), .clk_div_1000_nedge(clk_sec));
clock_div_60 min_clk(.clk(clk_start), .reset_p(reset_start), .clk_source(clk_sec), .clk_div_60_nedge(clk_min));
button_cntr btn0(.clk(clk), .reset_p(reset_p), .btn(btn[0]), .btn_pedge(btn_start));
button_cntr btn1(.clk(clk), .reset_p(reset_p), .btn(btn[1]), .btn_pedge(btn_lap));
button_cntr btn2(.clk(clk), .reset_p(reset_p), .btn(btn[2]), .btn_pedge(btn_clear));
assign reset_start = reset_p | btn_clear;
T_flip_flop_p t_start(.clk(clk), .reset_p(reset_start), .t(btn_start), .q(start_stop));
assign led_start = start_stop;
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap=0;
else begin
if(btn_lap)lap=~lap;
else if(btn_clear) lap = 0;
end
end
assign led_lap = lap;
wire [3:0] min10, min1, sec1, sec10;
counter_bcd_100_clear counter_msec(.clk(clk), .reset_p(reset_p), .clk_time(clk_10msec), .clear(btn_clear), .bcd1(sec1), .bcd10(sec10));
counter_bcd_60_clear counter_sec(.clk(clk), .reset_p(reset_p), .clk_time(clk_sec), .clear(btn_clear), .bcd1(min1), .bcd10(min10));
// counter_bcd_60_clear counter_min(.clk(clk), .reset_p(reset_p), .clk_time(clk_min), .clear(btn_clear), .bcd1(min1), .bcd10(min10));
reg [15:0] lap_time;
wire [15:0] cur_time;
assign cur_time = {min10, min1, sec10, sec1};
always @(posedge clk or posedge reset_p)begin
if(reset_p)lap_time = 0;
else if(btn_lap)lap_time = cur_time;
else if(btn_clear) lap_time = 0;
end
wire [15:0] value;
assign value = lap ? lap_time : cur_time;
fnd_cntr fnd (.clk(clk), .reset_p(reset_p), .value(value), .com(com), .seg_7(seg_7));
endmoduleBCD_100진 카운터
module counter_bcd_100_clear(
input clk, reset_p,
input clk_time,
input clear,
output reg [3:0] bcd1, bcd10);
wire clk_time_nedge;
edge_detector_n ed_clk(
.clk(clk), .reset_p(reset_p), .cp(clk_time),
.n_edge(clk_time_nedge));
always @(posedge clk or posedge reset_p)begin
if(reset_p)begin
bcd1 = 0;
bcd10 = 0;
end
else begin
if(clear)begin
bcd1 = 0;
bcd10 = 0;
end
else if(clk_time_nedge)begin
if(bcd1 >= 9)begin
bcd1 = 0;
if(bcd10 >= 9)bcd10 = 0;
else bcd10 = bcd10 + 1;
end
else bcd1 = bcd1 + 1;
end
end
end
endmodule10분주기
module clock_div_10(
input clk, reset_p,
input clk_source, //1ms
output clk_div_10,
output clk_div_10_nedge);
reg [3:0] cnt_clksource;
wire clk_source_nedge;
edge_detector_n ed_source(
.clk(clk), .reset_p(reset_p), .cp(clk_source),
.n_edge(clk_source_nedge));
always @(negedge clk or posedge reset_p)begin
if(reset_p)cnt_clksource = 0;
else if(clk_source_nedge)begin
if(cnt_clksource >= 9) cnt_clksource = 0;
else cnt_clksource = cnt_clksource + 1;
end
end
assign clk_div_10 = (cnt_clksource < 5) ? 0 : 1;
edge_detector_n ed(
.clk(clk), .reset_p(reset_p), .cp(clk_div_10),
.n_edge(clk_div_10_nedge));
endmodule
개인 기록공간
