학습 매체 : 책
책이름 : 레트로의 유니티 게임 프로그래밍 에센스
저자 : 이제민
본 내용은 해당 강의 내용을 공부하면서 정리한 글입니다.
평면의 두 점 ( x1 , y1 )과 ( x2, y2 ) 사이의 거리 distance를 구하는 방법을 알아보자.
두 점 사이의 거리를 구할 때, 두 점이 포함된 직각삼각형을 만든다.
밑변 : width = x2 - x1
높이 : height = y2 - y1
빗변(거리) : distance =
계산된 빗변 사이의 거리가 두 점 사이의 거리가 된다. 이를 코드로 구현하자.
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class HelloCode : MonoBehaviour
{
// Start is called before the first frame update
void Start()
{
float distance = GetDistance(2, 2, 5, 6);
Debug.Log("(2,2)에서 (5,6)까지의 거리 : " + distance);
}

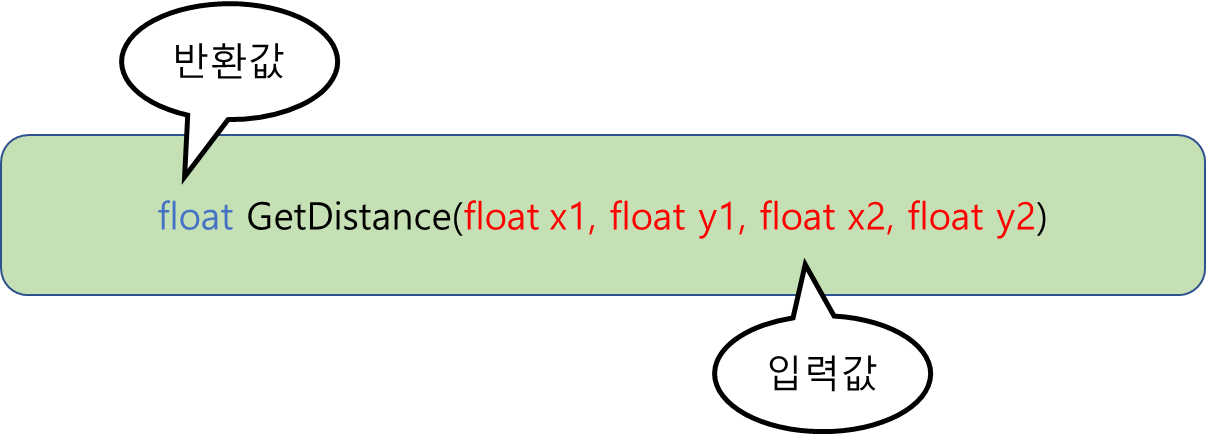

float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
float distance = width * width + height * height;
distance= Mathf.Sqrt(distance);
return distance;
}
}
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class HelloCode : MonoBehaviour
{
// Start is called before the first frame update
void Start()
{
}
float GetDistance(float x1, float y1, float x2, float y2)
{
}
}
GetDistance( ) 메서드는 입력받은 두 점으로 만든 직각삼각형의 밑변과 높이를 저장할 변수 width와 height를 필요로 한다.
밑변 width는 x2 - x1, 높이 height는 y2 - y1으로 계산한다.
float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
}
float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
float distance = width * width + height * height;
}
C#에서 곱셈은 * 연산자를 사용한다. 일단 distance에 밑변의 제곱과 높이의 제곱을 더한 값을 저장했다. 아직 제곱근을 구하기 전이다.
이제 width width + height height의 제곱근을 구한다. 그런데 제곱근을 구하는 절차는 코드 몇 줄로는 표현하기 힘들다.
그러므로 미리 만들어진 수학 메서드를 사용한다. 유니티는 수학 관련 라이브러리인 Mathf 클래스를 제공한다. Mathf에서 제공하는 Sqrt( ) 메서드는 입력값의 제곱근을 계산한다.
float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
float distance = width * width + height * height;
distance= Mathf.Sqrt(distance);
}
float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
float distance = width * width + height * height;
distance= Mathf.Sqrt(distance);
return distance;
}
GetDistance( ) 메서드를 완성했다.

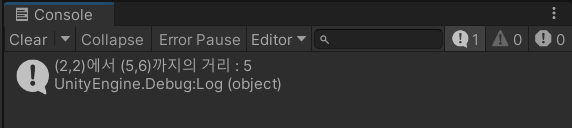

마지막으로 Start( ) 메서드에서 GetDistance( ) 메서드를 사용하여 점 (2,2)와 점 (5,6) 사이의 거리를 계산하고 콘솔에 출력한다.
void Start()
{
float distance = GetDistance(2, 2, 5, 6);
Debug.Log("(2,2)에서 (5,6)까지의 거리 : " + distance);
}
void Start()
{
float distance = 5;
float distance = 15; // 에러(같은 이름의 변수 중복 선언)
}
public class HelloCode : MonoBehaviour
{
// Start is called before the first frame update
void Start()
{
float distance = GetDistance(2, 2, 5, 6);
Debug.Log("(2,2)에서 (5,6)까지의 거리 : " + distance);
}
float GetDistance(float x1, float y1, float x2, float y2)
{
float width = x2 - x1;
float height = y2 - y1;
float distance = width * width + height * height;
distance= Mathf.Sqrt(distance);
return distance;
}
}
변수 distance가 서로 다른 중괄호 안에 선언되어 있기 때문이다. 코드에서 중괄호 { }는 밖에서 내부가 보이지 않게 감추는 껍데기이다. 즉, 메서드 내부에서 선언한 변수는 해당 메서드 내부에서만 유효하다.
이러한 유효 범위를 스코프라고 한다. 스코프는 선언된 변수나 메서드 등이 관측되는 유효 범위이다.
GetDistance( ) 메서드에서 선언한 distance 변수의 스코프는 GetDistance( ) 메서드 내부에서 끝난다. 따라서 Start( ) 메서드는 GetDistance( ) 메서드 내부에 선언된 distance를 모른다.
서로 스코프가 겹치지 않으므로 Start( ) 메서드에 선언된 distance와 GetDistance( ) 메서드에 선언된 distance를 구별해서 사용할 수 있다.
다음 강의에서 계속~
