Spring Boot Actuator로 API 모니터링

Actuator

스프링 부트 애플리케이션을 모니터링하고 관리하기 위한 기능을 제공하는 라이브러리

기능

• 애플리케이션 상태 엔드포인트
• 매트릭 수집
• 환경 설정 정보
• 스레드 덤프
• 엔드포인트 보안

스프링 부트 애플리케이션에 Actuator를 추가하면 이러한 기능을 손쉽게 활용할 수 있습니다. 이를 통해 애플리케이션의 상태 및 동작을 모니터링하고 필요한 조치를 취할 수 있습니다.

pom.xml

<!-- ACTUATOR -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

전체 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>study.rest.webservices</groupId>
    <artifactId>restful-web-services</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>restful-web-services</name>
    <description>restful-web-services</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- ACTUATOR -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- HATEOAS -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-hateoas</artifactId>
        </dependency>
        <!-- validation -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
        <!--&lt;!&ndash; Swagger &ndash;&gt;
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
            <version>2.4.0</version>
        </dependency>
        &lt;!&ndash; XML &ndash;&gt;
        <dependency>
            <groupId>com.fasterxml.jackson.dataformat</groupId>
            <artifactId>jackson-dataformat-xml</artifactId>
        </dependency>-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

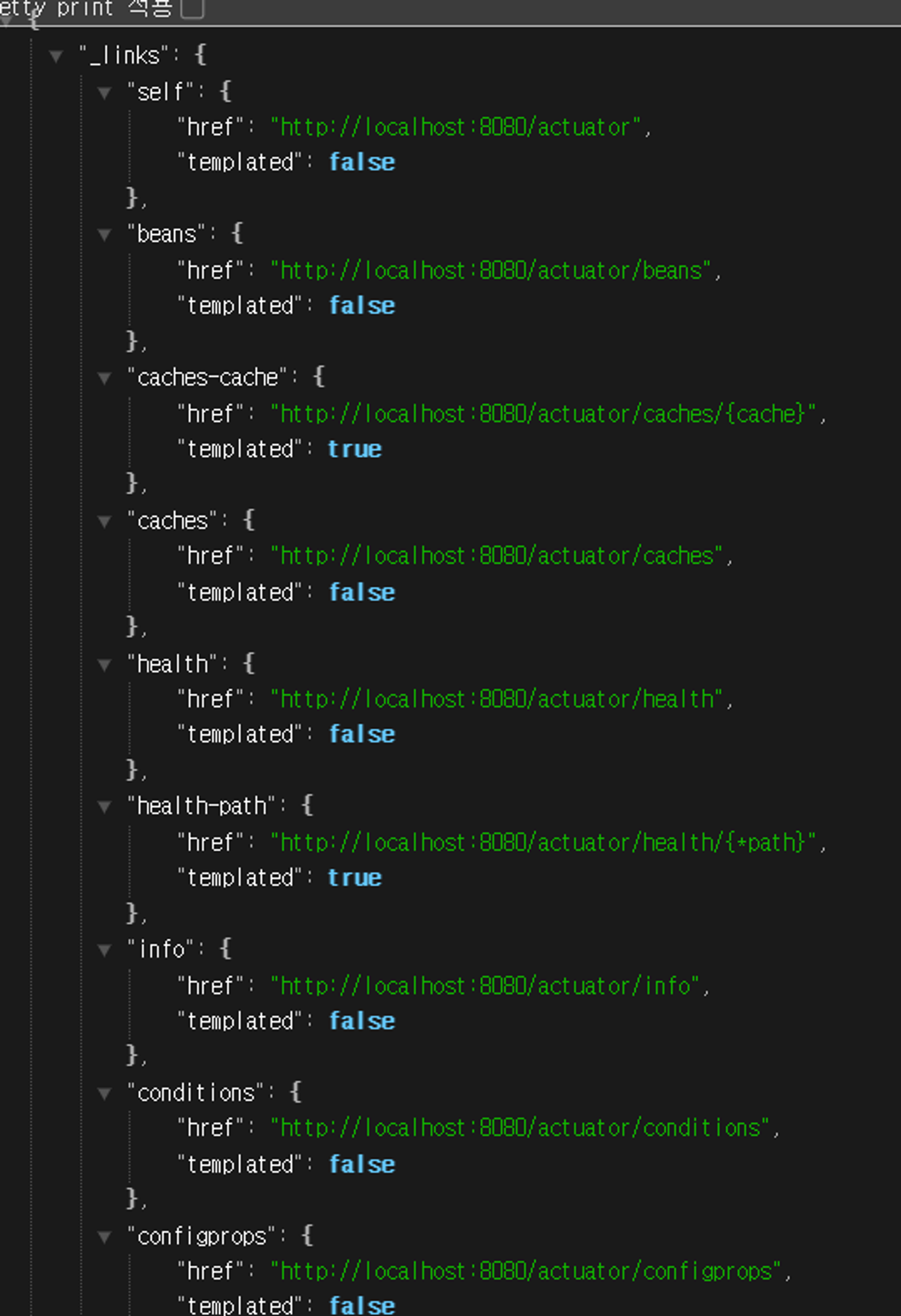

/actuator로 접속

기본적으로 actuator는 애플리케이션 상태 정보밖에 공개하지 않습니다.

더 많은 정보를 공개하려면 apprication.properties 설정이 필요합니다.

application.properties

//모든 API 공개
management.endpoints.web.exposure.include=*
