VGG16_Implementation on CIFAR10
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
import torchvision.datasets as datasets
import torchvision.transforms as transforms
import numpy as np
import matplotlib.pyplot as plttorch.manual_seed(0)<torch._C.Generator at 0x7f662cd9eb58>
Data: CIFAR10
# standardization
standardization = transforms.Compose([
transforms.ToTensor(),
transforms.Normalize(mean=[0.4913, 0.4821, 0.4465], std = [0.2470, 0.2434, 0.2615])
])
train_dataset = datasets.CIFAR10(root = './data', train=True, download=True, transform=standardization)
test_dataset = datasets.CIFAR10(root = './data', train=False, download=True, transform=standardization)BATCH_SIZE = 64
train_loader = DataLoader(dataset = train_dataset, batch_size = BATCH_SIZE, shuffle=True)
test_loader = DataLoader(dataset = test_dataset, batch_size = BATCH_SIZE, shuffle=True)
print('train:', train_loader.dataset.data.shape) # 32 by 32 pictures with RGB channels
print('test:', test_loader.dataset.data.shape)train: (50000, 32, 32, 3)
test: (10000, 32, 32, 3)

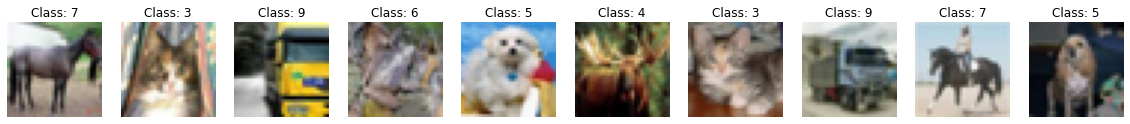

np.random.seed(42)
random_train_pictures = [np.random.randint(1, 50000) for i in range(10)]
plt.figure(figsize=(20, 2))
for i in range(len(random_train_pictures)):
plt.subplot(1, 10, i+1)
plt.imshow(train_loader.dataset.data[random_train_pictures[i]])
plt.axis('off')
plt.title(f'Class: {str(train_loader.dataset.targets[random_train_pictures[i]])}')
VGG 16 modeling
''' 1. make_layers: 13개의 conv층 ''' # 13 + 3 = vgg16
cfg = {'13conv2d': [8, 8, 'M', 16, 16, 32, 32, 32,
'M', 64, 64, 128, 128, 256, 256, 'M']}
def make_layers(cfg, batch_norm=True):
layers = []
in_channels = 3
for v in cfg:
if v == 'M':
layers += [nn.MaxPool2d(kernel_size=2, stride=2)]
else:
conv2d = nn.Conv2d(in_channels, v, kernel_size=3, padding=1)
if batch_norm:
layers += [conv2d, nn.BatchNorm2d(v), nn.ReLU(inplace=True)]
else:
layers += [conv2d, nn.ReLU(inplace=True)]
in_channels = v
return nn.Sequential(*layers)conv = make_layers(cfg['13conv2d'], batch_norm=True)''' 2. VGG Implementation '''
class VGG(nn.Module):
def __init__(self, conv_layers, num_classes=10, init_weights=True):
super(VGG, self).__init__()
self.conv_layers = conv_layers
# self.avgpool = nn.AdaptiveAvgPool2d((7, 7))
self.classifier = nn.Sequential(
nn.Linear(256 * 4 * 4, 2048), # 32->(16, 8, 4): 3번 pooling
nn.ReLU(True),
nn.Dropout(),
nn.Linear(2048, 1024),
nn.ReLU(True),
nn.Dropout(),
nn.Linear(1024, num_classes),
) # FC layer
if init_weights:
self._initialize_weights()
def forward(self, x):
x = self.conv_layers(x)
#x = self.avgpool(x)
x = x.view(x.size(0), -1)
x = self.classifier(x)
return x
def _initialize_weights(self):
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
if m.bias is not None:
nn.init.constant_(m.bias, 0)
elif isinstance(m, nn.BatchNorm2d):
nn.init.constant_(m.weight, 1)
nn.init.constant_(m.bias, 0)
elif isinstance(m, nn.Linear):
nn.init.normal_(m.weight, 0, 0.01)
nn.init.constant_(m.bias, 0)vgg16 = VGG(conv, num_classes=10, init_weights=True)Optimizer & Loss
DEVICE = 'cuda' if torch.cuda.is_available() else 'cpu'
model = vgg16.to(DEVICE)
loss_func = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.002)
lr_sche = optim.lr_scheduler.StepLR(optimizer, step_size=5, gamma=0.9)
# -> 5 step을 거칠 때마다, lr을 x0.9만큼 줄여주면서 학습시킨다.
for i in model.named_children():
print(i)('conv_layers', Sequential(
(0): Conv2d(3, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(1): BatchNorm2d(8, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU(inplace=True)
(3): Conv2d(8, 8, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(4): BatchNorm2d(8, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(5): ReLU(inplace=True)
(6): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(7): Conv2d(8, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(8): BatchNorm2d(16, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(9): ReLU(inplace=True)
(10): Conv2d(16, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(11): BatchNorm2d(16, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(12): ReLU(inplace=True)
(13): Conv2d(16, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(14): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(15): ReLU(inplace=True)
(16): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(17): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(18): ReLU(inplace=True)
(19): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(20): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(21): ReLU(inplace=True)
(22): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(23): Conv2d(32, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(24): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(25): ReLU(inplace=True)
(26): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(27): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(28): ReLU(inplace=True)
(29): Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(30): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(31): ReLU(inplace=True)
(32): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(33): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(34): ReLU(inplace=True)
(35): Conv2d(128, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(36): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(37): ReLU(inplace=True)
(38): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(39): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(40): ReLU(inplace=True)
(41): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
))
('classifier', Sequential(
(0): Linear(in_features=4096, out_features=2048, bias=True)
(1): ReLU(inplace=True)
(2): Dropout(p=0.5, inplace=False)
(3): Linear(in_features=2048, out_features=1024, bias=True)
(4): ReLU(inplace=True)
(5): Dropout(p=0.5, inplace=False)
(6): Linear(in_features=1024, out_features=10, bias=True)
))
Training & Test
Training
total_batch = len(train_loader)
loss_arr = []
epochs = 20
for epoch in range(epochs):
avg_loss = 0
lr_sche.step()
for num, (image, label) in enumerate(train_loader):
x = image.to(DEVICE)
y_ = label.to(DEVICE)
optimizer.zero_grad()
output = model.forward(x)
loss = loss_func(output, y_)
loss.backward()
optimizer.step()
avg_loss += loss / total_batch
loss_arr.append(avg_loss)
print(f'[Epoch: {epoch+1} loss = {avg_loss}]')
print('Training Finished !')[Epoch: 1 loss = 2.0779025554656982][Epoch: 2 loss = 1.6878807544708252]
[Epoch: 3 loss = 1.4266715049743652][Epoch: 4 loss = 1.2422521114349365]
[Epoch: 5 loss = 1.099440336227417][Epoch: 6 loss = 1.0087822675704956]
[Epoch: 7 loss = 0.9483529925346375][Epoch: 8 loss = 0.8998845219612122]
[Epoch: 9 loss = 0.8499659299850464][Epoch: 10 loss = 0.8105672597885132]
[Epoch: 11 loss = 0.7675001621246338][Epoch: 12 loss = 0.7369272708892822]
[Epoch: 13 loss = 0.7075254917144775][Epoch: 14 loss = 0.6865513324737549]
[Epoch: 15 loss = 0.6421639919281006][Epoch: 16 loss = 0.62006014585495]
[Epoch: 17 loss = 0.5950868129730225][Epoch: 18 loss = 0.5761401653289795]
[Epoch: 19 loss = 0.5545189380645752][Epoch: 20 loss = 0.5190139412879944]
Training Finished !
# 손실 그래프
# matplotlib의 plot 함수를 이용해 손실이 어떻게 줄어가는지 확인합니다.
plt.plot(loss_arr)
plt.show()
Test
correct = 0
total = 0
with torch.no_grad():
for num, (image, label) in enumerate(test_loader):
x = image.to(DEVICE)
y_ = label.to(DEVICE)
outputs = model.forward(x)
_, predicted = torch.max(outputs.data, 1)
total += y_.size(0)
correct += (predicted == y_).sum().item()
print(f'Accuracy: {correct / total * 100}%')Accuracy: 74.97%
