study 3차
EKS Storage & Node
✍ 사전준비 작업

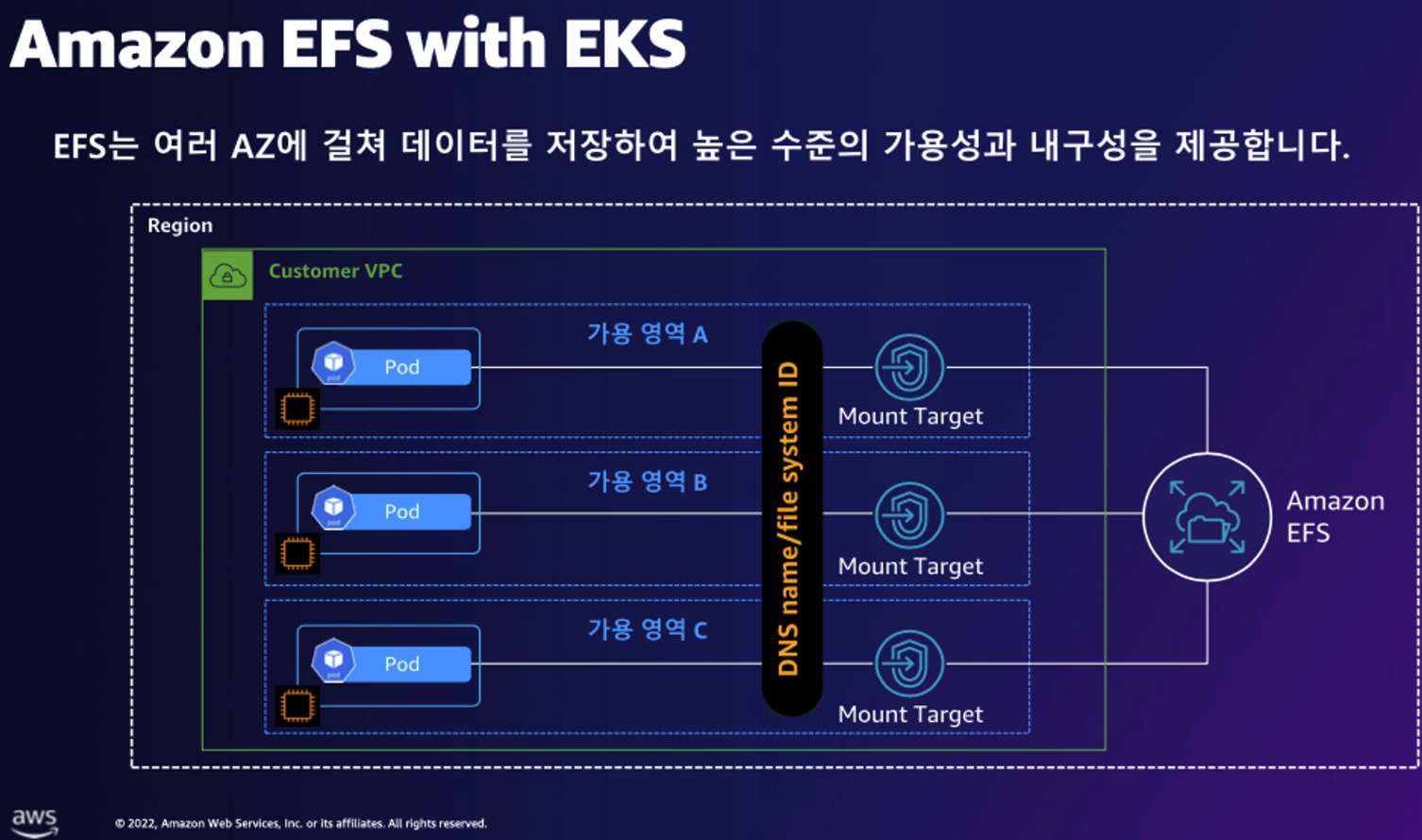

(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# mount | grep nfs4
fs-036a45de37ff1463b.efs.ap-northeast-2.amazonaws.com:/ on /mnt/myefs type nfs4 (rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,hard,noresvport,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.1.100,local_lock=none,addr=192.168.1.114)
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# echo "efs file test" > /mnt/myefs/memo.txt
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat /mnt/myefs/memo.txt
efs file test
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# rm -f /mnt/myefs/memo.txt
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get csinodes
NAME DRIVERS AGE
ip-192-168-1-213.ap-northeast-2.compute.internal 0 11m
ip-192-168-2-58.ap-northeast-2.compute.internal 0 11m
ip-192-168-3-171.ap-northeast-2.compute.internal 0 11m
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone
NAME STATUS ROLES AGE VERSION INSTANCE-TYPE CAPACITYTYPE ZONE
ip-192-168-1-213.ap-northeast-2.compute.internal Ready <none> 11m v1.24.11-eks-a59e1f0 t3.medium ON_DEMAND ap-northeast-2a
ip-192-168-2-58.ap-northeast-2.compute.internal Ready <none> 11m v1.24.11-eks-a59e1f0 t3.medium ON_DEMAND ap-northeast-2b
ip-192-168-3-171.ap-northeast-2.compute.internal Ready <none> 11m v1.24.11-eks-a59e1f0 t3.medium ON_DEMAND ap-northeast-2c
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get iamidentitymapping --cluster myeks
ARN USERNAME GROUPS ACCOUNT
arn:aws:iam::070271542073:role/eksctl-myeks-nodegroup-ng1-NodeInstanceRole-B9CATVHE7DJH system:node:{{EC2PrivateDNSName}} system:bootstrappers,system:nodes
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# echo $N1, $N2, $N3
192.168.1.213, 192.168.2.58, 192.168.3.171
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
AWS LB/ExternalDNS, kube-ops-view 설치
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pods --all-namespaces -o jsonpath="{.items[*].spec.containers[*].image}" | tr -s '[[:space:]]' '\n' | sort | uniq -c
3 602401143452.dkr.ecr.ap-northeast-2.amazonaws.com/amazon-k8s-cni:v1.12.6-eksbuild.2
2 602401143452.dkr.ecr.ap-northeast-2.amazonaws.com/eks/coredns:v1.9.3-eksbuild.3
3 602401143452.dkr.ecr.ap-northeast-2.amazonaws.com/eks/kube-proxy:v1.24.10-minimal-eksbuild.2
1 hjacobs/kube-ops-view:20.4.0
2 public.ecr.aws/eks/aws-load-balancer-controller:v2.5.1
1 registry.k8s.io/external-dns/external-dns:v0.13.4
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get addon --cluster $CLUSTER_NAME
2023-05-14 01:19:49 [ℹ] Kubernetes version "1.24" in use by cluster "myeks"
2023-05-14 01:19:49 [ℹ] getting all addons
2023-05-14 01:19:50 [ℹ] to see issues for an addon run `eksctl get addon --name <addon-name> --cluster <cluster-name>`
NAME VERSION STATUS ISSUES IAMROLE UPDATE AVAILABLE CONFIGURATION VALUES
coredns v1.9.3-eksbuild.3 ACTIVE 0
kube-proxy v1.24.10-eksbuild.2 ACTIVE 0
vpc-cni v1.12.6-eksbuild.2 ACTIVE 0 arn:aws:iam::070271542073:role/eksctl-myeks-addon-vpc-cni-Role1-1CLY25OXB7ODI
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get iamserviceaccount --cluster $CLUSTER_NAME
NAMESPACE NAME ROLE ARN
kube-system aws-load-balancer-controller arn:aws:iam::070271542073:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-Role1-211MO6823FEL
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#✍ Storage 이해

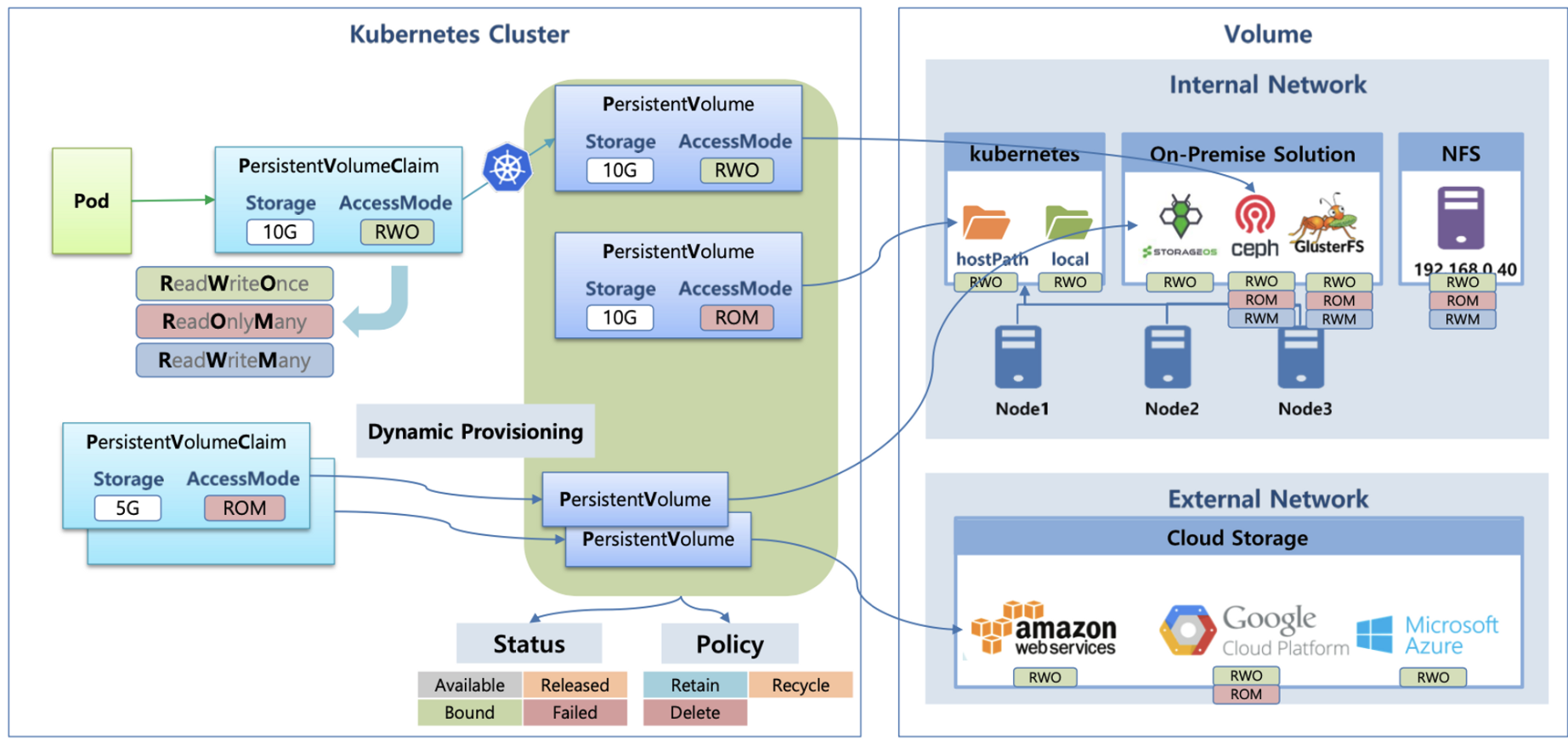

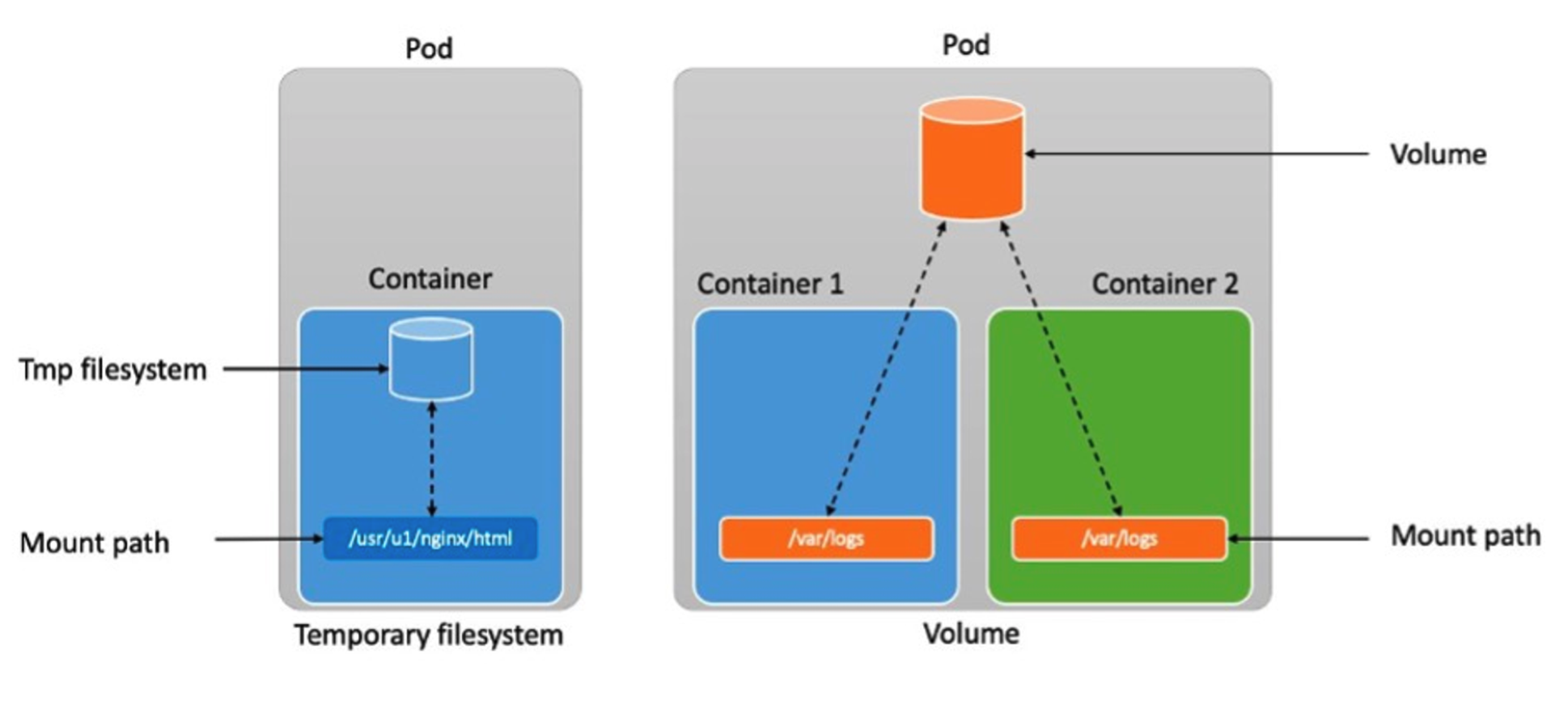

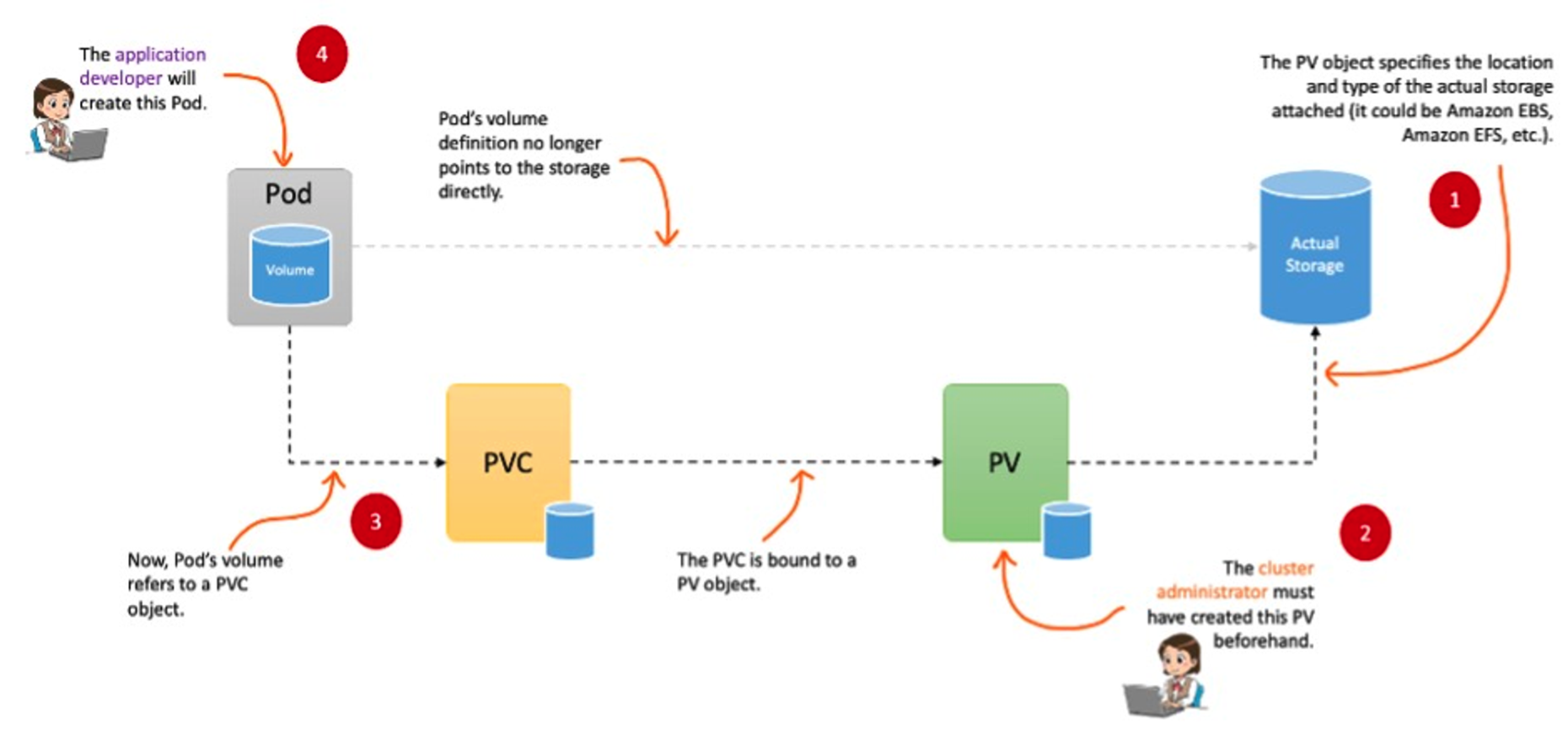

데이터베이스(파드)처럼 데이터 보존이 필요 == 상태가 있는(Stateful) 애플리케이션 : PV & PVC

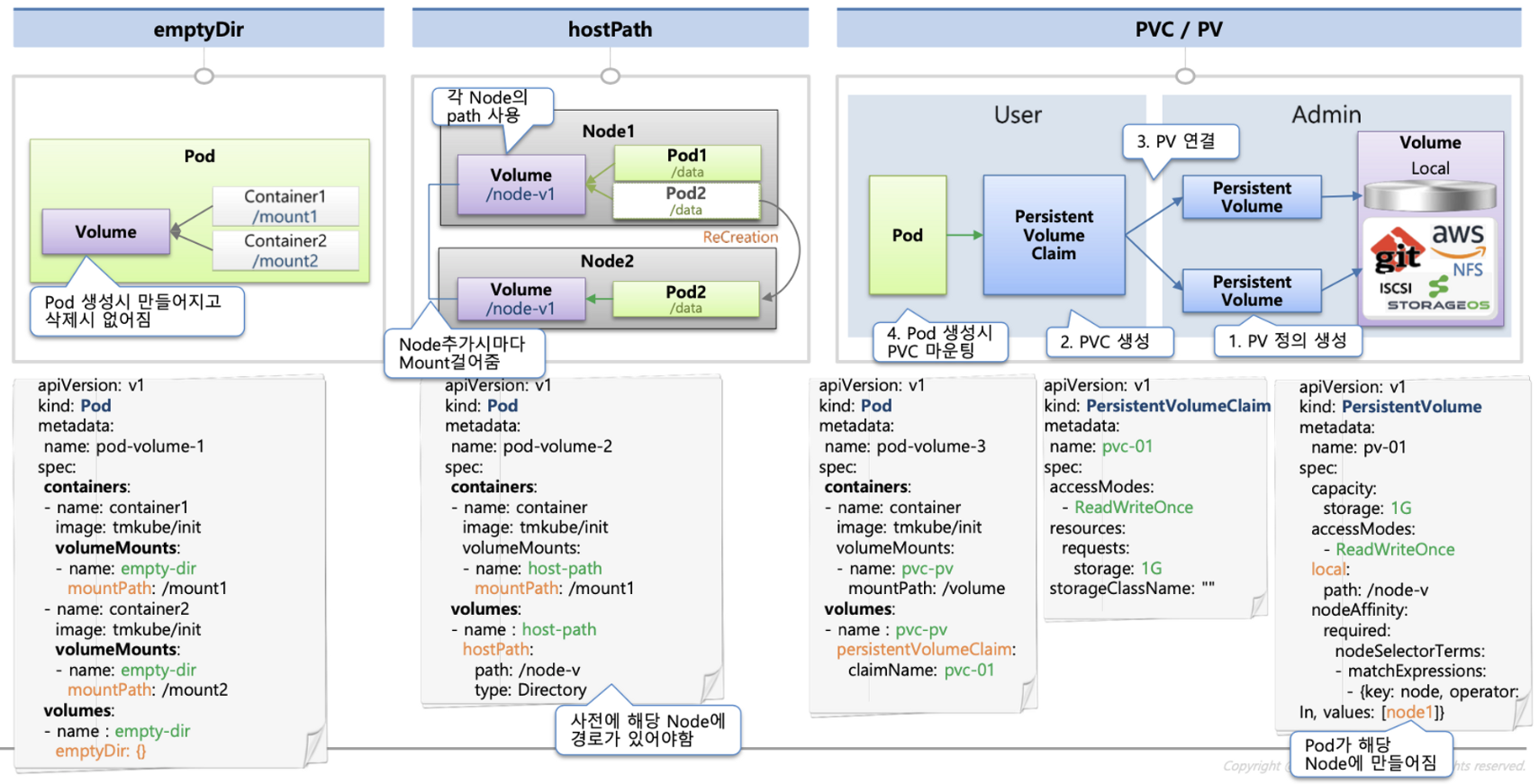

→ 로컬 볼륨(hostPath) ⇒ 퍼시스턴트 볼륨(Persistent Volume, PV) - 어느 노드에서도 연결하여 사용 가능, 예시) NFS, AWS EBS, Ceph 등

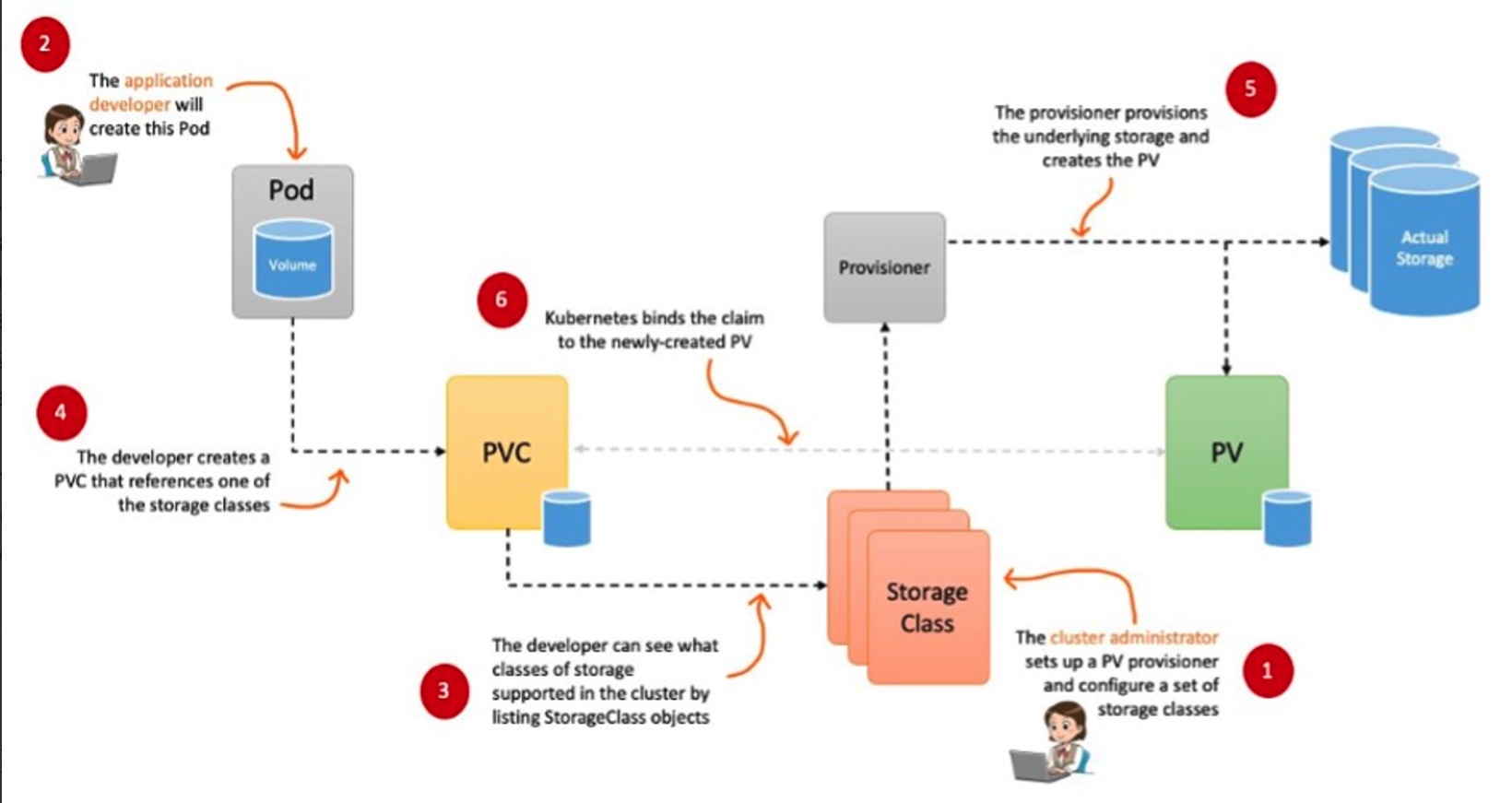

파드가 생성될 때 자동으로 볼륨을 마운트하여 파드에 연결하는 기능을 동적 프로비저닝(Dynamic Provisioning)이라고 함
퍼시스턴트 볼륨의 사용이 끝났을 때 해당 볼륨은 어떻게 초기화할 것인지 별도로 설정할 수 있는데, 쿠버네티스는 이를 Reclaim Policy 라고 부릅니다.
다양한 볼륨 사용: K8S 자체 제공(hostPath, local), 온프렘 솔루션(ceph 등), NFS, 클라우드 스토리지(AWS EBS 등)

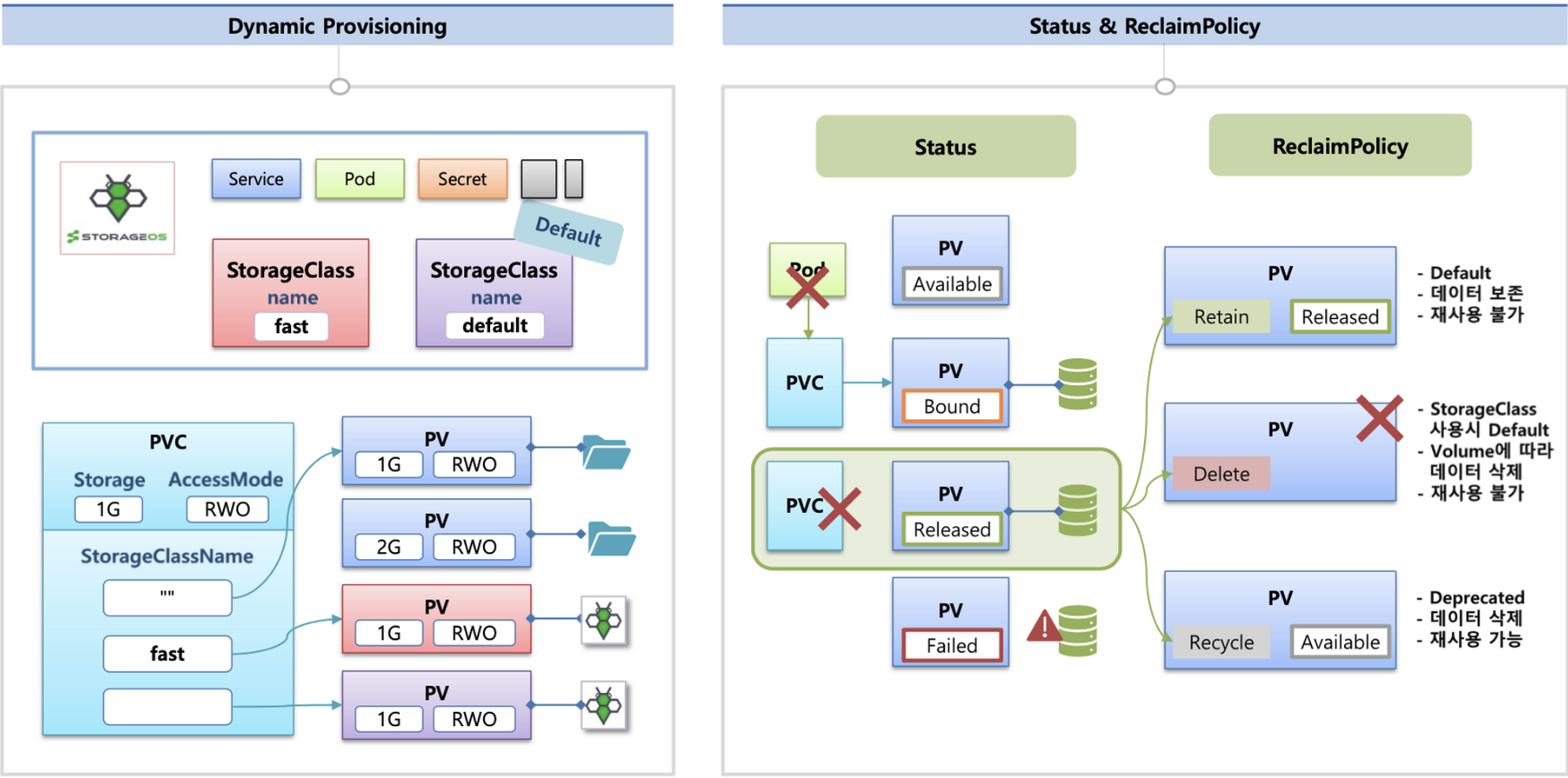

동적 프로비저닝 & 볼륨 상태 , ReclaimPolicy

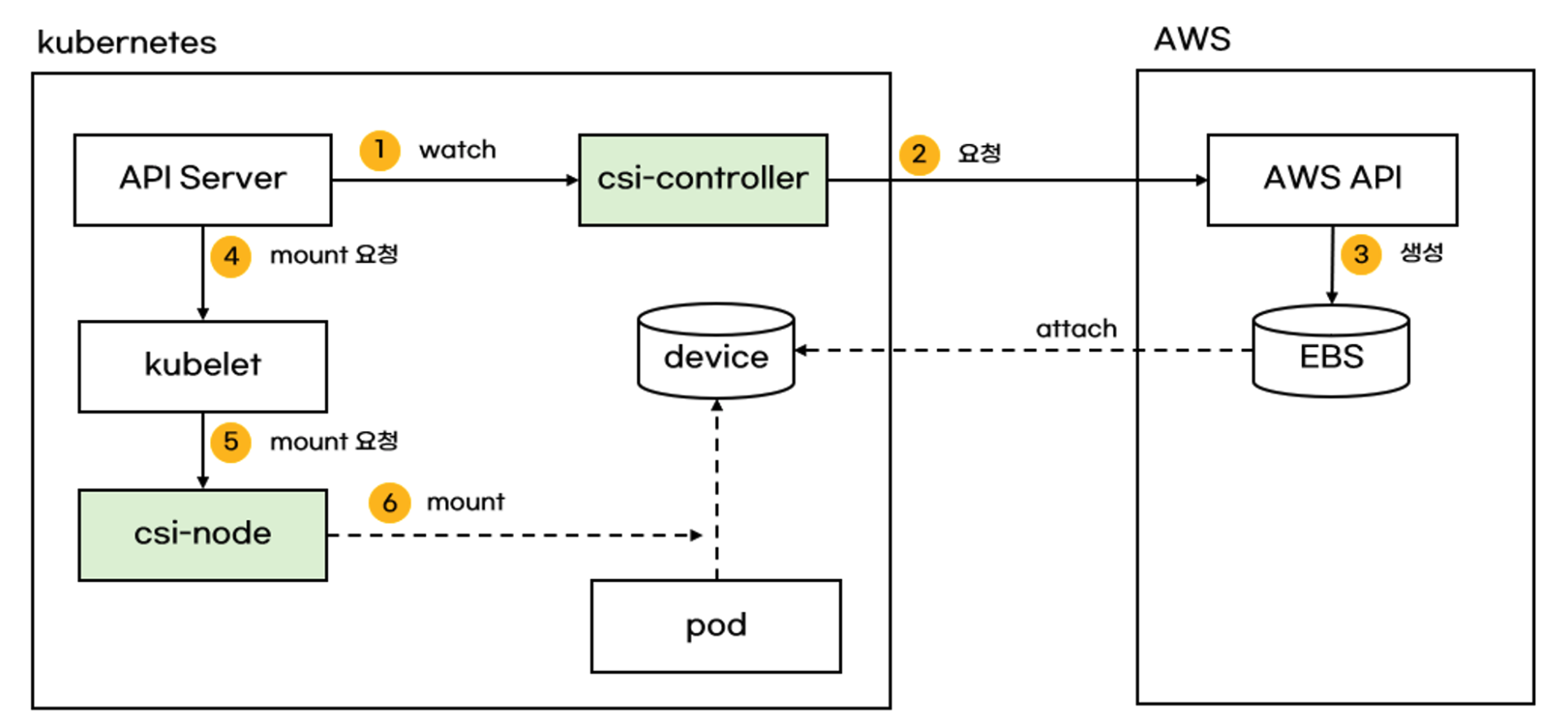

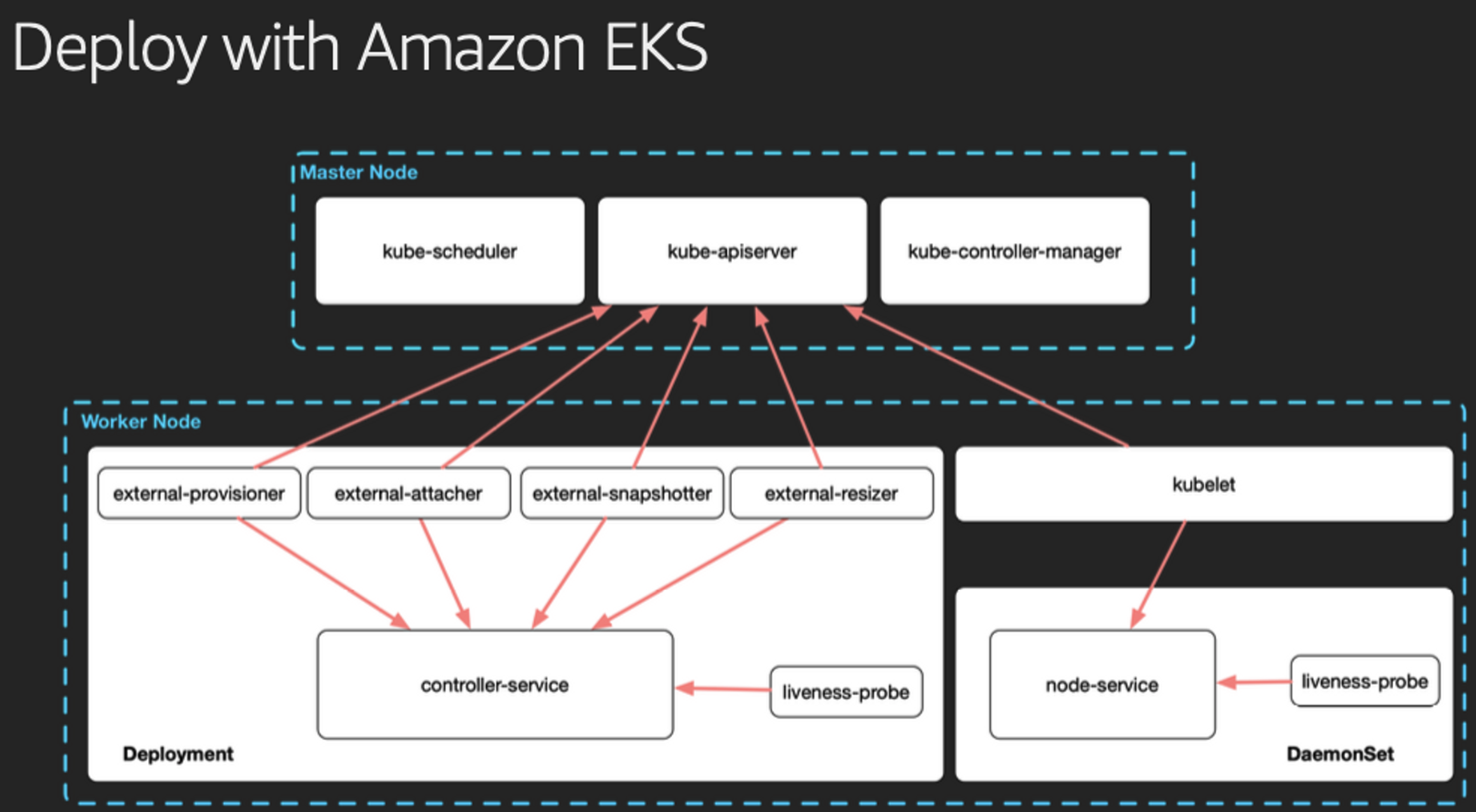

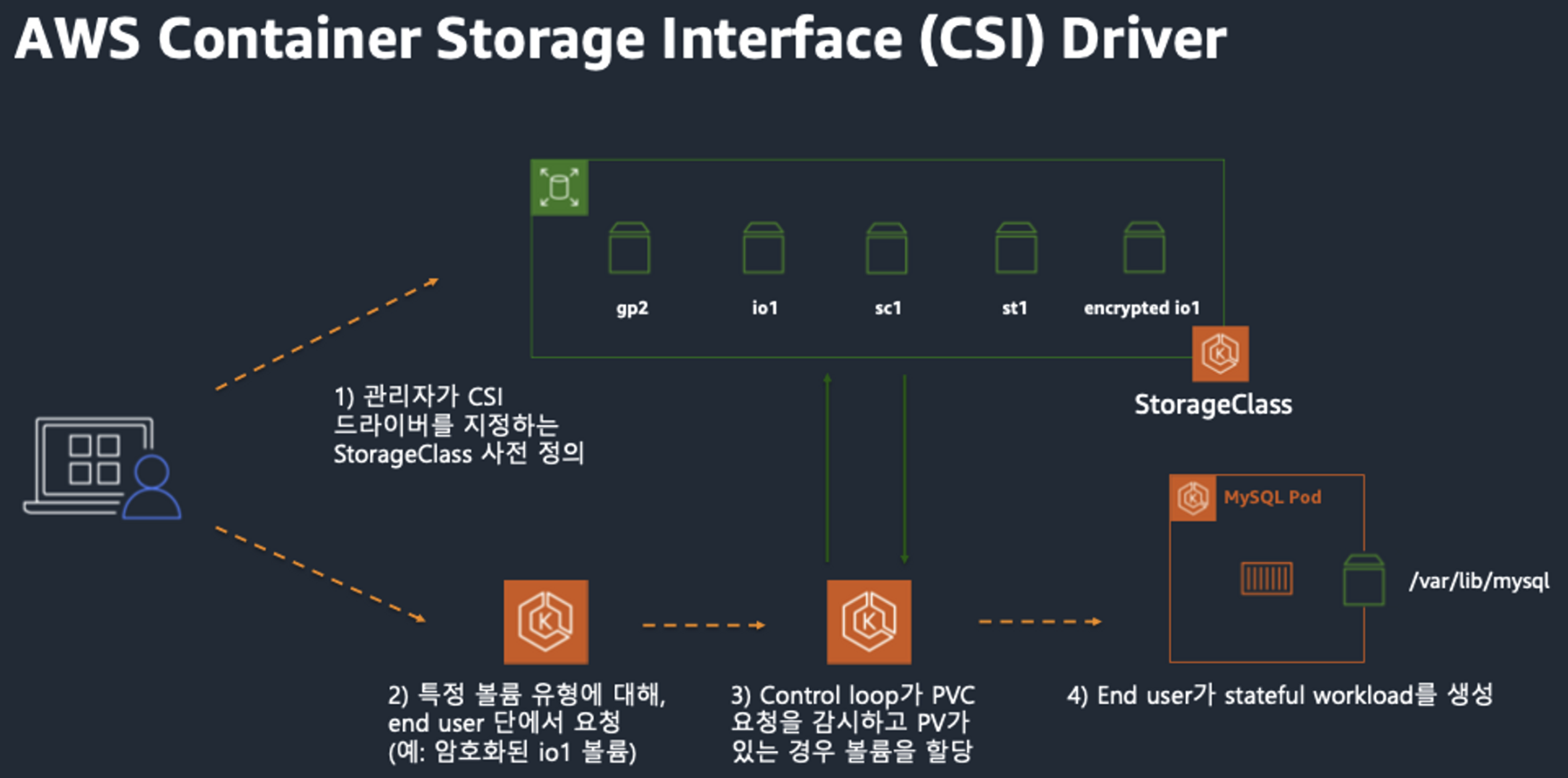

- CSI (Contaier Storage Interface) 소개
- CSI Driver 배경 : Kubernetes source code 내부에 존재하는 AWS EBS provisioner는 당연히 Kubernetes release lifecycle을 따라서 배포되므로, provisioner 신규 기능을 사용하기 위해서는 Kubernetes version을 업그레이드해야 하는 제약 사항이 있습니다. 따라서, Kubernetes 개발자는 Kubernetes 내부에 내장된 provisioner (in-tree)를 모두 삭제하고, 별도의 controller Pod을 통해 동적 provisioning을 사용할 수 있도록 만들었습니다. 이것이 바로 CSI (Container Storage Interface) driver 입니다
- CSI 를 사용하면, K8S 의 공통화된 CSI 인터페이스를 통해 다양한 프로바이더를 사용할 수 있다.
AWS EC2 Type에 따라 볼륨 최대 제한 : 25개 ~ 39개
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe node | grep Allocatable: -A1
Allocatable:
attachable-volumes-aws-ebs: 25
--
Allocatable:
attachable-volumes-aws-ebs: 25
--
Allocatable:
attachable-volumes-aws-ebs: 25
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/date-busybox-pod.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat date-busybox-pod.yaml | yh
apiVersion: v1
kind: Pod
metadata:
name: busybox
spec:
terminationGracePeriodSeconds: 3
containers:
- name: busybox
image: busybox
command:
- "/bin/sh"
- "-c"
- "while true; do date >> /home/pod-out.txt; cd /home; sync; sync; sleep 10; done"
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f date-busybox-pod.yaml
pod/busybox created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#파일 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod
NAME READY STATUS RESTARTS AGE
busybox 1/1 Running 0 38s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec busybox -- tail -f /home/pod-out.txt
Sat May 13 16:43:26 UTC 2023
Sat May 13 16:43:36 UTC 2023
Sat May 13 16:43:46 UTC 2023
Sat May 13 16:43:56 UTC 2023파드 삭제 후 다시 생성 후 파일 정보 확인 > 이전 기록이 보존되어 있는지?
이로 인해서 영구저장소가 필요하다!!
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pod busybox
pod "busybox" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f date-busybox-pod.yaml
pod/busybox created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec busybox -- tail -f /home/pod-out.txt
Sat May 13 16:46:16 UTC 2023
Sat May 13 16:46:26 UTC 2023
Sat May 13 16:46:36 UTC 2023호스트 Path 를 사용하는 PV/PVC : local-path-provisioner 스트리지 클래스 배포
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/rancher/local-path-provisioner/master/deploy/local-path-storage.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f local-path-storage.yaml
namespace/local-path-storage created
serviceaccount/local-path-provisioner-service-account created
clusterrole.rbac.authorization.k8s.io/local-path-provisioner-role created
clusterrolebinding.rbac.authorization.k8s.io/local-path-provisioner-bind created
deployment.apps/local-path-provisioner created
storageclass.storage.k8s.io/local-path created
configmap/local-path-config created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get-all -n local-path-storage
NAME NAMESPACE AGE
configmap/kube-root-ca.crt local-path-storage 13s
configmap/local-path-config local-path-storage 13s
pod/local-path-provisioner-759f6bd7c9-m4st6 local-path-storage 13s
serviceaccount/default local-path-storage 13s
serviceaccount/local-path-provisioner-service-account local-path-storage 13s
deployment.apps/local-path-provisioner local-path-storage 13s
replicaset.apps/local-path-provisioner-759f6bd7c9 local-path-storage 13s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod -n local-path-storage -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
local-path-provisioner-759f6bd7c9-m4st6 1/1 Running 0 20s 192.168.1.108 ip-192-168-1-213.ap-northeast-2.compute.internal <none> <none>
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe cm -n local-path-storage local-path-config
Name: local-path-config
Namespace: local-path-storage
Labels: <none>
Annotations: <none>
Data
====
config.json:
----
{
"nodePathMap":[
{
"node":"DEFAULT_PATH_FOR_NON_LISTED_NODES",
"paths":["/opt/local-path-provisioner"]
}
]
}
helperPod.yaml:
----
apiVersion: v1
kind: Pod
metadata:
name: helper-pod
spec:
containers:
- name: helper-pod
image: busybox
imagePullPolicy: IfNotPresent
setup:
----
#!/bin/sh
set -eu
mkdir -m 0777 -p "$VOL_DIR"
teardown:
----
#!/bin/sh
set -eu
rm -rf "$VOL_DIR"
BinaryData
====
Events: <none>
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
gp2 (default) kubernetes.io/aws-ebs Delete WaitForFirstConsumer false 66m
local-path rancher.io/local-path Delete WaitForFirstConsumer false 34s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get sc local-path
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
local-path rancher.io/local-path Delete WaitForFirstConsumer false 42s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#@ PV/PVC 를 사용하는 파드 생성
PVC 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/localpath1.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat localpath1.yaml | yh
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: localpath-claim
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: "local-path"
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f localpath1.yaml
persistentvolumeclaim/localpath-claim created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#PVC 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
localpath-claim Pending local-path 67s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe pvc
Name: localpath-claim
Namespace: default
StorageClass: local-path
Status: Pending
Volume:
Labels: <none>
Annotations: <none>
Finalizers: [kubernetes.io/pvc-protection]
Capacity:
Access Modes:
VolumeMode: Filesystem
Used By: <none>
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal WaitForFirstConsumer 12s (x6 over 76s) persistentvolume-controller waiting for first consumer to be created before binding
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#파드 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/localpath2.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat localpath2.yaml | yh
apiVersion: v1
kind: Pod
metadata:
name: app
spec:
terminationGracePeriodSeconds: 3
containers:
- name: app
image: centos
command: ["/bin/sh"]
args: ["-c", "while true; do echo $(date -u) >> /data/out.txt; sleep 5; done"]
volumeMounts:
- name: persistent-storage
mountPath: /data
volumes:
- name: persistent-storage
persistentVolumeClaim:
claimName: localpath-claim
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f localpath2.yaml
pod/app created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#파드 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod,pv,pvc
NAME READY STATUS RESTARTS AGE
pod/app 1/1 Running 0 39s
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
persistentvolume/pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO Delete Bound default/localpath-claim local-path 36s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/localpath-claim Bound pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO local-path 3m59s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe pv
Name: pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560
Labels: <none>
Annotations: pv.kubernetes.io/provisioned-by: rancher.io/local-path
Finalizers: [kubernetes.io/pv-protection]
StorageClass: local-path
Status: Bound
Claim: default/localpath-claim
Reclaim Policy: Delete
Access Modes: RWO
VolumeMode: Filesystem
Capacity: 1Gi
Node Affinity:
Required Terms:
Term 0: kubernetes.io/hostname in [ip-192-168-3-171.ap-northeast-2.compute.internal]
Message:
Source:
Type: HostPath (bare host directory volume)
Path: /opt/local-path-provisioner/pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560_default_localpath-claim
HostPathType: DirectoryOrCreate
Events: <none>
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- tail -f /data/out.txt
Sat May 13 16:53:50 UTC 2023
Sat May 13 16:53:56 UTC 2023
Sat May 13 16:54:01 UTC 2023
Sat May 13 16:54:06 UTC 2023
Sat May 13 16:54:11 UTC 2023
Sat May 13 16:54:16 UTC 2023
Sat May 13 16:54:21 UTC 2023
Sat May 13 16:54:26 UTC 2023
Sat May 13 16:54:31 UTC 2023
Sat May 13 16:54:36 UTC 2023
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N1 tree /opt/local-path-provisioner
/opt/local-path-provisioner [error opening dir]
0 directories, 0 files
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N2 tree /opt/local-path-provisioner
/opt/local-path-provisioner [error opening dir]
0 directories, 0 files
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N3 tree /opt/local-path-provisioner
/opt/local-path-provisioner
└── pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560_default_localpath-claim
└── out.txt
1 directory, 1 file
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
워커노드 자체에서 out.txt 파일 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N3 tail -f /opt/local-path-provisioner/pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560_default_localpath-claim/out.txt
Sat May 13 16:59:31 UTC 2023
Sat May 13 16:59:36 UTC 2023
Sat May 13 16:59:41 UTC 2023
Sat May 13 16:59:46 UTC 2023
Sat May 13 16:59:51 UTC 2023
Sat May 13 16:59:56 UTC 2023
Sat May 13 17:00:01 UTC 2023
Sat May 13 17:00:06 UTC 2023
Sat May 13 17:00:11 UTC 2023
Sat May 13 17:00:16 UTC 2023파드 삭제 후 파드 재생성해서 데이터 유지 되는지 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pod app
pod "app" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod,pv,pvc
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
persistentvolume/pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO Delete Bound default/localpath-claim local-path 8m19s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/localpath-claim Bound pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO local-path 11m
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N3 tree /opt/local-path-provisioner
/opt/local-path-provisioner
└── pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560_default_localpath-claim
└── out.txt
1 directory, 1 file
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#파드 다시 실행 & 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f localpath2.yaml
pod/app created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f localpath2.yaml
pod/app configured
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- tail -f /data/out.txt
Sat May 13 17:01:26 UTC 2023
Sat May 13 17:01:31 UTC 2023
Sat May 13 17:01:36 UTC 2023
Sat May 13 17:01:41 UTC 2023
Sat May 13 17:01:46 UTC 2023
**Sat May 13 17:01:51 UTC 2023
Sat May 13 17:03:32 UTC 2023**
Sat May 13 17:03:37 UTC 2023
Sat May 13 17:03:42 UTC 2023
Sat May 13 17:03:47 UTC 2023
kubectl exec -it app -- tail -f /data/out.txtSat May 13 17:03:52 UTC 2023
Sat May 13 17:03:57 UTC 2023
Sat May 13 17:04:02 UTC 2023
Sat May 13 17:04:07 UTC 2023
^Ccommand terminated with exit code 130
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- tail -f /data/out.txt
Sat May 13 17:04:02 UTC 2023
Sat May 13 17:04:07 UTC 2023
Sat May 13 17:04:12 UTC 2023
Sat May 13 17:04:17 UTC 2023
Sat May 13 17:04:22 UTC 2023
Sat May 13 17:04:27 UTC 2023
Sat May 13 17:04:32 UTC 2023
Sat May 13 17:04:37 UTC 2023
Sat May 13 17:04:42 UTC 2023
Sat May 13 17:04:47 UTC 2023
Sat May 13 17:04:52 UTC 2023
Sat May 13 17:04:57 UTC 2023파드와 PVC삭제
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pod app
pod "app" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pv,pvc
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
persistentvolume/pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO Delete Bound default/localpath-claim local-path 12m
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/localpath-claim Bound pvc-110950ea-3e70-41c4-a5b6-bf2e95acb560 1Gi RWO local-path 16m
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pvc localpath-claim
persistentvolumeclaim "localpath-claim" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pv
No resources found
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N3 tree /opt/local-path-provisioner
/opt/local-path-provisioner
0 directories, 0 files
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#✍ AWS EBS Controller
Volume (ebs-csi-controller) : EBS CSI driver 동작 : 볼륨 생성 및 파드에 볼륨 연결 - 링크
- persistentvolume, persistentvolumeclaim의 accessModes는 ReadWriteOnce로 설정해야 합니다 -
CSI-controller, csi-node
ISRA 설정 : AWS관리형 정책 AmazonEBSCSIDriverPolicy 사용
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl create iamserviceaccount \
> --name ebs-csi-controller-sa \
> --namespace kube-system \
> --cluster ${CLUSTER_NAME} \
> --attach-policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy \
> --approve \
> --role-only \
> --role-name AmazonEKS_EBS_CSI_DriverRole
2023-05-14 02:18:38 [ℹ] 1 existing iamserviceaccount(s) (kube-system/aws-load-balancer-controller) will be excluded
2023-05-14 02:18:38 [ℹ] 1 iamserviceaccount (kube-system/ebs-csi-controller-sa) was included (based on the include/exclude rules)
2023-05-14 02:18:38 [!] serviceaccounts in Kubernetes will not be created or modified, since the option --role-only is used
2023-05-14 02:18:38 [ℹ] 1 task: { create IAM role for serviceaccount "kube-system/ebs-csi-controller-sa" }
2023-05-14 02:18:38 [ℹ] building iamserviceaccount stack "eksctl-myeks-addon-iamserviceaccount-kube-system-ebs-csi-controller-sa"
2023-05-14 02:18:38 [ℹ] deploying stack "eksctl-myeks-addon-iamserviceaccount-kube-system-ebs-csi-controller-sa"
2023-05-14 02:18:38 [ℹ] waiting for CloudFormation stack "eksctl-myeks-addon-iamserviceaccount-kube-system-ebs-csi-controller-sa"
2023-05-14 02:19:08 [ℹ] waiting for CloudFormation stack "eksctl-myeks-addon-iamserviceaccount-kube-system-ebs-csi-controller-sa"
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get iamserviceaccount --cluster myeks
NAMESPACE NAME ROLE ARN
kube-system aws-load-balancer-controller arn:aws:iam::070271542073:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-Role1-211MO6823FEL
kube-system ebs-csi-controller-sa arn:aws:iam::070271542073:role/AmazonEKS_EBS_CSI_DriverRole
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#Amazon EBS CSI driver addon 추가
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl create addon --name aws-ebs-csi-driver --cluster ${CLUSTER_NAME} --service-account-role-arn arn:aws:iam::${ACCOUNT_ID}:role/AmazonEKS_EBS_CSI_DriverRole --force
2023-05-14 02:20:48 [ℹ] Kubernetes version "1.24" in use by cluster "myeks"
2023-05-14 02:20:48 [ℹ] using provided ServiceAccountRoleARN "arn:aws:iam::070271542073:role/AmazonEKS_EBS_CSI_DriverRole"
2023-05-14 02:20:48 [ℹ] creating addon
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#Amazon EBS CSI driver addon 추가
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get addon --cluster ${CLUSTER_NAME}
2023-05-14 02:21:34 [ℹ] Kubernetes version "1.24" in use by cluster "myeks"
2023-05-14 02:21:34 [ℹ] getting all addons
2023-05-14 02:21:35 [ℹ] to see issues for an addon run `eksctl get addon --name <addon-name> --cluster <cluster-name>`
NAME VERSION STATUS ISSUES IAMROLE UPDATE AVAILABLE CONFIGURATION VALUES
aws-ebs-csi-driver v1.18.0-eksbuild.1 ACTIVE 0 arn:aws:iam::070271542073:role/AmazonEKS_EBS_CSI_DriverRole
coredns v1.9.3-eksbuild.3 ACTIVE 0
kube-proxy v1.24.10-eksbuild.2 ACTIVE 0
vpc-cni v1.12.6-eksbuild.2 ACTIVE 0 arn:aws:iam::070271542073:role/eksctl-myeks-addon-vpc-cni-Role1-1CLY25OXB7ODI
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#csinodes 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get csinodes
NAME DRIVERS AGE
ip-192-168-1-213.ap-northeast-2.compute.internal 1 91m
ip-192-168-2-58.ap-northeast-2.compute.internal 1 91m
ip-192-168-3-171.ap-northeast-2.compute.internal 1 91m
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#gp3 스토리지 클래스 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
gp2 (default) kubernetes.io/aws-ebs Delete WaitForFirstConsumer false 101m
gp3 ebs.csi.aws.com Delete WaitForFirstConsumer true 9s
local-path rancher.io/local-path Delete WaitForFirstConsumer false 36m
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe sc gp3 | grep Parameters
Parameters: allowAutoIOPSPerGBIncrease=true,encrypted=true,type=gp3
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#parameters:
type: gp3
allowAutoIOPSPerGBIncrease: 'true'
encrypted: 'true'
PVC/PV 파드 테스트
워커노드의 EBS 볼륨 확인 : tag(키/값) 필터링 - 링크
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --output table
--------------------------------------------------------------
| DescribeVolumes |
+------------------------------------------------------------+
|| Volumes ||
|+---------------------+------------------------------------+|
|| AvailabilityZone | ap-northeast-2a ||
|| CreateTime | 2023-05-13T15:51:26.652000+00:00 ||
|| Encrypted | False ||
|| Iops | 3000 ||
|| MultiAttachEnabled | False ||
|| Size | 30 ||
|| SnapshotId | snap-01ef0ca3352a5c1a2 ||
|| State | in-use ||
|| Throughput | 125 ||
|| VolumeId | vol-04960a285d1c60629 ||
|| VolumeType | gp3 ||
|+---------------------+------------------------------------+|
||| Attachments |||
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws ec2 describe-volumes --filters Name=tag:Name,Values=$CLUSTER_NAME-ng1-Node --query "Volumes[].{VolumeId: VolumeId, VolumeType: VolumeType, InstanceId: Attachments[0].InstanceId, State: Attachments[0].State}" | jq
[
{
"VolumeId": "vol-04960a285d1c60629",
"VolumeType": "gp3",
"InstanceId": "i-0869aa2fb32d3d0ff",
"State": "attached"
},
{
"VolumeId": "vol-0e60d29b4a484c653",
"VolumeType": "gp3",
"InstanceId": "i-0f5832ddd92531730",
"State": "attached"
},
{
"VolumeId": "vol-0e2f28bdb37afb471",
"VolumeType": "gp3",
"InstanceId": "i-0d0ae5fe5f1a45cfe",
"State": "attached"
}
]
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#PVC & POD 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat <<EOT > awsebs-pvc.yaml
> apiVersion: v1
> kind: PersistentVolumeClaim
> metadata:
> name: ebs-claim
> spec:
> accessModes:
> - ReadWriteOnce
> resources:
> requests:
> storage: 4Gi
> storageClassName: gp3
> EOT
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f awsebs-pvc.yaml
persistentvolumeclaim/ebs-claim created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc,pv
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/ebs-claim Pending gp3 20s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat <<EOT > awsebs-pod.yaml
> apiVersion: v1
> kind: Pod
> metadata:
> name: app
> spec:
> terminationGracePeriodSeconds: 3
> containers:
> - name: app
> image: centos
> command: ["/bin/sh"]
> args: ["-c", "while true; do echo \$(date -u) >> /data/out.txt; sleep 5; done"]
> volumeMounts:
> - name: persistent-storage
> mountPath: /data
> volumes:
> - name: persistent-storage
> persistentVolumeClaim:
> claimName: ebs-claim
> EOT
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f awsebs-pod.yaml
pod/app created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
PVC & POD 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc,pv,pod
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/ebs-claim Bound pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 4Gi RWO gp3 103s
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
persistentvolume/pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 4Gi RWO Delete Bound default/ebs-claim gp3 27s
NAME READY STATUS RESTARTS AGE
pod/app 1/1 Running 0 31s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get VolumeAttachment
NAME ATTACHER PV NODE ATTACHED AGE
csi-90aaf1e10bd47efb0fd4064b143aee8a687768f467dcfba1d74ca81b189ec932 ebs.csi.aws.com pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 ip-192-168-3-171.ap-northeast-2.compute.internal true 60s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pv -o yaml | yh
required:
nodeSelectorTerms:
- matchExpressions:
- key: topology.ebs.csi.aws.com/zone
operator: In
values:
- ap-northeast-2c
persistentVolumeReclaimPolicy: Delete
storageClassName: gp3
volumeMode: Filesystem
status:
phase: Bound
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get node --label-columns=topology.ebs.csi.aws.com/zone,topology.kubernetes.io/zone
NAME STATUS ROLES AGE VERSION ZONE ZONE
ip-192-168-1-213.ap-northeast-2.compute.internal Ready <none> 107m v1.24.11-eks-a59e1f0 ap-northeast-2a ap-northeast-2a
ip-192-168-2-58.ap-northeast-2.compute.internal Ready <none> 107m v1.24.11-eks-a59e1f0 ap-northeast-2b ap-northeast-2b
ip-192-168-3-171.ap-northeast-2.compute.internal Ready <none> 107m v1.24.11-eks-a59e1f0 ap-northeast-2c ap-northeast-2c
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl df-pv
PV NAME PVC NAME NAMESPACE NODE NAME POD NAME VOLUME MOUNT NAME SIZE USED AVAILABLE %USED IUSED IFREE %IUSED
pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 ebs-claim default ip-192-168-3-171.ap-northeast-2.compute.internal app persistent-storage 3Gi 28Ki 3Gi 0.00 12 262132 0.00
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#파드 내에서 볼륨 정보 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- sh -c 'df -hT --type=overlay'
Filesystem Type Size Used Avail Use% Mounted on
overlay overlay 30G 3.8G 27G 13% /
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- sh -c 'df -hT --type=ext4'
Filesystem Type Size Used Avail Use% Mounted on
/dev/nvme1n1 ext4 3.8G 28K 3.8G 1% /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#볼륨 증가
현재 pv 의 이름을 기준하여 4G > 10G 로 증가 : .spec.resources.requests.storage의 4Gi 를 10Gi로 변경
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec -it app -- sh -c 'df -hT --type=ext4'
Filesystem Type Size Used Avail Use% Mounted on
/dev/nvme1n1 ext4 9.8G 28K 9.7G 1% /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl df-pv
PV NAME PVC NAME NAMESPACE NODE NAME POD NAME VOLUME MOUNT NAME SIZE USED AVAILABLE %USED IUSED IFREE %IUSED
pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 ebs-claim default ip-192-168-3-171.ap-northeast-2.compute.internal app persistent-storage 3Gi 28Ki 3Gi 0.00 12 262132 0.00
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#

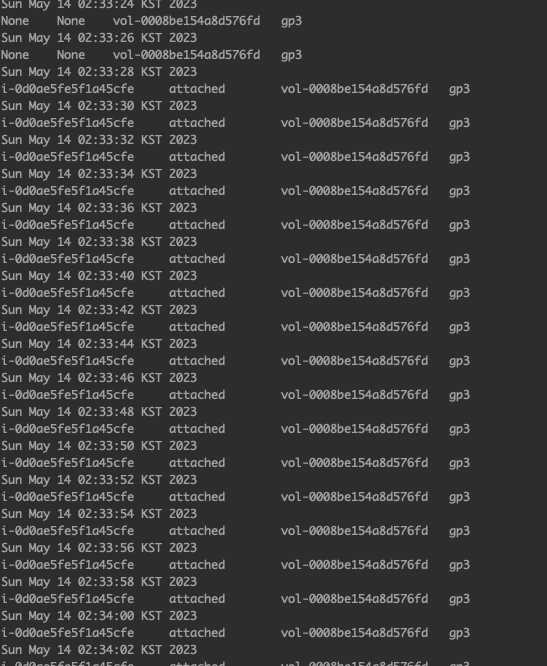

(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws ec2 describe-volumes --volume-ids $(kubectl get pv -o jsonpath="{.items[0].spec.csi.volumeHandle}") | jq
{
"Volumes": [
{
"Attachments": [
{
"AttachTime": "2023-05-13T17:33:29+00:00",
"Device": "/dev/xvdaa",
"InstanceId": "i-0d0ae5fe5f1a45cfe",
"State": "attached",
"VolumeId": "vol-0008be154a8d576fd",
"DeleteOnTermination": false
}
],
"AvailabilityZone": "ap-northeast-2c",
"CreateTime": "2023-05-13T17:33:24.976000+00:00",
"Encrypted": true,
"KmsKeyId": "arn:aws:kms:ap-northeast-2:070271542073:key/d3943824-4a45-40a9-a318-642327604394",
"Size": 10,
"SnapshotId": "",
"State": "in-use",
"VolumeId": "vol-0008be154a8d576fd",
"Iops": 3000,
"Tags": [
{
"Key": "kubernetes.io/created-for/pv/name",
"Value": "pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8"
},
{
"Key": "ebs.csi.aws.com/cluster",
"Value": "true"
},
{
"Key": "kubernetes.io/created-for/pvc/namespace",
"Value": "default"
},
{
"Key": "KubernetesCluster",
"Value": "myeks"
},
{
"Key": "kubernetes.io/cluster/myeks",
"Value": "owned"
},
{
"Key": "kubernetes.io/created-for/pvc/name",
"Value": "ebs-claim"
},
{
"Key": "Name",
"Value": "myeks-dynamic-pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8"
},
{
"Key": "CSIVolumeName",
"Value": "pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8"
}
],
"VolumeType": "gp3",
"MultiAttachEnabled": false,
"Throughput": 125
}
]
}
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl df-pv
PV NAME PVC NAME NAMESPACE NODE NAME POD NAME VOLUME MOUNT NAME SIZE USED AVAILABLE %USED IUSED IFREE %IUSED
pvc-4eef7975-76de-49f5-99fe-3a9f4ae355c8 ebs-claim default ip-192-168-3-171.ap-northeast-2.compute.internal app persistent-storage 9Gi 32Ki 9Gi 0.00 12 655348 0.00
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
PVC 삭제시 PV 도 삭제됨
✍ AWS Volume SnapShots Controller
Volumesnapshots 컨트롤러 설치
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshots.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshotclasses.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/client/config/crd/snapshot.storage.k8s.io_volumesnapshotcontents.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f snapshot.storage.k8s.io_volumesnapshots.yaml,snapshot.storage.k8s.io_volumesnapshotclasses.yaml,snapshot.storage.k8s.io_volumesnapshotcontents.yaml
customresourcedefinition.apiextensions.k8s.io/volumesnapshots.snapshot.storage.k8s.io created
customresourcedefinition.apiextensions.k8s.io/volumesnapshotclasses.snapshot.storage.k8s.io created
customresourcedefinition.apiextensions.k8s.io/volumesnapshotcontents.snapshot.storage.k8s.io created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get crd | grep snapshot
volumesnapshotclasses.snapshot.storage.k8s.io 2023-05-13T17:55:30Z
volumesnapshotcontents.snapshot.storage.k8s.io 2023-05-13T17:55:30Z
volumesnapshots.snapshot.storage.k8s.io 2023-05-13T17:55:30Z
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl api-resources | grep snapshot
volumesnapshotclasses vsclass,vsclasses snapshot.storage.k8s.io/v1 false VolumeSnapshotClass
volumesnapshotcontents vsc,vscs snapshot.storage.k8s.io/v1 false VolumeSnapshotContent
volumesnapshots vs snapshot.storage.k8s.io/v1 true VolumeSnapshot
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/deploy/kubernetes/snapshot-controller/rbac-snapshot-controller.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-csi/external-snapshotter/master/deploy/kubernetes/snapshot-controller/setup-snapshot-controller.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# [root@myeks-bastion-EC2
-bash: [root@myeks-bastion-EC2: command not found
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f rbac-snapshot-controller.yaml,setup-snapshot-controller.yaml
serviceaccount/snapshot-controller created
clusterrole.rbac.authorization.k8s.io/snapshot-controller-runner created
clusterrolebinding.rbac.authorization.k8s.io/snapshot-controller-role created
role.rbac.authorization.k8s.io/snapshot-controller-leaderelection created
rolebinding.rbac.authorization.k8s.io/snapshot-controller-leaderelection created
deployment.apps/snapshot-controller created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get deploy -n kube-system snapshot-controller
NAME READY UP-TO-DATE AVAILABLE AGE
snapshot-controller 2/2 2 0 9s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pod -n kube-system -l app=snapshot-controller
NAME READY STATUS RESTARTS AGE
snapshot-controller-76494bf6c9-6n9hk 1/1 Running 0 18s
snapshot-controller-76494bf6c9-vqqss 1/1 Running 0 18s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-sigs/aws-ebs-csi-driver/master/examples/kubernetes/snapshot/manifests/classes/snapshotclass.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f snapshotclass.yaml
volumesnapshotclass.snapshot.storage.k8s.io/csi-aws-vsc created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get vsclass
NAME DRIVER DELETIONPOLICY AGE
csi-aws-vsc ebs.csi.aws.com Delete 8s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#테스트 PVC/파드 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f awsebs-pvc.yaml
persistentvolumeclaim/ebs-claim created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f awsebs-pod.yaml
pod/app createdVolumeSnapshot 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/ebs-volume-snapshot.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat ebs-volume-snapshot.yaml | yh
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
name: ebs-volume-snapshot
spec:
volumeSnapshotClassName: csi-aws-vsc
source:
persistentVolumeClaimName: ebs-claim
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f ebs-volume-snapshot.yaml
volumesnapshot.snapshot.storage.k8s.io/ebs-volume-snapshot created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f ebs-volume-snapshot.yaml
volumesnapshot.snapshot.storage.k8s.io/ebs-volume-snapshot created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get volumesnapshot
NAME READYTOUSE SOURCEPVC SOURCESNAPSHOTCONTENT RESTORESIZE SNAPSHOTCLASS SNAPSHOTCONTENT CREATIONTIME AGE
ebs-volume-snapshot true ebs-claim 4Gi csi-aws-vsc snapcontent-1a03fed0-447a-4b91-8a84-f3918373e27d 97s 97s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get volumesnapshot ebs-volume-snapshot -o jsonpath={.status.boundVolumeSnapshotContentName} ; echo
snapcontent-1a03fed0-447a-4b91-8a84-f3918373e27d
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl describe volumesnapshot.snapshot.storage.k8s.io ebs-volume-snapshot
Name: ebs-volume-snapshot
Namespace: default
Labels: <none>
Annotations: <none>
API Version: snapshot.storage.k8s.io/v1
Kind: VolumeSnapshot
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get volumesnapshotcontents
NAME READYTOUSE RESTORESIZE DELETIONPOLICY DRIVER VOLUMESNAPSHOTCLASS VOLUMESNAPSHOT VOLUMESNAPSHOTNAMESPACE AGE
snapcontent-1a03fed0-447a-4b91-8a84-f3918373e27d true 4294967296 Delete ebs.csi.aws.com csi-aws-vsc ebs-volume-snapshot default 2m26s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#

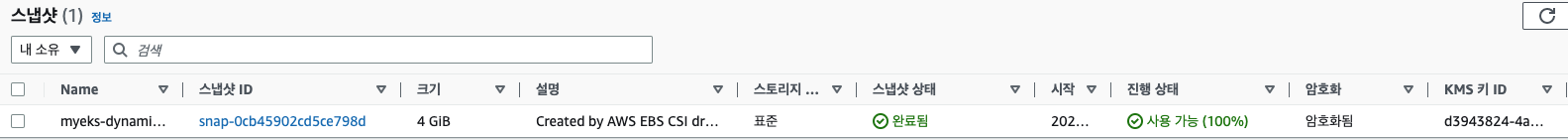

# VolumeSnapshot ID 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get volumesnapshotcontents -o jsonpath='{.items[*].status.snapshotHandle}' ; echo
snap-0cb45902cd5ce798d
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
# VolumeSnapshot ID 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws ec2 describe-snapshots --owner-ids self | jq
{
"Snapshots": [
{
"Description": "Created by AWS EBS CSI driver for volume vol-045304eb6f27d9766",
"Encrypted": true,
"KmsKeyId": "arn:aws:kms:ap-northeast-2:070271542073:key/d3943824-4a45-40a9-a318-642327604394",
"OwnerId": "070271542073",
"Progress": "100%",
"SnapshotId": "snap-0cb45902cd5ce798d",
"StartTime": "2023-05-13T18:00:29.632000+00:00",
"State": "completed",
"VolumeId": "vol-045304eb6f27d9766",
"VolumeSize": 4,
"Tags": [
{
"Key": "ebs.csi.aws.com/cluster",
"Value": "true"
},
{
"Key": "CSIVolumeSnapshotName",
"Value": "snapshot-1a03fed0-447a-4b91-8a84-f3918373e27d"
},
{
"Key": "kubernetes.io/cluster/myeks",
"Value": "owned"
},
{
"Key": "Name",
"Value": "myeks-dynamic-snapshot-1a03fed0-447a-4b91-8a84-f3918373e27d"
}
],
"StorageTier": "standard"
}
]
}
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws ec2 describe-snapshots --owner-ids self | jq
{
"Snapshots": [
{
"Description": "Created by AWS EBS CSI driver for volume vol-045304eb6f27d9766",
"Encrypted": true,
"KmsKeyId": "arn:aws:kms:ap-northeast-2:070271542073:key/d3943824-4a45-40a9-a318-642327604394",
"OwnerId": "070271542073",
"Progress": "100%",
"SnapshotId": "snap-0cb45902cd5ce798d",
"StartTime": "2023-05-13T18:00:29.632000+00:00",
"State": "completed",
"VolumeId": "vol-045304eb6f27d9766",
"VolumeSize": 4,
"Tags": [
{
"Key": "ebs.csi.aws.com/cluster",
"Value": "true"
},
{
"Key": "CSIVolumeSnapshotName",
"Value": "snapshot-1a03fed0-447a-4b91-8a84-f3918373e27d"
},
{
"Key": "kubernetes.io/cluster/myeks",
"Value": "owned"
},
{
"Key": "Name",
"Value": "myeks-dynamic-snapshot-1a03fed0-447a-4b91-8a84-f3918373e27d"
}
],
"StorageTier": "standard"
}
]
}
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
aws ec2 describe-snapshots --owner-ids self | jq
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pod app && kubectl delete pvc ebs-claim
pod "app" deleted
persistentvolumeclaim "ebs-claim" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
스냅샷으로 복원
아래와 같이 없음!!
primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc,pv
No resources found
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat <<EOT > ebs-snapshot-restored-claim.yaml
> apiVersion: v1
> kind: PersistentVolumeClaim
> metadata:
> name: ebs-snapshot-restored-claim
> spec:
> storageClassName: gp3
> accessModes:
> - ReadWriteOnce
> resources:
> requests:
> storage: 4Gi
> dataSource:
> name: ebs-volume-snapshot
> kind: VolumeSnapshot
> apiGroup: snapshot.storage.k8s.io
> EOT
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat ebs-snapshot-restored-claim.yaml | yh
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: ebs-snapshot-restored-claim
spec:
storageClassName: gp3
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 4Gi
dataSource:
name: ebs-volume-snapshot
kind: VolumeSnapshot
apiGroup: snapshot.storage.k8s.io
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
**
dataSource:
name: ebs-volume-snapshot
kind: VolumeSnapshot
apiGroup: snapshot.storage.k8s.io**
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f ebs-snapshot-restored-claim.yaml
persistentvolumeclaim/ebs-snapshot-restored-claim created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
확인!!
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get pvc,pv
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/ebs-snapshot-restored-claim Pending gp3 66s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
# 파드 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/gasida/PKOS/main/3/ebs-snapshot-restored-pod.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cat ebs-snapshot-restored-pod.yaml | yh
apiVersion: v1
kind: Pod
metadata:
name: app
spec:
containers:
- name: app
image: centos
command: ["/bin/sh"]
args: ["-c", "while true; do echo $(date -u) >> /data/out.txt; sleep 5; done"]
volumeMounts:
- name: persistent-storage
mountPath: /data
volumes:
- name: persistent-storage
persistentVolumeClaim:
claimName: ebs-snapshot-restored-claim
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl apply -f ebs-snapshot-restored-pod.yaml
pod/app created
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl exec app -- cat /data/out.txt
Sat May 13 18:12:39 UTC 2023
Sat May 13 18:12:44 UTC 2023
Sat May 13 18:12:49 UTC 2023
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
# 삭제
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl delete pod app && kubectl delete pvc ebs-snapshot-restored-claim && kubectl delete volumesnapshots ebs-volume-snapshot
pod "app" deleted
persistentvolumeclaim "ebs-snapshot-restored-claim" deleted
volumesnapshot.snapshot.storage.k8s.io "ebs-volume-snapshot" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#✍ AWS EFS Controller
# EFS 정보 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws efs describe-file-systems --query "FileSystems[*].FileSystemId" --output text
fs-036a45de37ff1463b
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#
# IAM 정책 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# curl -s -O https://raw.githubusercontent.com/kubernetes-sigs/aws-efs-csi-driver/master/docs/iam-policy-example.json
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# aws iam create-policy --policy-name AmazonEKS_EFS_CSI_Driver_Policy --policy-document file://iam-policy-example.json
# ISRA 설정 : 고객관리형 정책 AmazonEKS_EFS_CSI_Driver_Policy 사용
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl create iamserviceaccount \
> --name efs-csi-controller-sa \
> --namespace kube-system \
> --cluster ${CLUSTER_NAME} \
> --attach-policy-arn arn:aws:iam::${ACCOUNT_ID}:policy/AmazonEKS_EFS_CSI_Driver_Policy \
> --approve
2023-05-14 03:18:35 [ℹ] 2 existing iamserviceaccount(s) (kube-system/aws-load-balancer-controller,kube-system/ebs-csi-controller-sa) will be excluded
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# kubectl get sa -n kube-system efs-csi-controller-sa -o yaml | head -5
apiVersion: v1
kind: ServiceAccount
metadata:
annotations:
eks.amazonaws.com/role-arn: arn:aws:iam::070271542073:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-----
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# eksctl get iamserviceaccount --cluster myeks
NAMESPACE NAME ROLE ARN
kube-system aws-load-balancer-controller arn:aws:iam::070271542073:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-Role1-211MO6823FEL
kube-system ebs-csi-controller-sa arn:aws:iam::070271542073:role/AmazonEKS_EBS_CSI_DriverRole
kube-system efs-csi-controller-sa arn:aws:iam::070271542073:role/eksctl-myeks-addon-iamserviceaccount-kube-sy-Role1-BSIE936WMAQ9
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]#

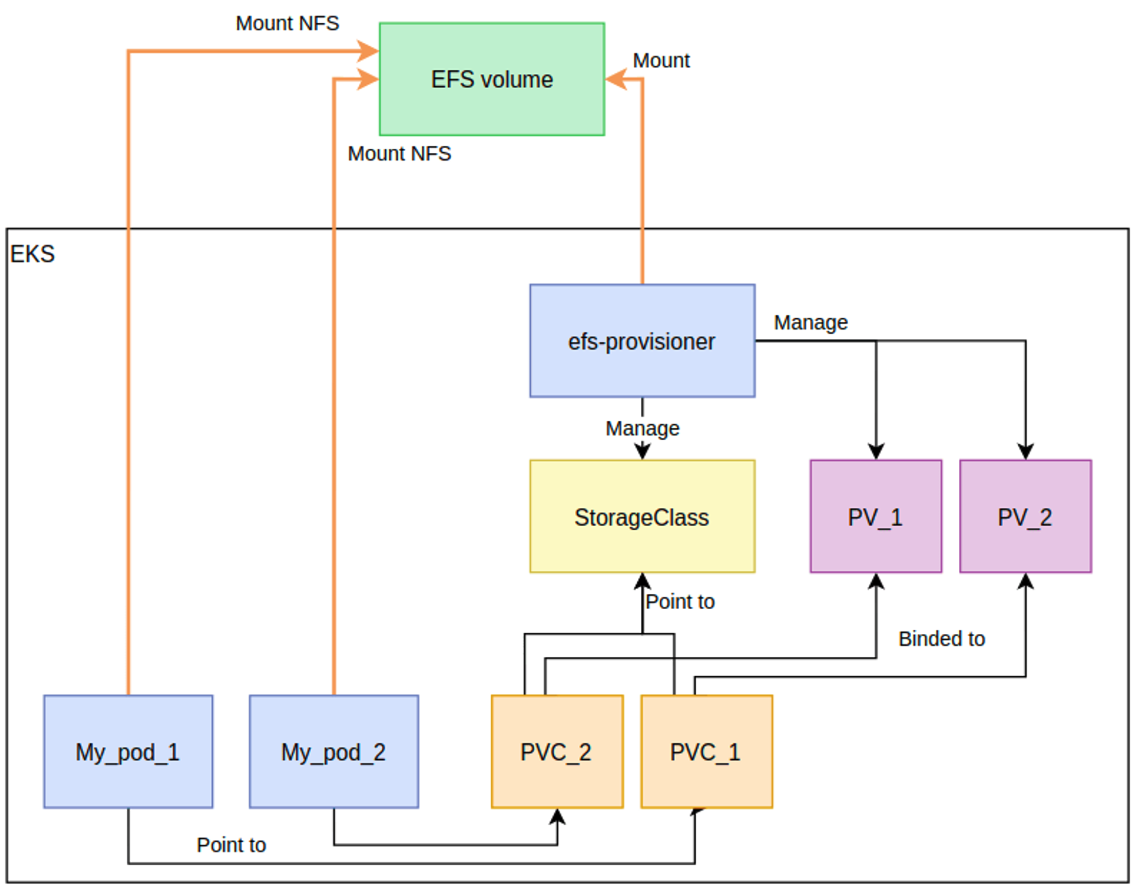

# EFS Controller 설치
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# helm upgrade -i aws-efs-csi-driver aws-efs-csi-driver/aws-efs-csi-driver \
> --namespace kube-system \
> --set image.repository=602401143452.dkr.ecr.${AWS_DEFAULT_REGION}.amazonaws.com/eks/aws-efs-csi-driver \
> --set controller.serviceAccount.create=false \
> --set controller.serviceAccount.name=efs-csi-controller-sa
Release "aws-efs-csi-driver" does not exist. Installing it now.
# 확인
kubectl get pod -n kube-system -l "app.kubernetes.io/name=aws-efs-csi-driver,app.kubernetes.io/instance=aws-efs-csi-driver"
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# cd /root/efs-csi/examples/kubernetes/multiple_pods/specs && tree
.
├── claim.yaml
├── pod1.yaml
├── pod2.yaml
├── pv.yaml
└── storageclass.yaml
0 directories, 5 files
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# cat pv.yaml | yh
apiVersion: v1
kind: PersistentVolume
metadata:
name: efs-pv
spec:
capacity:
storage: 5Gi
volumeMode: Filesystem
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
storageClassName: efs-sc
csi:
driver: efs.csi.aws.com
volumeHandle: fs-036a45de37ff1463b
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl apply -f pv.yaml
persistentvolume/efs-pv created

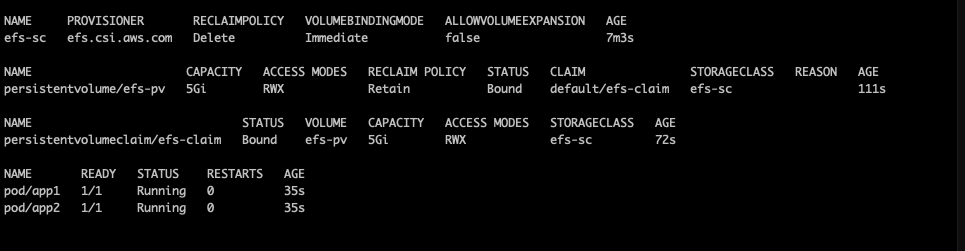

(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl get pv; kubectl describe pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
efs-pv 5Gi RWX Retain Available efs-sc 8s
Name: efs-pv
Labels: <none>
Annotations: <none>
Finalizers: [kubernetes.io/pv-protection]
StorageClass: efs-sc
Status: Available
Claim:
Reclaim Policy: Retain
Access Modes: RWX
VolumeMode: Filesystem
Capacity: 5Gi
Node Affinity: <none>
Message:
Source:
Type: CSI (a Container Storage Interface (CSI) volume source)
Driver: efs.csi.aws.com
FSType:
VolumeHandle: fs-036a45de37ff1463b
ReadOnly: false
VolumeAttributes: <none>
Events: <none>
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
# 파드 정보 확인 : PV에 5Gi 와 파드 내에서 확인한 NFS4 볼륨 크리 8.0E의 차이는 무엇? 파드에 6Gi 이상 저장 가능한가?
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl get pods
NAME READY STATUS RESTARTS AGE
app1 1/1 Running 0 113s
app2 1/1 Running 0 113s
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl exec -ti app1 -- sh -c "df -hT -t nfs4"
Filesystem Type Size Used Available Use% Mounted on
127.0.0.1:/ nfs4 8.0E 0 8.0E 0% /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl exec -ti app2 -- sh -c "df -hT -t nfs4"
Filesystem Type Size Used Available Use% Mounted on
127.0.0.1:/ nfs4 8.0E 0 8.0E 0% /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# tail -f /mnt/myefs/out1.txt
삭제
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl delete pod app1 app2
pod "app1" deleted
pod "app2" deleted
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl delete pvc efs-claim && kubectl delete pv efs-pv && kubectl delete sc efs-sc
persistentvolumeclaim "efs-claim" deleted
persistentvolume "efs-pv" deleted
storageclass.storage.k8s.io "efs-sc" deleted

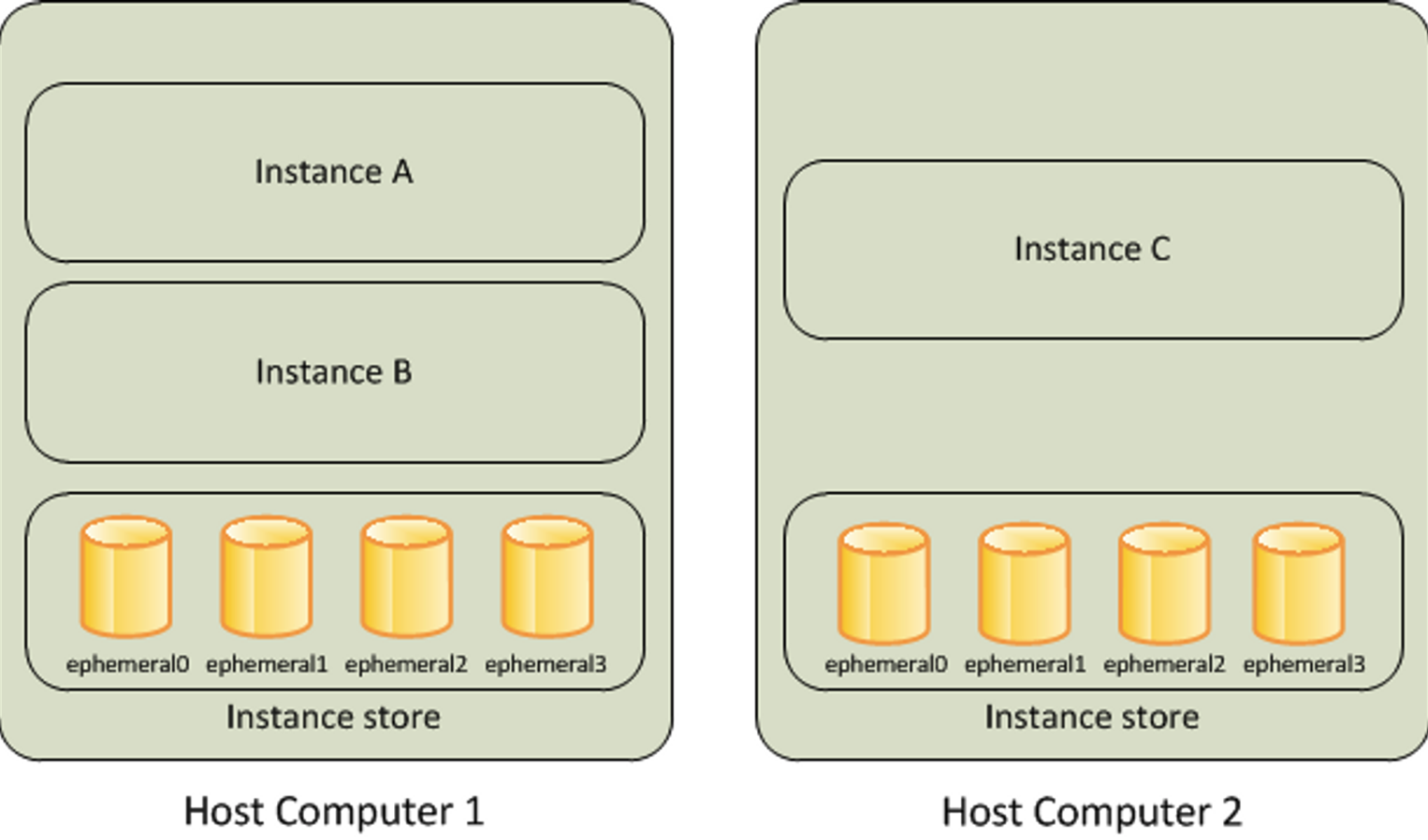

(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#✍ EKS Persistent Volumes for Instance Store & Add NodeGroup
# 인스턴스 스토어 볼륨이 있는 c5 모든 타입의 스토리지 크기
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# aws ec2 describe-instance-types \
> --filters "Name=instance-type,Values=c5*" "Name=instance-storage-supported,Values=true" \
> --query "InstanceTypes[].[InstanceType, InstanceStorageInfo.TotalSizeInGB]" \
> --output table
--------------------------
| DescribeInstanceTypes |
+---------------+--------+
| c5d.12xlarge | 1800 |
| c5d.large | 50 |
| c5d.24xlarge | 3600 |
| c5d.2xlarge | 200 |
| c5d.4xlarge | 400 |
| c5d.18xlarge | 1800 |
| c5d.metal | 3600 |
| c5d.xlarge | 100 |
| c5d.9xlarge | 900 |
+---------------+--------+#신규 노드 그룹 생성
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# eksctl create nodegroup -c $CLUSTER_NAME -r $AWS_DEFAULT_REGION --subnet-ids "$PubSubnet1","$PubSubnet2","$PubSubnet3" --ssh-access \
> -n ng2 -t c5d.large -N 1 -m 1 -M 1 --node-volume-size=30 --node-labels disk=nvme --max-pods-per-node 100 --dry-run > myng2.yaml
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]##워커 노드 SSH 접속 & max-pod 확인
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 hostname
The authenticity of host '192.168.3.85 (192.168.3.85)' can't be established.
ECDSA key fingerprint is SHA256:uH1vY+SY7qVRgbFvo6G5TnGLkxbesHR+geeavdLqCrw.
ECDSA key fingerprint is MD5:ab:11:7d:c0:e2:79:0e:bf:ed:96:01:0c:48:bd:34:35.
Are you sure you want to continue connecting (yes/no)? ㅛ yes
Warning: Permanently added '192.168.3.85' (ECDSA) to the list of known hosts.
ip-192-168-3-85.ap-northeast-2.compute.internal
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl get node -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ip-192-168-1-213.ap-northeast-2.compute.internal Ready <none> 3h5m v1.24.11-eks-a59e1f0 192.168.1.213 13.125.228.99 Amazon Linux 2 5.10.178-162.673.amzn2.x86_64 containerd://1.6.19
ip-192-168-2-58.ap-northeast-2.compute.internal Ready <none> 3h5m v1.24.11-eks-a59e1f0 192.168.2.58 3.35.227.76 Amazon Linux 2 5.10.178-162.673.amzn2.x86_64 containerd://1.6.19
ip-192-168-3-171.ap-northeast-2.compute.internal Ready <none> 3h5m v1.24.11-eks-a59e1f0 192.168.3.171 13.125.217.250 Amazon Linux 2 5.10.178-162.673.amzn2.x86_64 containerd://1.6.19
ip-192-168-3-85.ap-northeast-2.compute.internal Ready <none> 6m29s v1.24.11-eks-a59e1f0 192.168.3.85 52.79.133.153 Amazon Linux 2 5.10.178-162.673.amzn2.x86_64 containerd://1.6.19
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo nvme list
Node SN Model Namespace Usage Format FW Rev
---------------- -------------------- ---------------------------------------- --------- -------------------------- ---------------- --------
/dev/nvme0n1 vol05ec5edb534aefb18 Amazon Elastic Block Store 1 32.21 GB / 32.21 GB 512 B + 0 B 1.0
/dev/nvme1n1 AWS250C59ADA5F344C57 Amazon EC2 NVMe Instance Storage 1 50.00 GB / 50.00 GB 512 B + 0 B 0
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo lsblk -e 7 -d
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
nvme0n1 259:0 0 30G 0 disk
nvme1n1 259:1 0 46.6G 0 disk /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo df -hT -t xfs
Filesystem Type Size Used Avail Use% Mounted on
/dev/nvme0n1p1 xfs 30G 3.3G 27G 11% /
/dev/nvme1n1 xfs 47G 365M 47G 1% /data
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo tree /data
/data
0 directories, 0 files
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo cat /etc/fstab
#
UUID=0ccd3c9e-3e0f-4e59-ae3c-9498ef40c541 / xfs defaults,noatime 1 1
/dev/nvme1n1 /data xfs defaults,noatime 0 2
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# kubectl describe node -l disk=nvme | grep Allocatable: -A7
Allocatable:
attachable-volumes-aws-ebs: 25
cpu: 1930m
ephemeral-storage: 27905944324
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 3097560Ki
pods: 100
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]# ssh ec2-user@$N4 sudo ps -ef | grep kubelet
root 2972 1 0 18:51 ? 00:00:02 /usr/bin/kubelet --config /etc/kubernetes/kubelet/kubelet-config.json --kubeconfig /var/lib/kubelet/kubeconfig --container-runtime-endpoint unix:///run/containerd/containerd.sock --image-credential-provider-config /etc/eks/image-credential-provider/config.json --image-credential-provider-bin-dir /etc/eks/image-credential-provider --node-ip=192.168.3.85 --pod-infra-container-image=602401143452.dkr.ecr.ap-northeast-2.amazonaws.com/eks/pause:3.5 --v=2 --cloud-provider=aws --container-runtime=remote --node-labels=eks.amazonaws.com/sourceLaunchTemplateVersion=1,alpha.eksctl.io/cluster-name=myeks,alpha.eksctl.io/nodegroup-name=ng2,disk=nvme,eks.amazonaws.com/nodegroup-image=ami-02ddbc7e7f404a16a,eks.amazonaws.com/capacityType=ON_DEMAND,eks.amazonaws.com/nodegroup=ng2,eks.amazonaws.com/sourceLaunchTemplateId=lt-0f24123c65b88fe4e --max-pods=29 --max-pods=100
root 3692 3132 0 18:51 ? 00:00:00 /csi-node-driver-registrar --csi-address=/csi/csi.sock --kubelet-registration-path=/var/lib/kubelet/plugins/efs.csi.aws.com/csi.sock --v=2
root 3865 3748 0 18:51 ? 00:00:00 /csi-node-driver-registrar --csi-address=/csi/csi.sock --kubelet-registration-path=/var/lib/kubelet/plugins/ebs.csi.aws.com/csi.sock --v=2
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 specs]#
모니터링
(primedo_eks@myeks:default) [root@myeks-bastion-EC2 ~]# ssh ec2-user@$N4 iostat -xmdz 1 -p nvme1n1
Linux 5.10.178-162.673.amzn2.x86_64 (ip-192-168-3-85.ap-northeast-2.compute.internal) 05/13/2023 _x86_64_ (2 CPU)
Device: rrqm/s wrqm/s r/s w/s rMB/s wMB/s avgrq-sz avgqu-sz await r_await w_await svctm %util
nvme1n1 0.00 0.00 0.31 0.30 0.01 0.03 123.87 0.00 0.20 0.06 0.35 0.26 0.02
Device: rrqm/s wrqm/s r/s w/s rMB/s wMB/s avgrq-sz avgqu-sz await r_await w_await svctm %util
Device: rrqm/s wrqm/s r/s w/s rMB/s wMB/s avgrq-sz avgqu-sz await r_await w_await svctm %util
Device: rrqm/s wrqm/s r/s w/s rMB/s wMB/s avgrq-sz avgqu-sz await r_await w_await svctm %util
primedo
