할 일 목록을 만들기 위해서는 기존의 컨트롤러가 아니라 테이블뷰컨트롤러가 있어야한다.
기존의 것들을 지우고 테이블 뷰컨트롤 추가하고 navigation controller를 추가해주자
을 체크해서 앱이 실행될 때 처음으로 가야 할 뷰 컨트롤러를 네비게이션 컨트롤러로 선택해주자

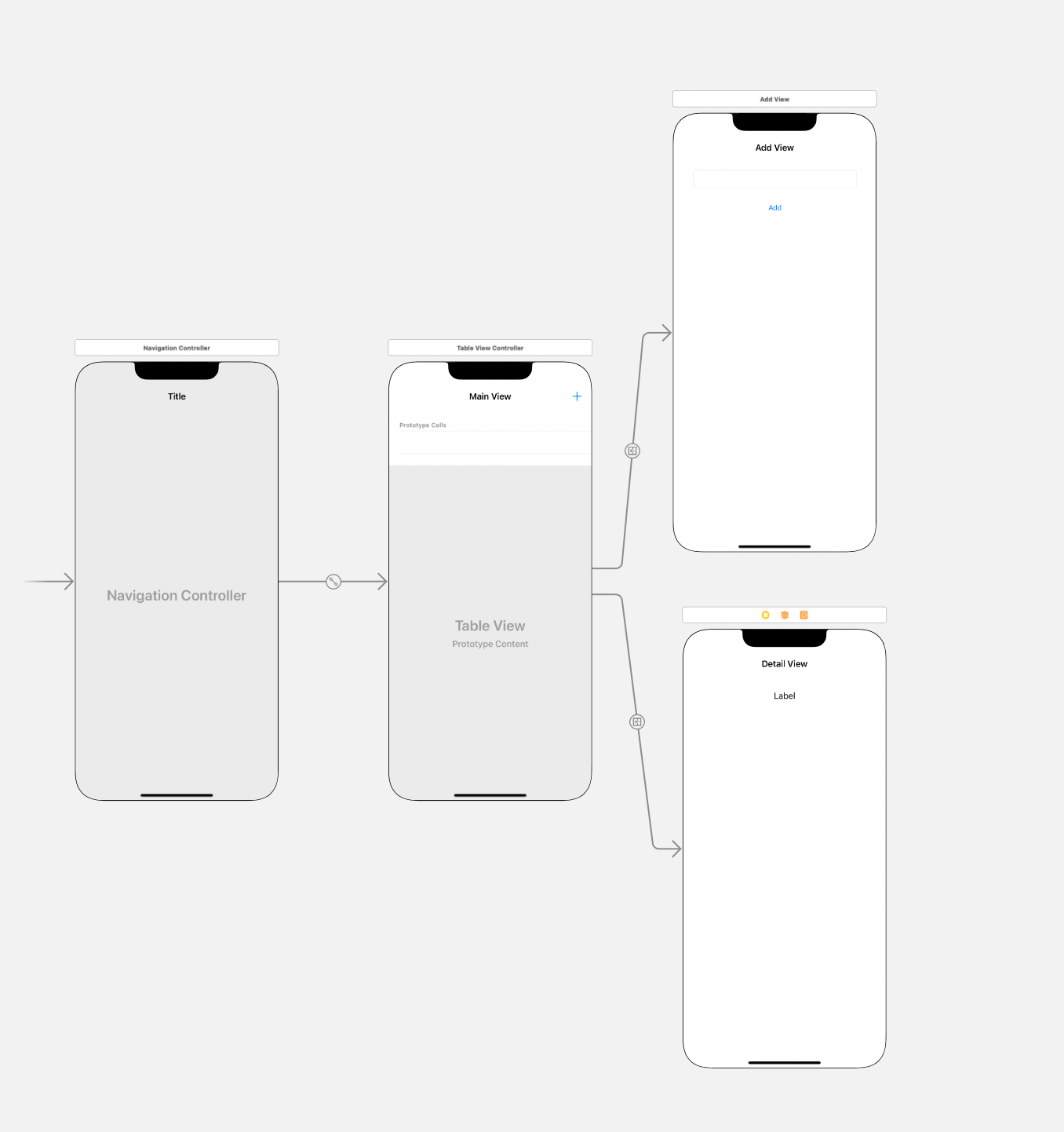

바 버튼 아이템을 추가하고 그 후 뷰 컨트롤러 2개를 추가해주고
세그웨이 show로 연결시켜준다. 아래 세그웨이에 identifier -> sgDetail로 해준다. 그리고 navigation Item 타이틀을 바꿔준다.

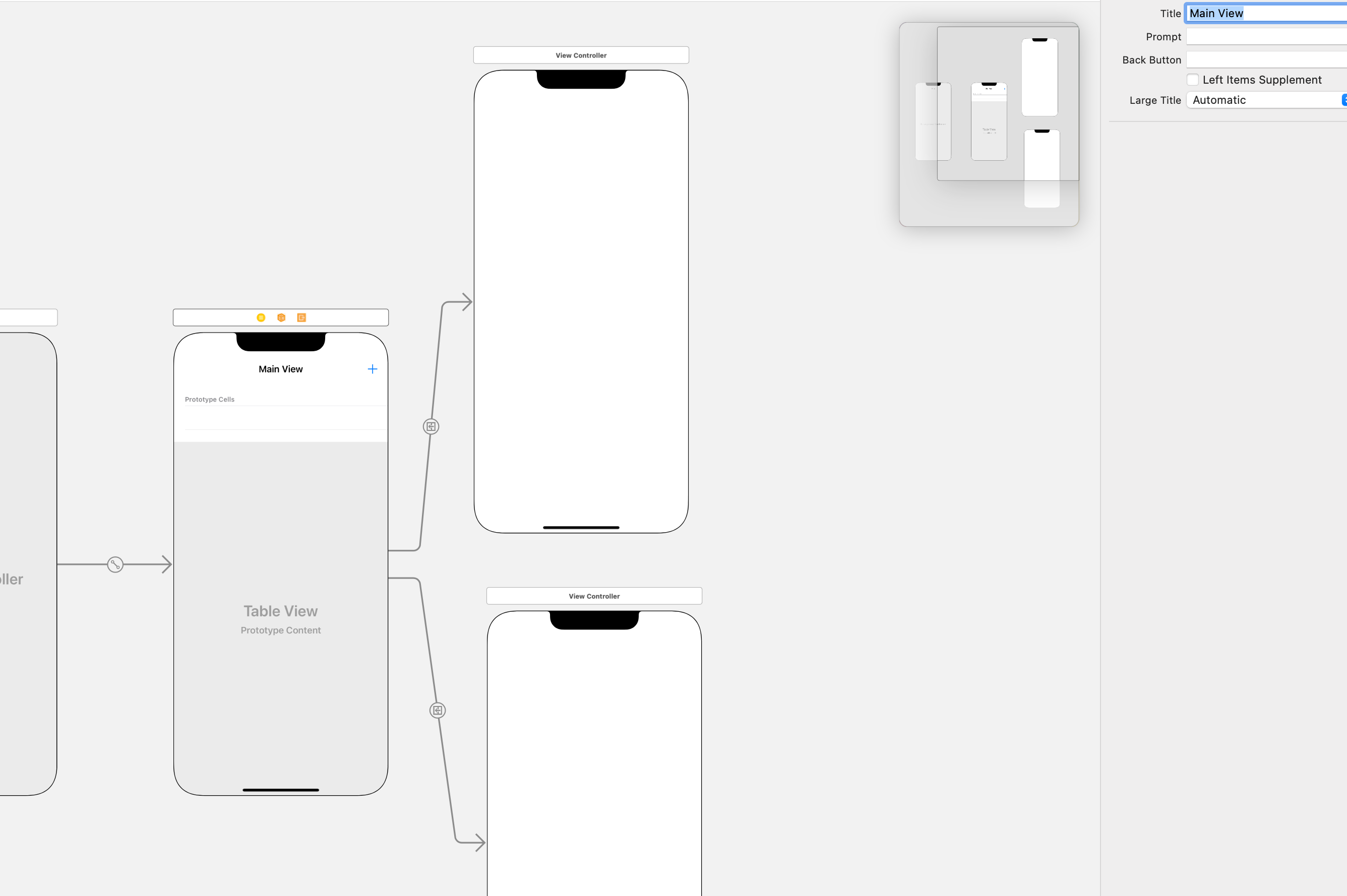

그리고 위와 같이 타이틀을 바꿔주고 필요 요소들을 넣어준다.
이제 swift파일을 작성해줘야한다
3개의 파일을 추가하자
- 테이블 뷰
- add view -> 텍스트필드
- detail view -> Label
- Add view -> Add 버튼
앱이 실행됐을때 기본적으로 아이콘 포함된 3개의 목록이 나타나게 하자
그러므로 목록과 함께 아이콘으로 사용될 이미지 추가하고
목록보여주는 코드를 작성하자
import UIKit
var items = ["책 구매","희찬와 약속","알고리즘 스터디 준비하기"]
var itemsImageFile = ["cart.png","clock.png","pencil.png"]
class TableViewController: UITableViewController {
@IBOutlet var tvListView: UITableView!
override func viewDidLoad() {
super.viewDidLoad()
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = false
// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
// self.navigationItem.rightBarButtonItem = self.editButtonItem
}
// MARK: - Table view data source
override func numberOfSections(in tableView: UITableView) -> Int {
// #warning Incomplete implementation, return the number of sections
return 1 // 보통 테이블 안에 섹션 1개 이므로 리턴 1을 한다.
}
override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
// #warning Incomplete implementation, return the number of rows
return items.count //섹션당 열의 개수는 items의 개수이다.
}
override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "myCell", for: indexPath)
cell.textLabel?.text = items[(indexPath as NSIndexPath).row] // 셀의 텍스트 레이블에 items대입
cell.imageView?.image = UIImage(named: itemsImageFile[(indexPath as NSIndexPath).row]) // 이미지뷰에 사진 대입
return cell
}
이렇게 작성하고 실행해보면
이렇게 뜬다!!
위의 파일에
//삭제버튼 이름수정
override func tableView(_ tableView: UITableView, titleForDeleteConfirmationButtonForRowAt indexPath: IndexPath) -> String? {
return "삭제"
}
// Override to support editing the table view.
override func tableView(_ tableView: UITableView, commit editingStyle: UITableViewCell.EditingStyle, forRowAt indexPath: IndexPath) {
if editingStyle == .delete {
// Delete the row from the data source
items.remove(at: (indexPath as NSIndexPath).row)
itemsImageFile.remove(at: (indexPath as NSIndexPath).row)
tableView.deleteRows(at: [indexPath], with: .fade)
} else if editingStyle == .insert {
// Create a new instance of the appropriate class, insert it into the array, and add a new row to the table view
}
}

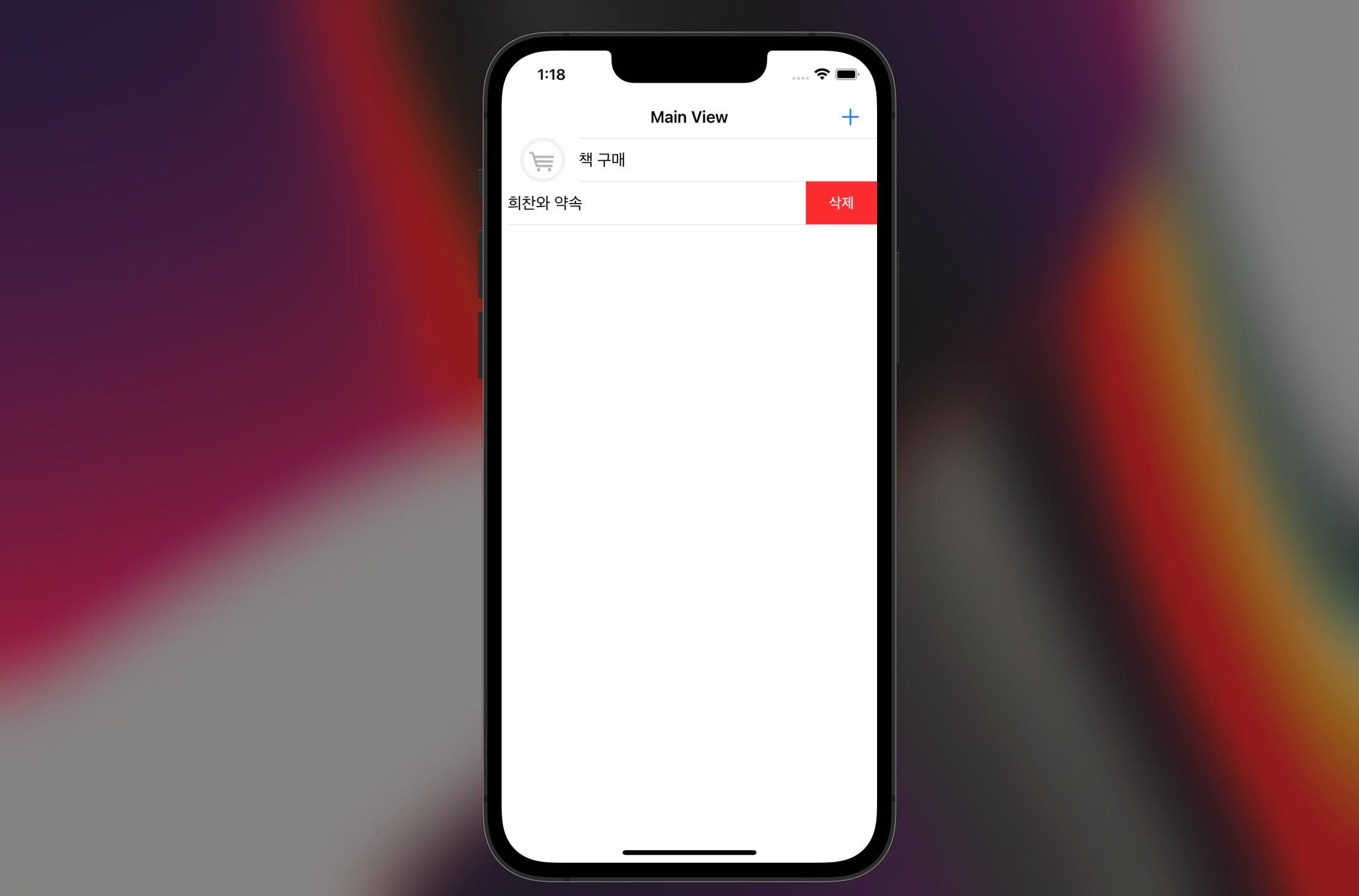

이 코드를 추가하여 delete 버튼을 만드는데
"삭제"라고 만들기 위해 이름수정 함수를 하나 만들어줘서 적용시켜주면
위와 같이 짜라란~
override func viewDidLoad() {
super.viewDidLoad()
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = false
// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
self.navigationItem.leftBarButtonItem = self.editButtonItem // 왼쪽에 edit 버튼 만들기
}
viewDidLoad 함수에 마지막줄 주석 풀어주고 right->left로 바꿔주면 Edit버튼을 눌러서 삭제도 가능하다.
목록 옮기는 함수안에
변수를 만들어서 이동할 변수를 기억한 후 이동할 목록을 삭제하고 변수에 저장된 내용을 이동한 곳에 삽입하는 코드를 작성하자
// 목록 옮기기 함수
// Override to support rearranging the table view.
override func tableView(_ tableView: UITableView, moveRowAt fromIndexPath: IndexPath, to: IndexPath) {
// 이동할 아이템의 위치 저장 변수
let itemToMove = items[(fromIndexPath as NSIndexPath).row]
let itemImageToMove = itemsImageFile[(fromIndexPath as NSIndexPath).row]
// 이동할 아이템 삭제, 삭제한 아이템 뒤의 인덱스 재정렬 됨
items.remove(at: (fromIndexPath as NSIndexPath).row)
itemsImageFile.remove(at: (fromIndexPath as NSIndexPath).row)
// 삭제된 아이템을 이동할 위치로 삽입, 삽입한 아이템 뒤의 아이템들의 인덱스 재정렬
items.insert(itemToMove, at: (to as NSIndexPath).row)
itemsImageFile.insert(itemImageToMove, at: (to as NSIndexPath).row)
}
이렇게 목록을 옮길 수 있다.
이제 목록 추가하기를 해보자
이제 AddViewController로 와서 버튼 액션 함수를
@IBAction func btnAddItem(_ sender: UIButton) {
items.append(tfAddItem.text!) // items 텍스트 필드의 텍스트 값 추가
itemsImageFile.append("clock.png")
tfAddItem.text="" // 텍필 내용 삭제
_ = navigationController?.popViewController(animated: true) //테이블 뷰로 돌아가게 한다! (팝)
}
다음과 같이 작성해주면 화면 전환이 잘 일어나지만 데이터 전달은 아직 하지 못한다.
다시 TableViewController로 돌아와서
// 뷰가 전환될 때 호출되는 함수, 리스트가 추가되어 Main View로 돌아올때 호출되며 추가된 내용을 리스트에 보여준다.
override func viewWillAppear(_ animated: Bool) {
tvListView.reloadData() // 추가된 목록을 불러들인다.
}
이렇게 목록을 reload해서 추가된것을 보여주는 함수를 작성하고 실행해보면 정상적으로 추가되는것을 확인할 수 있다.
우선, DetailViewController를 작성해주자
//
// DetailViewController.swift
// Table
//
// Created by 서희찬 on 2022/03/08.
//
import UIKit
class DetailViewController: UIViewController {
var receiveItem = "" // mainView에서 받을 텍스트를 위해 변수 receive Item선언 한다.
@IBOutlet weak var lblItem: UILabel!
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
// view가 노출될 때마다 이 내용을 레이블의 텍스트로 표시
lblItem.text = receiveItem
}
// main View에서 변수를 받기 위한 함수 추가
func receiveItem(_ item: String)
{
receiveItem = item
}
/*
// MARK: - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// Get the new view controller using segue.destination.
// Pass the selected object to the new view controller.
}
*/
}
그 후 TableViewController.swift를 수정하자
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// Get the new view controller using segue.destination.
// Pass the selected object to the new view controller.
if segue.identifier == "sgDetail"{
let cell = sender as! UITableViewCell
let indexPath = self.tvListView.indexPath(for: cell)
let detailView = segue.destination as! DetailViewController
detailView.receiveItem(items[((indexPath! as NSIndexPath).row)])
}

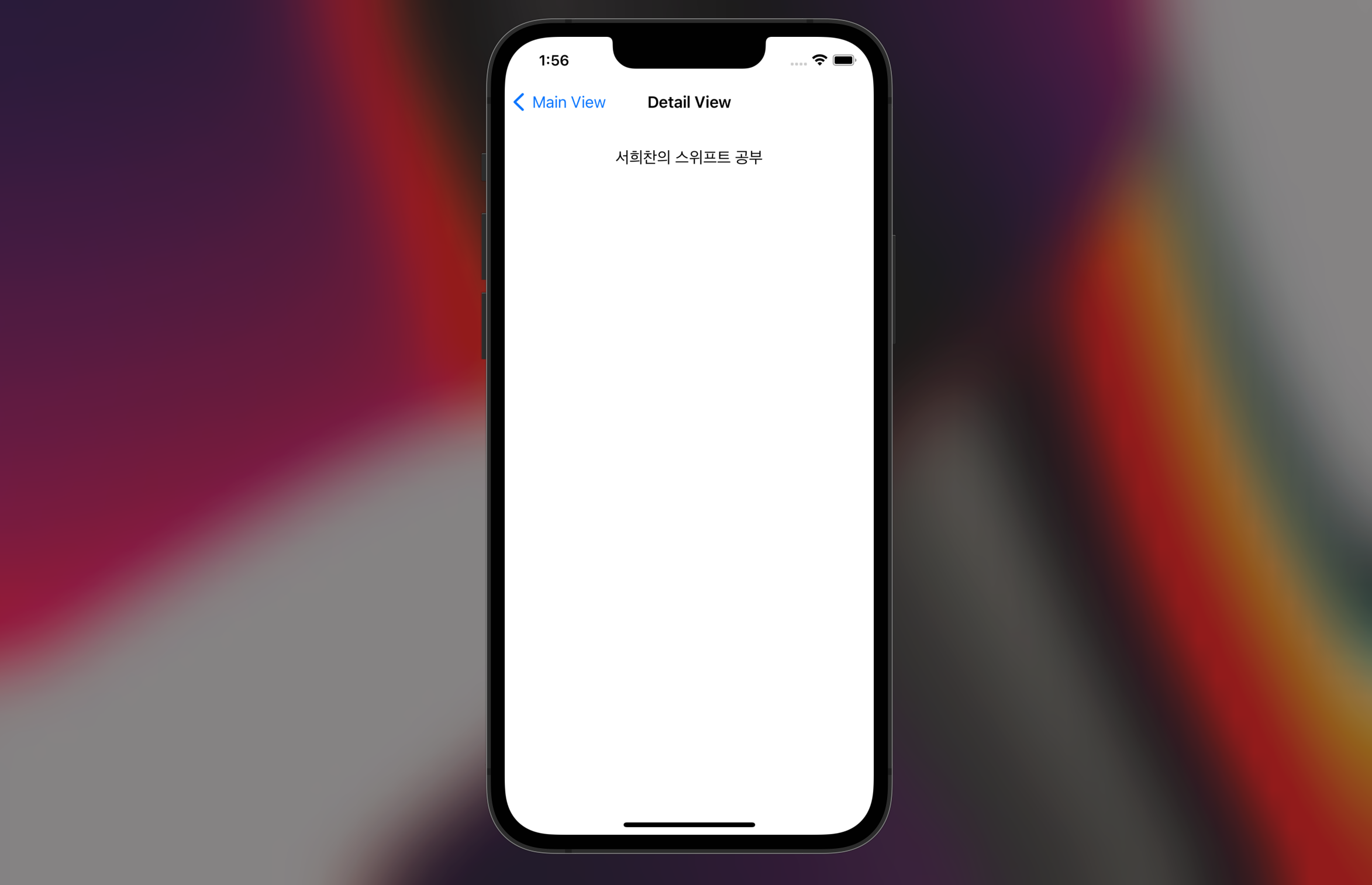

짜라란~
디테일 페이지까지 완성이다~
//
// TableViewController.swift
// Table
//
// Created by 서희찬 on 2022/03/08.
//
import UIKit
var items = ["책 구매","희찬와 약속","알고리즘 스터디 준비하기"]
var itemsImageFile = ["cart.png","clock.png","pencil.png"]
class TableViewController: UITableViewController {
@IBOutlet var tvListView: UITableView!
override func viewDidLoad() {
super.viewDidLoad()
// Uncomment the following line to preserve selection between presentations
// self.clearsSelectionOnViewWillAppear = false
// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
self.navigationItem.leftBarButtonItem = self.editButtonItem // 왼쪽에 edit 버튼 만들기
}
// 뷰가 전환될 때 호출되는 함수, 리스트가 추가되어 Main View로 돌아올때 호출되며 추가된 내용을 리스트에 보여준다.
override func viewWillAppear(_ animated: Bool) {
tvListView.reloadData() // 추가된 목록을 불러들인다.
}
// MARK: - Table view data source
override func numberOfSections(in tableView: UITableView) -> Int {
// #warning Incomplete implementation, return the number of sections
return 1 // 보통 테이블 안에 섹션 1개 이므로 리턴 1을 한다.
}
override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
// #warning Incomplete implementation, return the number of rows
return items.count //섹션당 열의 개수는 items의 개수이다.
}
override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "myCell", for: indexPath)
cell.textLabel?.text = items[(indexPath as NSIndexPath).row] // 셀의 텍스트 레이블에 items대입
cell.imageView?.image = UIImage(named: itemsImageFile[(indexPath as NSIndexPath).row]) // 이미지뷰에 사진 대입
return cell
}
/*
// Override to support conditional editing of the table view.
override func tableView(_ tableView: UITableView, canEditRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the specified item to be editable.
return true
}
*/
//삭제버튼 이름수정
override func tableView(_ tableView: UITableView, titleForDeleteConfirmationButtonForRowAt indexPath: IndexPath) -> String? {
return "삭제"
}
//삭제 구현 함수
// Override to support editing the table view.
override func tableView(_ tableView: UITableView, commit editingStyle: UITableViewCell.EditingStyle, forRowAt indexPath: IndexPath) {
if editingStyle == .delete {
// Delete the row from the data source
items.remove(at: (indexPath as NSIndexPath).row)
itemsImageFile.remove(at: (indexPath as NSIndexPath).row)
tableView.deleteRows(at: [indexPath], with: .fade)
} else if editingStyle == .insert {
// Create a new instance of the appropriate class, insert it into the array, and add a new row to the table view
}
}
// 목록 옮기기 함수
// Override to support rearranging the table view.
override func tableView(_ tableView: UITableView, moveRowAt fromIndexPath: IndexPath, to: IndexPath) {
// 이동할 아이템의 위치 저장 변수
let itemToMove = items[(fromIndexPath as NSIndexPath).row]
let itemImageToMove = itemsImageFile[(fromIndexPath as NSIndexPath).row]
// 이동할 아이템 삭제, 삭제한 아이템 뒤의 인덱스 재정렬 됨
items.remove(at: (fromIndexPath as NSIndexPath).row)
itemsImageFile.remove(at: (fromIndexPath as NSIndexPath).row)
// 삭제된 아이템을 이동할 위치로 삽입, 삽입한 아이템 뒤의 아이템들의 인덱스 재정렬
items.insert(itemToMove, at: (to as NSIndexPath).row)
itemsImageFile.insert(itemImageToMove, at: (to as NSIndexPath).row)
}
/*
// Override to support conditional rearranging of the table view.
override func tableView(_ tableView: UITableView, canMoveRowAt indexPath: IndexPath) -> Bool {
// Return false if you do not want the item to be re-orderable.
return true
}
*/
// MARK: - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
if segue.identifier == "sgDetail"{
let cell = sender as! UITableViewCell
let indexPath = self.tvListView.indexPath(for: cell)
let detailView = segue.destination as! DetailViewController
detailView.receiveItems(items[((indexPath! as NSIndexPath).row)])
}
}
}
//
// AddViewController.swift
// Table
//
// Created by 서희찬 on 2022/03/08.
//
import UIKit
class AddViewController: UIViewController {
@IBOutlet weak var tfAddItem: UITextField!
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
}
@IBAction func btnAddItem(_ sender: UIButton) {
items.append(tfAddItem.text!) // items 텍스트 필드의 텍스트 값 추가
itemsImageFile.append("clock.png")
tfAddItem.text="" // 텍필 내용 삭제
_ = navigationController?.popViewController(animated: true) //테이블 뷰로 돌아가게 한다! (팝)
}
/*
// MARK: - Navigation
// In a storyboard-based application, you will often want to do a little preparation before navigation
override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// Get the new view controller using segue.destination.
// Pass the selected object to the new view controller.
}
*/
}
//
// DetailViewController.swift
// Table
//
// Created by 서희찬 on 2022/03/08.
//
import UIKit
class DetailViewController: UIViewController {
var receiveItem = "ㅋㅋ" // mainView에서 받을 텍스트를 위해 변수 receive Item선언 한다.
@IBOutlet weak var lblItem: UILabel!
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
// view가 노출될 때마다 이 내용을 레이블의 텍스트로 표시
lblItem.text = receiveItem
}
// main View에서 변수를 받기 위한 함수 추가
func receiveItems(_ item: String)
{
receiveItem = item
}
// MARK: - Navigation
//
// // In a storyboard-based application, you will often want to do a little preparation before navigation
// // 세그웨이를 이용하여 뷰를 이동하는 함수
// override func prepare(for segue: UIStoryboardSegue, sender: Any?) {
// // Get the new view controller using segue.destination.
// // Pass the selected object to the new view controller.
// if segue.identifier == "sgDetail"{
// let cell = sender as! UITableViewCell
// let indexPath = self.tvListView.indexPath(for: cell)
// let detailView = segue.destination as! DetailViewController
// detailView.receiveItem(items[((i))])
// }
// }
}
흐하~!
