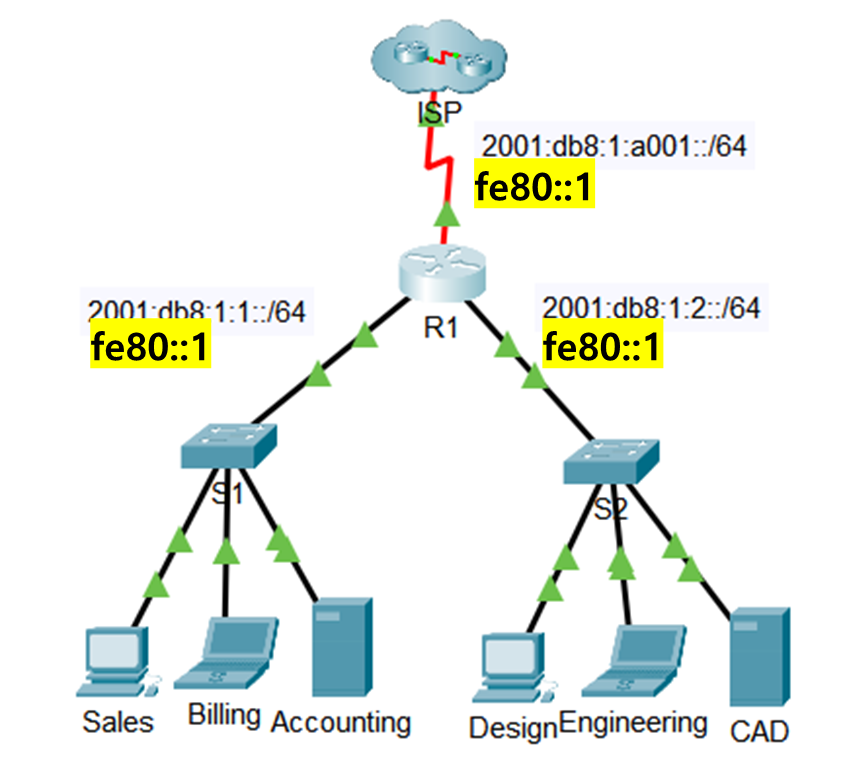

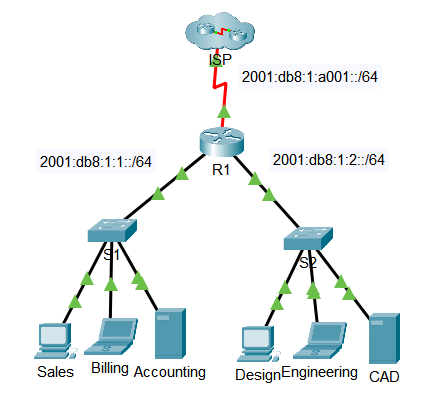

Topology

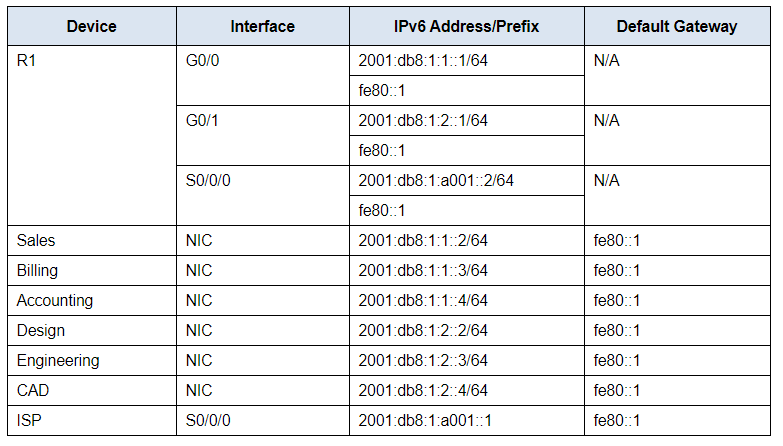

Address Table

Router Config

en
conf t
ipv6 unicast-routing

int gig0/0
ipv6 add 2001:db8:1:1::1/64
ipv6 add fe80::1 link-local
no shut
exit

int gig0/1
ipv6 add 2001:db8:1:2::1/64
ipv6 add fe80::1 link-local
no shut
exit

int serial 0/0
ipv6 add 2001:db8:1:a001::2/64
ipv6 add fe80::1 link-local
no shut
exit

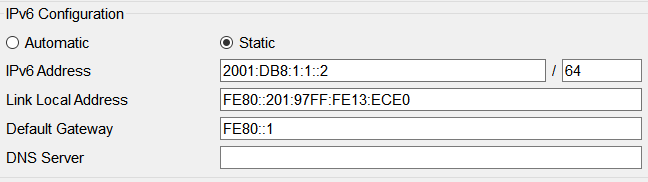

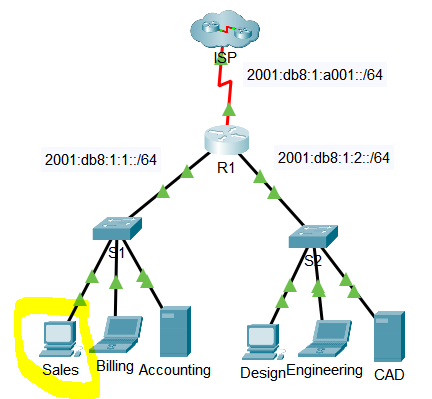

Host Config

Configuration for
IPv6 address
default gateway (Link-local Address of router )
Link local address ( based on MAC address )
