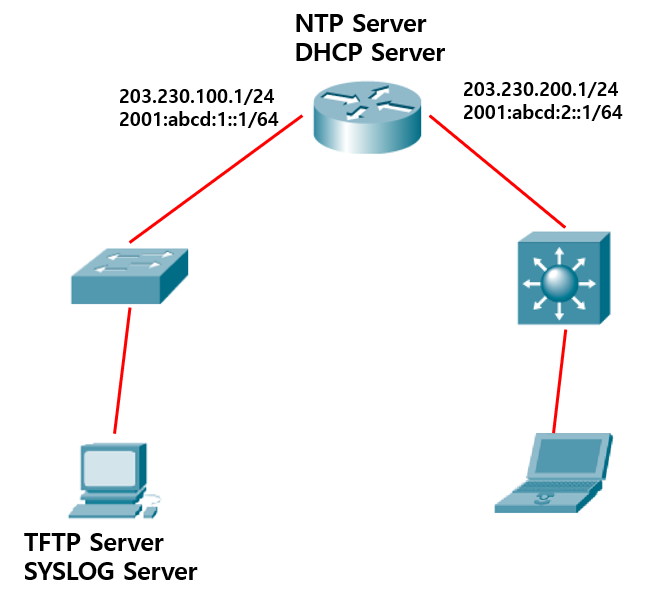

Topology

Objectives

• DHCP and IPv6 config
• SSH to router
• NTP Server
• SYSLOG Server and TFTP Server on PC

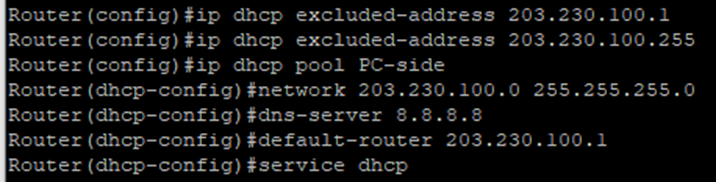

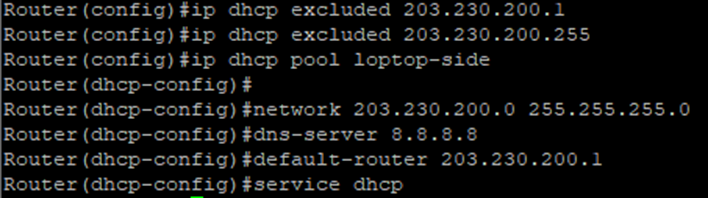

DHCP and IPv6 Config

gig0/0

Router

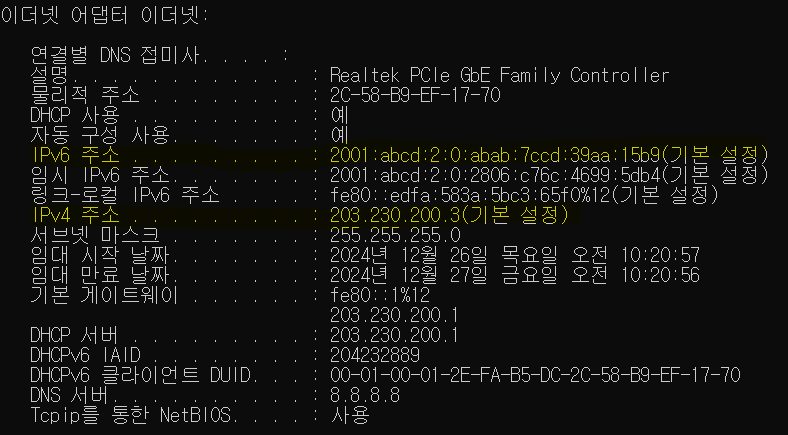

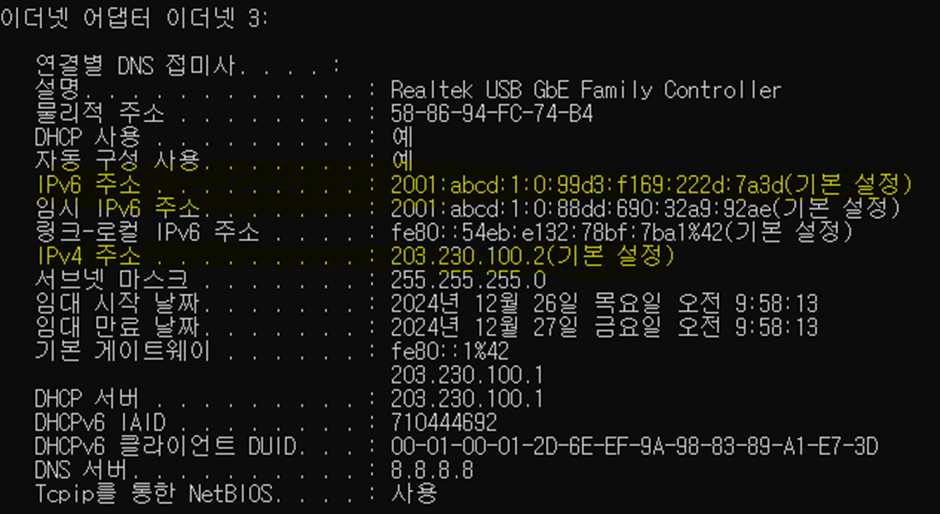

PC

gig0/1

Router

Laptop

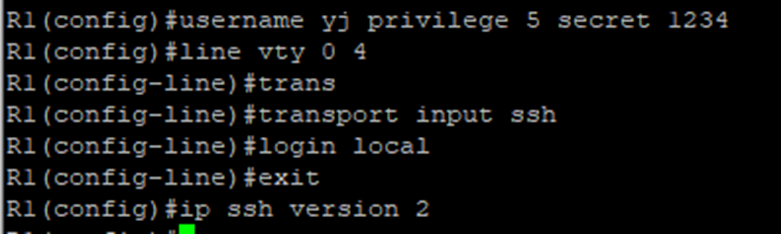

SSH to Router

Router

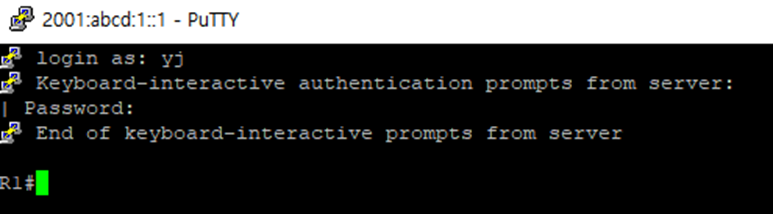

PC Connection via Putty

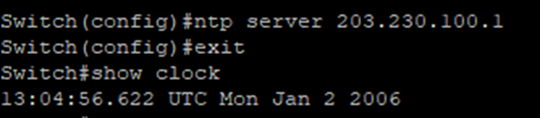

NTS Configuration

Router(Server)

Switch(Client)

SYSLOG Server

Log generated in Router

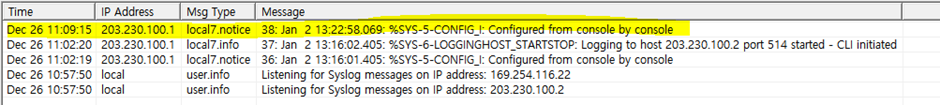

Log recorded in PC's SYSLOG Server

TFTP Server

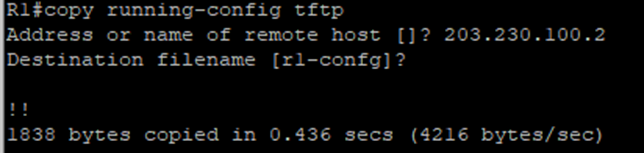

Copy Running-Config on TFTP

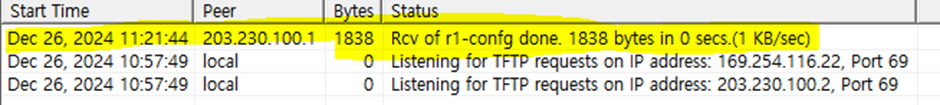

Receive Running-Config from Router
